Waterproof IP67 24V to 5V 12V 24V 6A 10A 50W 120W 144W AC DC Converter 8-28V Switching Power Supply for Outdoor LED Driver
Product Description
Waterproof IP67 24V to 5V 12V 24V 6A 10A 50W 120W 144W AC DC Converter 8-28V Switching Power Supply
⚡ DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories: Boost type, boost & buck type, and buck type. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load. PFM control is implemented when PWM/PFM converts to small load, and it is automatically converted to PWM control when heavy load occurs.
Professional Power Solutions: We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and battery chargers. We provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
We specialize in customizing DC-DC converters from 1V to 1000V DC and 1A to 1000A, with both isolated and non-isolated design options available.
📋Product Specifications
| Parameter | Details |
|---|---|
| Type | Non-Isolate |
| Model | IPS-ATD24S246 |
| Input Voltage | 20-28VAC |
| Output Voltage | 24VDC |
| Output Current | 6Amps |
| Output Power | 144Watts |
| Shell Material | Aluminum |

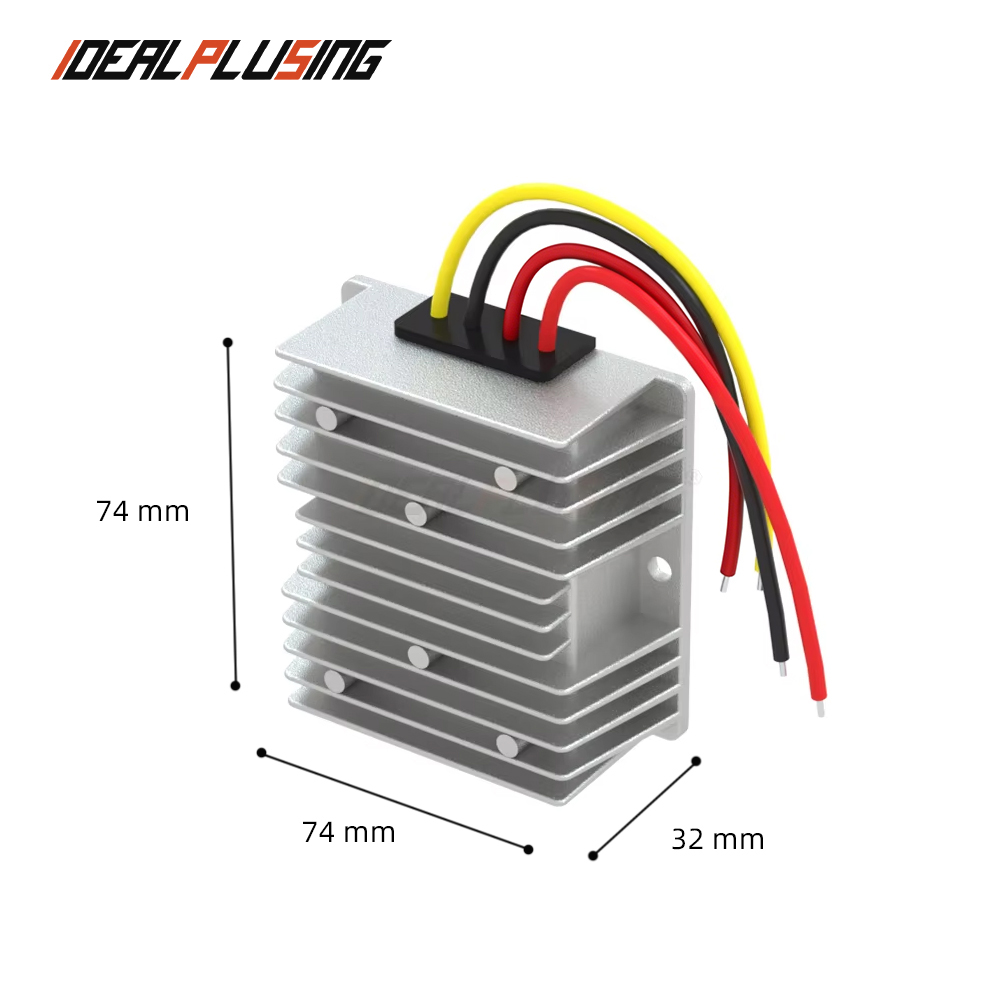

| Converter Size | 74*74*32MM |
| Net Weight | 300G |
| Waterproof Level | IP67 |
🚀Hot Selling Models
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210
🛠️Technical Features & Protection
✔Standard output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
✔High-power products feature over-temperature protection with triggers around 90°C.
✔Aluminum casing provides high-temperature resistance and reliability for outdoor applications.
✔For inductive loads (motors, coils), a power supply 3-5 times the rated load power is recommended.
✔Isolated products are recommended for precious loads to prevent direct high-voltage passage.
✔Isolated power supplies support negative voltage input and offer the highest safety levels.

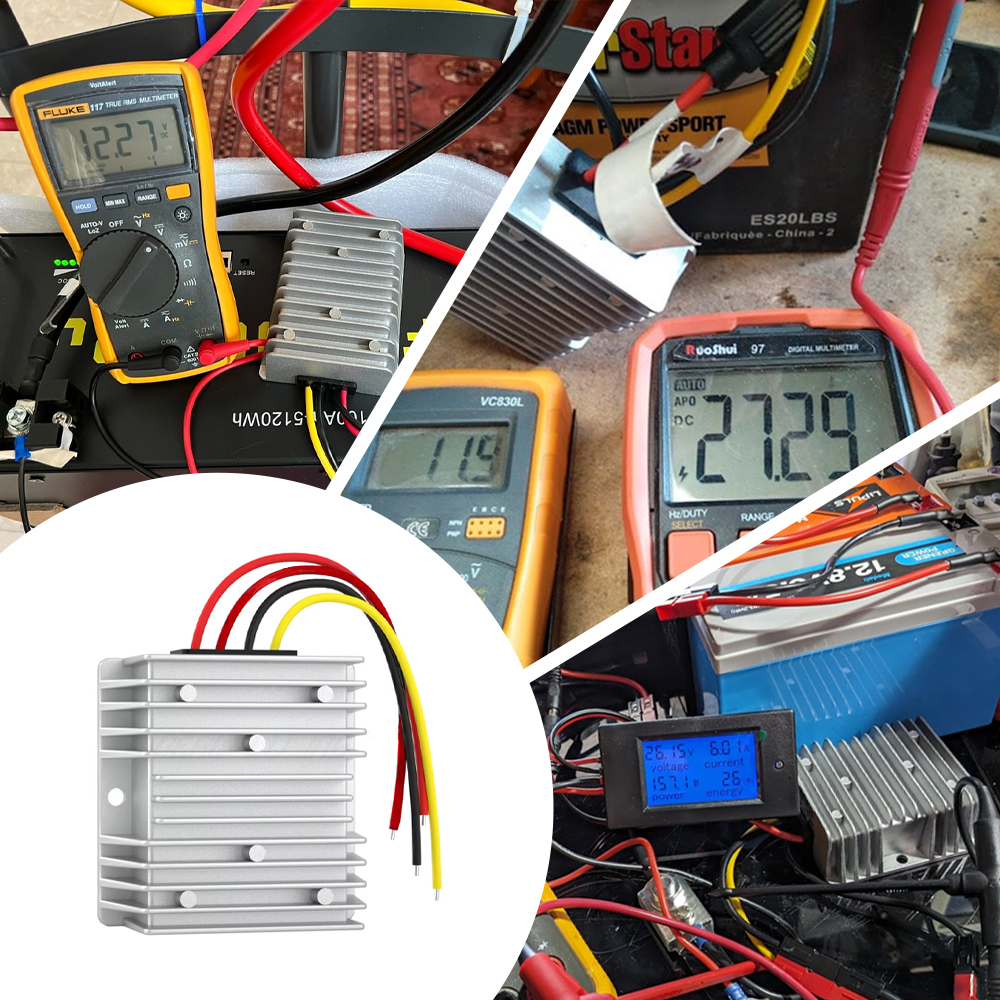

🖼️Product Showcase
❓Frequently Asked Questions
1. What is the waterproof rating of this converter?
The converter features an IP67 waterproof level, making it suitable for outdoor environments and resistant to dust and water immersion.
2. What protection functions are built into these power supplies?
Standard buck-boost products include output overcurrent protection, output short-circuit protection, input undervoltage protection, and chip overheating protection.
3. Can I customize the voltage and current for my specific needs?
Yes, we specialize in customization with ranges from 1V to 1000V DC and 1A to 1000A to meet specific industrial requirements.
4. Why should I choose an isolated power supply over a non-isolated one?
Isolated power supplies prevent high input voltage from passing directly to the output in case of failure, protecting precious loads and improving overall safety.
5. How should I choose a power supply for a motor load?
For inductive loads like motors, it is recommended to select a power supply that is 3 to 5 times the rated power of the load to handle starting currents.
6. What is the material used for the converter shell?
The shell is made of high-grade aluminum, which offers excellent heat dissipation and high-temperature resistance for industrial use.
