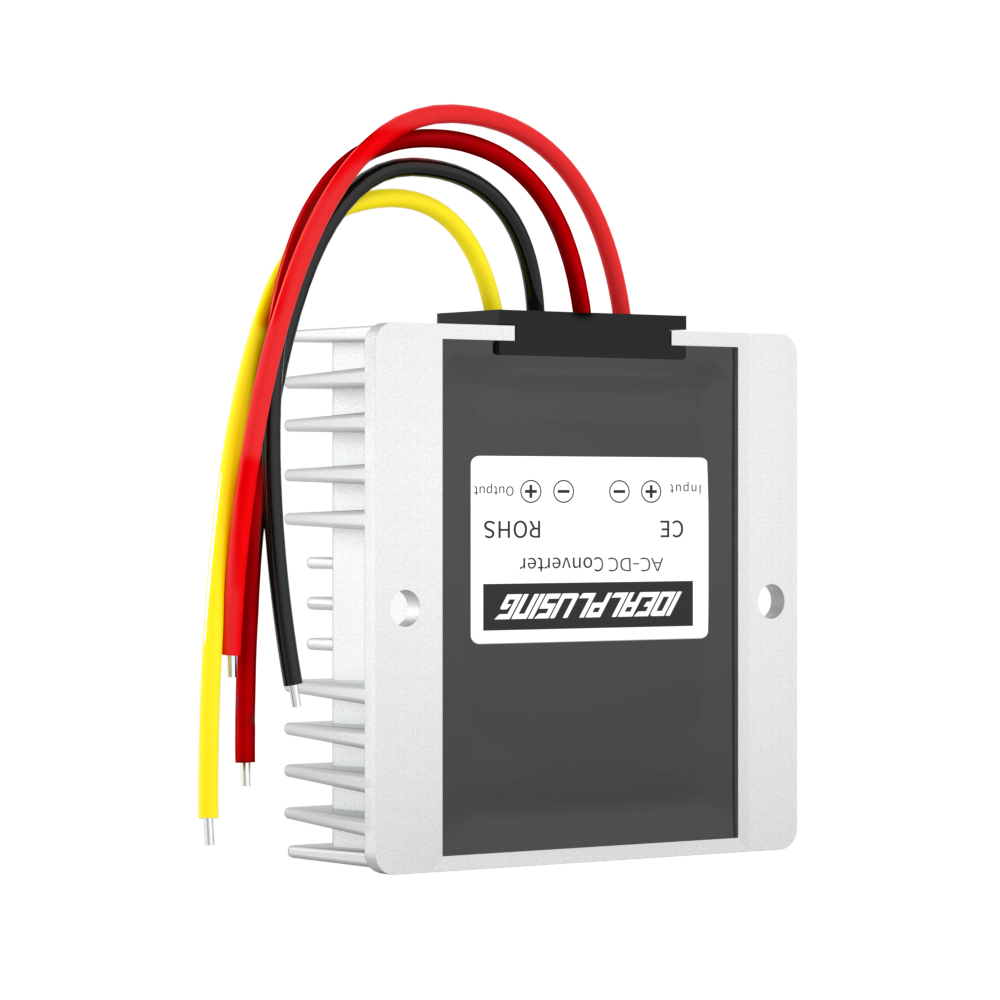

Single Phase 36V AC to DC Converter 5V 12V 24V 6A 10A 50W 120W 144W DIN Rail Mounted Power Supply for Telecom Backup Power 8-42V
Product Description
Single Phase 36V AC to DC Converter Features
A DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories: Boost type, boost & buck type, and buck type. Three kinds of control can be adopted according to the demand.
⚙️
Control Systems: PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load. PFM control is implemented when PWM/PFM converts to small load, and it is automatically converted to PWM control when heavy load occurs.
At present, DC-DC converters are widely used in mobile phones, MP3, digital cameras, portable media players and other products. It belongs to chopper circuit in the classification of circuit types.
Custom Power Solutions
We focus on the research and development of power supply modules to provide personalized, efficient, reliable and cost-effective solutions for all industries. We aim to provide customers with the right power supply solution and better quotation solutions with the right items.
We specialize in customizing DC-DC converters to meet specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A. We provide both isolated and non-isolated converter design options.
Technical Specifications
| IPS-ATD36S510 Model Parameters | |
|---|---|
| Type | Non-Isolate |
| Model | IPS-ATD36S510 |
| Input Voltage | 8-42VAC |
| Output Voltage | 5VDC |
| Output Current | 10Amps |
| Output Power | 50Watts |
| Shell Material | Aluminum |

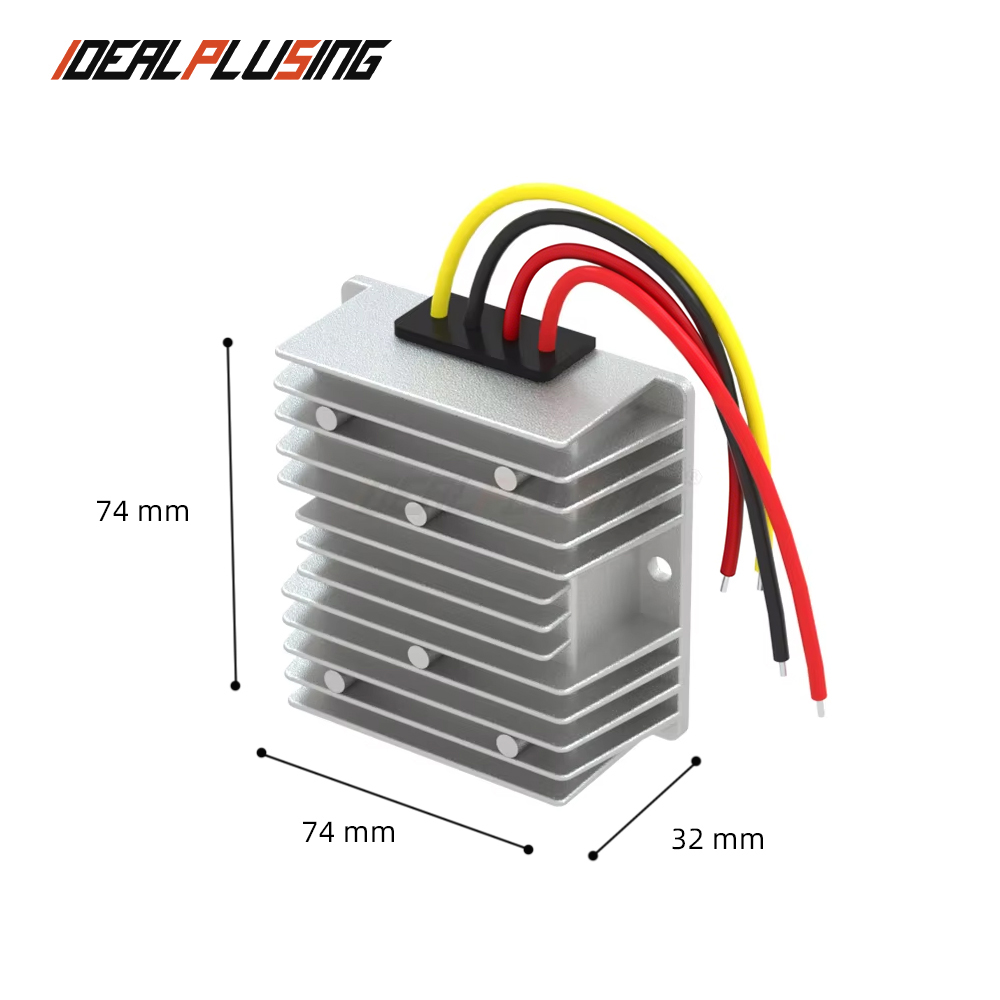

| Converter Size | 74*74*32MM |
| Net Weight | 300G |
| Waterproof Level | IP67 |
Non-Isolated Model Series
| Type | Model/Series | Input to Output | Output Current Options |
|---|---|---|---|
| DC-DC Boost | IPS-DTD12S24** | 12V to 24V | 1/2/3/4/5/8/10/12/15/20/25/30/40/50A |
| DC-DC Boost | IPS-DTD12S48** | 12V to 48V | 1/1.5/2/3/5/6/8/10/15/20A |
| DC-DC Buck | IPS-DTD24S12** | 24V to 12V | 1-100A Range |
| DC-DC Buck | IPS-DTD48S24** | 48V to 24V | 1-50A Range |
| Boost & Buck | IPS-DTD8~40S12* | 8~40V to 12V | 1/2/3/6/10/15/20/25A |
Hot Selling Models
IPS-DTD30-60S1210
Type: Non-Isolate
IPS-DTD20-100S122
Type: Non-Isolate
IPS-DTD15-40S1210
Type: Non-Isolate

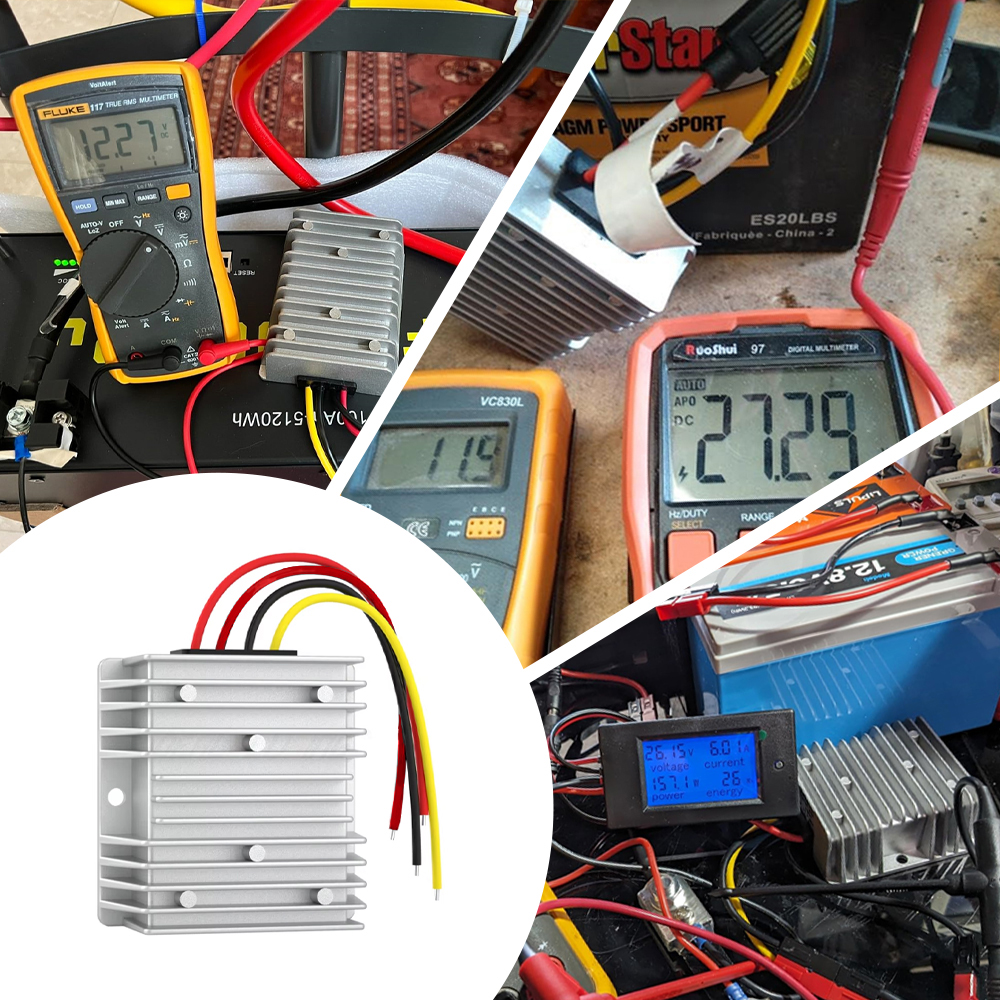

Product Showcase
Technical Description & Applications
- Standard protection includes output overcurrent, short-circuit, input undervoltage, and chip overheating.
- For step-up products, please add appropriate fuses at the input end to prevent large currents during short circuits.
- Gold-colored small aluminum casings are high-temperature resistant and reliable for outdoor use.
- For inductive loads (coils, magnetic valves) and motors, use a power supply 3-5 times the rated load power.
- Non-isolated buck power supplies carry a risk of direct high input voltage pass-through; isolated products are recommended for precious loads.
- Isolated products support negative voltage input; the negative poles of input and output must be used separately to maintain isolation.
- Isolated power supplies are the safest choice; over 90% of global power supplies, including mobile chargers, are isolated.
Frequently Asked Questions
Q: What are the main types of DC-DC converters available?
A: DC-DC converters are categorized into Boost (step-up), Buck (step-down), and Boost & Buck (step-up/step-down) types.
Q: What protection features are standard in your power supplies?
A: Most products include output overcurrent protection, short-circuit protection, input undervoltage protection, and overheating protection.
Q: Should I choose an isolated or non-isolated converter?
A: Isolated converters are recommended for high reliability and safety, especially when protecting expensive equipment from high input voltage pass-through.
Q: How do I select a power supply for motor or inductive loads?
A: For inductive loads like motors or magnetic valves, it is recommended to use a power supply that is 3-5 times the rated power of the load.
Q: Can these converters be used in outdoor environments?
A: Yes, our high-temperature resistant aluminum casing products are specifically designed for high-demand and outdoor applications.
Q: Are the output voltages adjustable on isolated power supplies?
A: Isolated power supplies have more limitations on input range and smaller adjustable output ranges compared to non-isolated models due to their complex transformer circuit design.
