Ultra Compact DIN Rail AC DC Converter 36V to 5V 12V 24V 3A 15W 36W 72W Industrial Switching Power Supply for PLC Control System
Product Description
⚡ Ultra Compact Industrial Power Solutions
Features
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories: Boost type, boost & buck type, and buck type. Three kinds of control can be adopted according to the demand. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load. PFM control is implemented when PWM/PFM converts to small load, and it is automatically converted to PWM control when heavy load occurs. At present, DC-DC converters are widely used in mobile phones, MP3, digital cameras, portable media players and other products.
📋 Product Specifications
Focusing on the research, development, and service of DC to DC power supply modules and AC to DC rectifier modules, we provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries. We specialize in customizing DC-DC converters to meet specific requirements, with input and output voltages ranging from 1V to 1000V DC and 1A to 1000A. Both isolated and non-isolated options are available.

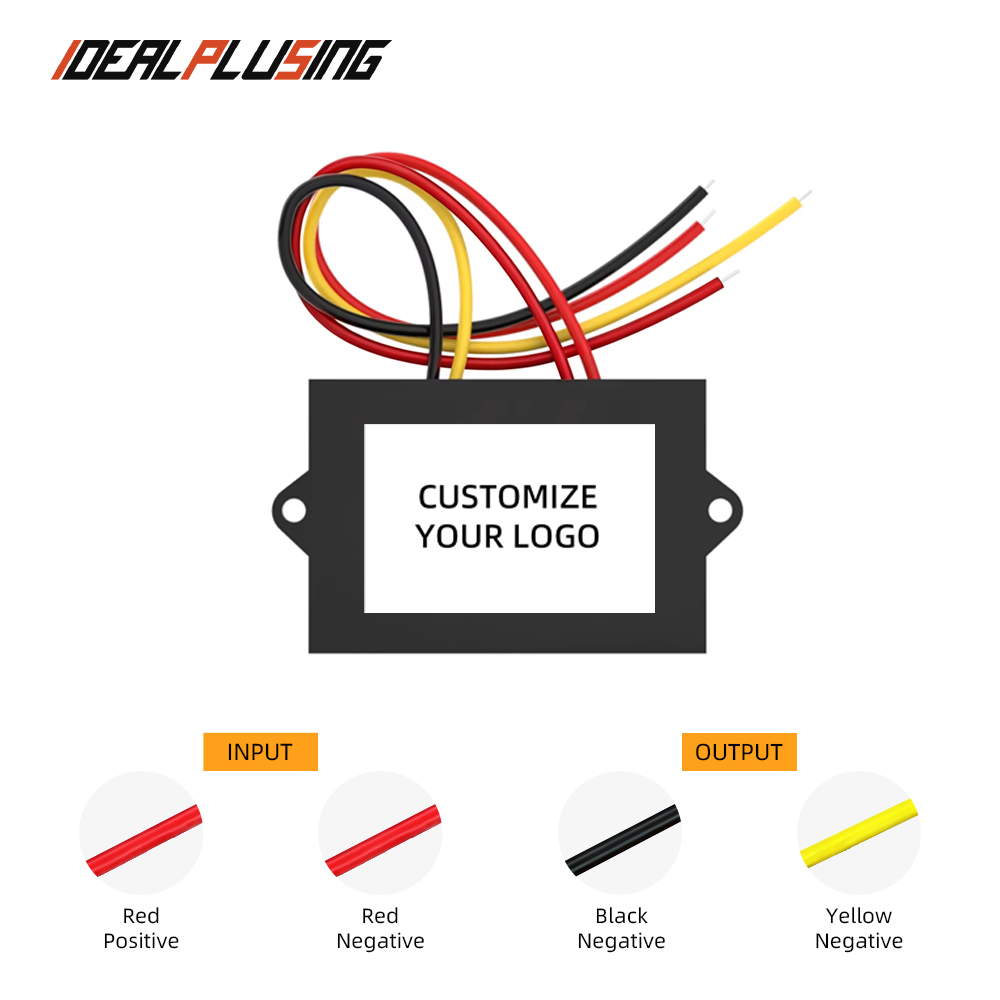

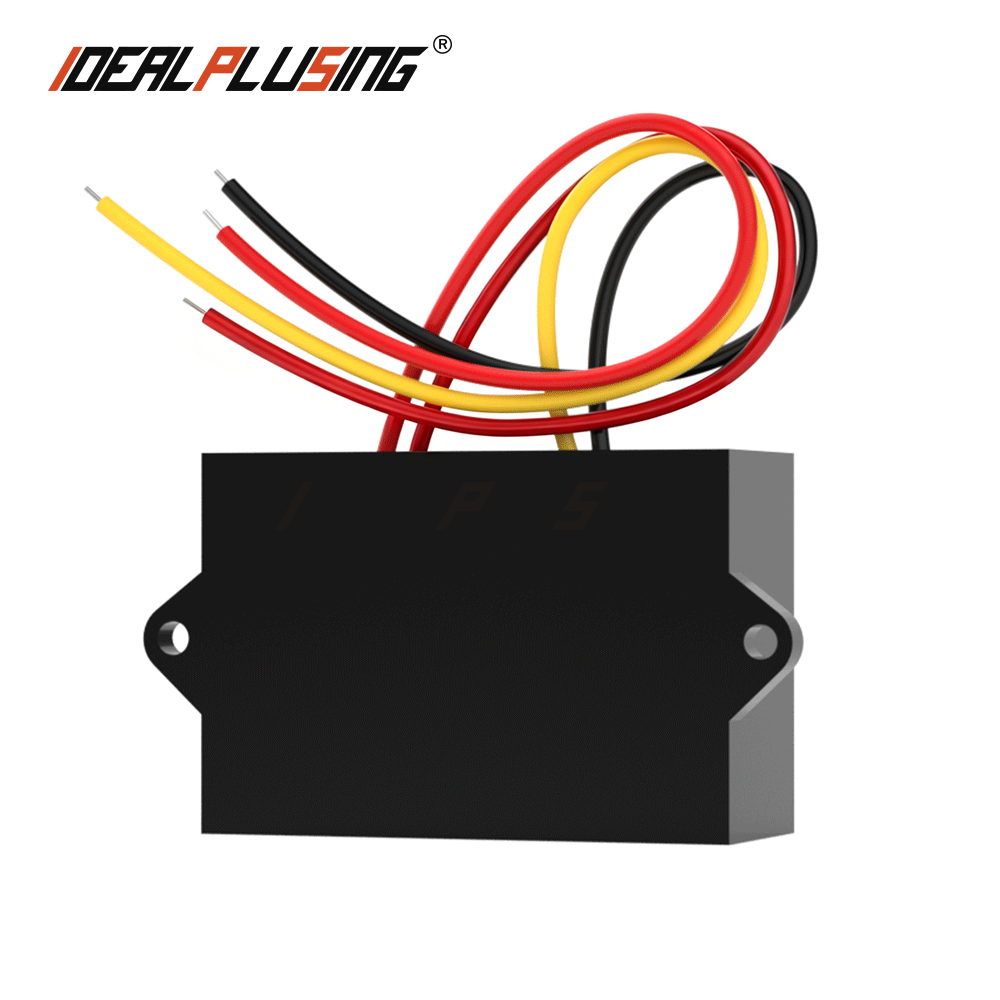

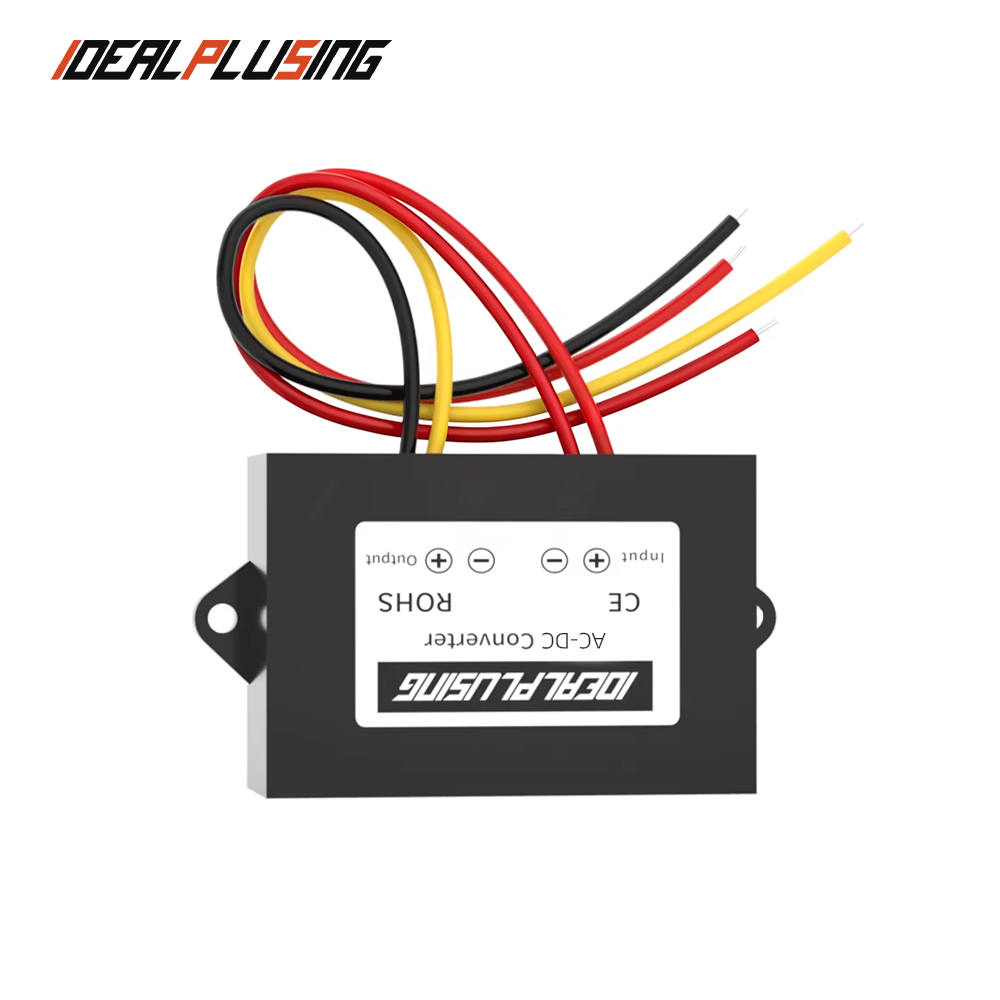

| Parameter | Details |
|---|---|
| Type | Non-Isolate |
| Model | IPS-ATD36S53 |
| Input Voltage | 8-42VAC |
| Output Voltage | 5VDC |
| Output Current | 3Amps |
| Output Power | 15Watts |
| Shell Material | Plastic |

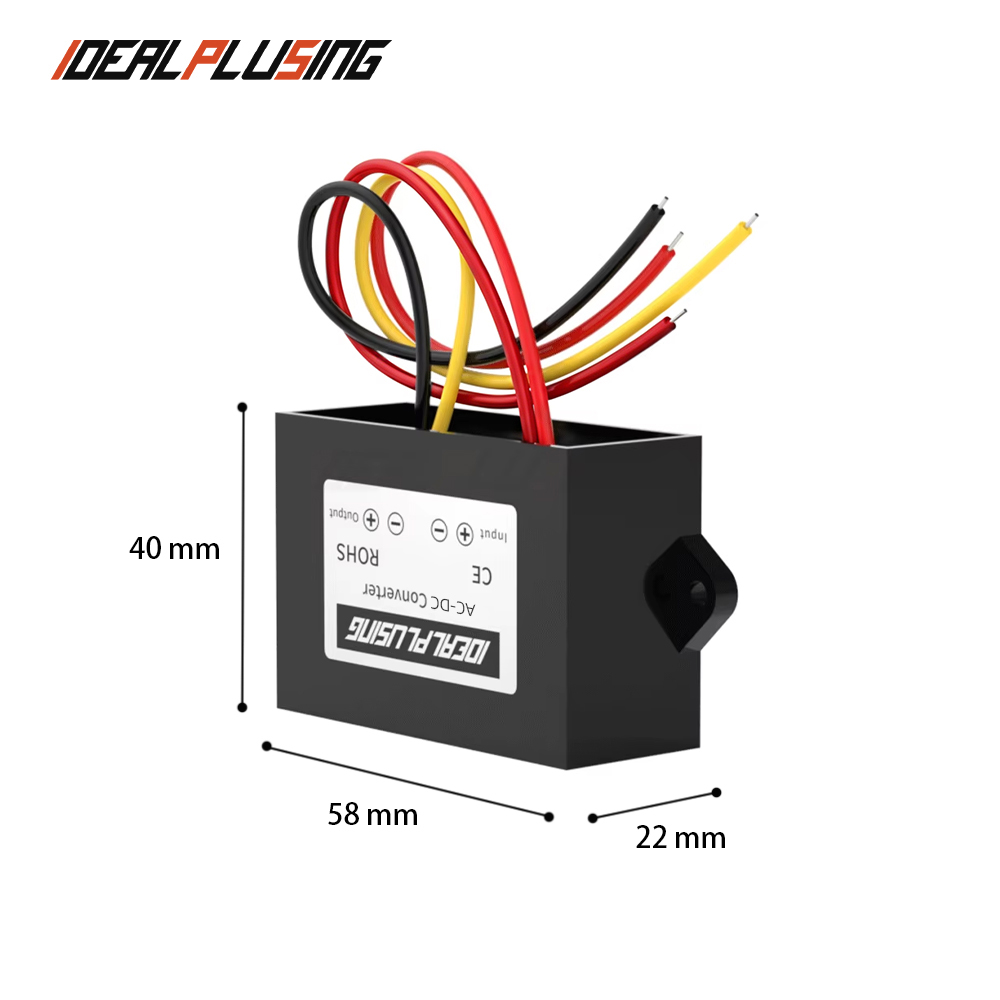

| Size | 58*40*22MM |
| Net Weight | 100G |
| Waterproof Level | IP67 |
📊 Comprehensive Model List
Non-Isolated Series
| Type | Series | Input to Output | Output Current Options |
|---|---|---|---|
| DC-DC Boost | IPS-DTD12S24** | 12V to 24V | 1/2/3/4/5/8/10/12/15/20/25/30/40/50A |
| DC-DC Boost | IPS-DTD12S48** | 12V to 48V | 1/1.5/2/3/5/6/8/10/15/20A |
| DC-DC Buck | IPS-DTD24S12** | 24V to 12V | 1A to 100A |
| DC-DC Buck | IPS-DTD48S24** | 48V to 24V | 1A to 50A |
| Boost & Buck | IPS-DTD8~40S12* | 8~40V to 12V | 1/2/3/6/10/15/20/25A |
Isolated Series
| Type | Series | Input Voltage | Output Current Options |
|---|---|---|---|
| Step Down | IPS-DTDYI24S12* | 9-36V to 12V | 1/2/3/4/5/10/15/20A |
| Step Down | IPS-DTDYI72S24* | 50-100V to 24V | 5/8/10/15/18/20/24A |
| Step Down | IPS-DTDI48-120S12* | 48V-120V to 12V | 5A to 125A |
📸 Product Gallery
⚙️ Technical Application Guidelines
01All buck-boost products include standard output overcurrent, short-circuit, and undervoltage protection. High-power units feature overheating protection (~90°C).
02Step-up series products lack native short-circuit protection due to circuit structure; please add external fuses at the input.
03For inductive loads (motors, magnetic valves), we recommend power supplies with 3-5 times the rated load power.
04Isolated products are essential when safety is a priority, as they prevent high input voltage from passing to the output in case of failure.
05Negative voltage input is supported by isolated models (0V line to red, negative voltage to black).
06For precious loads, isolated buck-boost series are strongly recommended over non-isolated versions.
❓ Frequently Asked Questions
Q1: What is the difference between PWM and PFM control?
PWM (Pulse Width Modulation) provides high efficiency and stable voltage with low noise. PFM (Pulse Frequency Modulation) is optimized for low power consumption during long-term use under light loads. Our converters automatically switch between the two based on load requirements.
Q2: Should I choose an isolated or non-isolated converter?
Isolated converters are safer for precious loads as they prevent high input voltage from reaching the output. Non-isolated converters are typically more compact and efficient but are recommended for less sensitive applications where common grounding is acceptable.
Q3: What protections are built into these industrial power supplies?
Standard protections include output overcurrent, short-circuit, input undervoltage, and overheating protection. For high-power units, thermal protection is built into the casing or circuit board.
Q4: How do I select a power supply for motor applications?
For inductive loads like motors or magnetic valves, you should select a power supply with a rated power that is 3 to 5 times greater than the rated power of the load to handle start-up surges.
Q5: Are these converters waterproof?
Yes, many models in our industrial series, such as the IPS-ATD36S53, feature an IP67 waterproof level, making them suitable for outdoor and high-humidity environments.
Q6: Can these units be used for battery charging?
We offer specialized DC-DC battery chargers (IPS-DTDYC series) designed for Lithium (LifePO4) and Lead-Acid batteries with specific charging profiles.
