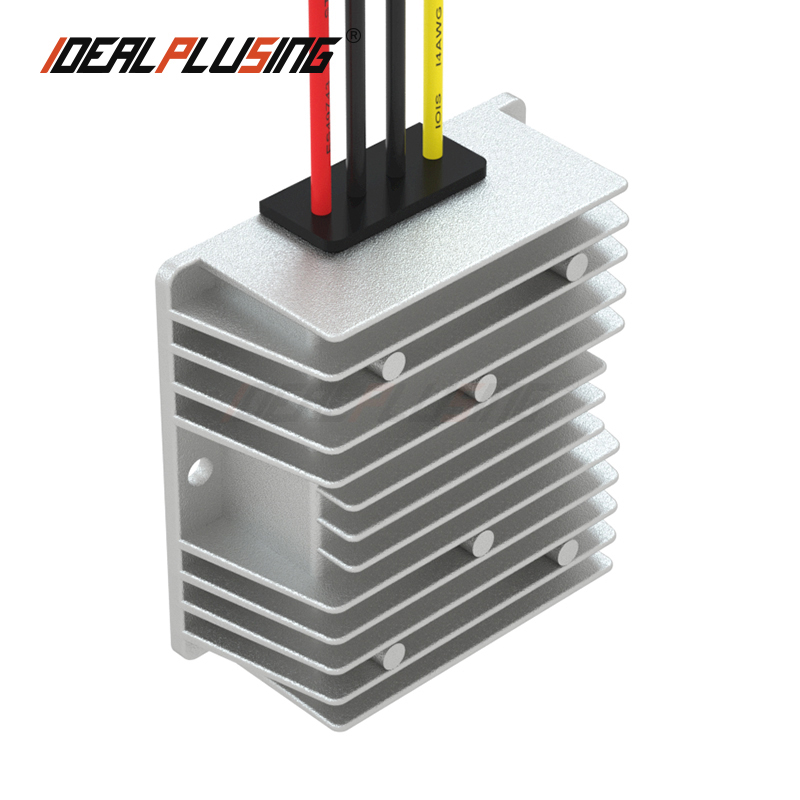

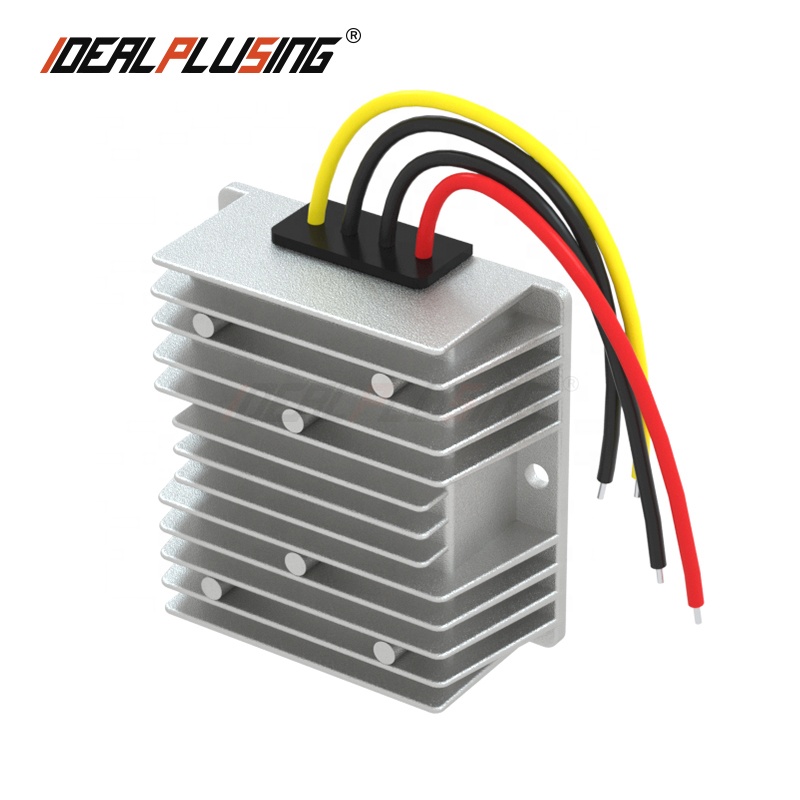

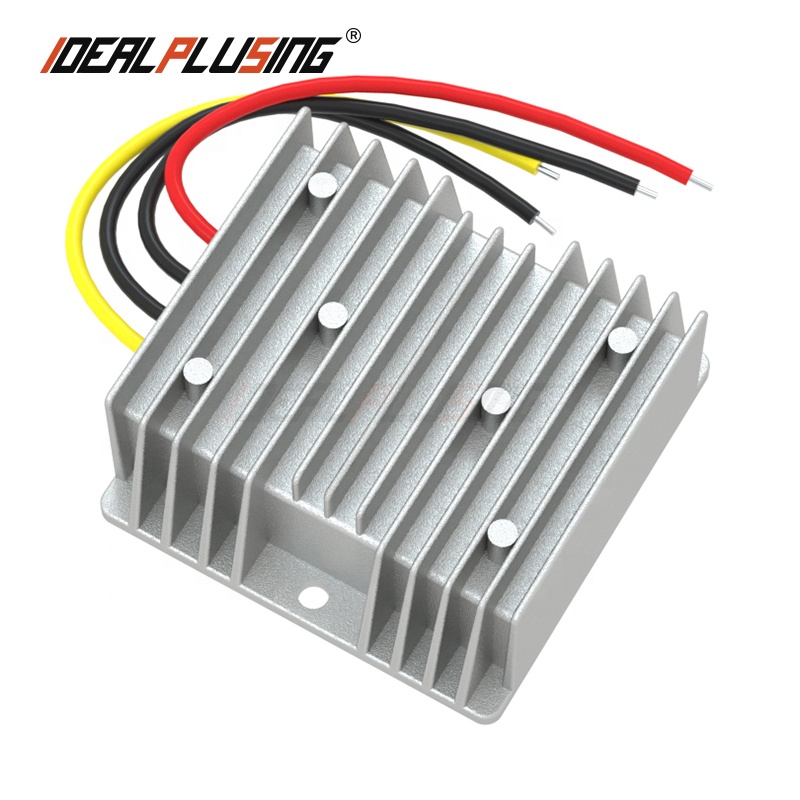

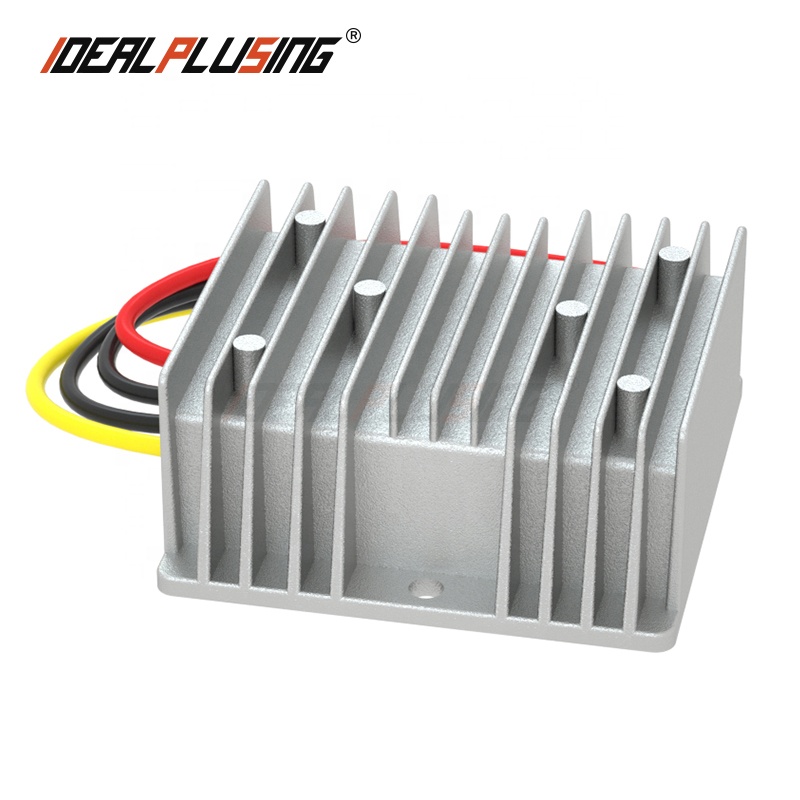

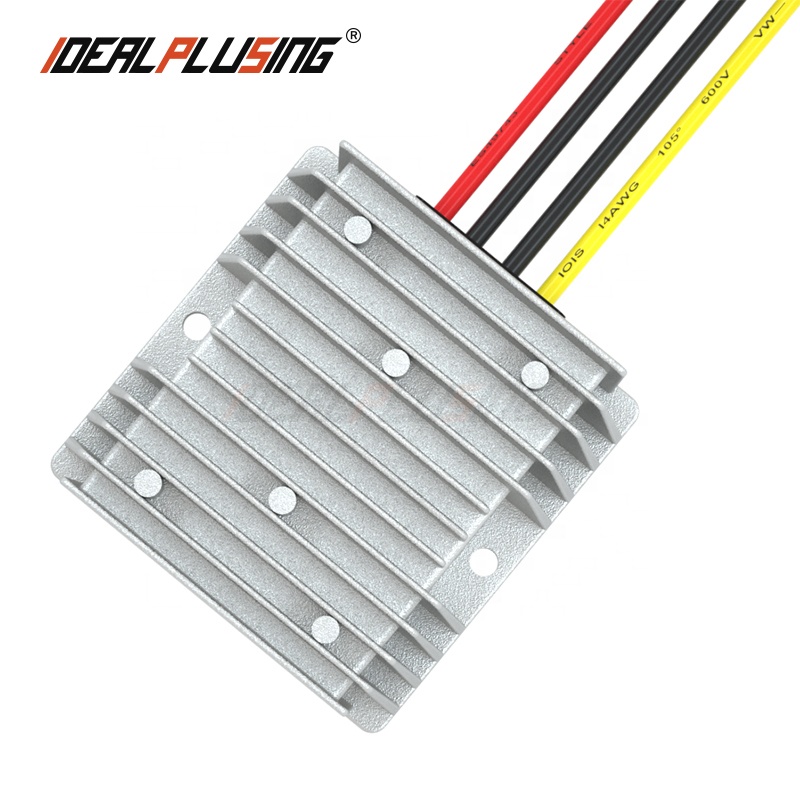

New Product 24vac to 24vdc 7.5a 180w Ac to Dc Power Supply Converter
Product Description
New product 24vdc to 24vdc 7.5a 180w ac to dc power supply converter
24v 7.5a 180w ac to dc power supply
100% full power & stable current output.
100% Imported components.
Wide input voltage from 22~28 VAC.
100% waterproof & anti-shock protection, Ultra compact size.
Industry grade conversion efficiency up to 96%.
Certificates: CE/RoHS.
Waterproof level: IP68.
Plastic shell, epoxy potting, Cooling by free air convection.
Protections: Over-current, Over-voltage, Over-temperature.
Over-load and Short-circuit Auto-recovery.
Non-Isolated Module with 100,000 hours lifetime.
Constant Voltage Design.
| General Information | |
| Product Name | 24v 7.5a 180w ac to dc power supply |
| Type | Non-Isolate |
| Model | IPS-ATD24S247.5 |
| Input Parameters | |
| Input rated voltage | 24VAC |
| Input voltage range | 22~28VAC |
| Output Parameters | |
| Conversion Efficiency | 96% |
| Output voltage | 24VDC |
| Output current | 7.5A |
| Output rated power | 180W |
| Protection & Environment | |
| Ripple (full load test) | < 50mV |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP65 |

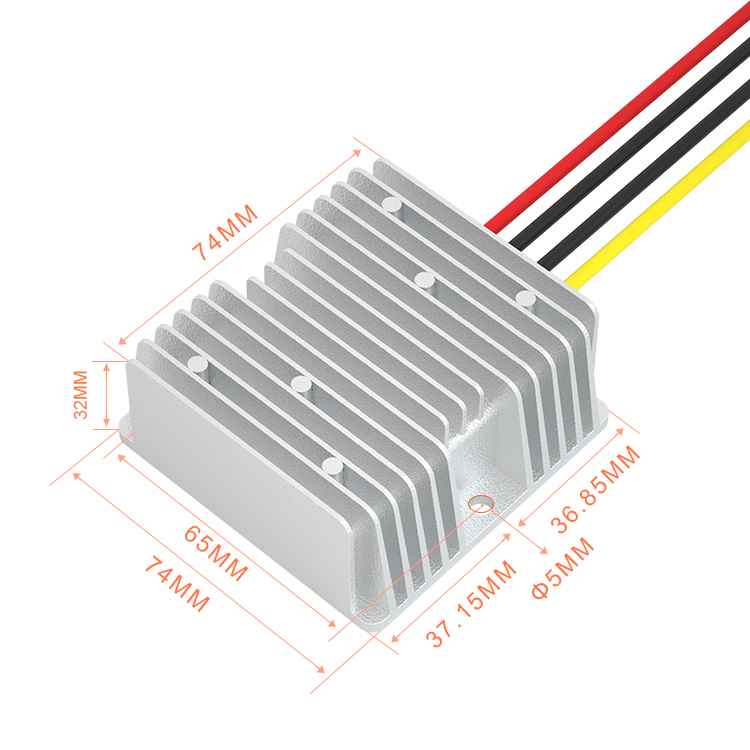

| Machine size | 74*74*32(MM) |
| Type | Model/ Series | Voltage Conversion | Output Current |
|---|---|---|---|
| Boost DC-DC | IPS-DTD5S12** | 5v to 12v | 1A - 10A |
| IPS-DTD12S24** | 12v to 24v | 1A - 40A | |
| IPS-DTD24S48** | 24v to 48v | 3A - 42A | |
| Buck DC-DC | IPS-DTD24S12** | 24v to 12v | 1A - 85A |
| IPS-DTD48S24** | 48v to 24v | 5A - 20A | |
| IPS-DTD60S12** | 60v to 12v | 5A - 20A | |
| Auto Buck-Boost | IPS-DTD24S24 | 24v to 24v | 1A - 10A |
Can I order a sample for testing?
Yes, sample orders are welcome to test and verify the quality for our first cooperation.
What is the typical lead time?
Most models are in stock. Sample lead time is typically 1-3 working days after payment receipt.
Is there a Minimum Order Quantity (MOQ)?
We offer a low MOQ; even 5 pieces for sample checking are available.
How are the goods shipped and how long does it take?
We usually ship via DHL, UPS, FedEx, or TNT, taking 3-5 days. Air and sea shipping are also available options.
Do you offer a warranty for your products?
Yes, we provide a 1-year warranty for all our power supply products.
Is OEM or logo printing supported?
Yes, it is acceptable to print the buyer's logo. Please inform us formally and confirm the design based on our sample before production.
