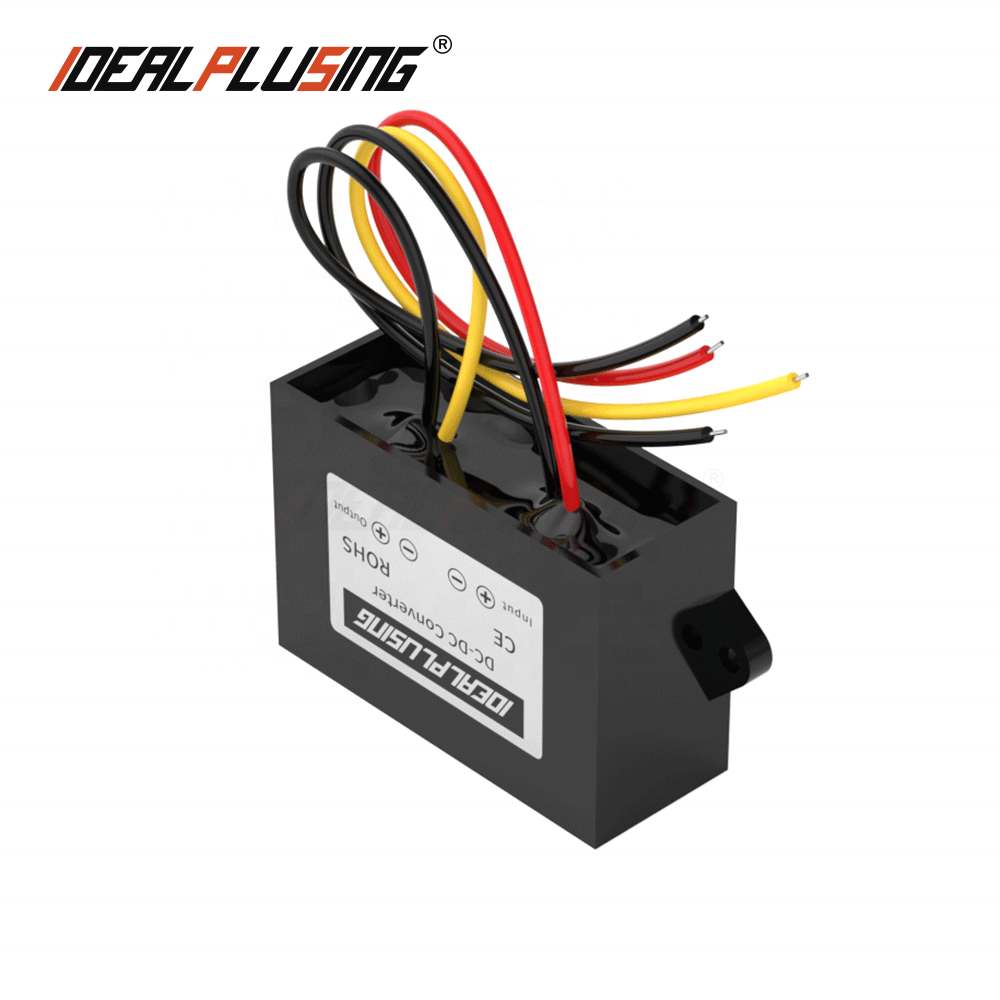

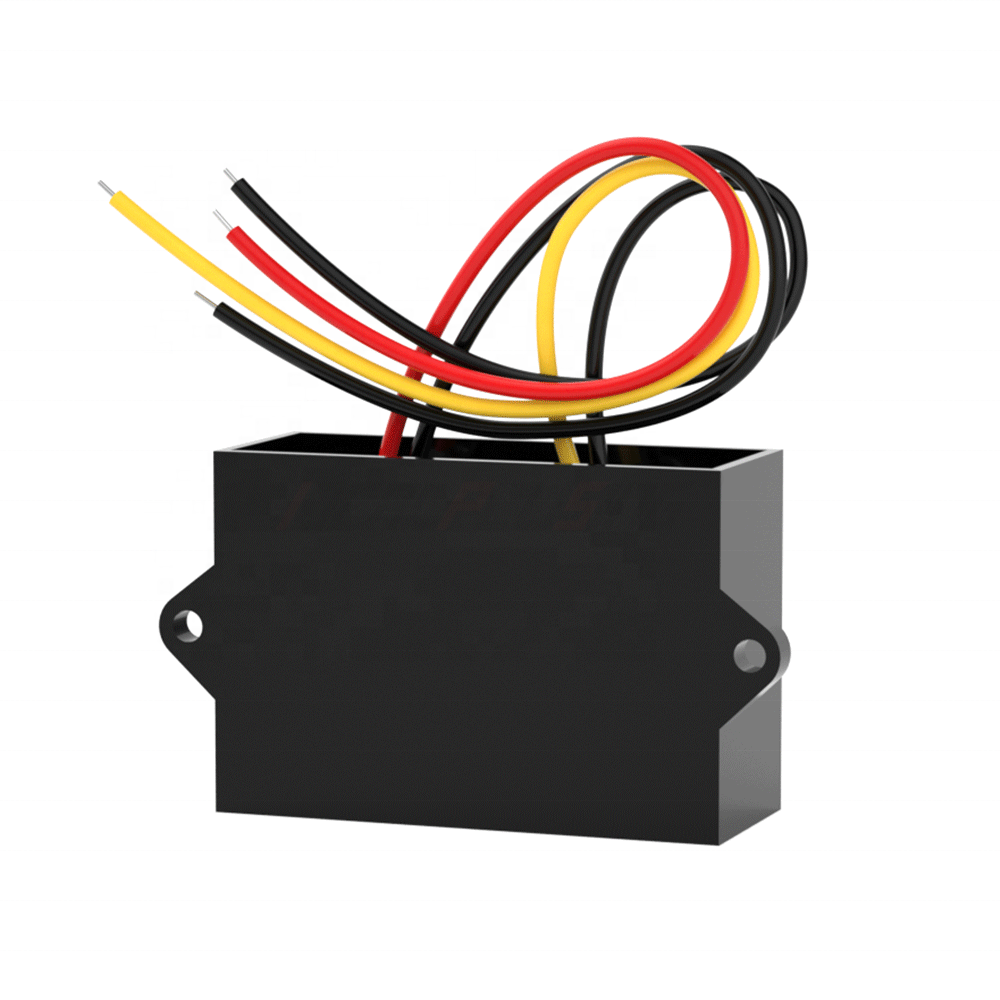

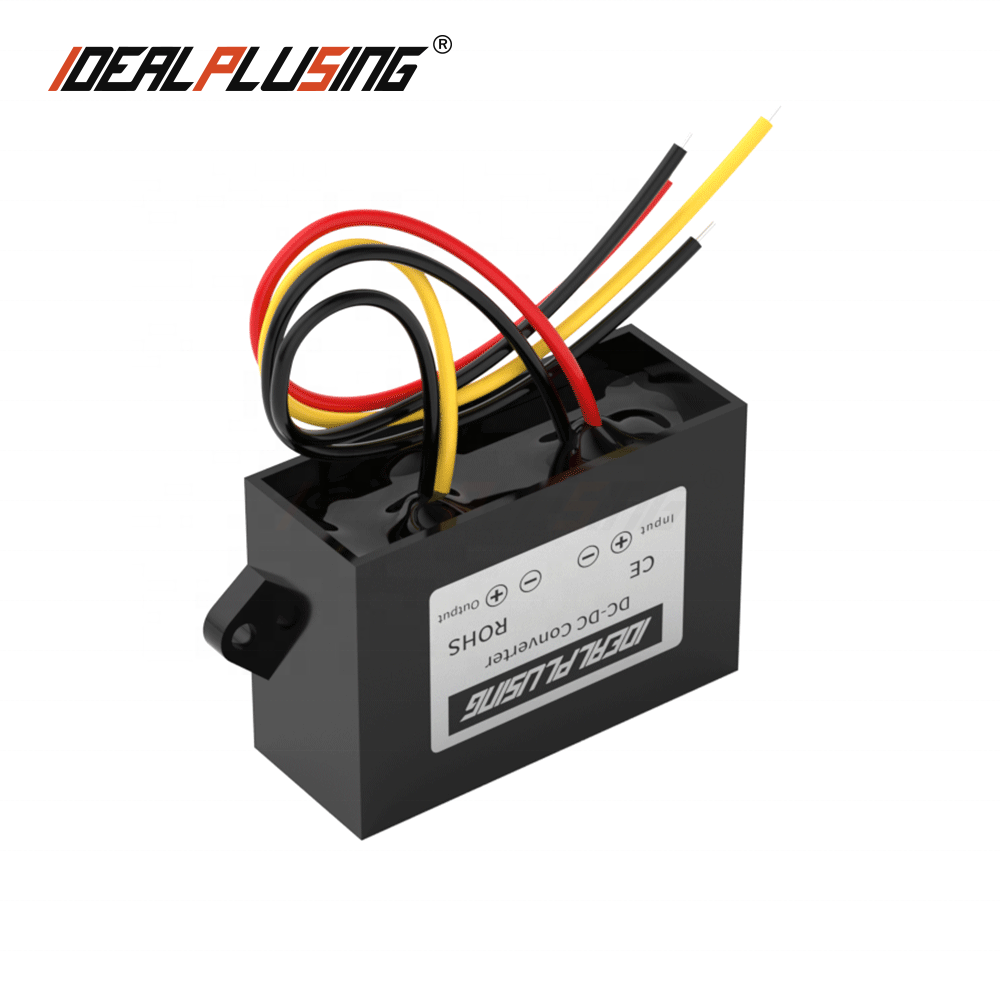

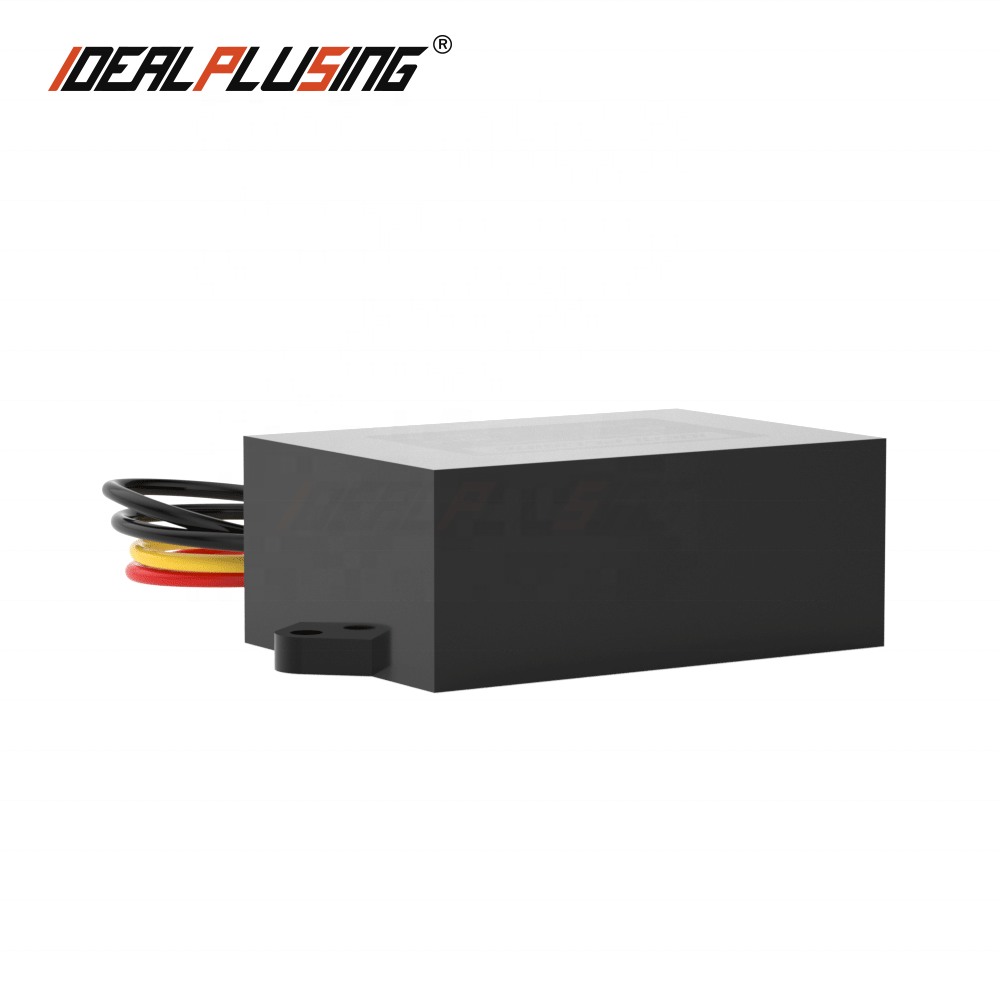

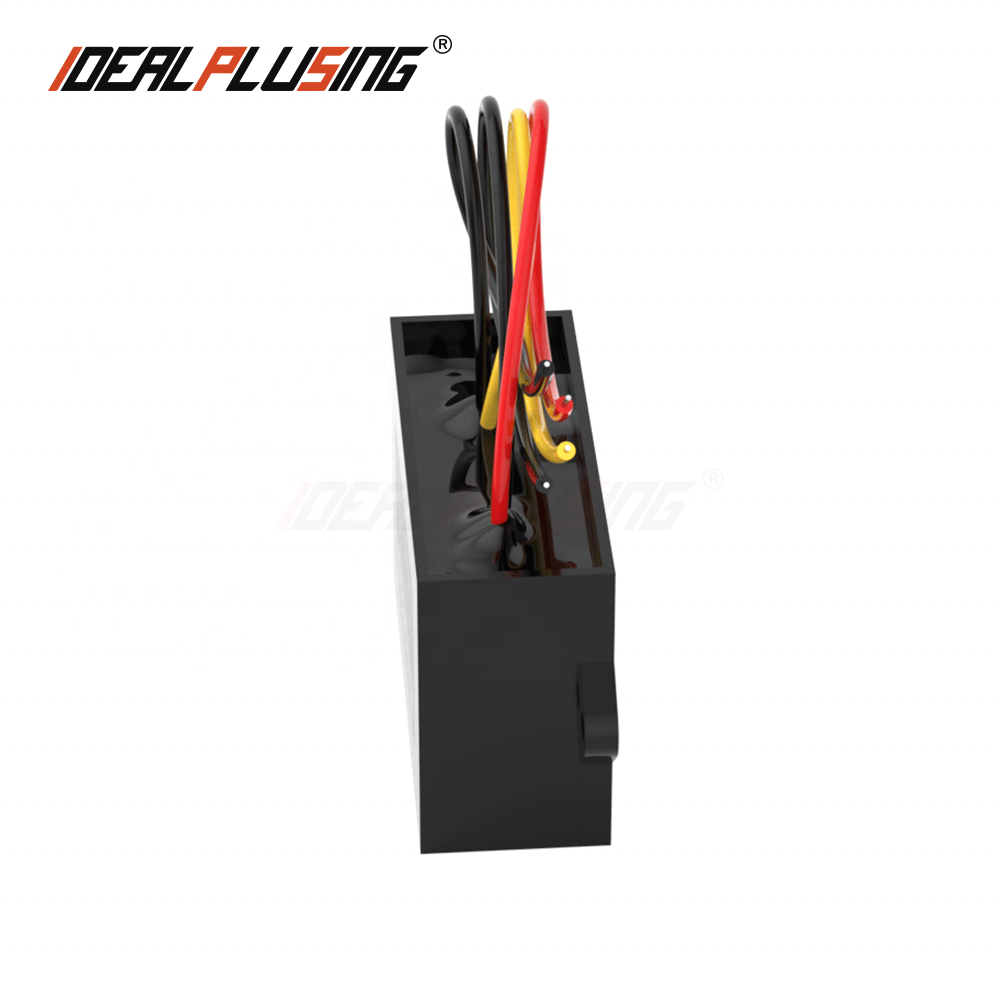

Factory Price Hot-sale 36vac to 24vdc Power Converter 2a 48w with Multiple protection Functions
Product Description
36VAC to 24VDC 2A 48W AC DC Converter
⚡ Features
✔100% full power & stable current output
✔100% Imported components
✔Wide input voltage from 12-42VAC
✔100% waterproof & anti-shock protection (IP68)
✔Industry grade efficiency up to 96%
✔Certificates: CE/RoHS
✔Plastic shell, epoxy potting, Cooling by free air convection
✔Protections: Over-current, Over-voltage, Over-temperature
✔Over-load and Short-circuit Auto-recovery
✔Non-Isolated Module design
✔Lifetime up to 100,000 hours
✔Constant Voltage Design
📋 Specification
| Product Name | 36vac to 24vdc ac dc converter |
| Model | IPS-ATD36S242 |
| Input rated voltage | 36VAC |
| Input voltage range | 12-42VAC |
| Conversion Efficiency | 96% |
| Output voltage | 24VDC |
| Output current | 2Amps |
| Output rated power | 48Watts |
| Output peak power | 125% |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 50mV |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP 68 |
| Machine size | 58*40*22MM |
| Cooling way | Free air convection |
| Certifications | CE, RoHS |
🖼️ Product Gallery
🛠️ Customize Range
| Type | Model/ Series | Voltage Convert (In to Out) | Output Current |
|---|---|---|---|
| AC-DC Converter | IPS-ATD24S12** | 24vac to 12vdc | 1/2/3/4/5/8/10A |
| IPS-ATD24S5** | 24vac to 5vdc | 1/2/3/4/5/8/10A | |
| IPS-ATD24S24** | 24vac to 24vdc | 1/1.5/2/5/6A | |
| IPS-ATD12S12** | 12vac to 12vdc | 1/2/3/4/5/8/10A | |
| IPS-ATD36S5** | 36vac to 5vdc | 1/2/3A | |
| IPS-ATD36S12** | 36vac to 12vdc | 1/2/3A | |
| IPS-ATD36S24** | 36vac to 24vdc | 1/2A |
🏭 Factory Display
🔍 Related Solutions
⚙️ Production Process
Frequently Asked Questions
Can I order samples of the AC-DC converter?
Yes, sample orders are acceptable to test and check the quality for the first cooperation.
What is the typical lead time?
Most models are in stock. Sample lead time after receiving payment is typically 1-3 working days.
Is there a Minimum Order Quantity (MOQ)?
We offer low MOQ, with 10 pieces available for sample checking.
How are the goods shipped and how long does it take?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping options are also available.
What is the warranty period for these products?
We offer a 1-year warranty for all power supply products.
Can buyer logos be printed on the products?
Yes, we can accommodate logo printing. Please inform us formally and confirm the design based on our sample before production.
