20kHz-40kHz 4000W Aluminum Ac to Ac Power Transformer Ac Power Supply
Product Description
Product Description

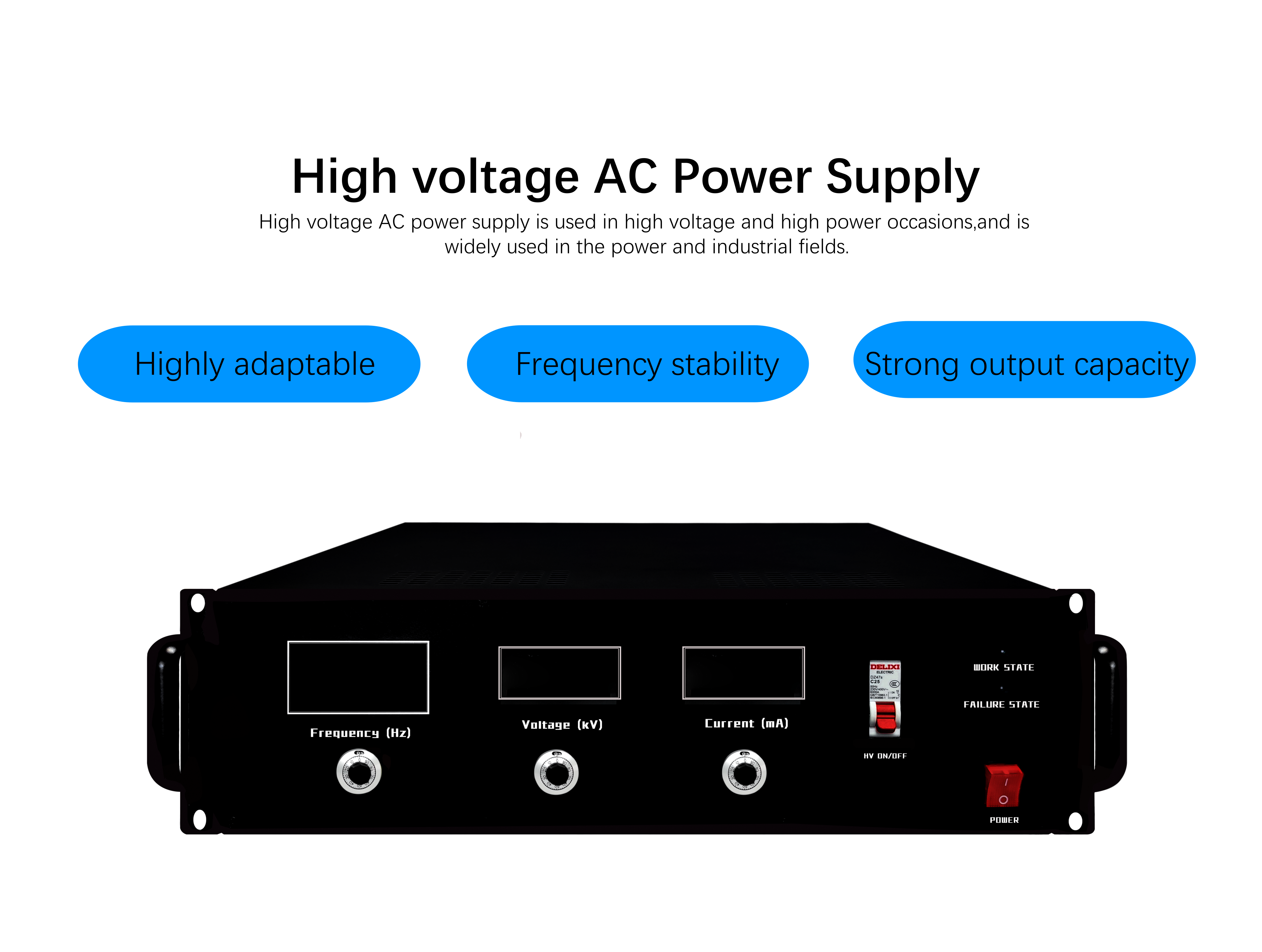

High Voltage AC Power Supply (10kHz-50kHz, 4000W, 0-400mA)
Specializing in customizing high voltage AC power supplies to meet your specific requirements. With customizable options for various AC power supply architectures, our offerings range up to 4000W.
| Model NO. | IPS-ATDJ10-400mA | Voltage Regulating Mode | Customize |
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Frequency Range | 10kHz - 50kHz |
| Transport Package | Carton/Wooden Box | Specification | W443*D503*H133 (MM) |
| Origin | China | - | - |
Specification
| Parameter | Details |
|---|---|
| Model | IPS-ATAJ10-400mA |
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-400mA |
| Output Peak Power | 4000W |
| Output Frequency | 20kHz-40kHz (AF) |
| Waveform | Sine Wave |
| Center Frequency | ±5% |
| Voltage Regulation | Standard Value 3-5% |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Temperature Coefficient | 100 ppm Per Degree Celsius |
| Ambient Temperature | -25~+55ºC |
| Slope | >45° |
| Use Environment | No Conductive, No Corrosive Metal Liquid, No Condensation |
| Case Material | Aluminum |
| Power Supply Case Size | W443*D503*H133 (MM) |
| Weight | 16.55 KG |
Product Introduction
The high voltage AC power supply is a rack-mounted high voltage power supply designed primarily for DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, corona equipment matching, and other related fields. The power supply is simple to operate, easy to install, features a complete protection circuit, and is suitable for harsh working environments.
Typical Applications
DBD dielectric barrier discharge, sliding arc experiments, electrostatic spinning, ozone generators, cable aging tests, cable leakage tests, and similar applications.
Customization Services
We specialize in customizing products according to different usage scenarios and actual loads. Our professional engineering team can design optimized plans tailored to your specific application requirements.

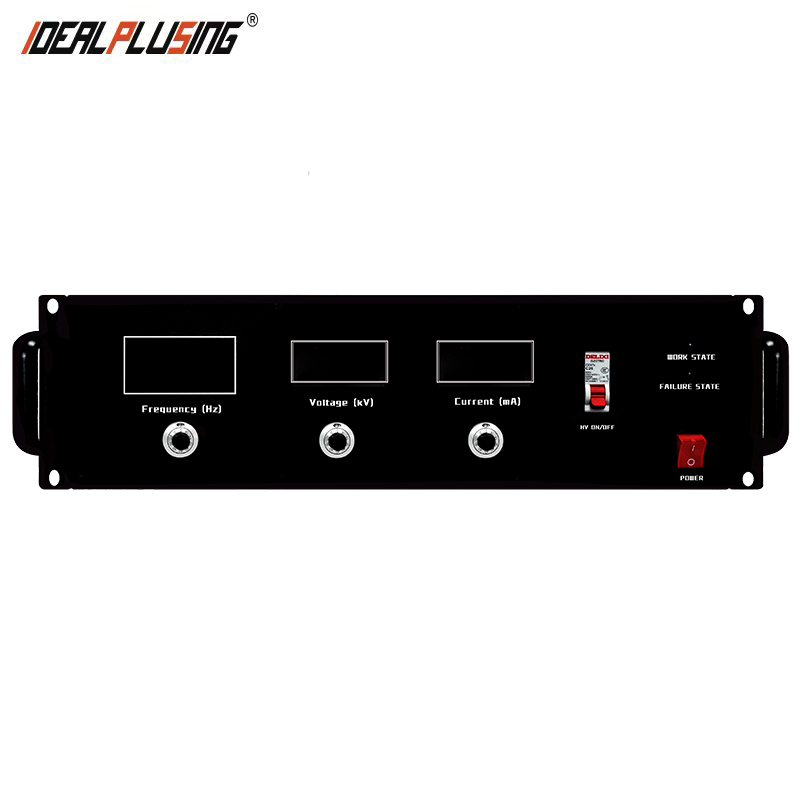

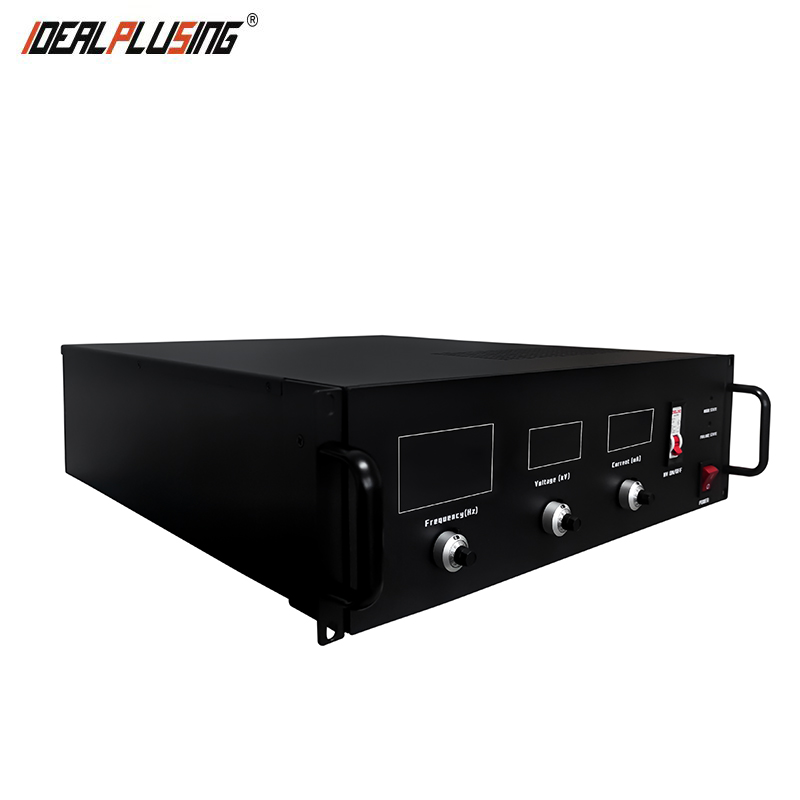

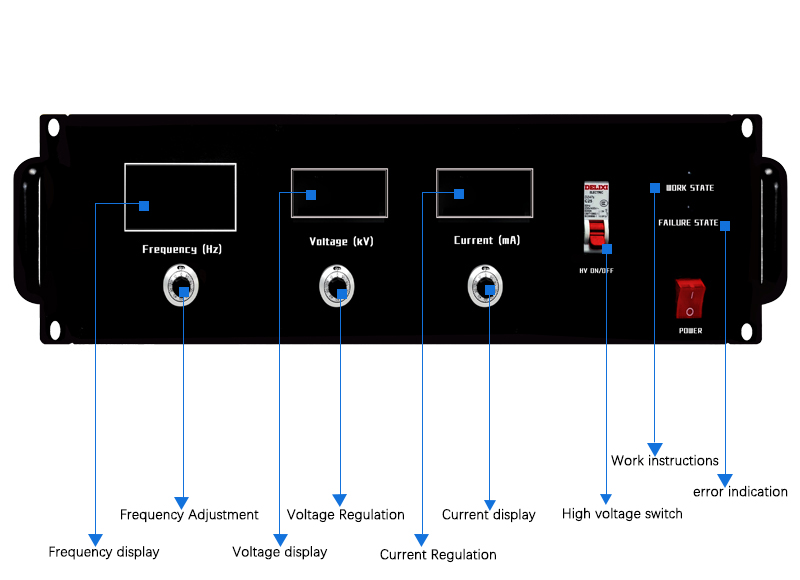

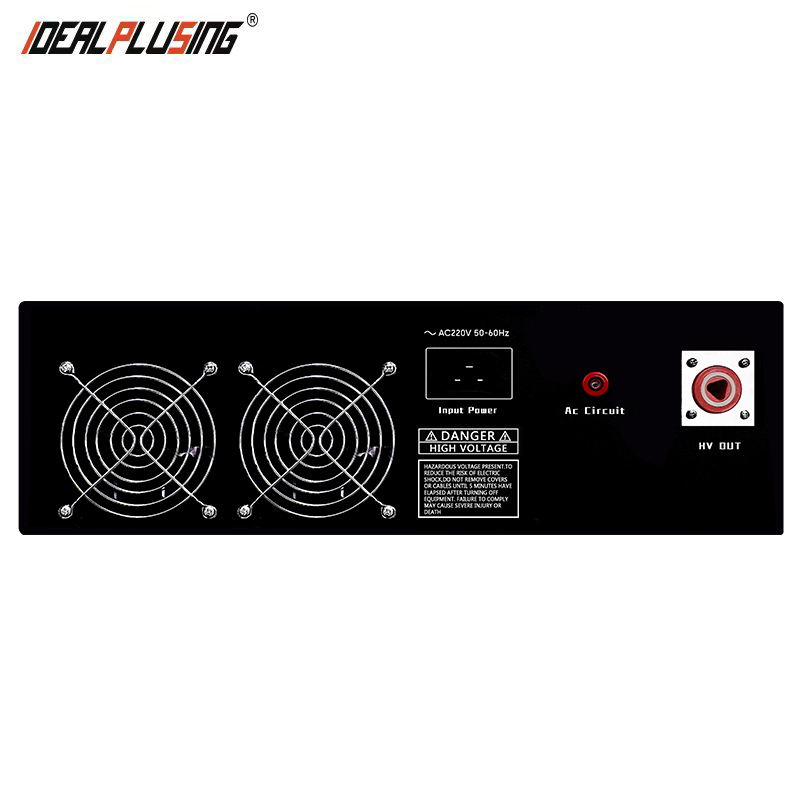

Details Images
Hot Selling Models
Model: IPS-ATDJ10-400mA
- Input Voltage: AC 220V±10% 50/60Hz Mains Electricity
- Peak Voltage: 0-10kV
- Peak Current: 0-400mA
- Peak Power: 4000W
- Frequency: 10kHz
- Waveform: Sine Wave
- Case Material: Aluminum
- Casing Size: W443*D503*H133 (MM)
- Weight: 16.55 KG
Model: IPS-ATDJ10-100mA
- Input Voltage: AC 220V±10% 50/60Hz Mains Electricity
- Peak Voltage: 0-10kV
- Peak Current: 0-100mA
- Peak Power: 1000W
- Frequency: 20-40kHz
- Waveform: Sine Wave
- Case Material: Aluminum
- Casing Size: W443*D503*H133 (MM)
- Weight: 16.55 KG
Model: IPS-ATDJ10-400mA
- Input Voltage: AC 220V±10% 50/60Hz Mains Electricity
- Peak Voltage: 0-10kV
- Peak Current: 0-100mA
- Peak Power: 1000W
- Frequency: 20-40kHz
- Waveform: Sine Wave
- Case Material: Aluminum
- Casing Size: W443*D503*H133 (MM)
- Weight: 16.55 KG
Model List
| Model | Output Peak Voltage | Output Peak Current | Output Frequency | Output Peak Power (W) | Case Material |
|---|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 30kHz (FF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 40kHz (FF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 50kHz (FF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 15kHz-25KHz (AF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz-30KHz (AF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 25kHz-35KHz (AF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 35kHz-45KHz (AF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz-50KHz (AF) | 1000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz (FF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 30kHz (FF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 40kHz (FF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 50kHz (FF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz-20kHz (AF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 15kHz-25kHz (AF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 15kHz-30kHz (AF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-40kHz (AF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W | Aluminum |
Note: FF is Fixed Frequency; AF is Adjust Frequency.
Customer Feedback
Frequently Asked Questions
Q1: What are the main applications for this high voltage AC power supply?
A1: It is primarily used for DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, corona equipment matching, electrostatic spinning, cable aging tests, and cable leakage testing.
Q2: Can the parameters of this AC power supply be customized?
A2: Yes, we customize high voltage AC power supply systems based on your specific load configurations, target voltage requirements, and application scenarios up to 4000W.
Q3: What do FF and AF mean in the model specifications?
A3: FF stands for Fixed Frequency, and AF stands for Adjust Frequency. Adjust Frequency models allow matching the frequency within specific ranges (such as 20kHz-40kHz).
Q4: What are the requirements for the operational environment?
A4: The power supply is suitable for harsh environments with ambient temperatures ranging from -25°C to +55°C. The environment must be non-conductive, free of corrosive metal liquids, and free of condensation.
Q5: What protective mechanisms are built into the power supply?
A5: It is built with a comprehensive protection circuit, high-voltage stability of ±0.5% per hour (after 1 hour of startup), and a durable aluminum chassis layout for safe operation.
Q6: What input voltage is required for standard operation?
A6: The power supply uses AC 220V±10% at 50/60Hz mains electricity as its input voltage source.
