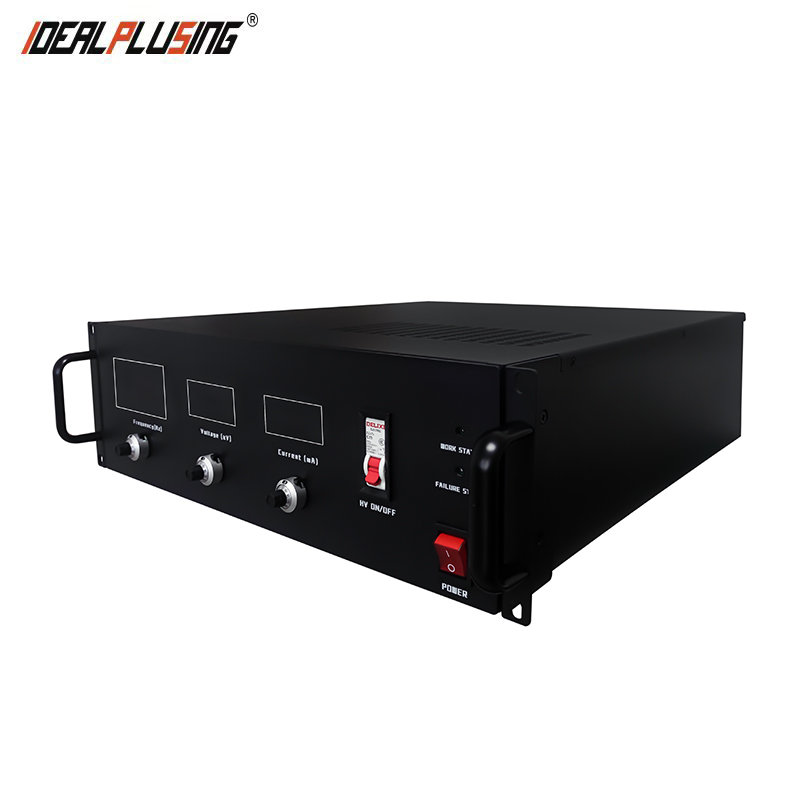

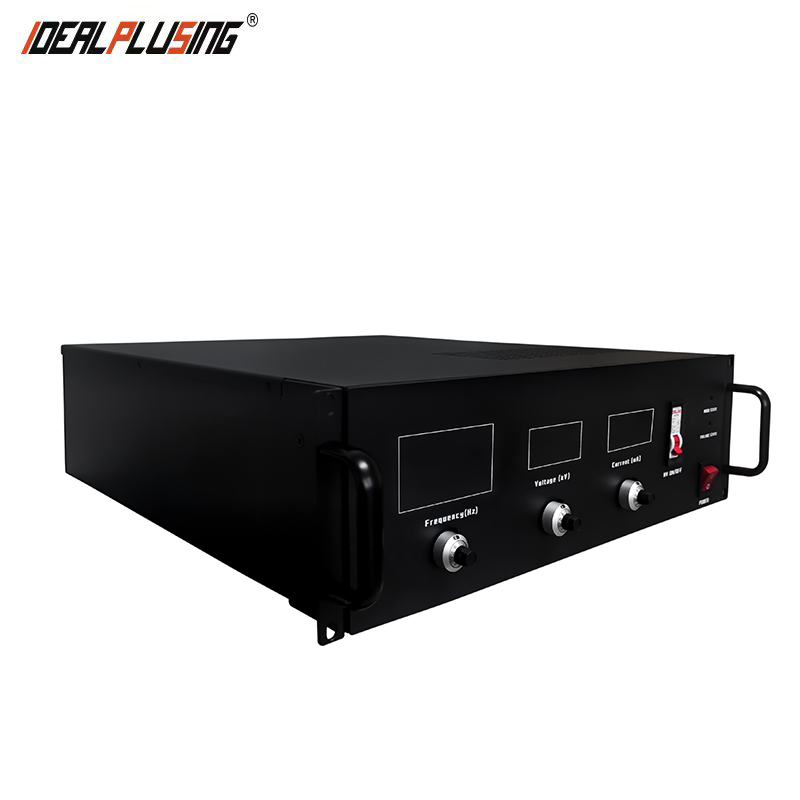

400mA Aluminum Fixed Frequency Switch Power Supply for Testing Cable Aging test High Power Ac Power Supply Ac to Dc
Product Description
High Voltage AC Power Supply
10kHz-50kHz | 4000W | 0-400mA Customizable Solutions
⚡
Product Description
High Voltage AC Power Supply specializing in customizable units to meet your specific industrial requirements. Our offerings range up to 4000W with advanced modulation and energy transmission capabilities.
| Model NO. | IPS-ATDJ10-400mA | Voltage Regulating Mode | Customize |
|---|---|---|---|
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Frequency Range | 10kHz - 50kHz |
| Transport Package | Carton/Wooden Box | Specification | W443*D503*H133(MM) |
| Origin | China | Material | Aluminum |
📋
Technical Specifications
| Model | IPS-ATAJ10-400mA |
|---|---|
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-400mA |
| Output Peak Power | 4000W |
| Output Frequency | 50kHz (FF) |
| Waveform | Sine Wave |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Ambient Temperature | -25~+55ºC |
| Case Material | Aluminum |
| Weight | 16.55 KG |
🚀
Product Introduction & Applications
The high voltage AC power supply is a rack-mounted system, primarily utilized in DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, corona equipment matching, and other related scientific fields.
🔹
Core Applications
DBD dielectric barrier discharge, sliding arc experiment, electrostatic spinning, and ozone generation.
DBD dielectric barrier discharge, sliding arc experiment, electrostatic spinning, and ozone generation.
🔹
Testing & Aging
Ideal for cable aging tests and cable leakage tests.
Ideal for cable aging tests and cable leakage tests.
🔹
Customization
We excel at customizing products according to different usage scenarios and actual load requirements.
We excel at customizing products according to different usage scenarios and actual load requirements.
🖼️

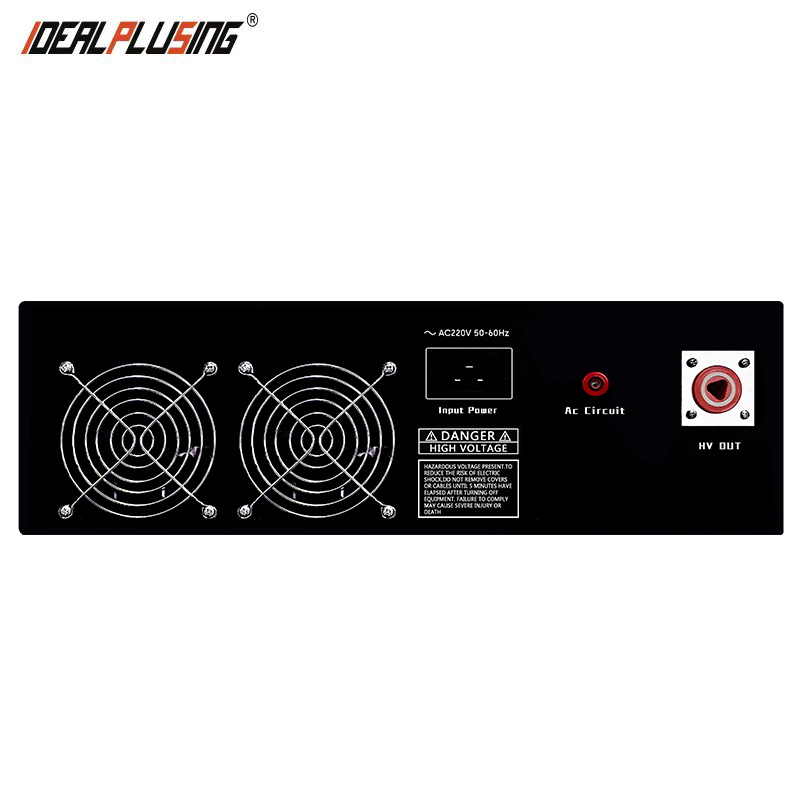

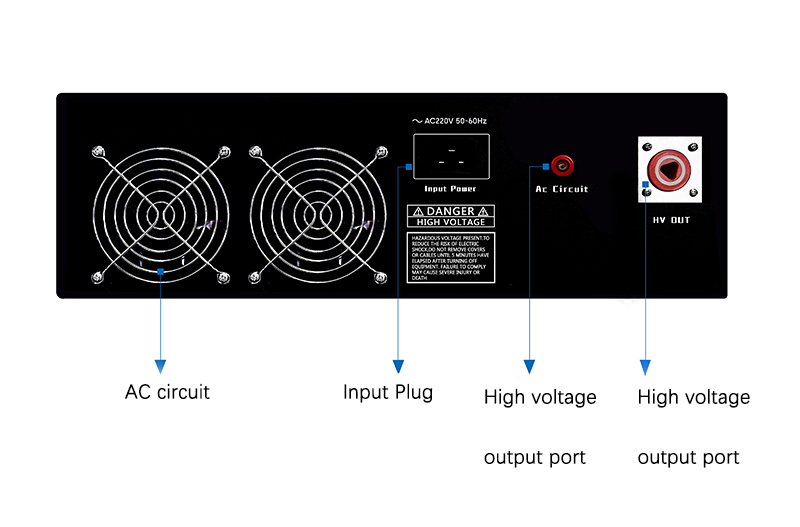

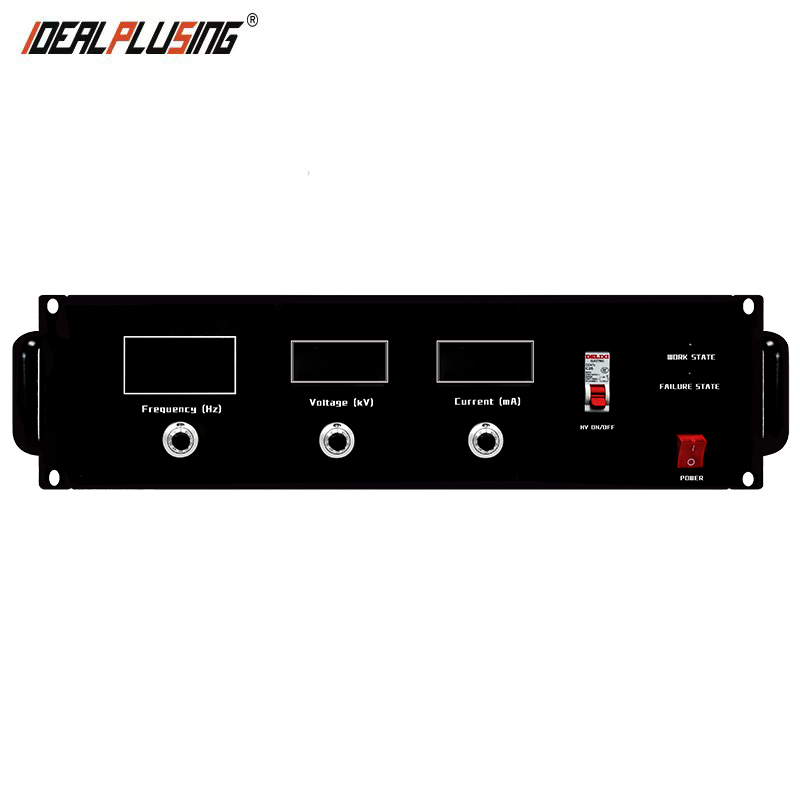

Details Images
🔥
Hot Selling Models
Model: IPS-ATDJ10-400mA
1. Peak Voltage: 0-10kV
2. Peak Current: 0-400mA
3. Peak Power: 4000W
4. Frequency: 10kHz
2. Peak Current: 0-400mA
3. Peak Power: 4000W
4. Frequency: 10kHz
Model: IPS-ATDJ10-100mA
1. Peak Voltage: 0-10kV
2. Peak Current: 0-100mA
3. Peak Power: 1000W
4. Frequency: 20-40kHz
2. Peak Current: 0-100mA
3. Peak Power: 1000W
4. Frequency: 20-40kHz
📊
Model Selection List
| Model | Output Peak Voltage | Output Peak Current | Frequency | Peak Power |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 30kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 15-25KHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20-50kHz (AF) | 4000W |
Note: FF is Fixed Frequency | AF is Adjust Frequency
🏆
Professional Solutions
Focusing on the research, development, and service of DC to DC power modules, AC to DC rectifiers, and high voltage power supplies. We provide personalized, efficient, and cost-effective solutions for all industrial sectors.
❓
Frequently Asked Questions
1. What are the primary applications for this high voltage AC power supply?
This power supply is specifically designed for DBD (Dielectric Barrier Discharge) experiments, sliding arc experiments, ozone generation, and corona equipment matching.
2. Can the output frequency be customized?
Yes, we offer both Fixed Frequency (FF) and Adjustable Frequency (AF) models ranging from 10kHz to 50kHz to suit your experimental needs.
3. What kind of protection features are built into the unit?
The power supply includes a complete protection circuit, making it durable and suitable for harsh working environments and continuous industrial use.
4. Is it possible to request a custom peak power beyond 4000W?
We specialize in customization. Please provide your specific requirements regarding peak voltage, current, and load, and our engineers will design a tailored solution.
5. What is the stability of the high voltage output?
The unit provides excellent stability with a variance of only ±0.5% per hour after the initial one-hour startup period.
6. What materials are used for the power supply casing?
The casing is constructed from high-grade aluminum, ensuring durability, lightweight portability, and efficient heat dissipation.
