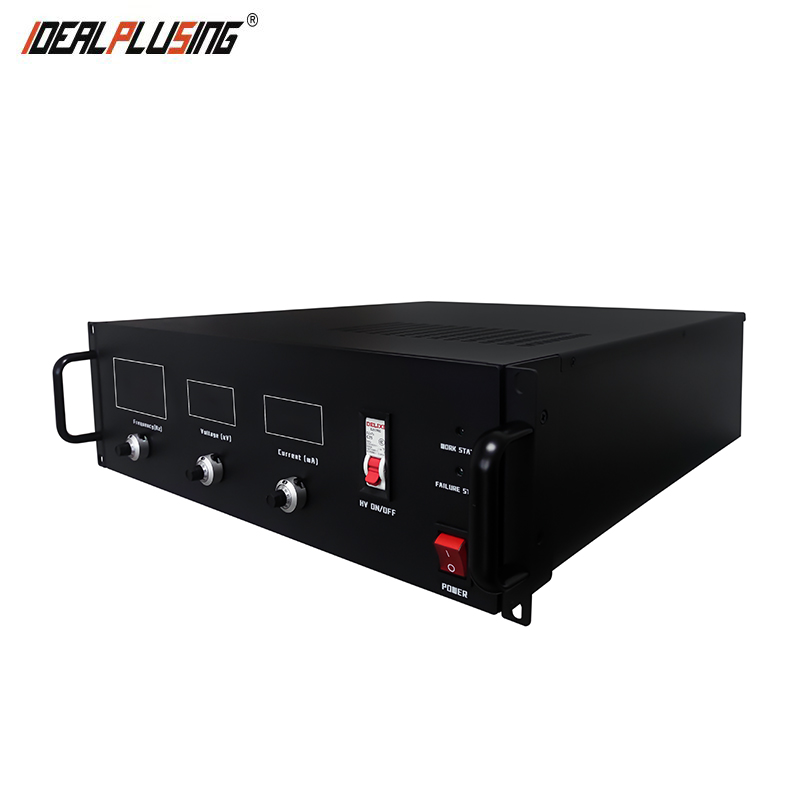

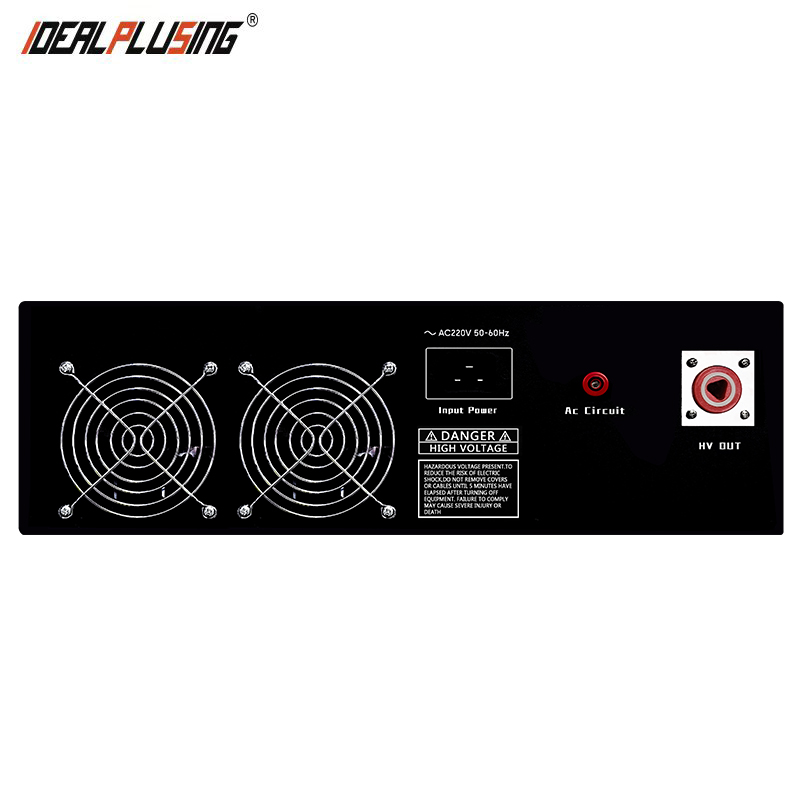

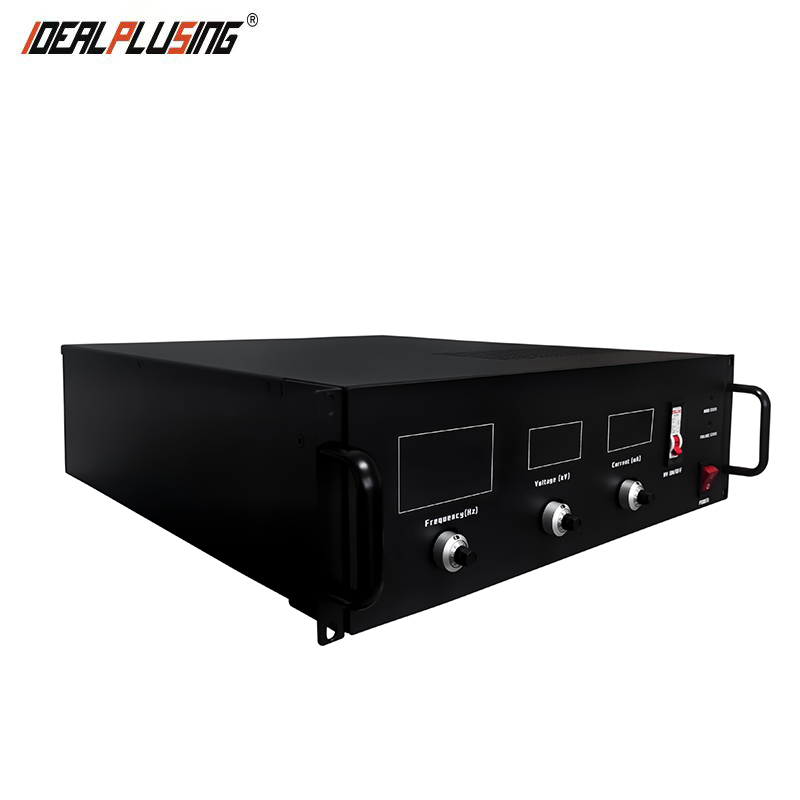

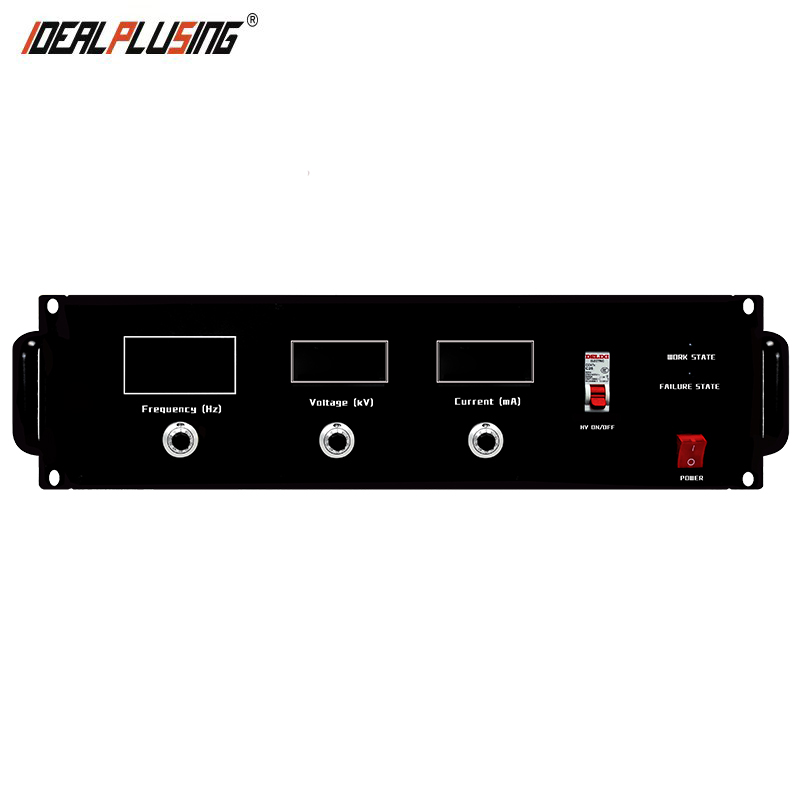

400mA Adjust Frequency Power Supply Module test Equipment Cable Aging test High Power Ac Power Supply
Product Description
High Voltage AC Power Supply
10kHz-50kHz | 4000W | 0-400mA
IDEALPLUSING specializes in customizing high-voltage AC power supplies to meet your specific requirements. With customized AC power solutions, our offerings range up to 4000W. Our dedicated team endeavors to respond to inquiries efficiently to explore our capabilities further.
| Model NO. | IPS-ATDJ10-400mA | Voltage Regulating Mode | Customize |
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Brand | Idealplusing |
| Frequency Options | 10kHz, 20kHz, 30kHz, 40kHz, 50kHz | Transport Package | Carton/Wooden Box |
| Specification | W443*D503*H133(MM) | Trademark | IDEALPLUSING |
| Origin | China |
⚙️
Technical Specifications
| Brand | IDEALPLUSING |
| Model | IPS-ATAJ10-400mA |
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-400mA |
| Output Peak Power | 4000W |
| Output Frequency | 15kHz-25kHz (AF) |
| Waveform | Sine Wave |
| Center Frequency | ±5% |
| Voltage Regulation | Standard Value 3-5% |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Temperature Coefficient | 100 ppm Per Degree Celsius |
| Ambient Temperature | -25~+55ºC |
| Slope | >45° |
| Use Environment | No Conductive, No Corrosive Metal Liquid, No Condensation |
| Case Material | Aluminum |
| Power Supply Case Size | W443*D503*H133(MM) |
| Weight | 16.55 KG |
⚡
Product Introduction
The high voltage AC power supply is a rack-mounted high voltage power supply, mainly utilized in DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, corona equipment matching, and other related fields. The power supply is designed for simple operation, easy installation, and features a complete protection circuit suitable for harsh working environments.
🔬
Typical Applications
- DBD dielectric barrier discharge
- Sliding arc experiment
- Electrostatic spinning
- Ozone generator
- Cable aging and leakage tests
📸

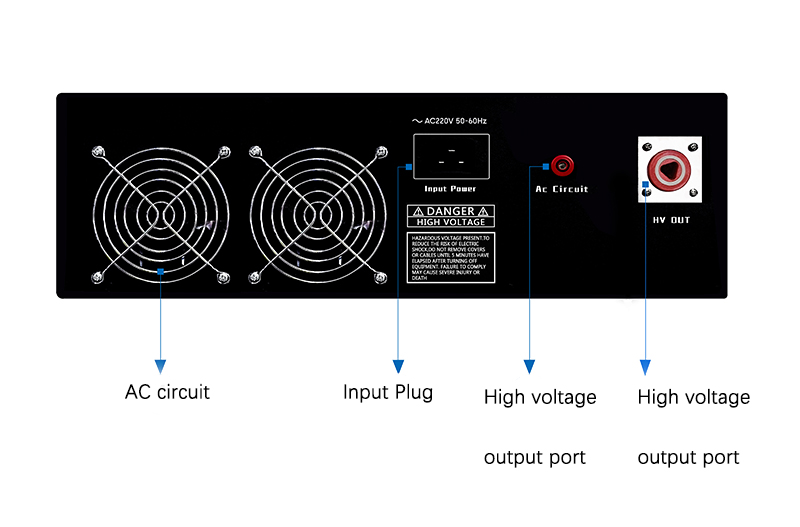

Product Details Gallery
🔥
Hot Selling Models
Model: IPS-ATDJ10-400mA
1. Input Voltage: Ac 220V±10% 50/60Hz
2. Peak Voltage: 0-10kV | 3. Peak Current: 0-400mA
4. Peak Power: 4000W | 5. Frequency: 10kHz
6. Waveform: Sine Wave | 7. Case: Aluminum
2. Peak Voltage: 0-10kV | 3. Peak Current: 0-400mA
4. Peak Power: 4000W | 5. Frequency: 10kHz
6. Waveform: Sine Wave | 7. Case: Aluminum
Model: IPS-ATDJ10-100mA
1. Input Voltage: Ac 220V±10% 50/60Hz
2. Peak Voltage: 0-10kV | 3. Peak Current: 0-100mA
4. Peak Power: 1000W | 5. Frequency: 20-40kHz
6. Waveform: Sine Wave | 7. Case: Aluminum
2. Peak Voltage: 0-10kV | 3. Peak Current: 0-100mA
4. Peak Power: 1000W | 5. Frequency: 20-40kHz
6. Waveform: Sine Wave | 7. Case: Aluminum
📋
Model List
| Model | Output Voltage | Output Current | Frequency | Power (W) |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 15kHz-25KHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W |
Note: FF is Fixed Frequency; AF is Adjust Frequency
🏢
About Us
IDEALPLUSING focuses on research, development, and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and high-voltage power supplies. We aim to provide personalized, efficient, reliable, and cost-effective power solutions across all industries. We believe in providing the right items combined with professional quotation solutions.
❓
Frequently Asked Questions
1. What are the primary applications for this power supply?
It is widely used in DBD dielectric barrier discharge, ozone generation, sliding arc experiments, corona treatment, and electrostatic spinning.
2. Can the frequency be adjusted during operation?
Models marked as AF (Adjust Frequency) allow for frequency adjustment within specific ranges, such as 15kHz-25kHz or 20kHz-50kHz.
3. What kind of protection does the unit offer?
The power supply includes a complete protection circuit designed for stability and safety, even in harsh working environments.
4. Is the output waveform a pure sine wave?
Yes, the unit provides a standard Sine Wave output, which is essential for precise experimental and industrial applications.
5. Can I request a customized power output?
Absolutely. We specialize in customizing products according to different usage scenarios and actual loads up to 4000W.
6. What is the material of the power supply casing?
The power supply uses a high-quality aluminum case for better heat dissipation and durability in industrial settings.
