40kHz Aluminum High Voltage Current Fixed Frequency Power Supply Manufacturer in China of High Voltage Ac Power Supply
Product Description
| Model NO. | IPS-ATDJ10-400mA | Voltage Regulating Mode | Customize |
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Frequency | 10kHz - 50kHz |
| Transport Package | Carton/Wooden Box | Specification | W443*D503*H133(MM) |
| Origin | China | Case Material | Aluminum |
High Voltage AC Power Supply 10kHz-50kHz 4000W 0-400mA
This specialized high voltage AC power supply is designed to meet specific industrial requirements. With various customizable options, our offerings range up to 4000W output capacity.
| Model | IPS-ATAJ10-400mA |
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-400mA |
| Output Peak Power | 4000W |
| Output Frequency | 40kHz (FF) |
| Waveform | Sine Wave |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Ambient Temperature | -25~+55ºC |
| Case Material | Aluminum |
| Weight | 16.55 KG |

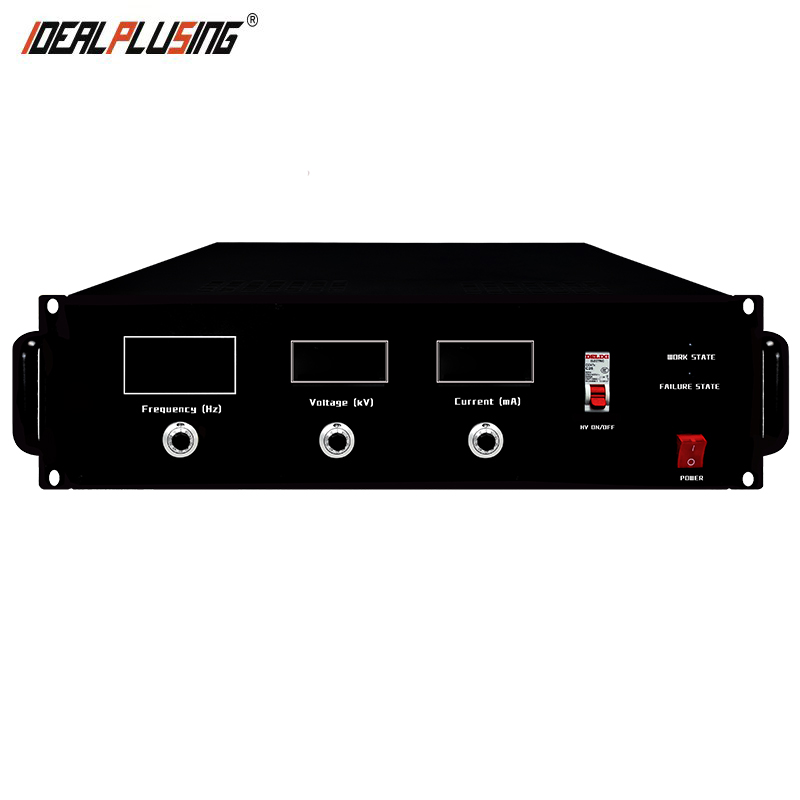

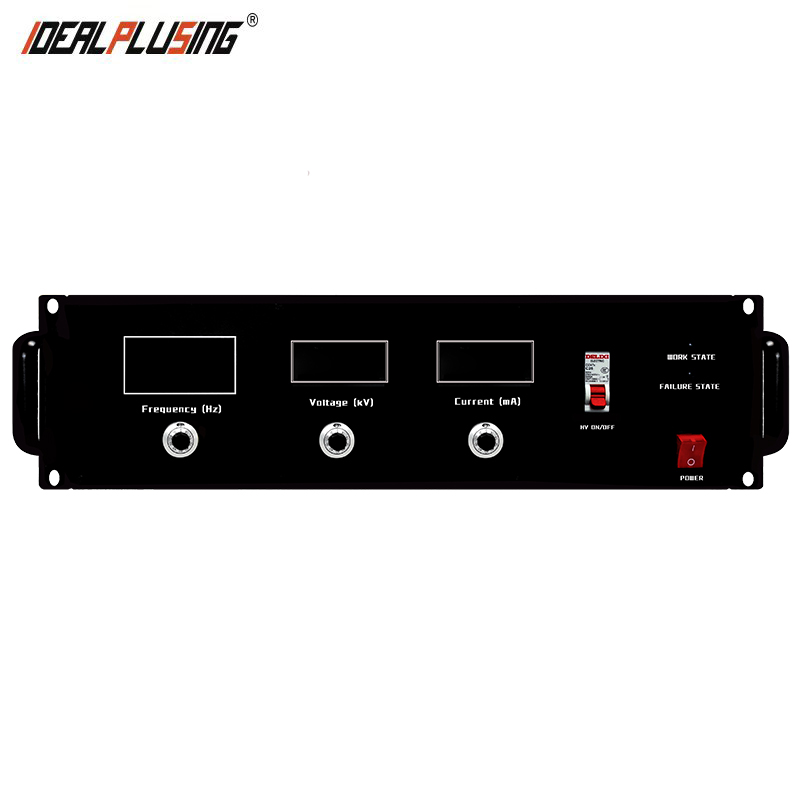

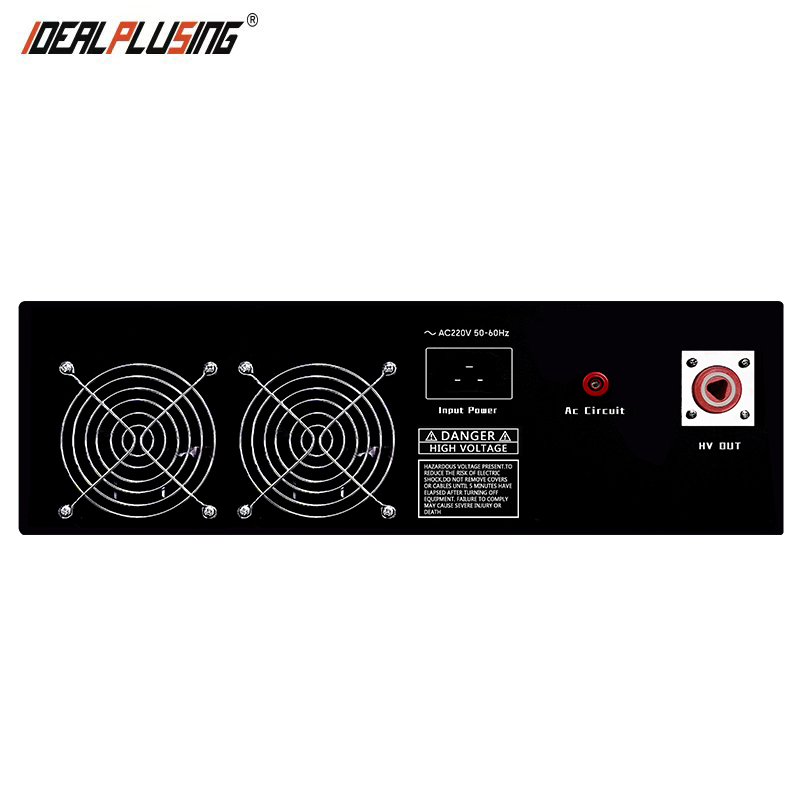

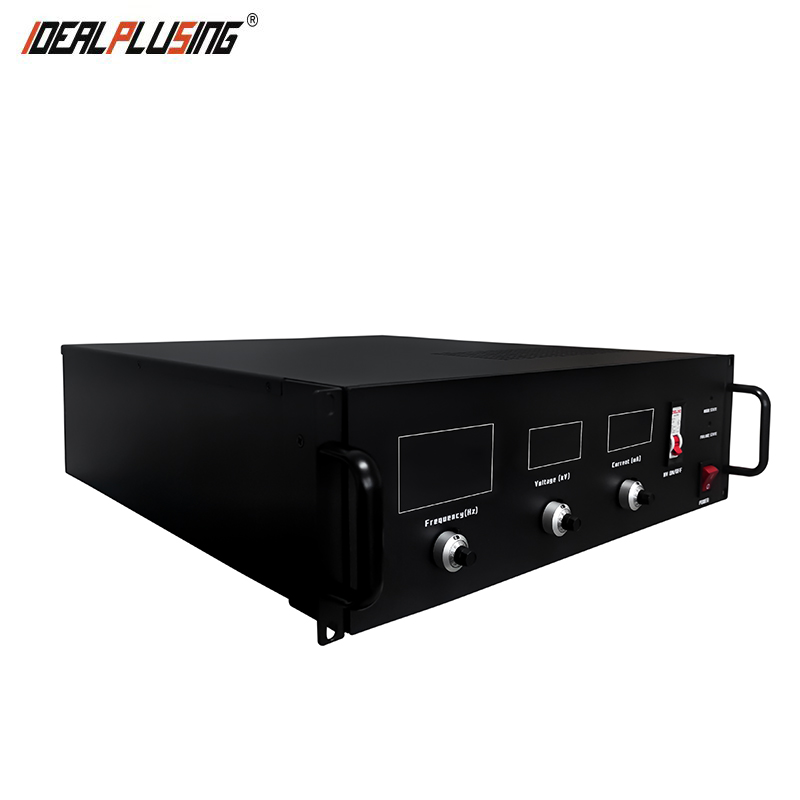

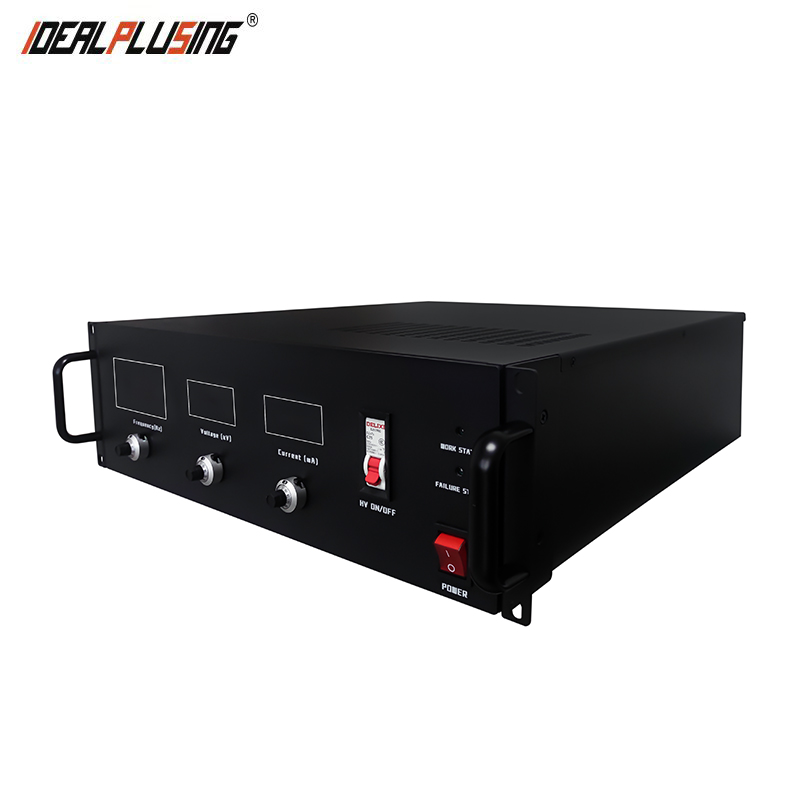

The high voltage AC power supply is a rack-mounted system, engineered for precision and reliability. It is simple to operate, easy to install, and features a complete protection circuit suitable for harsh working environments.
- Research Fields: DBD dielectric barrier discharge experiments, sliding arc experiments.
- Industrial Matching: Ozone generator matching, corona equipment matching.
- Testing & Production: Electrostatic spinning, cable aging test, cable leakage test.
Model: IPS-ATDJ10-400mA
Voltage: 0-10kV | Power: 4000W | Freq: 10kHz | Sine Wave
Model: IPS-ATDJ10-100mA
Voltage: 0-10kV | Power: 1000W | Freq: 20-40kHz | Sine Wave
| Model | Peak Voltage | Peak Current | Frequency Range | Power (W) |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 30kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10-30KHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10-20kHz (AF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20-50kHz (AF) | 4000W |
Note: FF = Fixed Frequency; AF = Adjustable Frequency
Specializing in the research, development, and service of high-performance power modules including DC-DC, AC-DC rectifiers, and high voltage units. We provide personalized, efficient, and cost-effective power supply solutions across all industries.
What are the primary applications for this power supply?
It is widely used in DBD dielectric barrier discharge, ozone generation, electrostatic spinning, and cable aging tests.
Can the frequency be customized?
Yes, we offer both Fixed Frequency (FF) and Adjustable Frequency (AF) models ranging from 10kHz to 50kHz.
What safety protections are included?
The unit includes a complete protection circuit designed for industrial safety and stability in harsh environments.
What is the input voltage requirement?
The standard input is AC 220V±10% at 50/60Hz. Custom input requirements may be discussed.
Is the output waveform a pure sine wave?
Yes, this high voltage AC power supply provides a clean sine wave output for precise experimental results.
