48V to 5V 12V 24V 36V DC-DC Voltage Converter Non Isolated DC DC Converter for Constant Voltage Output 15A 20A 30A 40A 50A 55A
Product Description
48V to 5V 12V 24V 36V DC-DC Voltage Converter
A DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These converters are divided into three categories: Boost type, boost & buck type, and buck type. PWM control provides high efficiency with low noise, while PFM control offers low power consumption for long-term use under small loads. Currently, DC-DC converters are widely used in mobile phones, digital cameras, portable media players, and various industrial electronics.
★ Custom Power Solutions
Focusing on the research, development, and service of D C to D C power supply modules, A C to D C rectifier modules, and chargers. We provide personalized, efficient, and cost-effective power supply solutions across all industries.
Capabilities: Specializing in customizing DC-DC converters with input/output ranges from 1V to 1000V DC and 1A to 1000A. Both isolated and non-isolated design options are available to meet specific requirements.
📋 Technical Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolate |
| Model | IPS-DTD48S2440 |
| Input Voltage | 30-60VDC |
| Output Voltage | 24VDC |
| Output Current | 40 Amps |
| Output Power | 960 Watts |
| Material of Shell | Aluminum |

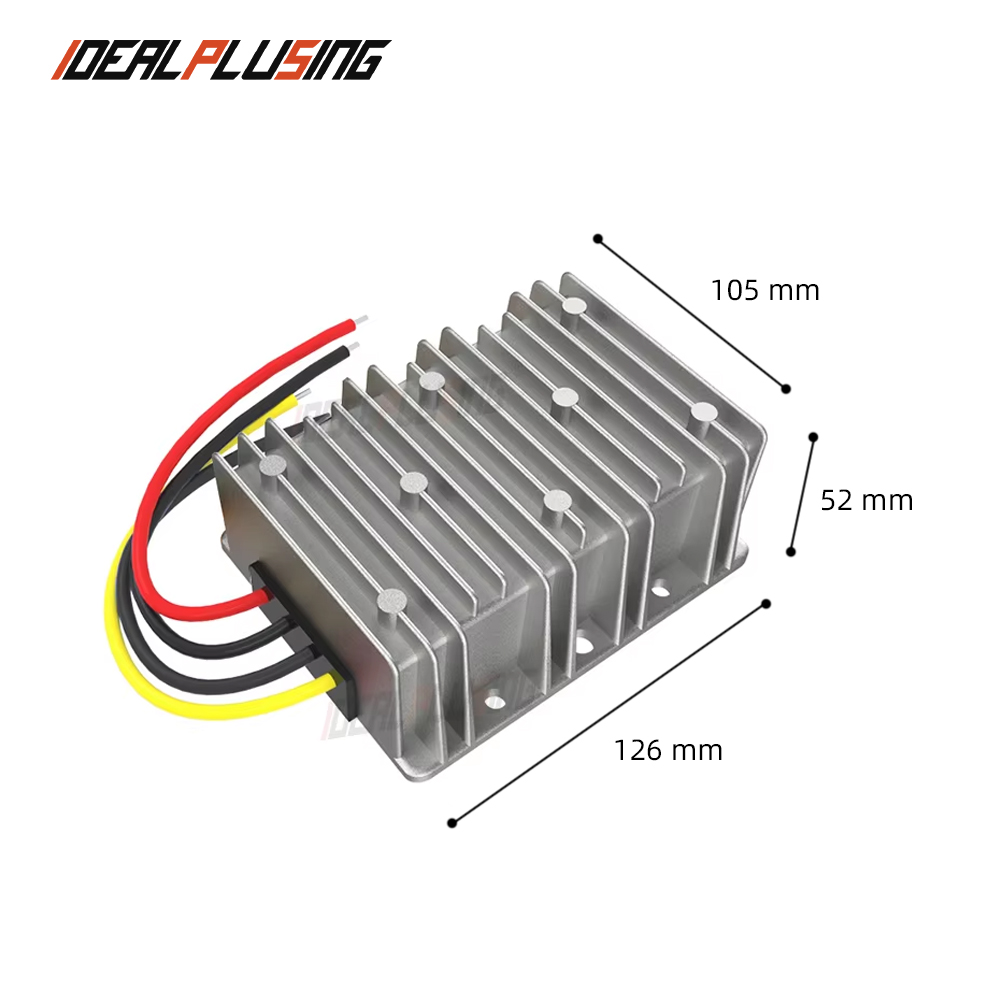

| Converter Size | 126*105*52MM |
| Net Weight | 1KG |
| Waterproof Level | IP67 |
🗂 Product Range & Model List
| NON-ISOLATED SERIES | ||
| Category | Input to Output | Output Current Options |
|---|---|---|
| Boost Converter | 5V~11V to 12V / 12V to 24V / 24V to 48V | 1A to 50A |
| Buck Converter | 24V to 12V / 48V to 24V / 72V to 12V | 1A to 100A |
| Boost & Buck | 8V~40V to 12V / 13.8V | 1A to 25A |
| ISOLATED SERIES (High Security) | ||
| Category | Input Voltage | Output Voltage |
|---|---|---|
| Step Down | 30-60V / 50-100V / 75-150V | 5V / 12V / 24V |
| High Power | 12V to 700V Options | 12V to 1000V Options |
| Rack Mount | 24V / 48V / 110V / 220V | Multiple DC Outputs |
🖼 Hot Selling Models
⚙ Technical Application Description
- Standard protection includes output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
- For inductive loads (motors, coils, speakers), it is recommended to use a power supply 3-5 times the rated power of the load.
- Non-isolated buck converters carry a risk: if the unit fails, high input voltage may pass directly to the output. Use isolated versions for precious loads.
- Isolated products must not share a common negative pole (ground) between input and output, or the isolation effect is lost.
- Gold-colored small aluminum casings are high-temperature resistant and highly reliable for outdoor applications.
- Hard gel encapsulated products are waterproof and durable but cannot be repaired; they are designed for long-term reliability.
Frequently Asked Questions
What is the difference between PWM and PFM control?
PWM control provides high efficiency and excellent noise/ripple control for heavy loads. PFM control is optimized for low power consumption during long-term use or under small loads.
Why should I choose an isolated DC-DC converter?
Isolated converters provide the highest safety. They prevent high input voltage from passing to the output if the unit fails, protecting precious equipment and allowing for positive/negative voltage configurations.
How do I select a converter for a motor or inductive load?
For inductive loads like motors or coils, it is recommended to select a converter with a power rating 3 to 5 times higher than the load's rated power to handle startup surges.
Can these converters be used in outdoor environments?
Yes, many of our models feature IP67 waterproof ratings and aluminum shells (like the gold-colored high-temperature resistant casing) designed specifically for high-demand outdoor applications.
Are the products repairable after encapsulation?
Most hard gel encapsulated products are designed for maximum reliability and cannot be opened for repair. Large aluminum shell products (above 500W) may be exceptions.
Do boost converters include short-circuit protection?
Due to circuit structures, many boost series do not have built-in output short-circuit protection. We strongly recommend adding appropriate fuses at the input end to protect the source.
