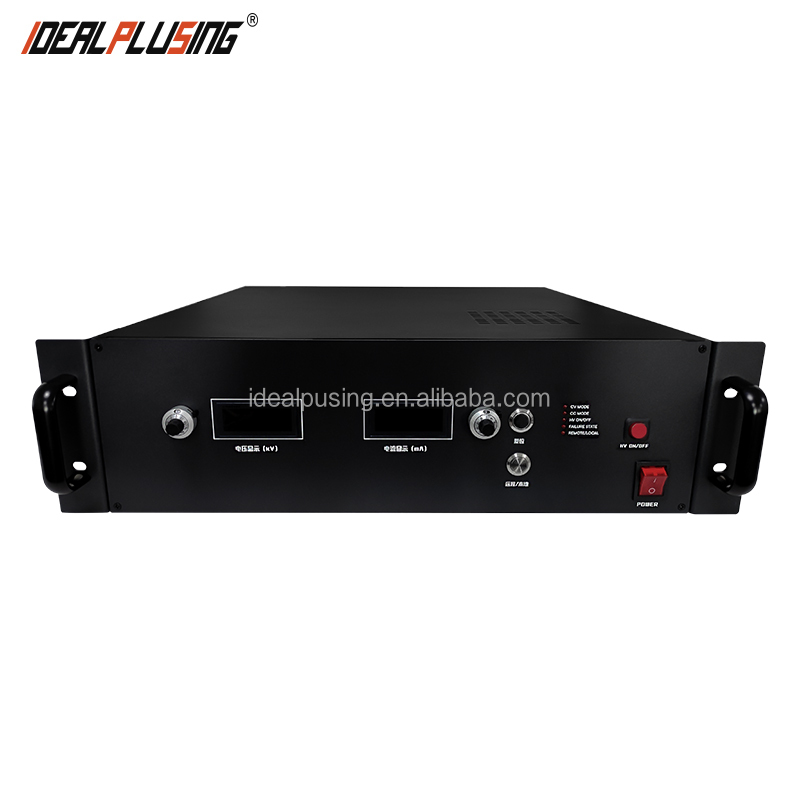

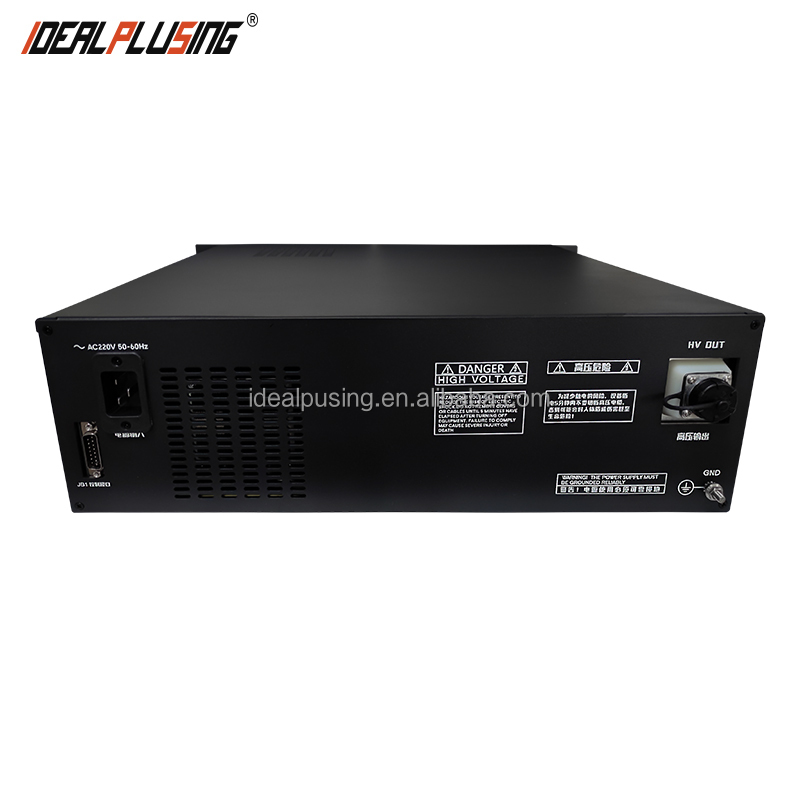

600W 120kv 5ma High Voltage Dc Power Supply Variable AC to DC Power Supply for Electrostatic Flocking
Product Description
⚡ I. INTRODUCTION & APPLICATION
HV series are high voltage DC power supplies, available from 10kV to 200kV output.

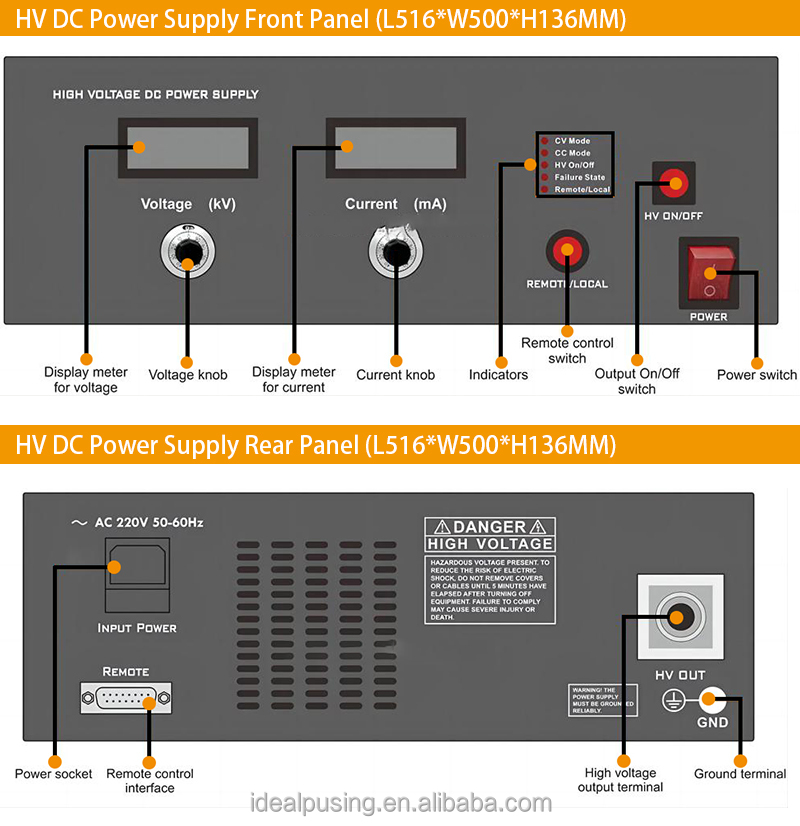

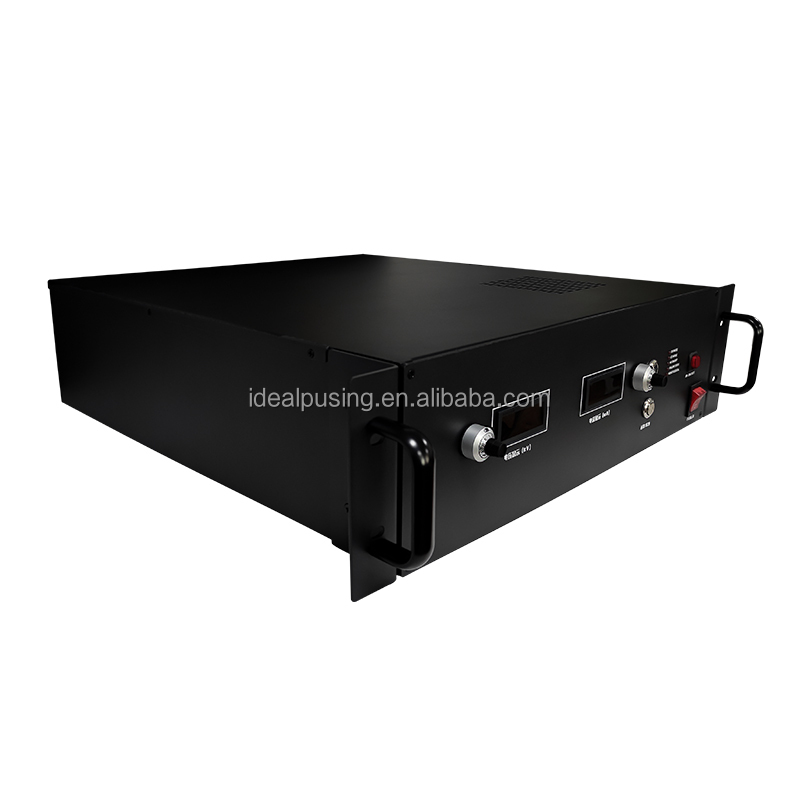

Output control can be switched between Remote control and Local control. Output displays and indicators are on the front panels.
Safety Features: Over-current, short-circuit, and arc protection are built into the high-voltage output terminal.
Primary Applications: Electrostatic dust removal, Electrostatic spinning, Electrostatic separation, Electrostatic spraying, and flocking. Also used for insulation tests, Material sorting, Metal vaporization, High voltage deburring, and Laboratory tests.
⚙️ PRODUCT FEATURES & INTERFACE
✓Output voltage full range adjustable
✓Positive/Negative output (+/- 10kV to 200kV)
✓4 digits LED display for voltage and current
✓Low EMI & strong anti-interference ability
✓Remote ON/OFF & 0-10V analog control
✓RS485/RS232 Modbus-RTU support
📊 TECHNICAL SPECIFICATIONS
| Input Voltage | Single phase 220VAC ±10%, 50/60HZ |
| Model | IPS-ATDJ120KV-5mA |
| Rated Output | 0-120KV / 0-5mA (Full range adjustable) |
| Regulation | Line & Load Regulation ≤ 0.1% FS |
| Ripple & Noise | ≤ 0.5% FS |
| Stability | ≤ 0.1% per hour (after 1h warm-up) |
| Temp Co-efficient | 100ppm/°C |
🛡️ PROTECTION & DISPLAY
O.V.P: 105% rated output limit. Shutdown upon activation.
O.C.P: 105% rated output limit. Shutdown upon activation.
O.T.P: Heat sink limit 65°C±5°C. Shutdown upon activation.
Display Accuracy: Voltage & Current ≤0.1%FS+2LSB
📦 GENERAL & ACCESSORIES

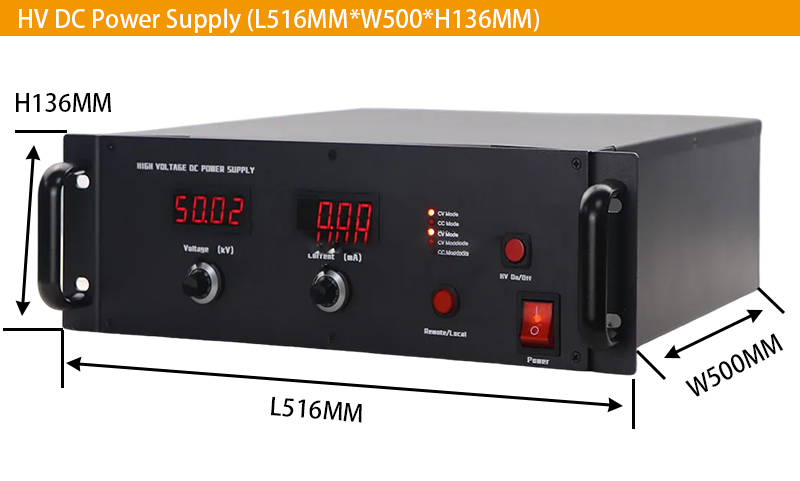

| Dimensions | L516 * W500 * H136 (mm) |
| Weight | Net: 22KG / Gross: 27.5KG (Wooden Case) |
| Cooling | Forced air cooling (Cooling fan) |
| Cabling | Standard 1.5m (Shielded or Unshielded optional) |
| Environment | Op: 0-40°C, 10-80%RH | Storage: -20-70°C |
🖼️ REFERENCE PICTURES
📋 MODEL LIST & FACTORY DISPLAY
❓ FREQUENTLY ASKED QUESTIONS
1. What is the output voltage range for the HV series?
The HV series provides high voltage DC output ranging from 10kV to 200kV, which is fully adjustable across the entire range.
2. Can this power supply be integrated into automated systems?
Yes, it supports remote control through 0-10V analog signals as well as digital communication via RS485 or RS232 with Modbus-RTU commands.
3. What safety protections are built into the unit?
The unit includes Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection, and Arc Protection.
4. What are the common applications for this high voltage supply?
It is widely used for electrostatic spinning, dust removal, electret processes, flocking, cable aging tests, and laboratory insulation withstand tests.
5. What type of high-voltage output cable is provided?
Two types are optional: unshielded or shielded. The standard length is 1.5 meters, though other lengths can be customized upon request.
6. How accurate is the display on the front panel?
The unit features 4-digit LED displays for both voltage and current with an accuracy of ≤0.1%FS + 2LSB.
