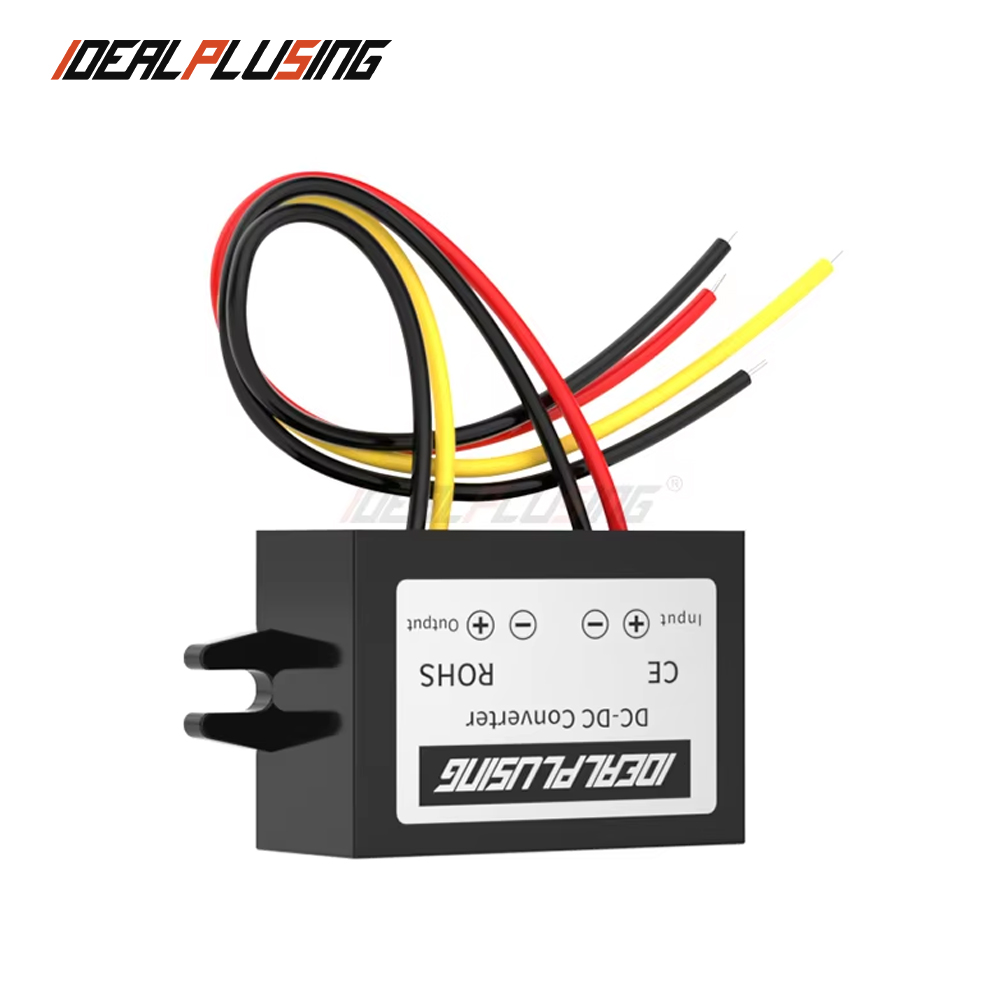

Non-Isolated 60V to 5V 12V 15V 24V Automotive DC DC Converter DC DC Buck Voltage Converter for Over Current Protection 2A
Product Description
Non-Isolated Automotive DC DC Buck Voltage Converter
This DC/DC converter is a high-efficiency voltage converter designed to provide a stable fixed output voltage. Our converters are categorized into Boost, Boost & Buck, and Buck types to meet diverse industrial and automotive demands.
Key Features
PWM Control: High efficiency with excellent output voltage ripple and noise suppression.
PFM Control: Low power consumption during long-term use, especially under small loads.
Automatic Conversion: Seamlessly switches between PFM and PWM depending on the load requirements.
Widely used in mobile phones, digital cameras, portable media players, and automotive electronics. It belongs to the chopper circuit classification.
Custom Power Solutions
We focus on research, development, and service of DC to DC power supply modules, rectifiers, and inverters. We provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries.
Voltage Range: Customized input and output from 1V to 1000V DC.
Current Range: Offerings from 1A to 1000A.
Design Options: Available in both isolated and non-isolated configurations.
Technical Specification
| Parameter | Details |
|---|---|
| Type | Non-isolated |
| Model | IPS-DTD60S122 |
| Input Voltage | 15-72VDC |
| Output Voltage | 12VDC |
| Output Current | 2A |
| Output Power | 24W |
| Material of Shell | Plastic |

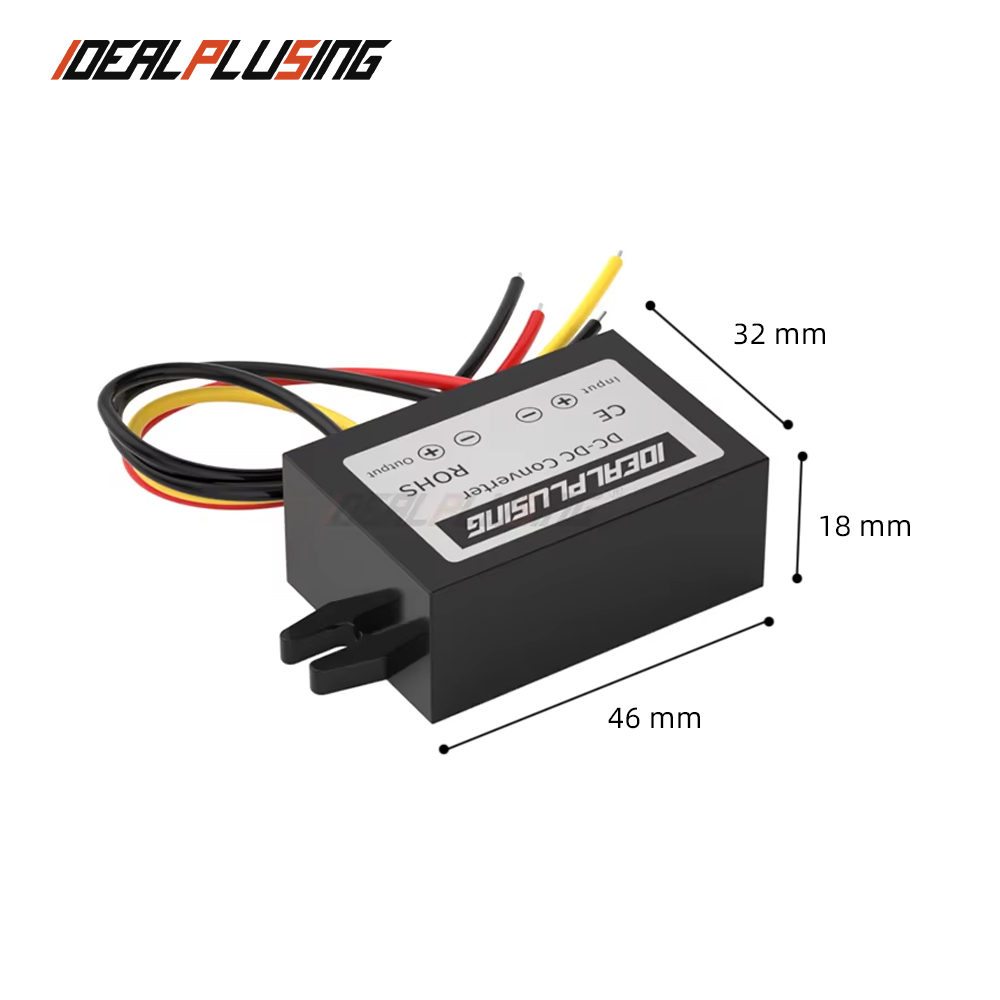

| Converter Size | 46*32*18MM |
| Converter Net Weight | 47G |
| Waterproof Level | IP67 |
Hot Selling Models
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210

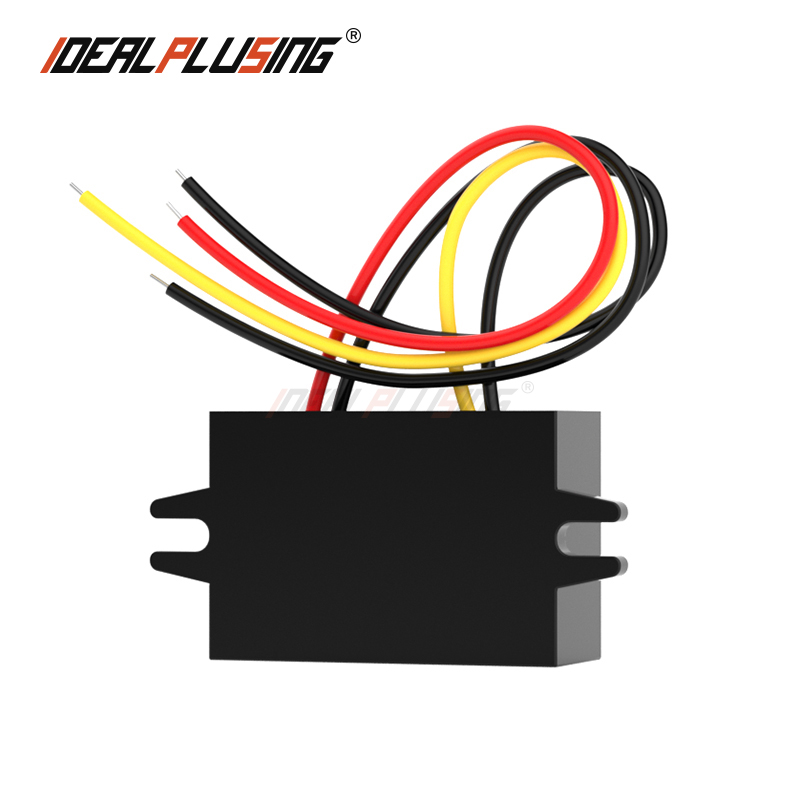

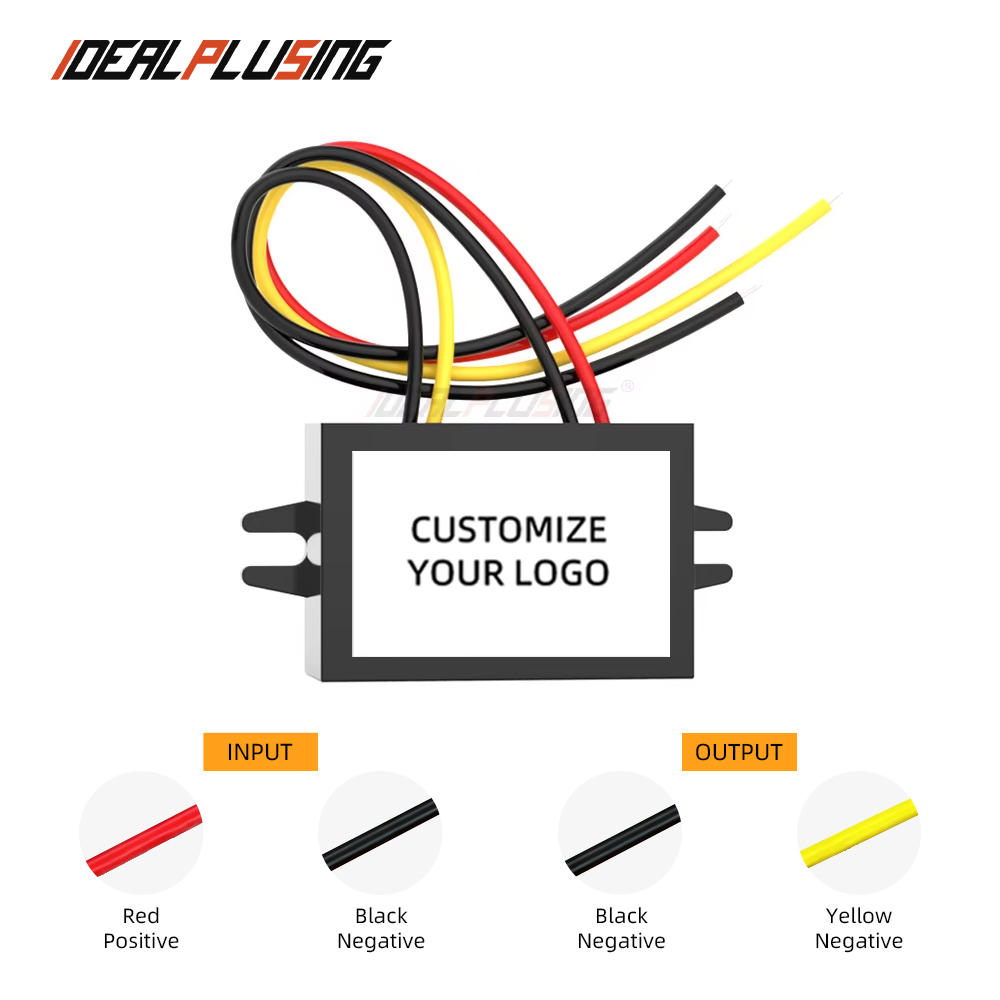

Product Shows
Detailed Model List
| Series | Model Range | Input to Output | Current Options |
|---|---|---|---|
| DC-DC Boost | IPS-DTD5~11S12** | 5~11v to 12v | 1/2/3/4/5/8/10A |
| IPS-DTD12S24** | 12V to 24V | 1-50A Range | |
| IPS-DTD12S48** | 12V to 48V | 1-20A Range | |
| IPS-DTD24S48** | 24V to 48V | 2-40A Range | |
| DC-DC Buck | IPS-DTD1224S5** | 12/24V to 5V | 1-60A Range |
| IPS-DTD24S12** | 24V to 12V | 1-100A Range | |
| IPS-DTD48S12** | 48V to 12V | 1-60A Range | |
| IPS-DTD72S24** | 72V to 24V | 1-50A Range |
Technical Application Description
1. Protection Suite: All buck-boost products feature output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
2. Step-up Notice: Step-up series products lack internal short-circuit protection; external fuses are required at the input end.
3. Inductive Loads: For motors, speakers, or magnetic valves, we recommend a power supply 3-5 times the rated power of the load.
4. Isolated vs Non-isolated: Non-isolated buck converters carry a risk of high input voltage passing to output if the circuit fails. For precious loads, Isolated products are strongly recommended.
5. Isolated Products: Support negative voltage input and prevent high voltage passage to the output equipment, providing the highest safety level.
Frequently Asked Questions
Q1: What is the main advantage of using a DC/DC Buck converter?
A Buck converter efficiently steps down a higher input voltage to a lower, stable output voltage. Our models feature PWM and PFM control for high efficiency and low noise, making them ideal for sensitive electronics.
Q2: Is the converter safe for automotive use?
Yes, our automotive converters come with multiple protection layers, including over-current, short-circuit, and undervoltage protection, ensuring safety for vehicle electronics.
Q3: Can I use these converters outdoors?
Many of our models feature IP67 waterproof levels and high-temperature resistant aluminum or plastic shells, making them perfect for outdoor and demanding industrial applications.
Q4: Why should I choose an Isolated converter over a Non-isolated one?
Isolated converters provide an electrical barrier between input and output. This prevents high input voltage from damaging the load in case of a fault, making it the safest choice for high-value equipment.
Q5: How do I choose the right power capacity for a motor load?
For inductive loads like motors, it is recommended to select a power supply that is 3 to 5 times the rated power of the motor to handle the initial startup current surge.
Q6: Are custom voltage specifications available?
Yes, we specialize in customizing DC-DC converters. We can provide custom input/output voltages ranging from 1V to 1000V and current ratings from 1A up to 1000A.
