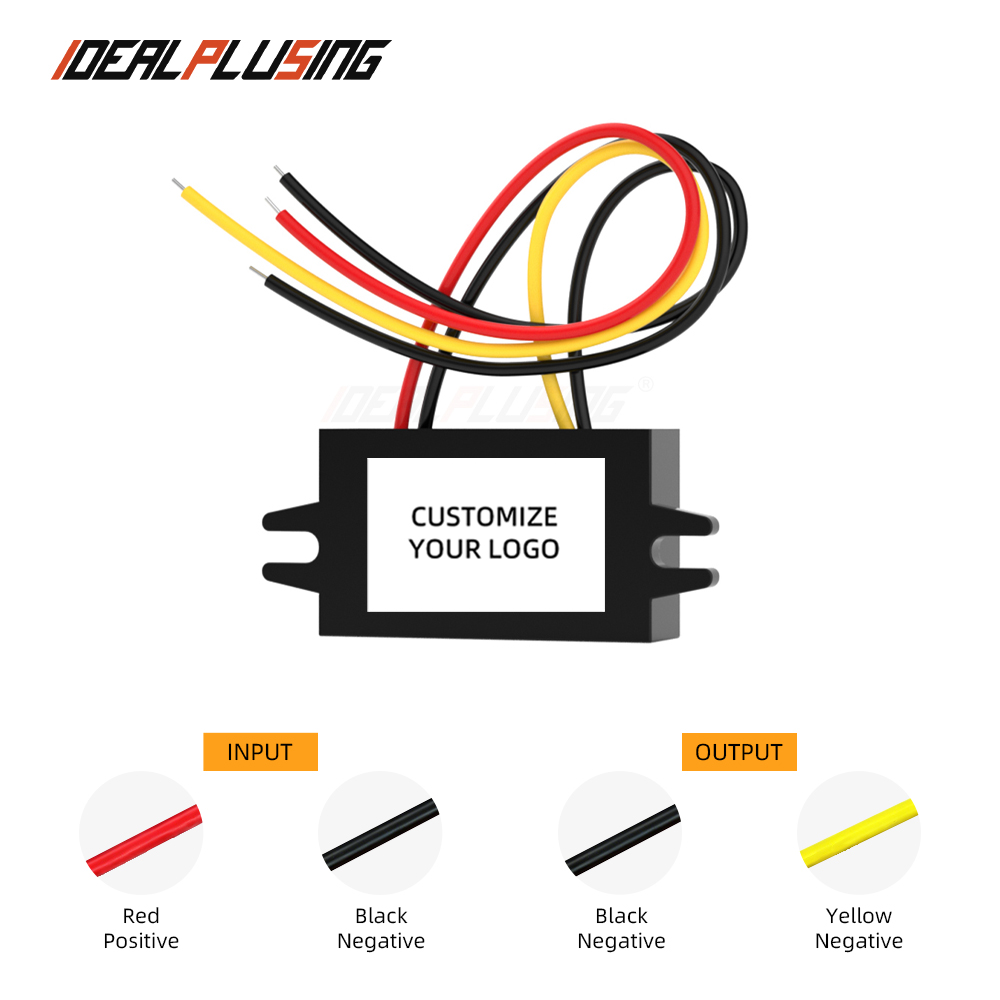

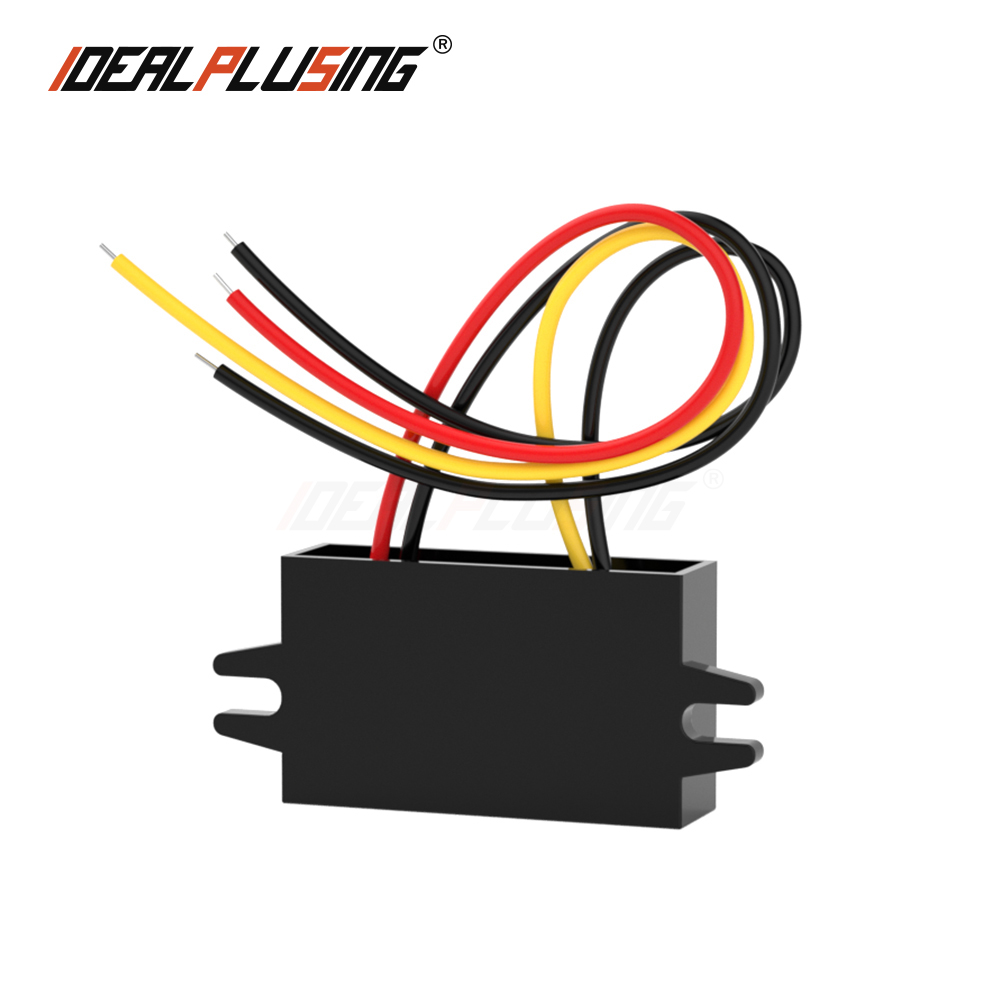

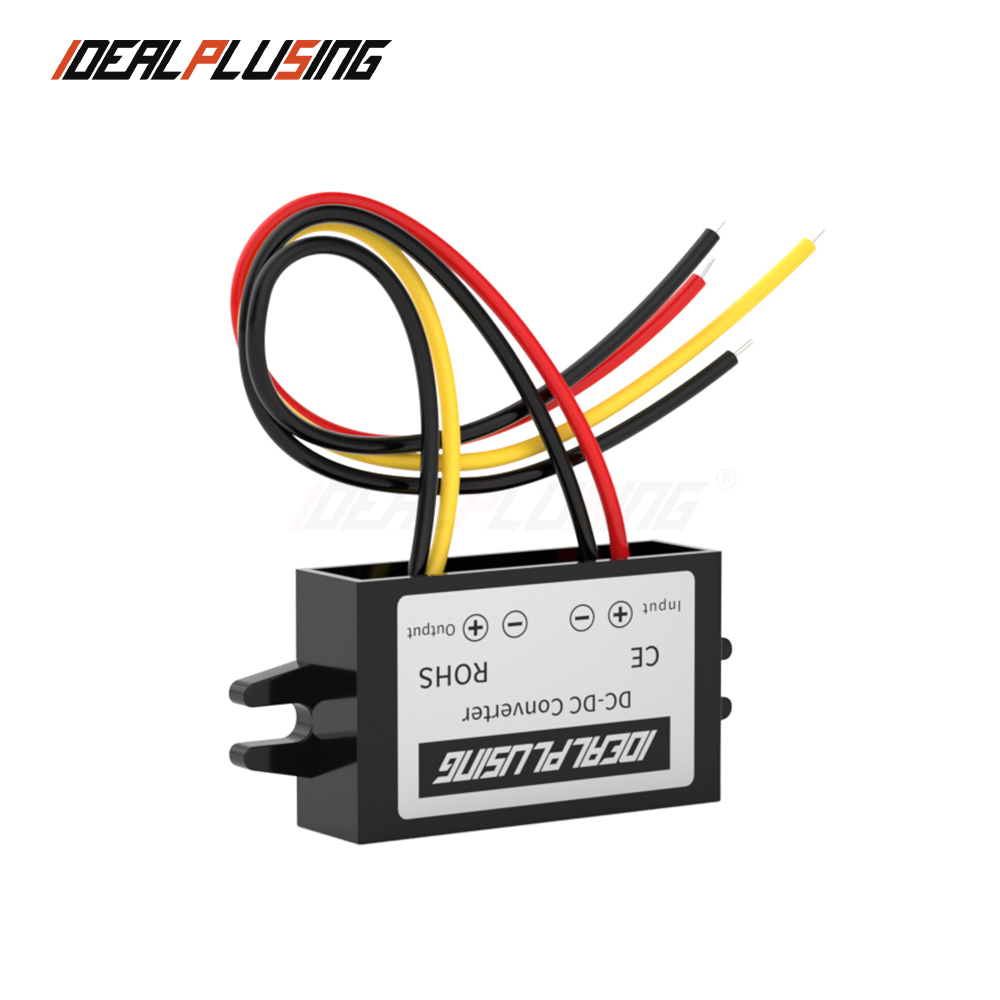

Non-Isolated 60V to 5V 12V 24V Lm2596 DC DC Buck Converter High Efficiency Buck Converter for Over Temperature Protection 3A
Product Description
A DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These converters are essential for modern electronics, categorized into Boost, Boost & Buck, and Buck types. Depending on your needs, PWM control offers high efficiency and low ripple/noise, while PFM control provides low power consumption for long-term use and light loads.
⚡
Advanced Control
Features PWM and PFM automatic conversion for optimal efficiency across all load ranges.
🛡️
Full Protection
Equipped with over-temperature protection and circuit safety mechanisms.
📱
Wide Application
Perfect for mobile phones, MP3 players, digital cameras, and portable media devices.
We specialize in customizing DC-DC converters to meet your specific industrial requirements. With adjustable input and output parameters, our range covers:
- Voltage Range: 1V to 1000V DC
- Current Range: 1A to 1000A
- Design Options: Both Isolated and Non-Isolated configurations available.
| Parameter | Details |
|---|---|
| Type | Non-isolate |
| Model | IPS-DTD60S53 |
| Input Voltage | 8-72VDC |
| Output Voltage | 5VDC |
| Output Current | 3A |
| Output Power | 15W |
| Material of Shell | Plastic |

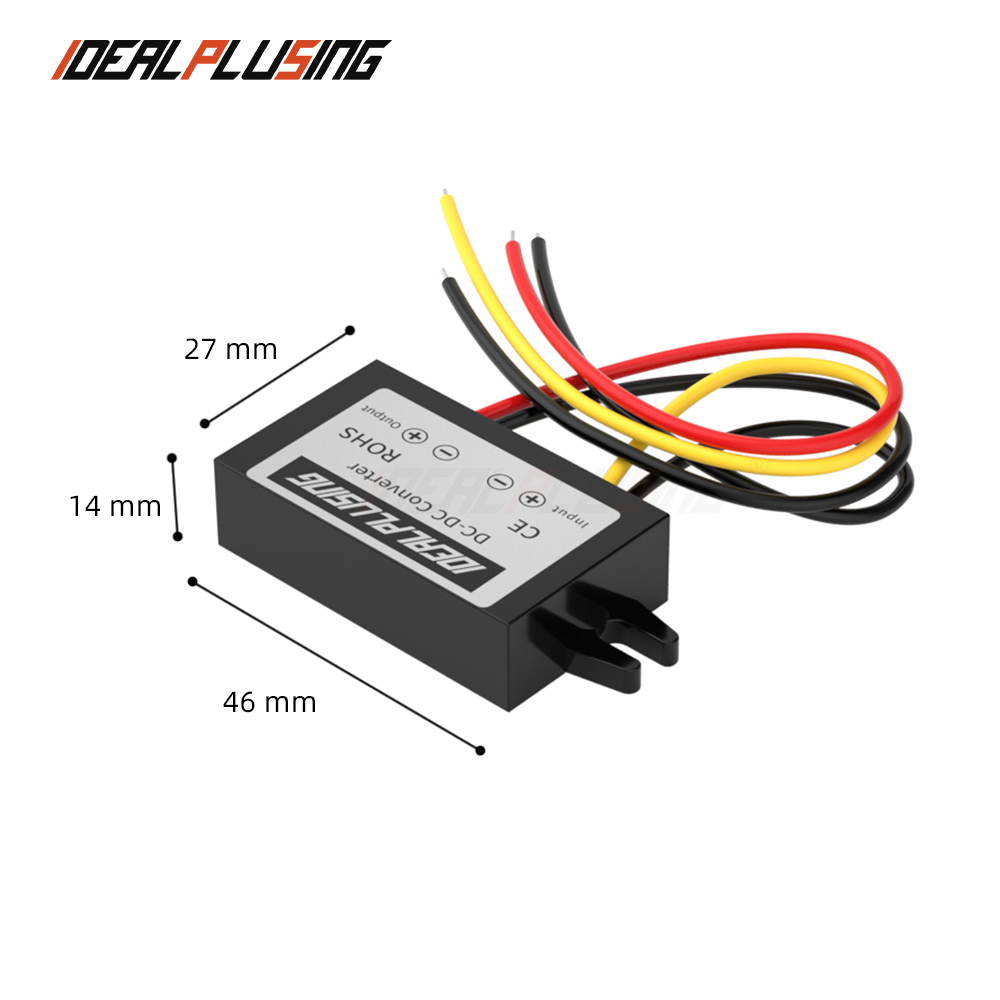

| Size | 46*27*14MM |
| Net Weight | 30G |
| Waterproof Level | IP67 |
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210
IPS-DTD50-60S488
IPS-DTD50-60S488
IPS-DTD48S1240
1
All buck-boost products include standard output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
2
For inductive loads (coils, magnetic valves, motors), we recommend a power supply 3-5 times the rated power of the load.
3
Non-isolated buck converters: In rare failure cases, high input voltage may pass to output. For precious loads, isolated products are recommended.
4
Isolated products: Negative poles (ground) must be used separately to maintain the isolation effect.
5
Safety first: Isolated power supplies are the safest option as they prevent high voltage passage to the output end.
What is the efficiency of these DC-DC converters?
These converters are designed for high efficiency, often exceeding 90%, utilizing PWM/PFM control to minimize energy loss.
Are the units waterproof?
Many of our models, such as the IPS-DTD60S53, are IP67 rated, making them suitable for environments where dust and water resistance are required.
Do they have short-circuit protection?
Yes, most buck and buck-boost models include built-in short-circuit and over-current protection for enhanced safety.
When should I choose an isolated converter over a non-isolated one?
Isolated converters are recommended for high-value loads or high-voltage applications where electrical safety and noise isolation are critical.
Can I use these for charging batteries?
We recommend choosing products specifically designed with charging functions (like our Battery Charger series) for optimal performance and safety.
