CE Certified 60V to 24V Industrial Buck Converter Step-Down Power Converter for High Stability Output 5A 120W 30-72V to 24V
Product Description
⚡ CE Certified 60V to 24V Industrial Buck Converter
This DC/DC converter is a high-stability voltage converter designed to efficiently output fixed voltage from a 30-72V input range. These converters are essential for mobile devices, digital electronics, and industrial systems requiring stable 24V 120W power delivery.
Key Features
💎
Advanced Control: Utilizes PWM for high efficiency and low noise, and PFM for low power consumption during long-term or small-load operations.
💎
Wide Application: Widely used in mobile phones, digital cameras, portable media players, and industrial chopper circuits.
💎
Customizable Solutions: We offer tailored DC-DC converters from 1V to 1000V and 1A to 1000A, including isolated and non-isolated designs.
📊 Product Specifications
| Type | Non-isolated Buck Converter |
|---|---|
| Model | IPS-DTD60S245 |
| Input Voltage | 30-72VDC |
| Output Voltage | 24VDC |
| Output Current | 5 Amps |
| Output Power | 120 Watts |
| Shell Material | Aluminum |

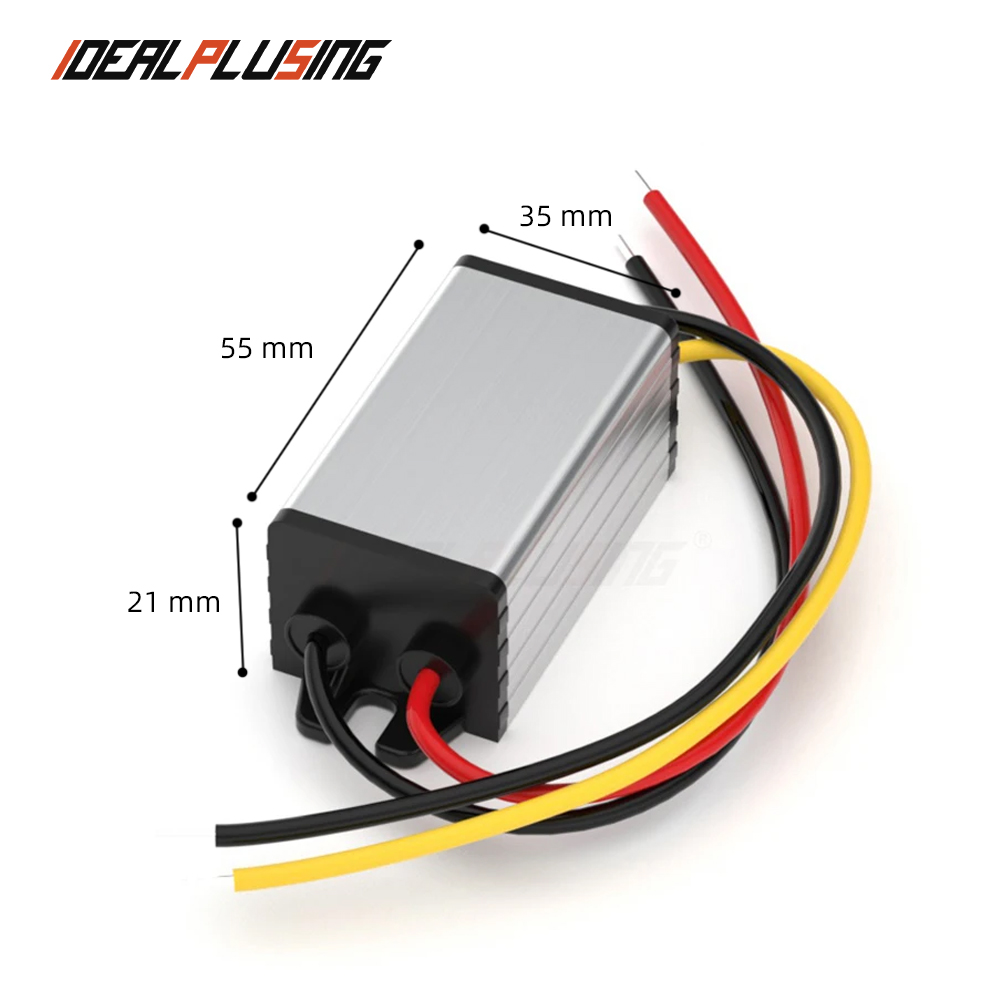

| Dimensions | 54 * 35 * 21 MM |
| Net Weight | 75G |
| Waterproof Level | IP67 |
📋 Full Range Model List
Non-Isolated Series
| Converter Type | Input Range | Output Voltage | Available Current |
|---|---|---|---|
| Boost Converter | 12V / 24V | 15V - 56V | 1A - 50A |
| Buck Converter | 12V - 96V | 5V - 36V | 1A - 100A |
| Boost & Buck | 8-40V | 12V - 24V | 1A - 25A |
Isolated Series & Battery Chargers
| Application | Input Range | Output Voltage | Current Range |
|---|---|---|---|
| Isolated Step Down | 9-150VDC | 5V / 12V / 24V | 1A - 125A |
| Battery Charger | 10-36VDC | 12.6V - 58.8V | 1A - 60A |
| CAN Bus Charger | 40-900VDC | 0-450VDC | Up to 7.5kW |
🌟 Hot Selling Models
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210

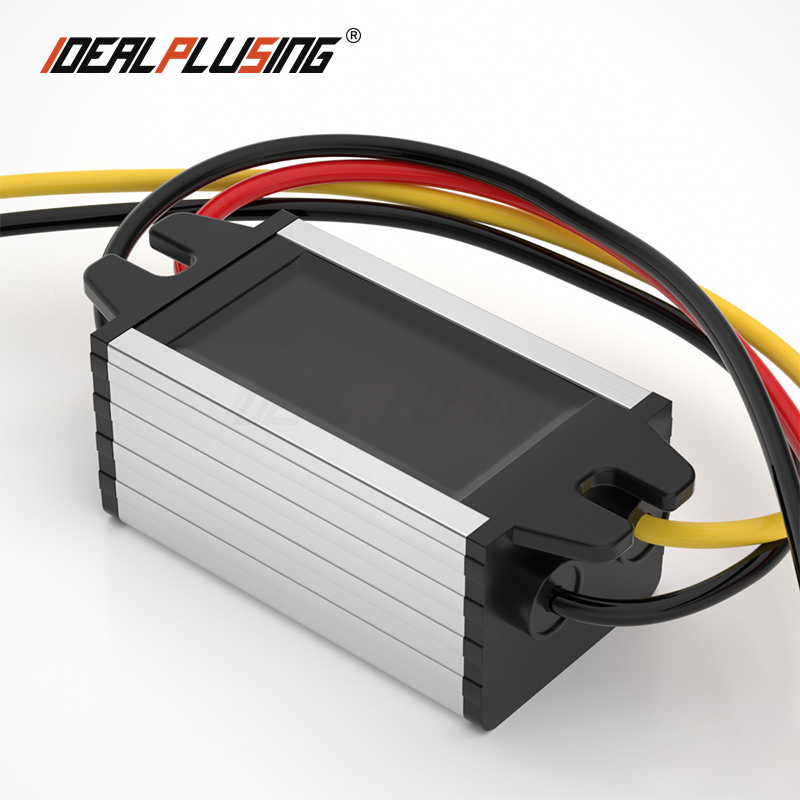

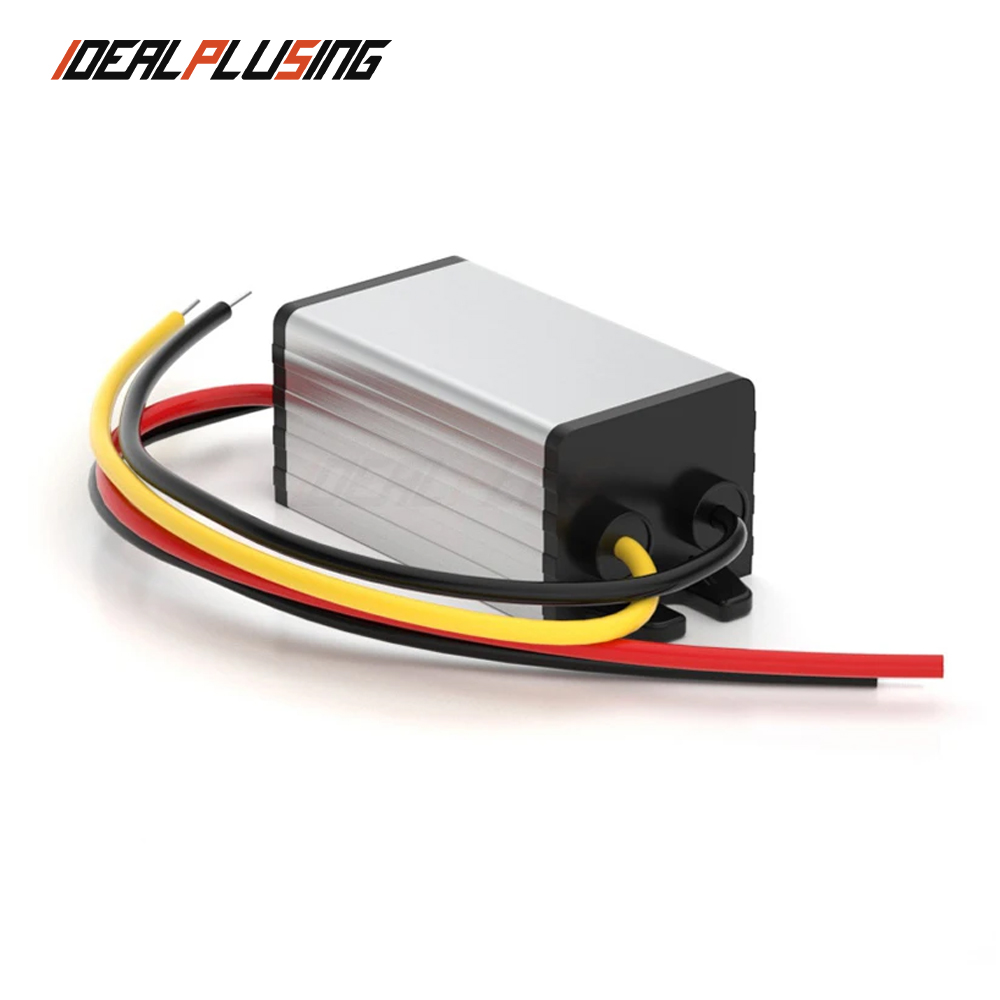

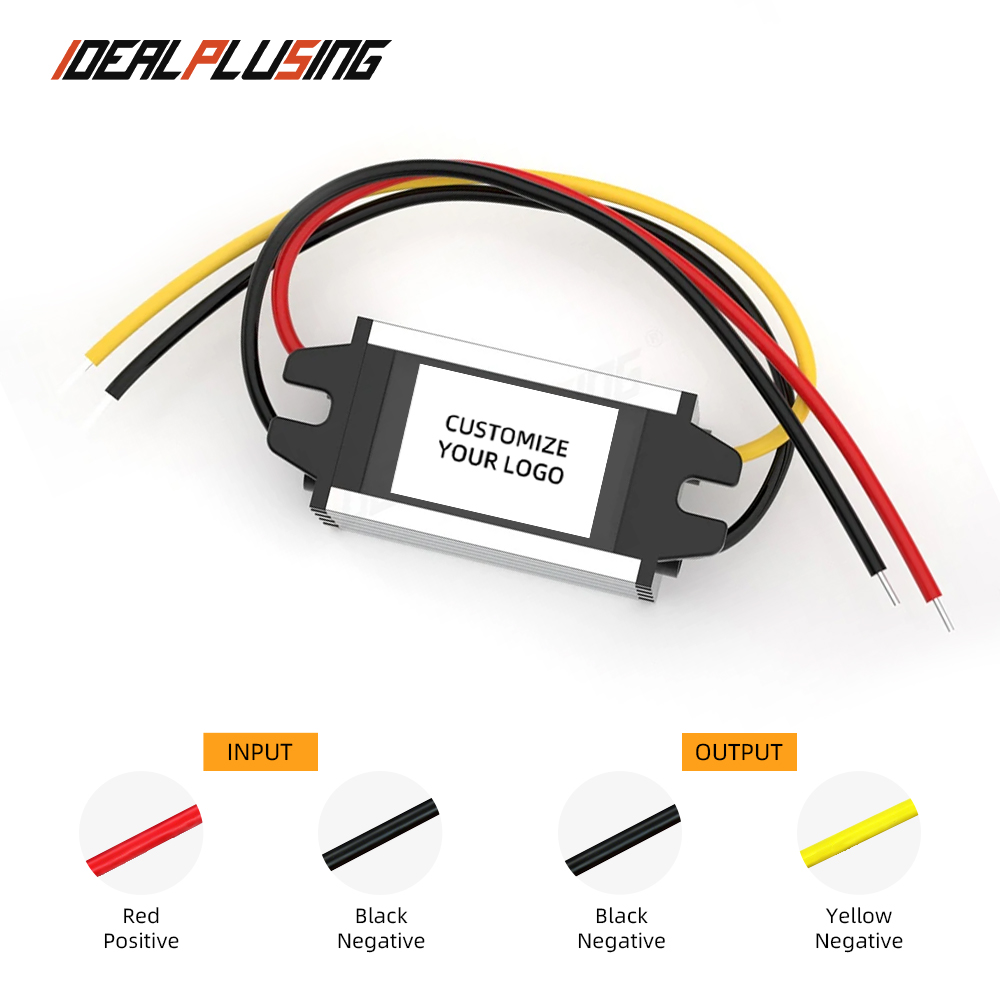

📸 Product Details & Shows
⚙️ Technical Guidelines
1. Safety Protections: All buck-boost products come with output overcurrent, short-circuit, input undervoltage, and overheating protection (typically triggered at 90°C).
2. Fuse Installation: Step-up series products lack internal short-circuit protection; always install external fuses at the input end.
3. Load Considerations: For inductive loads (motors, coils), use a power supply with 3-5 times the rated power of the load.
4. Isolated vs. Non-Isolated: Non-isolated buck units may pass high voltage to the output during failure. Use isolated products for precious loads or when input voltage is 3x higher than output.
5. Waterproofing: Our hard gel encapsulated units are designed for durability but cannot be repaired. Ensure usage environment compatibility before installation.
Frequently Asked Questions
❓ What is the main difference between PWM and PFM control?
PWM (Pulse Width Modulation) provides high efficiency and low noise under heavy loads, while PFM (Pulse Frequency Modulation) minimizes power consumption during long-term standby or small-load operations.
❓ Can these converters handle motor and inductive loads?
Yes, but for inductive loads like motors or magnetic valves, it is strongly recommended to use a converter with a power rating 3-5 times that of the load's rated power.
❓ Should I choose an isolated or non-isolated converter?
Non-isolated converters are cost-effective and smaller. However, for high-value equipment or safety-critical applications, isolated converters are recommended to prevent high input voltage from reaching the output end in case of failure.
❓ Is the 60V to 24V buck converter waterproof?
Yes, this specific model features an IP67 waterproof rating with an aluminum shell and epoxy potting, making it suitable for outdoor and harsh industrial environments.
❓ What happens during an output short circuit?
Our buck-boost units include standard short-circuit protection. However, for boost (step-up) models, an external fuse must be added to the input end to prevent damage to the power source.
❓ Are custom voltage and current ranges available?
Absolutely. We specialize in customizing solutions ranging from 1V to 1000V DC and 1A to 1000A to meet specific industry requirements.
