CE Certified 48V to 12V 24V 36V 5V 6V 9V 19V DC/DC Voltage Converter Industrial DC DC Converter for Waterproof IP67 3A 5A 8A 10A
Product Description
Industrial Grade DC/DC Voltage Converter - IP67 Waterproof
DC/DC converter is a precision voltage conversion module designed to provide a stable fixed voltage output across various industrial applications. Our range includes Boost, Buck, and Boost-Buck configurations. Utilizing PWM and PFM control technologies, these converters ensure high efficiency, minimal noise, and low power consumption even under prolonged light-load operations.
Customized Power Solutions
We specialize in developing efficient, reliable, and cost-effective power supply solutions. Our expertise covers input/output customization ranging from 1V to 1000V DC and 1A to 1000A. Whether you require isolated or non-isolated designs, our technical team provides high-quality modules for mobile devices, industrial equipment, and telecommunications.
Technical Specifications (Sample Model)
| Parameter | Details |
|---|---|
| Type | Non-isolated Buck Converter |
| Model | IPS-DTD48S610 |
| Input Voltage Range | 20-60V DC |
| Output Voltage | 6V DC |
| Output Current | 10 Amps |
| Output Power | 60 Watts |
| Shell Material | High-grade Aluminum |
| Efficiency | Up to 96% |
| Waterproof Level | IP67 |

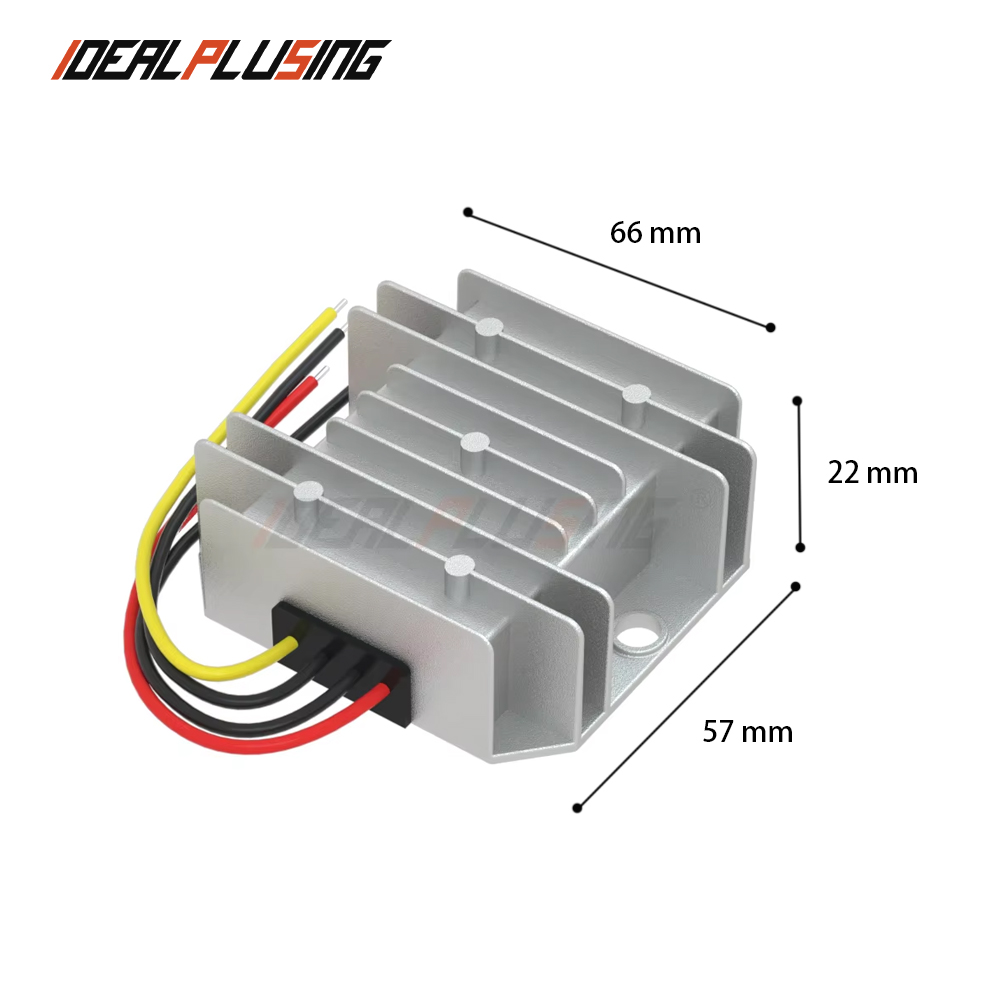

| Dimensions | 66*57*22 MM |
Comprehensive Model List
| Non-Isolated Series | ||
| Category | Voltage Conversion | Current Options |
|---|---|---|
| Boost Converters | 12V to 19V/24V/48V | 1A to 50A |
| Buck Converters | 48V to 12V/5V/24V | 1A to 100A |
| Isolated Series (Safety Enhanced) | ||
| Step Down | 72V/110V/600V to 12V/24V | 5A to 40A |
Hot Selling Models
Technical Application Guidelines
🛡️
Protection Features: All standard units include overcurrent, short-circuit, undervoltage, and overheating protection.
⚙️
Inductive Loads: For motors or magnetic valves, we recommend using a power supply with 3-5 times the rated power of the load.
🔌
Isolated vs Non-Isolated: Isolated products prevent high input voltage from passing to the output, making them the safest choice for precious load equipment.
❄️
Thermal Management: Large power supplies feature integrated over-temperature protection triggered at approximately 90°C.
Detailed Product Gallery
Frequently Asked Questions
❓What is the main advantage of using an isolated DC/DC converter?
The primary advantage is safety. Isolated converters prevent high input voltage from direct passage to the output end in case of a fault, protecting precious load equipment. They also allow for negative voltage input and prevent shared ground issues.
❓Are these converters suitable for outdoor use?
Yes, our aluminum-cased modules are IP67 rated, meaning they are completely waterproof, dustproof, and high-temperature resistant, making them ideal for outdoor and industrial environments.
❓How do I choose a converter for a motor or inductive load?
Inductive loads like motors require a high start-up current. We recommend selecting a converter that provides 3 to 5 times the rated power of the load to handle these surges effectively.
❓Can non-isolated boost converters cause damage during a short circuit?
Due to their circuit structure, they may not have output short-circuit protection. It is highly recommended to add an appropriate fuse at the input end to protect your power source from high current damage.
❓What happens when the input voltage is too low?
Our converters feature input undervoltage protection. Most units will automatically shut down to protect both the converter and the source battery from deep discharge damage.
❓What is the difference between PWM and PFM control?
PWM (Pulse Width Modulation) offers high efficiency and low ripple under heavy loads, while PFM (Pulse Frequency Modulation) is more efficient under small loads, reducing power consumption for long-term operations.
