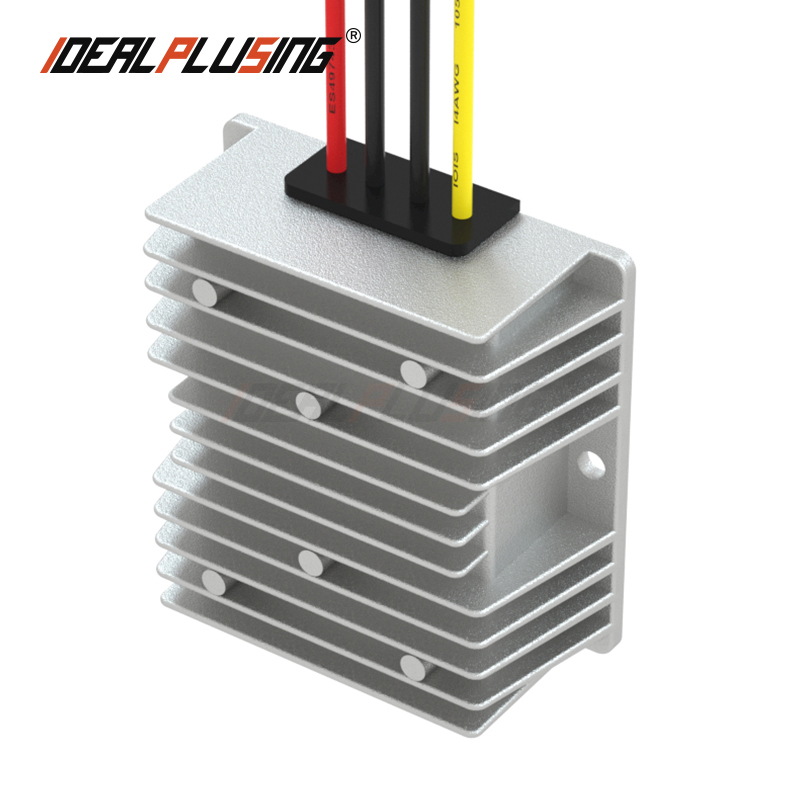

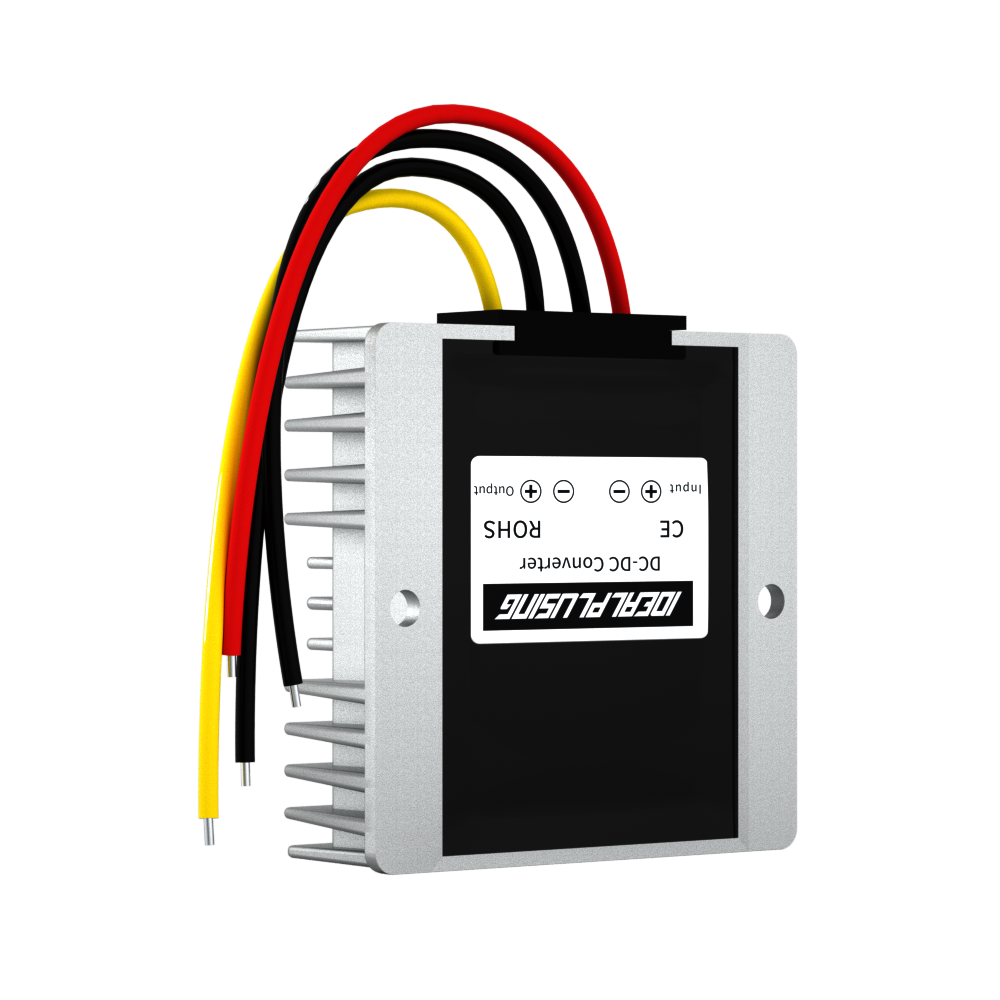

CE Certified 60V to 5V 12V 13.8V 19V 24V 36V 48V Step-Down Power Converter DC-DC Converter for High Precision Output 10A 15A 20A
Product Description
CE Certified Step-Down Power Converters
High Precision DC-DC Solutions: 60V to 5V, 12V, 13.8V, 19V, 24V, 36V, 48V (10A-20A)
Core Features
DC/DC converters are essential voltage management tools that effectively output a fixed voltage after converting input energy. Our range covers three primary categories: Boost type, Boost & Buck type, and Buck type.
⚡
Advanced Control Logic: PWM control provides high efficiency with minimal ripple and noise. PFM control offers the advantage of ultra-low power consumption during long-term use, particularly under small loads. Modern converters automatically transition between PFM and PWM depending on the load requirements.
Professional Customization Solutions
We focus on research, development, and providing personalized, efficient, reliable, and cost-effective power supply solutions. We specialize in customizing DC-DC converters to meet your specific industrial requirements.
⚙️
Technical Specifications: Customized input and output voltage ranges from 1V to 1000V DC and currents from 1A to 1000A. We provide both isolated and non-isolated design options to match your project safety and efficiency targets.
Technical Specification (Example Model)
| Parameter | Details |
|---|---|
| Type | Non-isolated |
| Model | IPS-DTD60S1210 |
| Input Voltage | 20-80VDC |
| Output Voltage | 12VDC |
| Output Current | 10 Amps |
| Output Power | 120 Watts |
| Shell Material | Aluminum |
| Size | 74*74*32MM |
| Net Weight | 300G |
| Waterproof Level | IP67 |
Non-Isolated Converter Series
| NON-ISOLATED MODELS | |||
|---|---|---|---|
| Type | Model/Series | Conversion | Output Current Options |
| Boost Converter | IPS-DTD12S24** | 12V to 24V | 1/2/3/4/5/8/10/12/15/20/25/30/40/50A |
| Buck Converter | IPS-DTD24S12** | 24V to 12V | 1/1.5/2/3/4/5/6/8/10/12/15/18/20/22/25/28/30/40/50/60/85/100A |
| Step Down | IPS-DTD60S12** | 60V to 12V | 5/8/10/15A |
| Boost & Buck | IPS-DTD8~40S12* | 8~40V to 12V | 1/2/3/6/10/15/20/25A |
Isolated Converter Series
| ISOLATED INDUSTRIAL MODELS | |||
|---|---|---|---|
| Application | Input Range | Output | Current Range |
| Step Down | 9-36V | 12V / 24V | 1/2/3/4/5/10/15/20A |
| High Voltage Step Down | 50-100V | 5V / 12V / 24V | 5/8/10/15/18/20/24A |
| Extra High Voltage | 300-750VDC | 24V / 48V / 80V | Up to 160A (4.0Kw) |
Hot Selling Models Gallery
Product Details & Internal Structure
Technical Application Guidelines
- 01 All buck-boost and step-up/step-down products come standard with output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
- 02 Due to circuit structure, step-up series products lack internal short-circuit protection. Please add external fuses at the input end.
- 03 The gold small aluminum casing models are high-temperature resistant and designed for high-demand outdoor applications.
- 04 For inductive loads (coils, magnetic valves, speakers) and motor applications, use a power supply 3-5 times the rated load power.
- 05 Isolated products must not share negative poles (ground) between input and output to maintain the isolation effect.

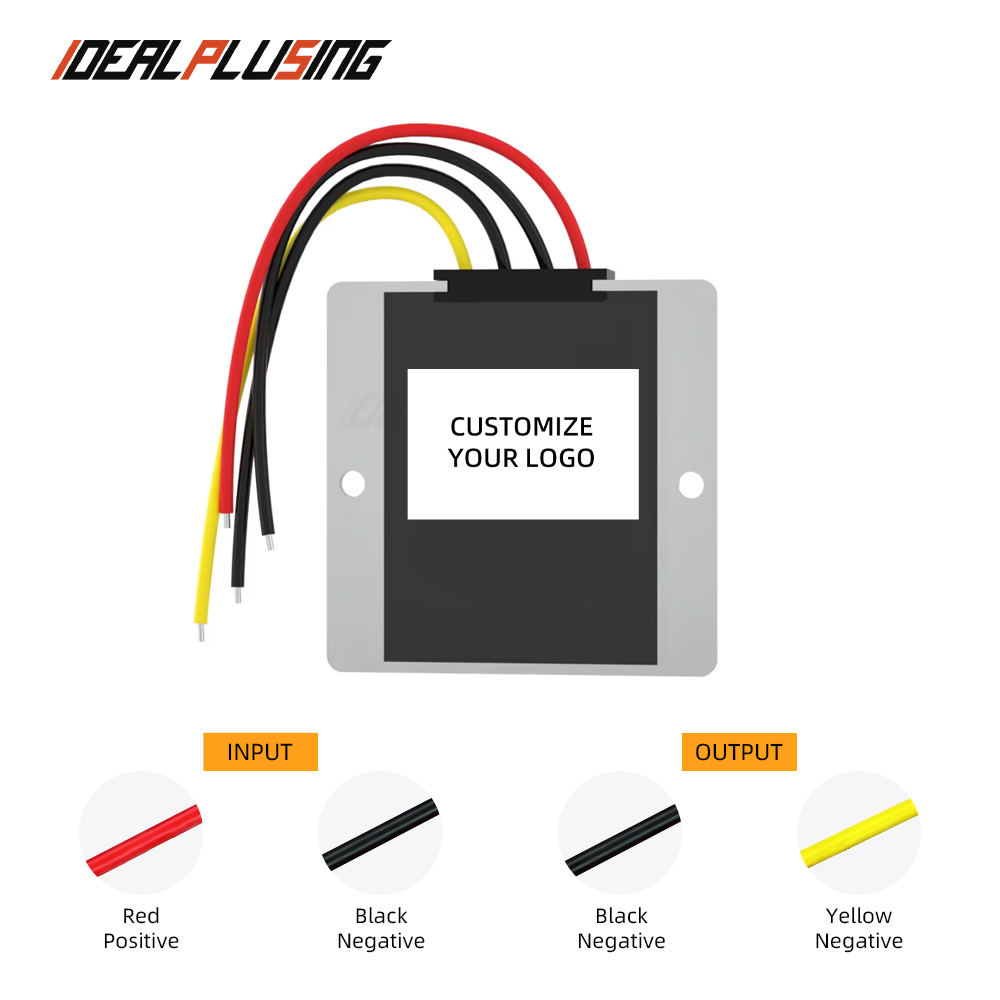

- 06 Isolated power supplies support negative voltage input. Connect the 0V line to the red wire and the negative voltage line to the black wire.
Frequently Asked Questions
Q1: What is the main benefit of an isolated DC-DC converter?
Isolation ensures that high input voltage cannot pass directly to the output end in case of a failure, protecting precious loads. It also prevents electrical noise and grounding issues.
Q2: How should I choose a power supply for a motor load?
For inductive loads like motors or magnetic valves, we recommend choosing a converter with a rated power 3 to 5 times higher than the load's nominal rating to handle startup surges.
Q3: Do these converters support waterproof applications?
Many of our models, such as the IPS-DTD60S1210, feature an IP67 waterproof level, making them suitable for outdoor and harsh environments.
Q4: Can I use a standard buck converter for battery charging?
For charging applications, we strongly recommend choosing products specifically designed with charging functions (DC-DC Battery Chargers) to ensure correct charging curves and safety.
Q5: What protection features are standard?
Standard features include output overcurrent protection, output short-circuit protection, input undervoltage protection, and chip overheating protection (up to 90°C).
Q6: Are the output voltages adjustable?
While isolated power supplies have a more limited adjustable range, we offer extensive customization for specific voltage and current requirements ranging from 1V to 1000V.
