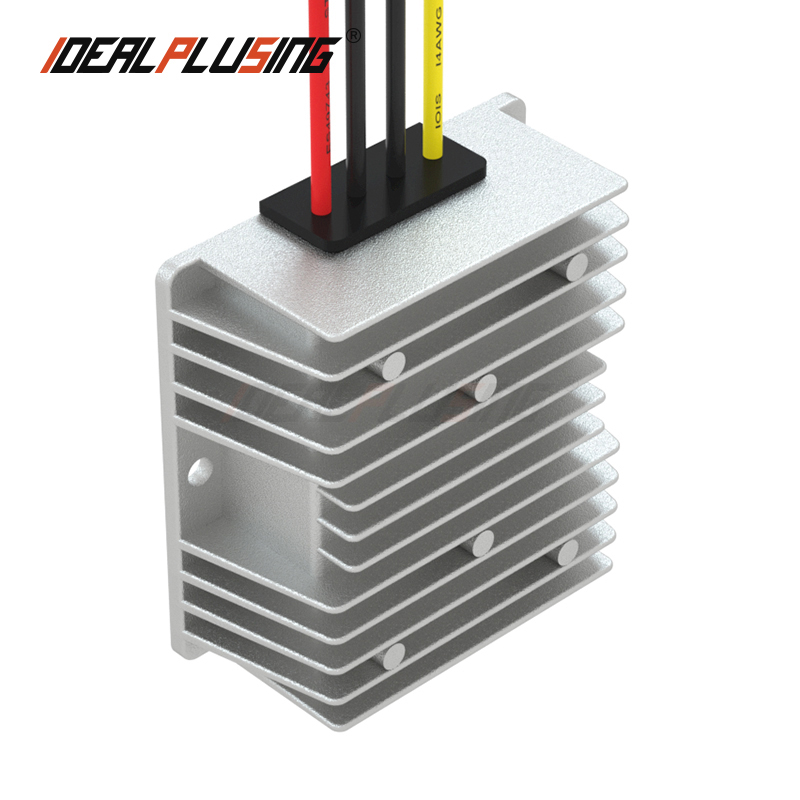

DC DC Converter 30V~96V 36V 48V 60V 72V 84V 96V 72v to 12v 10a 120w Step Down Power Converter
Product Description
DC DC Converter 30V~96V to 12V 10A 120W Step Down Power Converter
⚡
Advanced Features
PWM and PFM control types ensure high efficiency, excellent output voltage ripple, and low noise. Automatic switching between modes handles both small and heavy loads efficiently.
🛠️
Versatile Applications
Widely used in mobile phones, digital cameras, portable media players, and industrial chopper circuits for stable power delivery.
We provide personalized, efficient, reliable and cost-effective power supply solutions. We specialize in customizing DC-DC converters to meet your specific requirements.
- ✔ Range from 1V to 1000V DC and 1A to 1000A.
- ✔ Isolated and non-isolated design options.
- ✔ Tailored input/output voltage and current.
| Parameter | Details |
|---|---|
| Type | Non-isolate |
| Model | Based on specific model |
| Input Voltage | 30V-96V (Based on model) |
| Output Voltage | 12V (Based on model) |
| Output Current | 10A (Based on model) |
| Material of Shell | Aluminum |
| Waterproof Level | IP67 |
Non-Isolated Boost/Buck Converters
| Type | Model/Series | Input to Output | Current Options |
|---|---|---|---|
| Boost | IPS-DTD12S24** | 12V to 24V | 1A to 50A |
| Buck | IPS-DTD48S12** | 48V to 12V | 1A to 60A |
| Buck | IPS-DTD72S12** | 72V to 12V | 1A to 50A |
| Isolated | IPS-DTDYI72S12* | 50-100V to 12V | 5A to 24A |
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210
IPS-DTD50-60S488
IPS-DTD50-60S488 Series
IPS-DTD48S1240
➤
All products feature overcurrent, short-circuit, undervoltage, and chip overheating protection (approx. 90°C).
➤
For motor applications and inductive loads, a power supply 3-5 times the rated load power is recommended.
➤
Non-isolated buck converters: In case of failure, high input voltage can pass to output. Isolated products are recommended for high-value loads.
➤
Isolated products: Negative poles (ground) cannot be shared. They offer the highest safety for sensitive equipment.
➤
Small aluminum casing series are high-temperature resistant and highly reliable for outdoor environments.
Frequently Asked Questions
❓ What is the difference between PWM and PFM control?
PWM control provides high efficiency and low noise under standard loads. PFM control is optimized for low power consumption during long-term use, especially under small loads.
❓ Can these converters be used for charging batteries?
Yes, but you should choose specific models with charging functions. We offer DC-DC battery chargers for Lithium, LiFePO4, and Lead-Acid batteries.
❓ Is the aluminum shell waterproof?
Our converters are typically rated at IP67, making them dust-tight and capable of withstanding immersion in water, suitable for harsh environments.
❓ Why should I choose an isolated DC-DC converter?
Isolated converters provide the highest level of safety by preventing high input voltage from passing through to the output end if a failure occurs, protecting expensive connected equipment.
❓ How do I protect the converter from short circuits?
While most buck-boost units have built-in protection, step-up (boost) series may require external fuses at the input end to prevent current damage during a short circuit.
❓ Can I customize the input and output voltage?
Yes, we specialize in customization with ranges from 1V up to 1000V DC and currents from 1A to 1000A to fit specific industrial needs.
