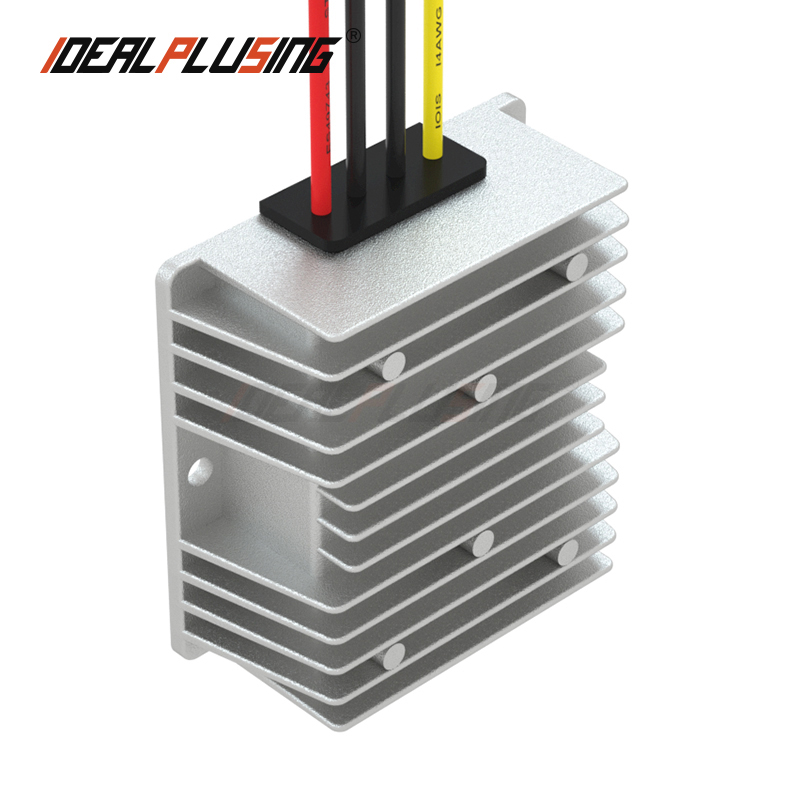

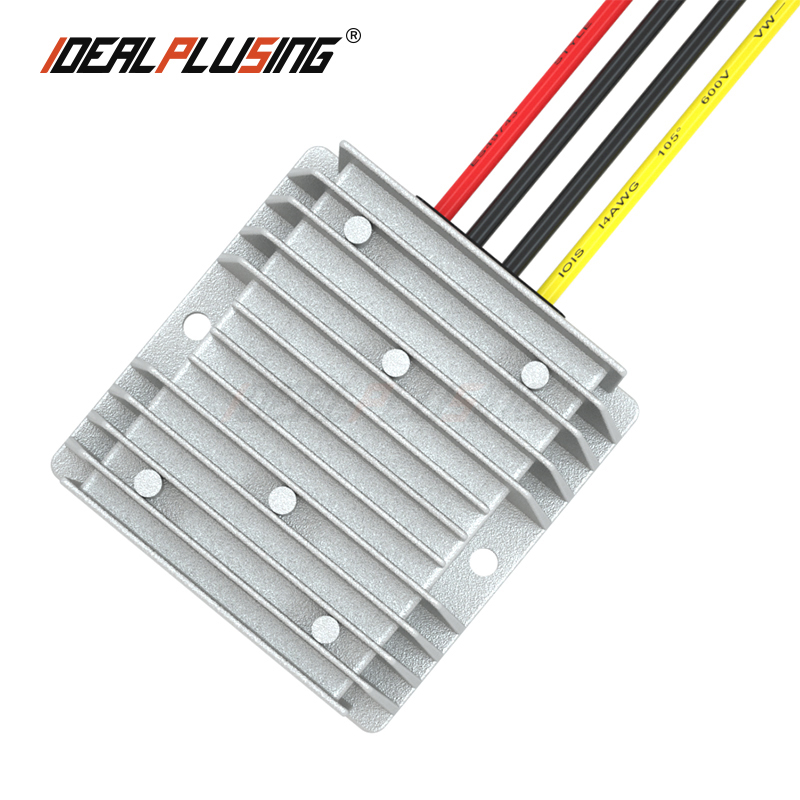

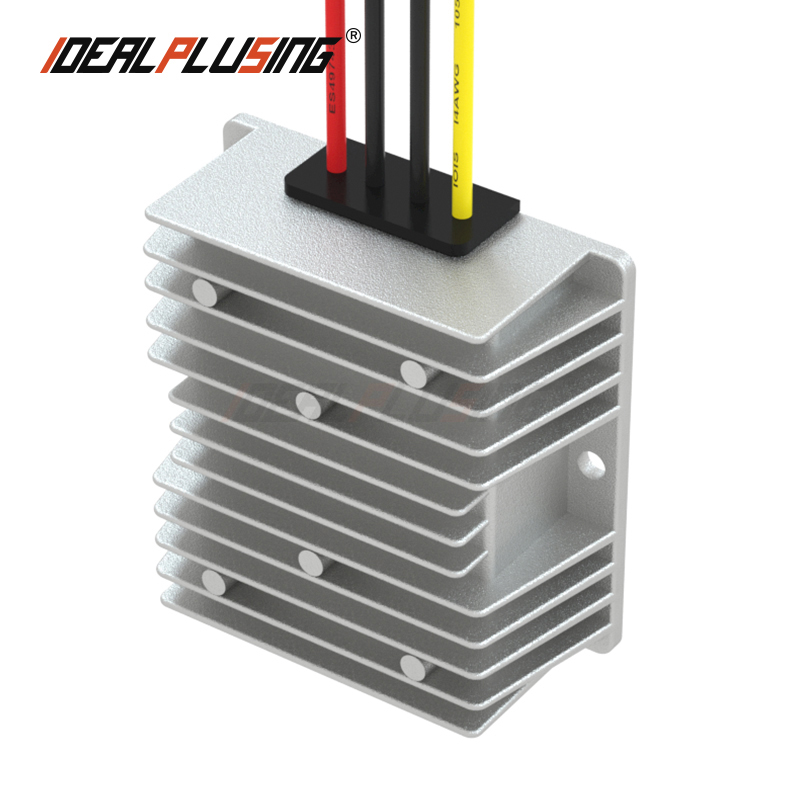

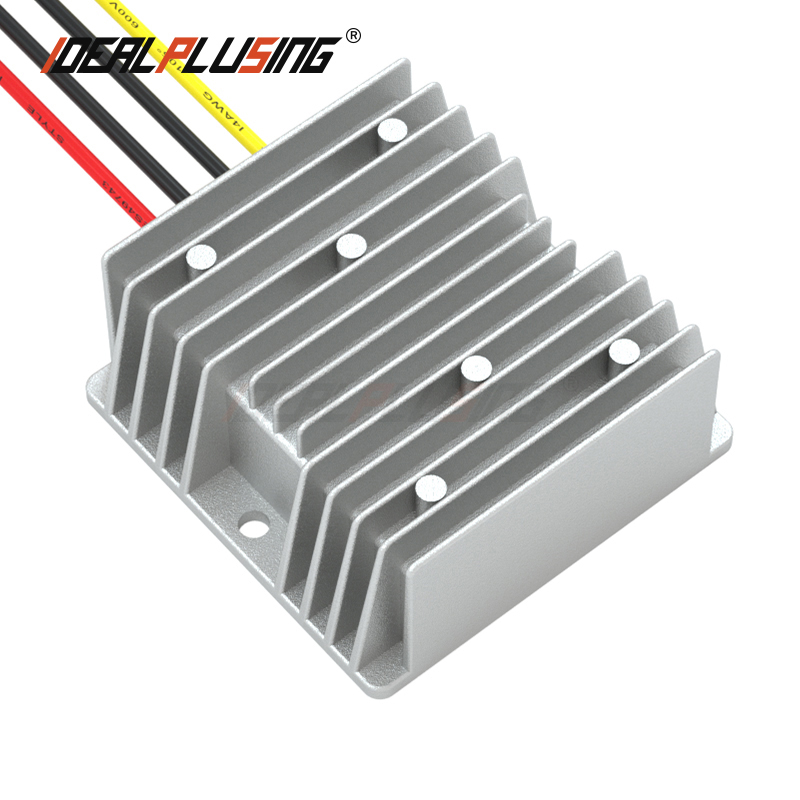

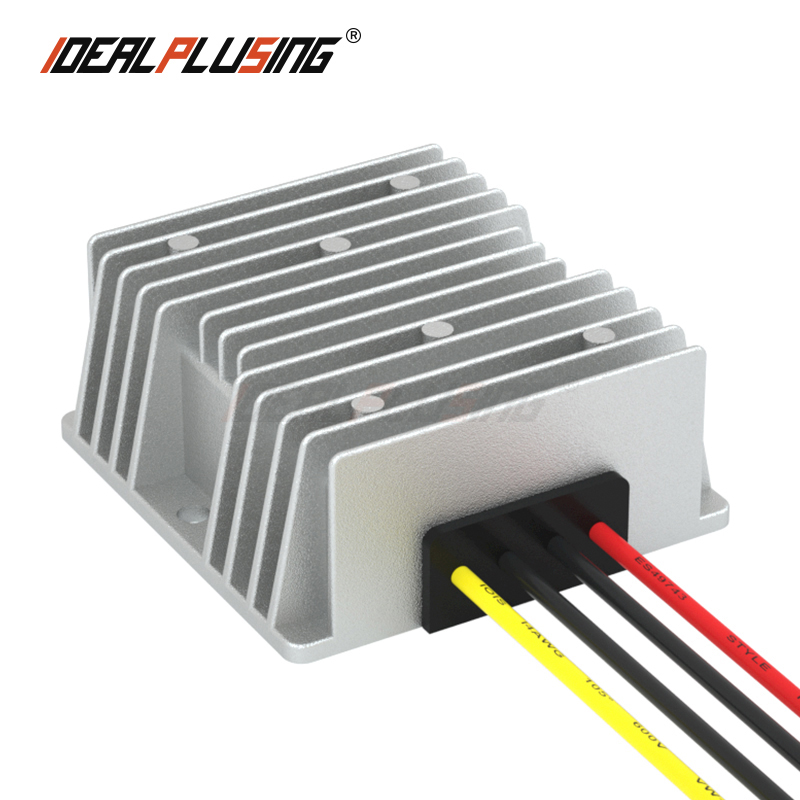

DC DC Converter 80-110v 84V 96v 110v to 12v 14v 14.5v 15v 16v 19v 20v 24v 10a 120w Step Down Converter
Product Description
DC DC Converter 80-110V to 12V-24V 120W Step Down Solutions
⚡ Features: A DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. Our converters are divided into three categories: Boost type, Boost & Buck type, and Buck type.
Three kinds of control can be adopted according to demand. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if used for a long time, especially under small load. Currently, DC-DC converters are widely used in mobile phones, digital cameras, portable media players, and other industrial products.
⚙️
Customized Solutions: We focus on the research, development, and service of DC to DC power supply modules, AC to DC rectifier modules, and various power solutions. We provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries.
We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A. Both isolated and non-isolated design options are available.
We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A. Both isolated and non-isolated design options are available.
Product Specification
| Parameter | Details |
|---|---|
| Type | Non-isolated / Isolated Options |
| Input Voltage | Base on model (e.g., 80-110V) |
| Output Voltage | Base on model (12V, 14V, 15V, 19V, 24V etc.) |
| Output Current | Base on model (Up to 10A for 120W) |
| Shell Material | Aluminum |
| Waterproof Level | IP67 |
Non-Isolated DC-DC Converter Series
| Type | Model/Series | Input to Output | Output Current Options |
|---|---|---|---|
| Boost | IPS-DTD12S15** | 12V to 15V | 1A to 15A |
| IPS-DTD12S24** | 12V to 24V | 1A to 50A | |
| IPS-DTD12S48** | 12V to 48V | 1A to 20A | |
| IPS-DTD24S48** | 24V to 48V | 2A to 40A | |
| Buck | IPS-DTD24S12** | 24V to 12V | 1A to 100A |
| IPS-DTD48S12** | 48V to 12V | 1A to 60A | |
| IPS-DTD72S12** | 72V to 12V | 1A to 50A | |
| IPS-DTD84S12** | 84V to 12V | 1A to 25A |
Hot Selling Models
IPS-DTD30-60S1210
Type: Non-Isolate
IPS-DTD20-100S122
Type: Non-Isolate
IPS-DTD15-40S1210
Type: Non-Isolate
Product Showcase
Technical Application Description
1 All buck-boost products include standard output overcurrent, short-circuit, input undervoltage, and overheating protection.
2 For inductive loads (coils, magnetic valves, speakers) and motors, we recommend a power supply 3-5 times the rated load power.
3 Non-isolated buck power supplies carry a risk where high input voltage could pass to the output if the unit fails. For precious loads, isolated products are strongly recommended.
4 Isolated power supplies support negative voltage input, and the output can be positive or negative.
5 More than 90% of global power supplies are isolated for safety and reliability, including high-standard industrial applications.
Frequently Asked Questions
❓ What is the main difference between PWM and PFM control?
PWM (Pulse Width Modulation) offers high efficiency and low ripple/noise. PFM (Pulse Frequency Modulation) is superior for low power consumption during long-term use, especially under small loads. Many of our units switch automatically between the two based on load.
❓ When should I choose an isolated converter over a non-isolated one?
Isolated converters are highly recommended for protecting precious or sensitive equipment, as they prevent high input voltage from directly passing to the output in case of a fault. They also allow for separate grounding of input and output.
❓ Can these converters handle motor or inductive loads?
Yes, but because inductive loads like motors and coils have high startup currents, we recommend choosing a converter with a power rating 3 to 5 times the rated power of your load.
❓ Are these units protected against environmental factors?
Most of our aluminum shell models are IP67 rated, meaning they are waterproof and dustproof. The gold-colored aluminum casings are specifically designed for high-temperature resistance and outdoor reliability.
❓ What safety protections are built into the converters?
Standard features include output overcurrent protection, output short-circuit protection, input undervoltage protection, and chip overheating protection (typically triggered around 90°C).
❓ Can I get a customized voltage range?
Yes, we specialize in customizing DC-DC converters. We can provide input and output ranges from 1V to 1000V DC and currents from 1A to 1000A based on your specific application needs.
