Step Down DC/DC Converters 48V to 5V 6V 9V 12V 24V LM2596 DC DC Buck Converter for Anti Surge Capability 2A 3A 5A 10A 36W 120W
Product Description
Step Down DC/DC Converters 48V to 5V-24V
High Performance Buck Converters for Anti-Surge Capability
🚀 Core Features
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. Our converters are designed with advanced control mechanisms:
💎
PWM Control Type: High efficiency with excellent output voltage ripple and noise control.
💎
PFM Control Type: Advantage of low power consumption for long-term use, especially under small loads.
💎
Automatic Conversion: Seamlessly switches between PFM and PWM based on load requirements.
🛠 Customized Power Solutions
We focus on R&D and service for D C to D C power supply modules and A C to D C rectifier systems. We provide personalized, efficient, and cost-effective solutions for all industries.
- Customized input/output voltage and current ranges: 1V to 1000V DC and 1A to 1000A.
- Design options for both isolated and non-isolated converters.
- Dedicated team response within one hour for technical inquiries.
📊 Technical Specifications
| IPS-DTD48S53 Model Specs | |
|---|---|
| Type | Non-isolated Buck Converter |
| Input Voltage | 8-72VDC |
| Output Voltage | 5VDC |
| Output Current | 3A |
| Output Power | 15W |
| Shell Material | High-Grade Plastic |

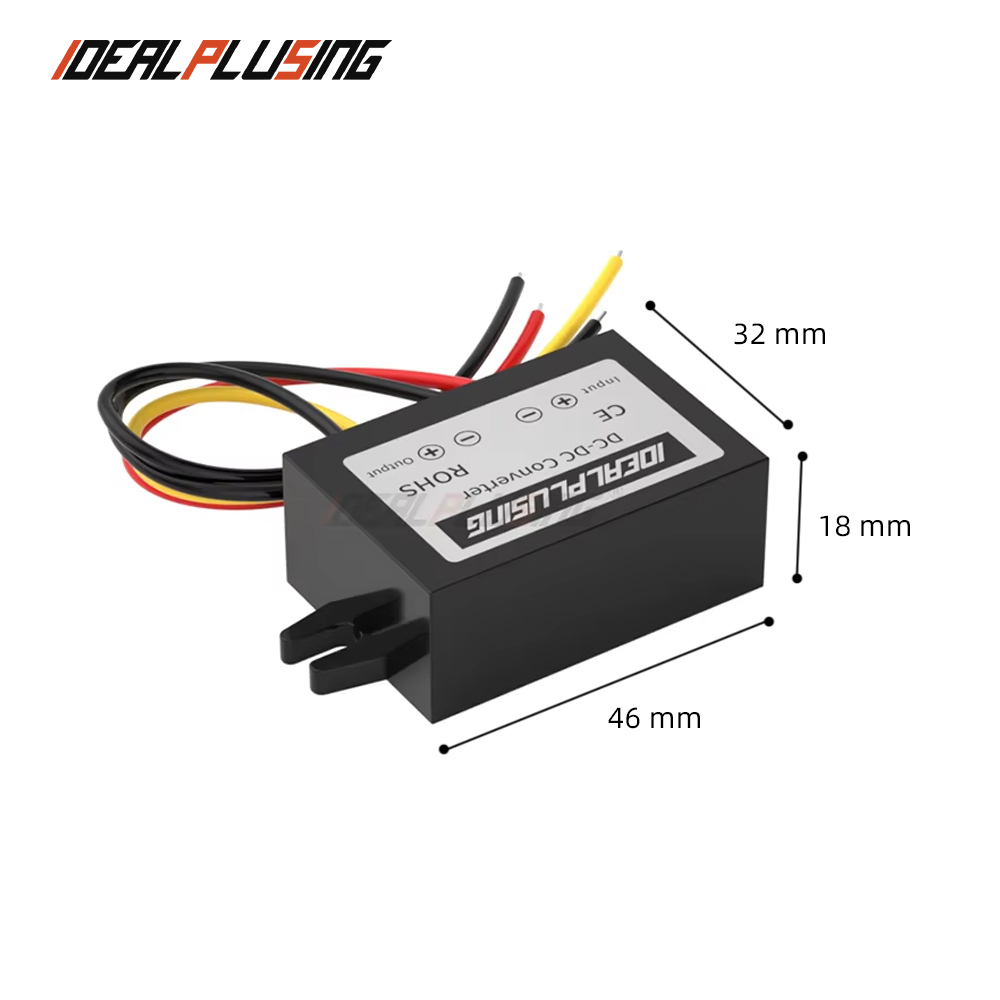

| Size | 46*32*18MM |
| Weight | 47G |
| Waterproof Level | IP67 |
🔥 Hot Selling Models
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210
IPS-DTD50-60S488
IPS-DTD48S1240
IPS-DTD30-90S2440
📐 Professional Applications & Safety
1. Protection Systems: All buck-boost products include overcurrent, short-circuit, undervoltage, and overheating protection (up to 90°C).
2. Inductive Loads: For coils, magnetic valves, and motors, we recommend a power supply 3-5 times the rated load power.
3. Isolation Security: Non-isolated buck converters carry a risk of high input voltage passing to the output. For precious loads, Isolated Products are strongly recommended.
4. Durability: Aluminum casings are high-temperature resistant and reliable for outdoor applications.
📦 Product Showcase
Frequently Asked Questions
What is the main difference between PWM and PFM control?
PWM control offers high efficiency and low noise for standard loads, while PFM control is optimized for extremely low power consumption during long-term use or under small loads.
Do your converters have short-circuit protection?
Standard buck-boost products include output short-circuit protection. However, due to circuit structure, certain step-up series may require external fuses at the input end for safety.
Can I use these converters for electric motors?
Yes. For inductive loads like motors, coils, or speakers, we recommend choosing a converter with a power rating 3-5 times higher than the load's rated power to handle startup surges.
Why should I choose an isolated DC-DC converter?
Isolated converters prevent high input voltage from passing to the output in the event of a failure, making them the safest choice for protecting expensive or sensitive equipment.
Are the products waterproof?
Many of our models, such as the IPS-DTD48S53, feature an IP67 waterproof rating, making them suitable for outdoor and harsh environments.
Can you customize voltage parameters?
Yes, we specialize in customization. We can design converters with input/output ranges from 1V to 1000V and current from 1A to 1000A to meet specific industry requirements.
