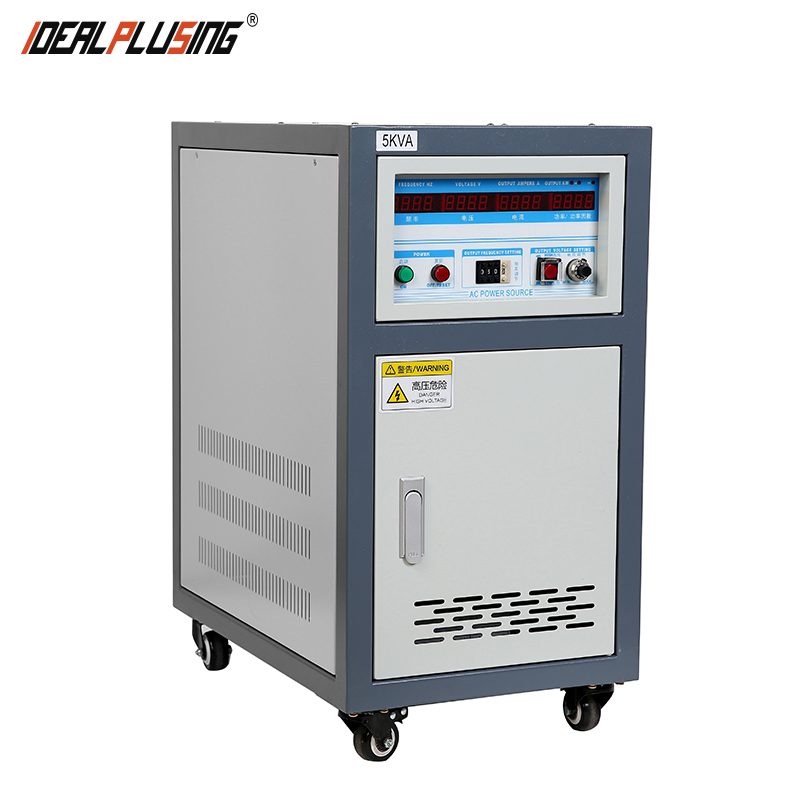

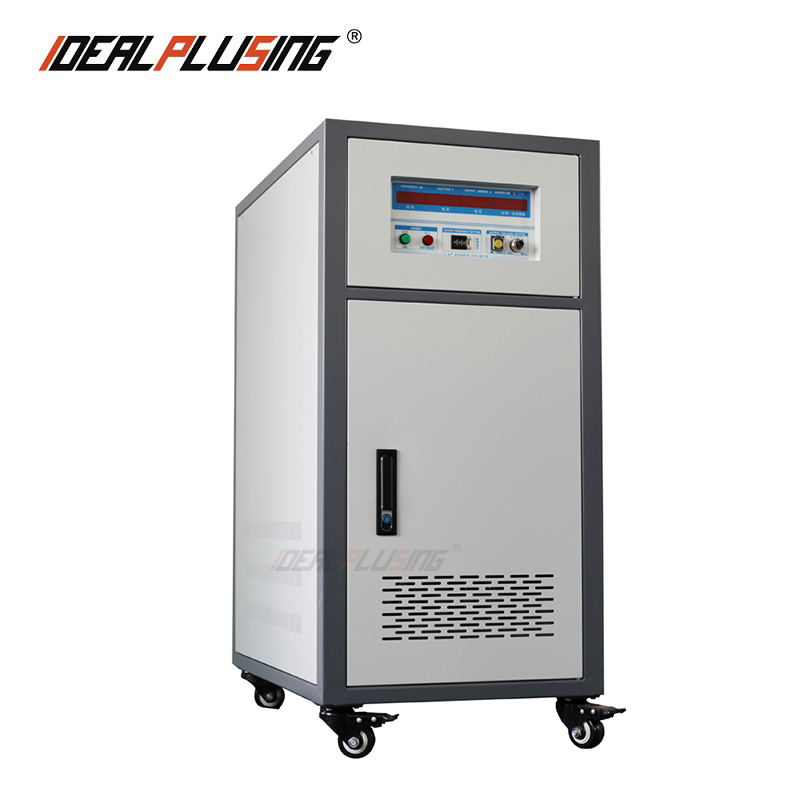

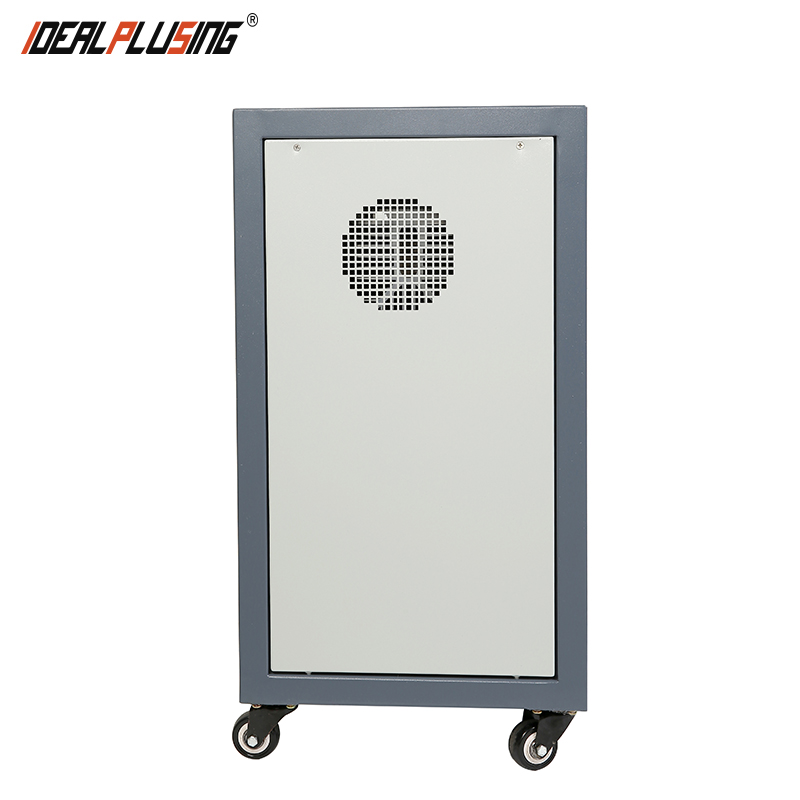

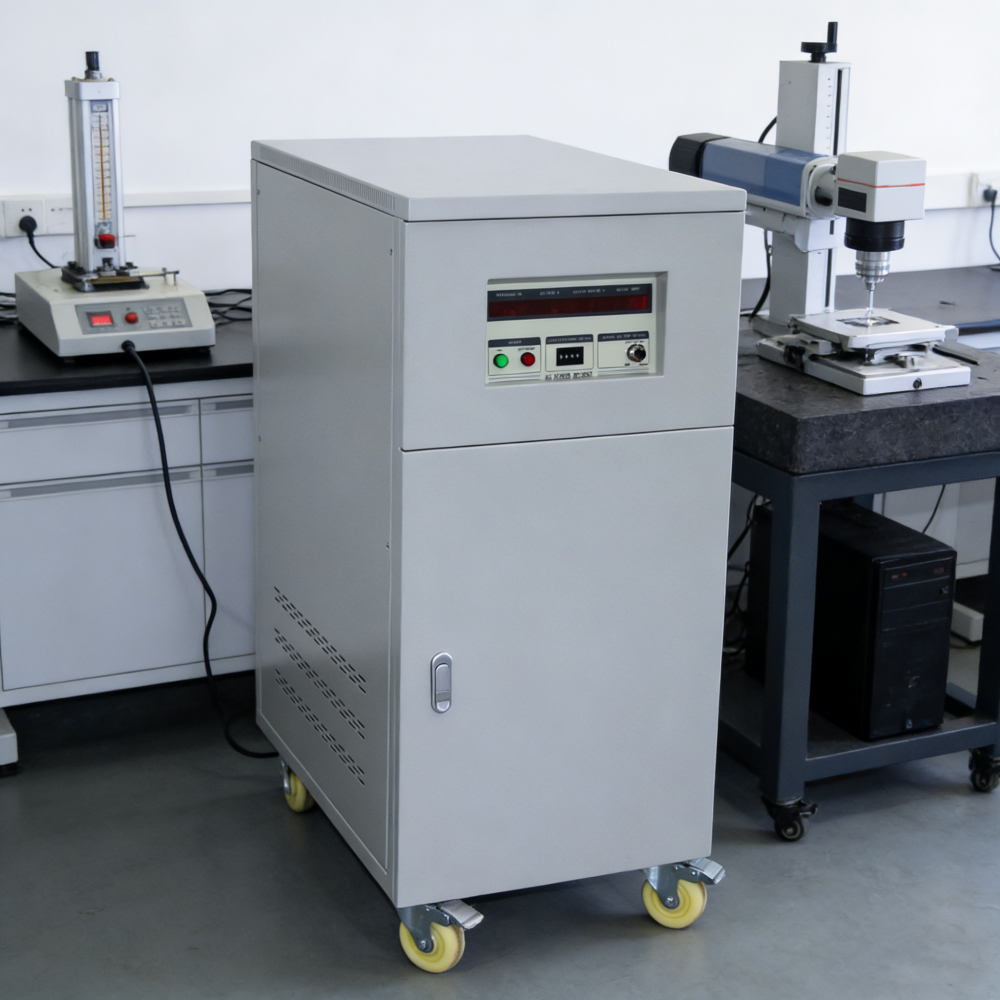

Energy Saving 40-499.9hz Variable Ac Power Supply 6KVA 10KVA 15KVA Frequency Converter for Industrial Automation
Product Description
Energy Saving 40-499.9hz Variable AC Power Supply Frequency Converter (6KVA 10KVA 15KVA) for Industrial Automation
💡 Friendly Reminder
The prices shown are for reference only. Final transaction prices will be recalculated based on your actual needs, purchase quantity, and market conditions. We adhere to the principle of integrity and avoid price misrepresentation. Thank you for your trust.
🚀 Product Features
01Complete isolation of input and output technology, safe and reliable power supply.
02SPWM sine wave pulse width modulation technology for fast response and stable output.
03IGBT high-frequency static inverter: small size, lightweight, low noise, and high efficiency.
04Unique double-loop control mode (instantaneous and effective value) for high precision.
05Highly integrated module drive circuit with strong overload capacity.
06Suitable for resistive, inductive, rectifier, and various other loads.
07Multiple protection: overheating, overcurrent, and short circuit.
08Setting parameter memory function with 10-group shortcut operations.
09Online adjustable voltage and frequency with real-time change capability.
🛠️ Industrial Applications
Home appliances
Motors
Power tools
Switching power supplies
Power adapters
UPS
Photovoltaic
Lamps
Electronic transformers
Low-voltage distribution
📊 FC61 Series Technical Data
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
|---|---|---|---|---|
| Output capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated power (KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| Max Current (Low-grade) | 4.2A | 8.4A | 17A | 25A |
| Max Current (High-grade) | 2.1A | 4.2A | 8.4A | 12.5A |
| Dimension (cm) | 43*18*44 | 43*18*44 | 43*18*47 | 43*65*52 |
🔥 Hot Selling Models
IPS-FC6102 (2KVA 1.6KW)

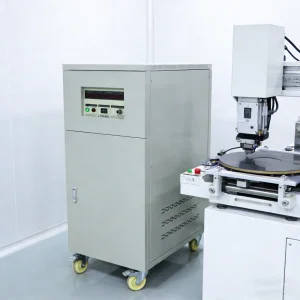

IPS-FC6250 (50KVA 40KW)
IPS-FC6310 (10KVA 8KW)
IPS-FC6330 (30KVA 24KW)

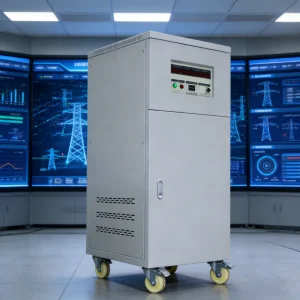

IPS-FC68100 (100KVA 80KW)

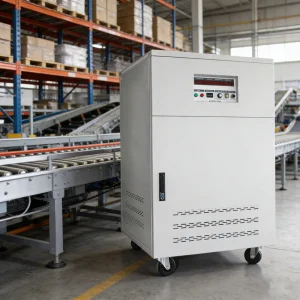

IPS-FC68200 (200KVA 160KW)

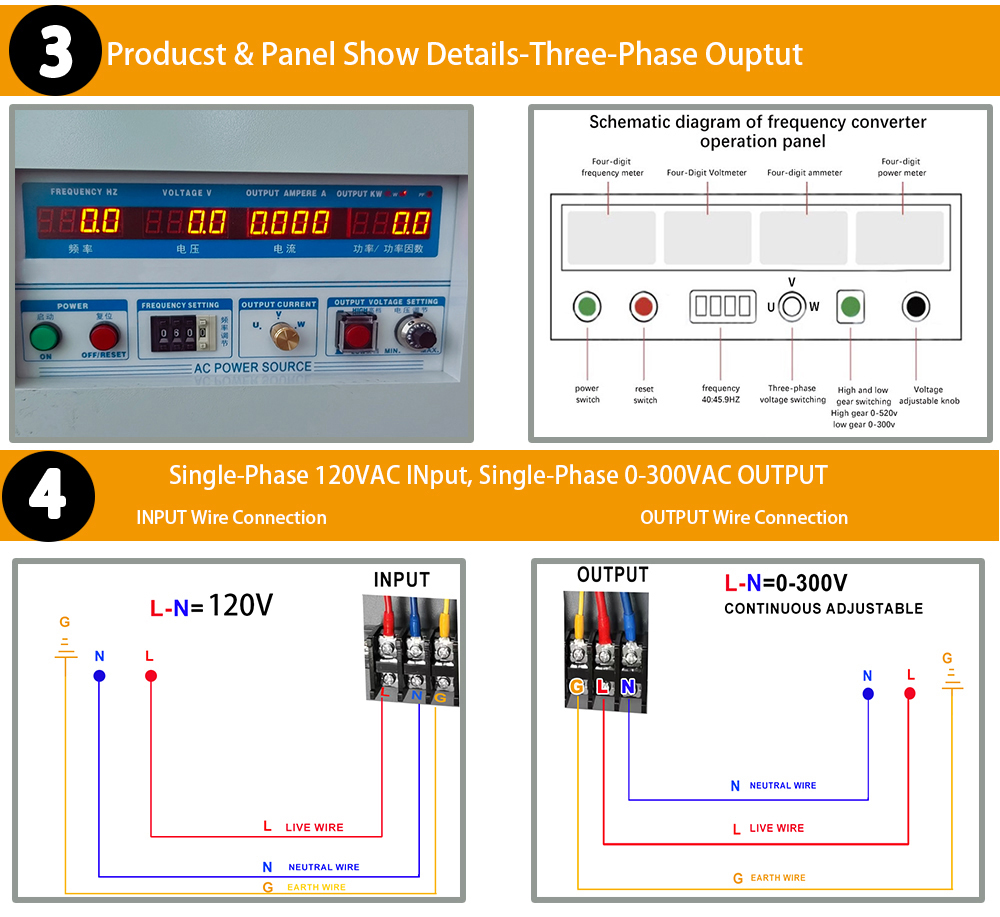

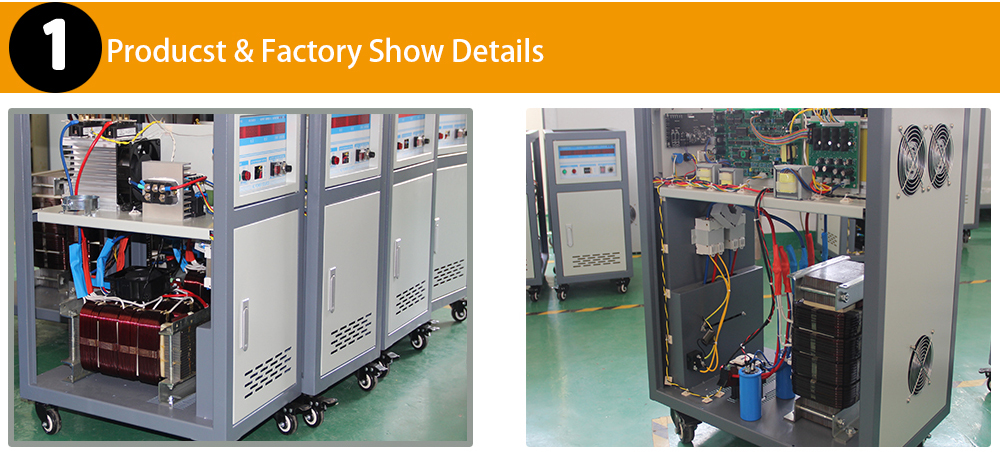

🔍 Details & Internal Structure
📝 Common Specifications
| Feature | Single-phase Series | Three-phase Series | |
|---|---|---|---|
| Capacity Range | 500VA - 45KVA | 3KVA - 400KVA | |
| Production Method | IGBT / PWM Pulse Width Modulation Mode | ||
| AC Output | Frequency | 40.0Hz to 499.9Hz (Programmable) | |
| Voltage | 0-150V / 0-300V | Phase: 0-300V / Line: 0-520V | |
| Distortion | Sine wave, ≤ 2% (Resistive Load) | ||
| Response Time | ≤ 2ms | ||
Frequently Asked Questions
❓ What is the output frequency range of this converter?
The frequency can be adjusted from 40Hz to 499.9Hz via software settings, making it highly versatile for different industrial standards.
❓ What type of load is this power supply suitable for?
Our frequency converters are suitable for resistive, inductive, rectifier, and other types of loads commonly found in laboratory and production environments.
❓ How does the protection system work?
It features comprehensive electronic circuit protection that detects overvoltage, overcurrent, overload, over-temperature, and short circuits, triggering an automatic jump and alarm.
❓ Why do we need to convert between 50Hz and 60Hz?
Different regions use different standards (e.g., US uses 60Hz, Europe/Asia use 50Hz). Static frequency converters allow machinery built for one standard to operate on the other safely.
❓ Is the output isolated from the input?
Yes, it uses complete isolation technology between the input and output to ensure a safe and reliable power supply for sensitive electronic equipment.
❓ What is the resolution of the digital displays?
The system features 4-digit displays with high resolution: 0.1Hz for frequency, 0.1V for voltage, and up to 0.001A for current measurements.
