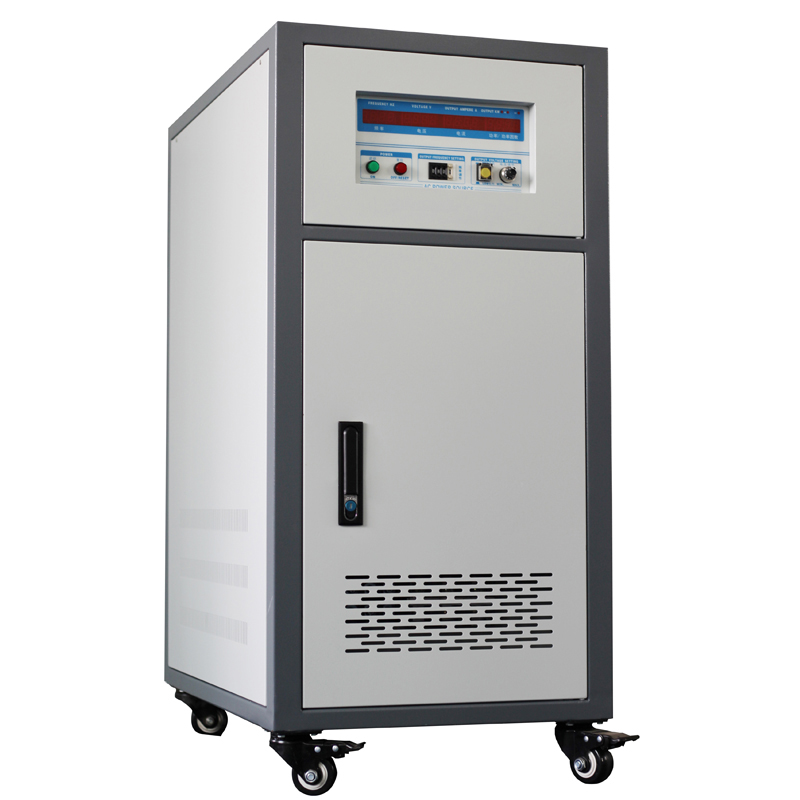

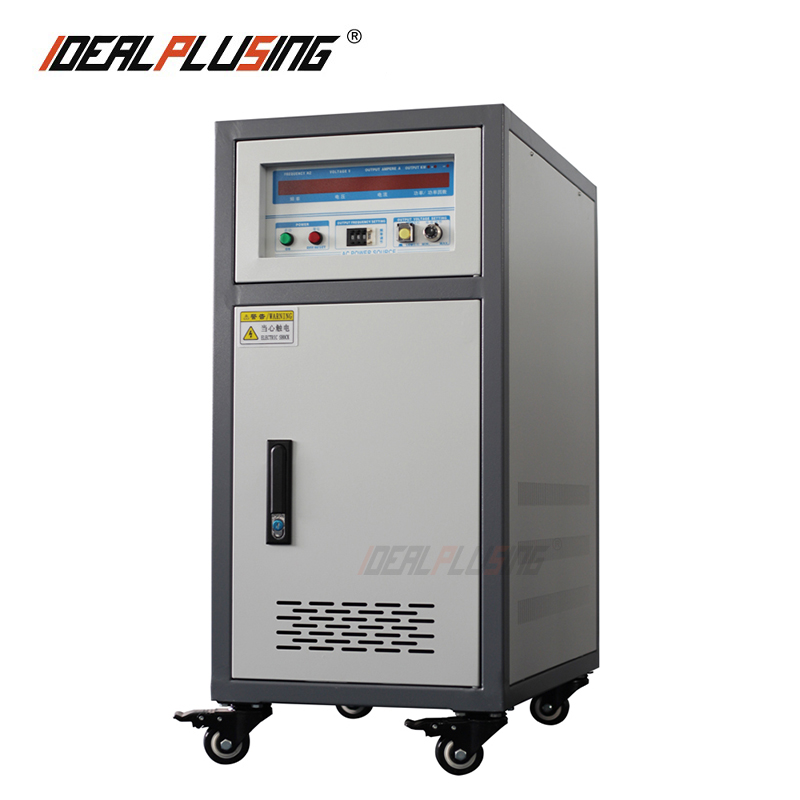

High Frequency 3-phase 50/60Hz to 400hz AC to AC 75KVA Frequency Converter for Electronic Components
Product Description
High Frequency 3-phase 50/60Hz to 400hz AC to AC 75KVA Frequency Converter for Electronic Components
⚠️
Friendly Reminder: The prices shown on this page are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions.
★ Product Features
1Complete isolation of input and output technology, safe and reliable power supply
2SPWM sine wave pulse width modulation technology for fast response and stable output
3IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
4Unique double-loop control mode for high precision and good waveform quality
5Highly integrated module drive circuit with strong overload capacity and low loss
6Suitable for resistive, inductive, rectifier, and other various loads
7Multiple protection functions: overheating, overcurrent, and short circuit
8Parameter memory function (10-groups) with shortcut key operation
9Real-time online adjustment of voltage and frequency
✚ Applications
| Home appliances | Photovoltaic | Motors | Lamps |
| Power tools | Electronic transformers | Switching power supplies | Electronic components |
| Power adapters | Low-voltage distribution | UPS | Information & communication |
📋 FC61 Series Technical Data
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
|---|---|---|---|---|
| Output capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated power output (KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| Max Current (Low-grade) | 4.2A | 8.4A | 17A | 25A |
| Max Current (High-grade) | 2.1A | 4.2A | 8.4A | 12.5A |
| Dimension (CM) | 43*18*44 | 43*18*44 | 43*18*47 | 43*65*52 |
🔥 Hot Selling Models
IPS-FC6102
Single-phase 2KVA 1.6KW
IPS-FC6250
3-phase Input/Single Output 50KVA
IPS-FC6310
Single Input/3-phase Output 10KVA
IPS-FC6330
Single Input/3-phase Output 30KVA
IPS-FC68100
3-phase Input/3-phase Output 100KVA
IPS-FC68200
3-phase Input/3-phase Output 200KVA

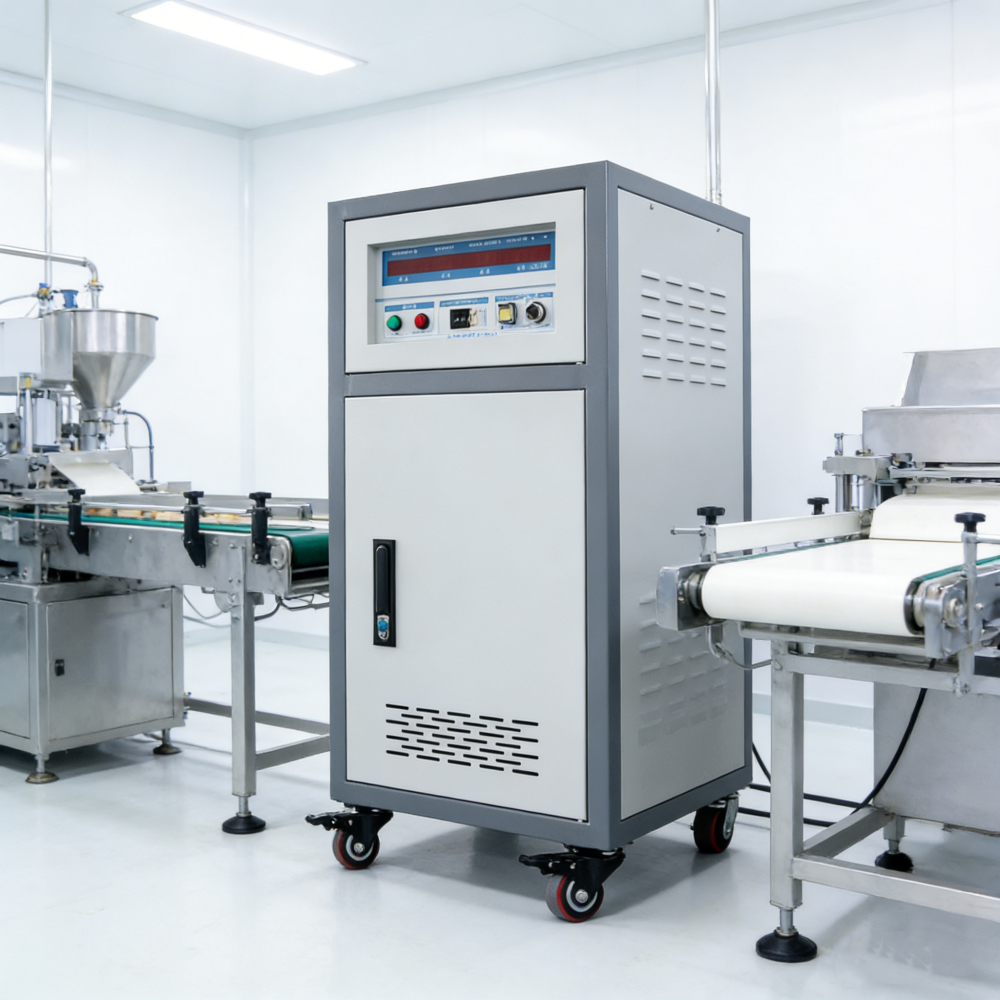

🖼️ Product Detailed Gallery
⚙️ Application Scope
We specialize in customizing AC/DC/AC power supply to meet your specific requirements. With customized options for any kind of frequency converters, our offerings range up to 2000KVA. Please submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour.
? Frequently Asked Questions
Why are there different frequencies like 50Hz and 60Hz globally?
Historical standards led to 50Hz becoming the norm in Europe, Africa, and most of Asia, while 60Hz was adopted in the Americas and parts of Japan. A frequency converter allows equipment designed for one standard to operate on the other.
What are the advantages of IGBT technology in these converters?
IGBT technology provides high-frequency switching, which results in a smaller unit size, reduced weight, lower audible noise, and significantly higher efficiency compared to traditional methods.
Can this frequency converter handle inductive loads like motors?
Yes, the units are designed with high overload capacity and stable sine wave output, making them suitable for resistive, inductive, and rectifier loads.
Is the output voltage and frequency adjustable?
Absolutely. Both voltage and frequency can be adjusted online via the software interface, with frequency stability rates of ≤±0.01%.
What kind of protections are built into the system?
The system includes comprehensive protection against overvoltage, overcurrent, overload, overheating, and short circuits, complete with automatic jump protection and alarms.
Do you provide customized power solutions?
Yes, we specialize in high-capacity customization for AC/DC/AC power supplies and frequency converters with capacities reaching up to 2000KVA.
