High Voltage AC Power Supply 10kHz-50kHz 4000W 0-400mA
Product Description
📢
Important Notice to Our Valued Customers
Please be advised that the price displayed is a promotional reference price intended for marketing purposes only. The actual selling price will be determined based on specific product parameters, configuration, and requirements of your order. Our sales team will provide an official quotation tailored to your exact specifications.
🔍 Product Description
High Voltage AC Power Supply 10kHz-50kHz 4000W 0-400mA
We specialize in customizing high voltage AC power supplies to meet your specific requirements. With customized solutions for any kind of AC power supply, our offerings range up to 4000W.
| Core Parameters | System Info | ||
| Model NO. | IPS-ATDJ10-400mA | Voltage Regulating Mode | Customize |
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Waveform | Sine Wave |
| Frequency Options | 10kHz, 20kHz, 30kHz, 40kHz, 50kHz | Transport Package | Carton/Wooden Box |
| Specification | W443*D503*H133(MM) | Origin | China |
📊 Technical Specifications
| Parameter | Detail Specification |
|---|---|
| Model | IPS-ATAJ10-400mA |
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-400mA |
| Output Peak Power | 4000W |
| Output Frequency | 20kHz (FF) |
| Voltage Regulation | Standard Value 3-5% |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Temperature Coefficient | 100 ppm Per Degree Celsius |
| Ambient Temperature | -25~+55ºC |
| Weight | 16.55 KG |
| Case Material | Aluminum |
💡 Product Introduction
The high voltage AC power supply is a rack-mounted system designed for specialized applications. It features simple operation, easy installation, and a complete protection circuit, making it ideal for harsh working environments.
🚀 Typical Applications
- DBD Dielectric Barrier Discharge Experiments
- Sliding Arc Experiments
- Ozone Generator Matching
- Corona Equipment Matching
- Electrostatic Spinning
- Cable Aging and Leakage Tests
🛠️ Professional Customization
We excel at customizing products according to different usage scenarios and actual loads. If you cannot find the specific configuration required, please contact our professional sales engineers to develop a tailored plan for you. We endeavor to respond to all inquiries within one hour.

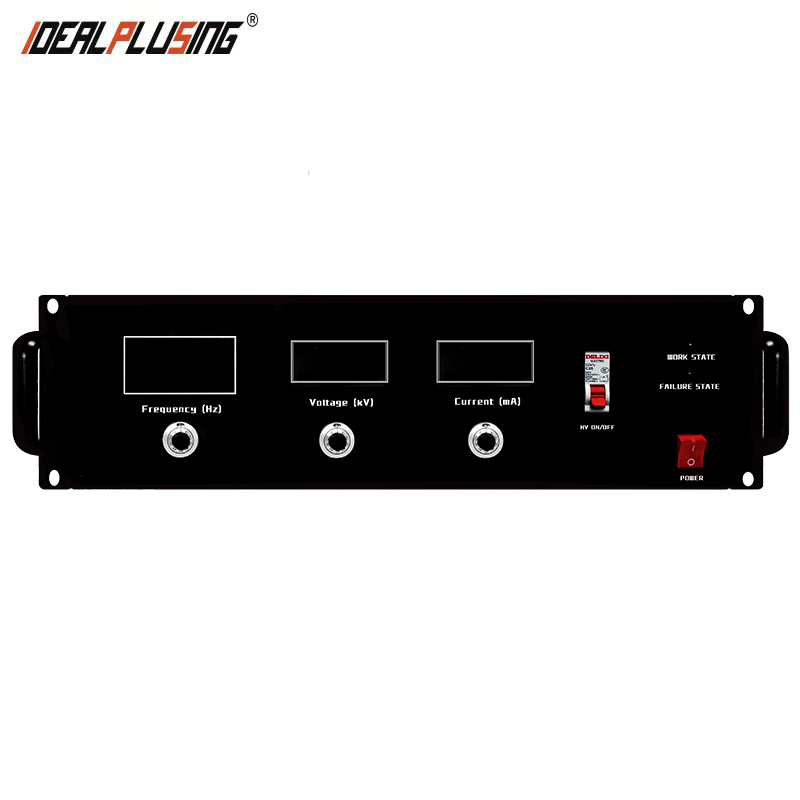

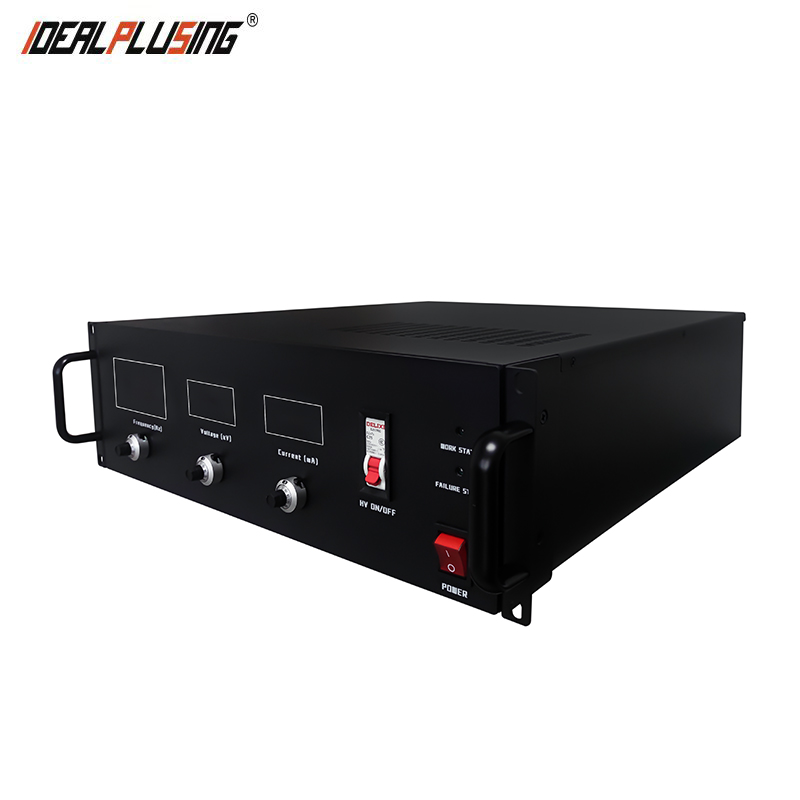

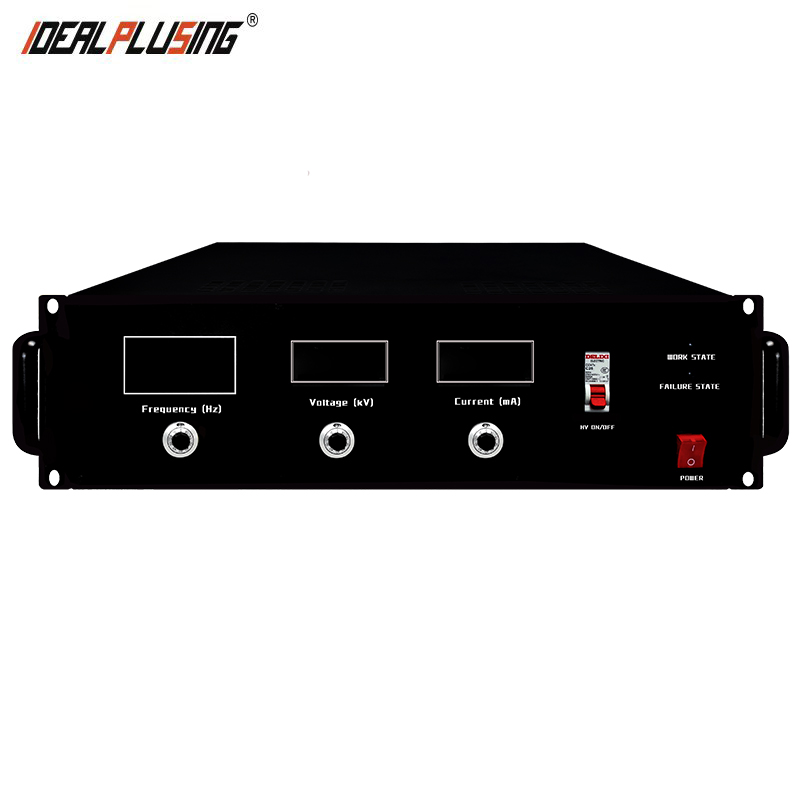

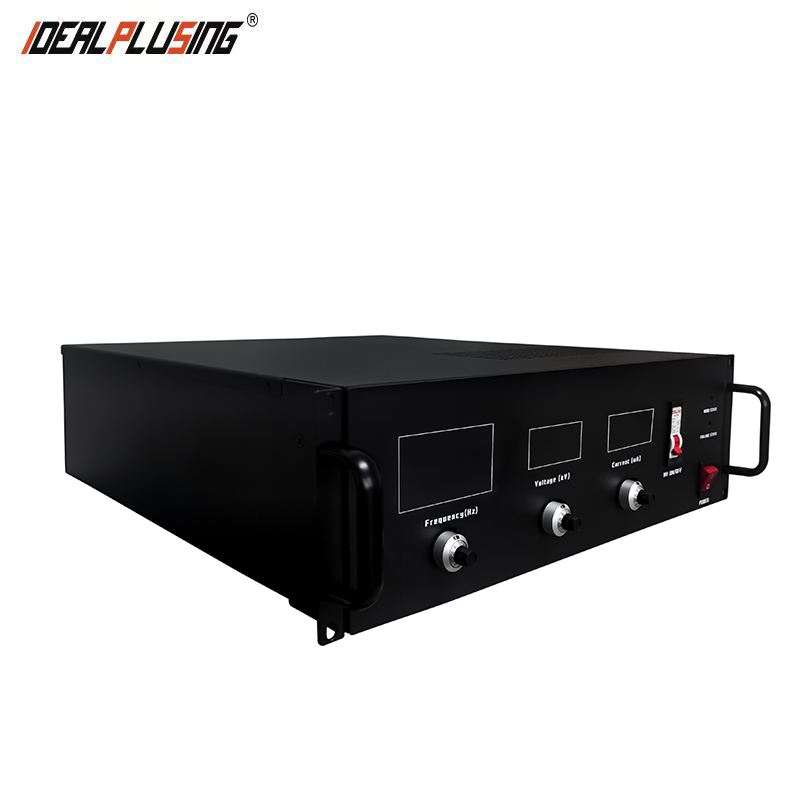

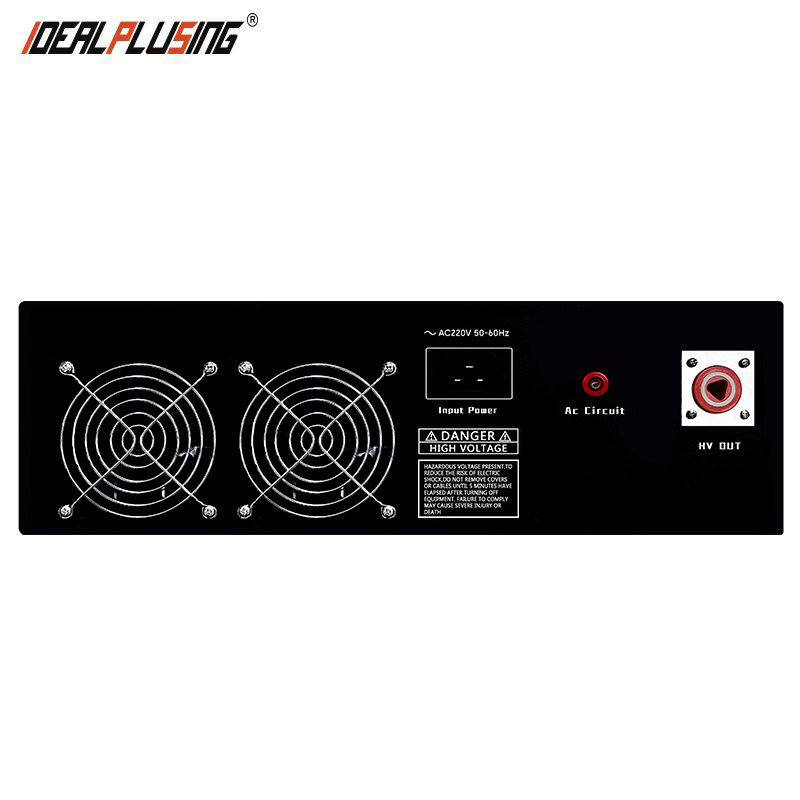

📷 Details Images
🔥 Hot Selling Models
Model: IPS-ATDJ10-400mA
- Peak Voltage: 0-10kV
- Peak Current: 0-400mA
- Peak Power: 4000W
- Frequency: 10kHz
- Weight: 16.55 KG
Model: IPS-ATDJ10-100mA
- Peak Voltage: 0-10kV
- Peak Current: 0-100mA
- Peak Power: 1000W
- Frequency: 20-40kHz
- Size: W443*D503*H133(MM)
📋 Comprehensive Model List
| Model | Peak Voltage | Peak Current | Frequency | Power (W) |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz-30KHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 15kHz-30kHz (AF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W |
* Note: FF is Fixed Frequency; AF is Adjust Frequency
🏢 Capability & Research
We focus on the research and development of power supply modules, rectifiers, inverters, and charging systems. Our goal is to provide personalized, efficient, reliable, and cost-effective power supply solutions across all industries. We don't just sell products; we provide the right power supply solutions for your specific needs.
Frequently Asked Questions
Q1: What are the primary uses for this high voltage AC power supply?
A: It is primarily used in DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, corona equipment, and cable aging tests.
Q2: Can I customize the output frequency and voltage?
A: Yes, we specialize in customization. We can adjust parameters such as peak voltage (0-10kV), current (0-400mA), and frequency (10kHz-50kHz) to meet your specific load requirements.
Q3: What is the difference between FF and AF models?
A: FF stands for Fixed Frequency, where the power supply operates at a set frequency. AF stands for Adjust Frequency, allowing you to tune the frequency within a specified range (e.g., 20kHz-50kHz).
Q4: What environmental conditions are required for operation?
A: The unit should be used in environments with no conductive or corrosive metal liquids, and no condensation. It operates effectively between -25ºC and +55ºC.
Q5: How stable is the high voltage output?
A: The output is highly stable with a coefficient of ±0.5% per hour after the initial 1-hour startup period, ensuring consistent performance for sensitive experiments.
Q6: How long does it take to receive a customized quotation?
A: Our dedicated sales engineering team endeavors to respond to inquiries and provide professional tailored plans within one hour.
