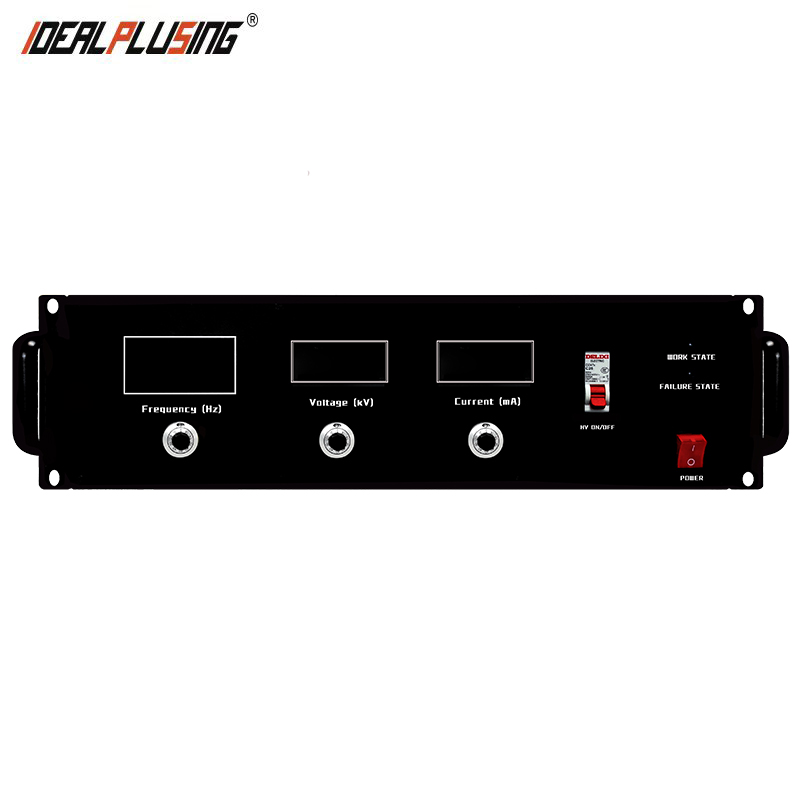

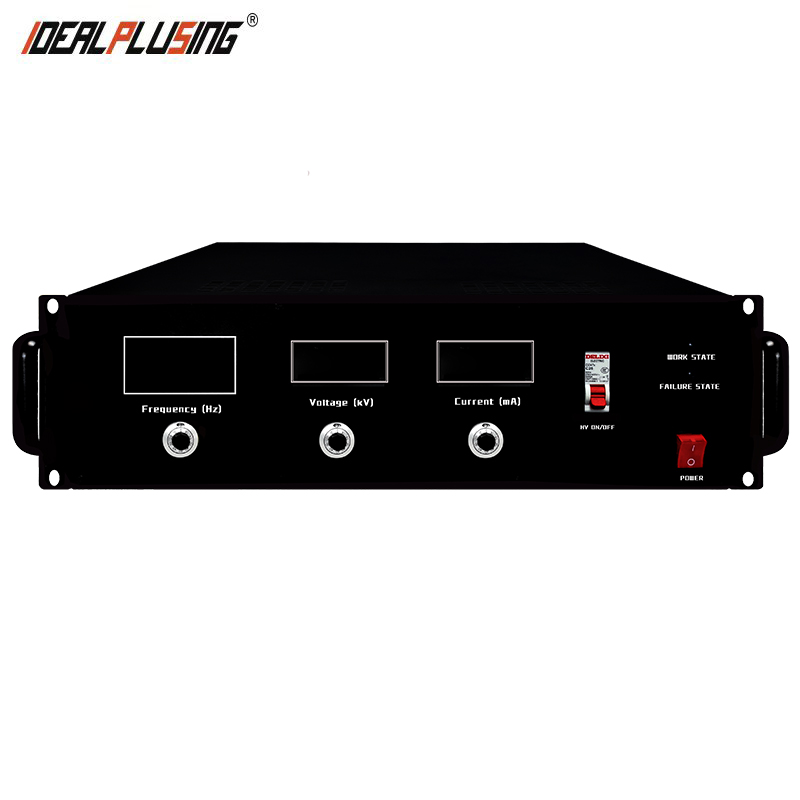

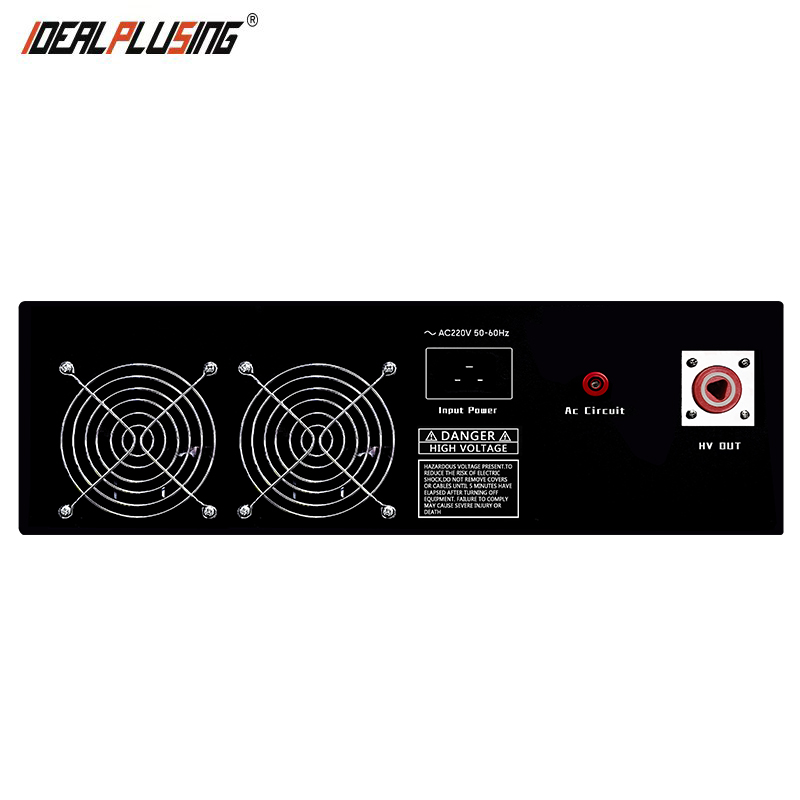

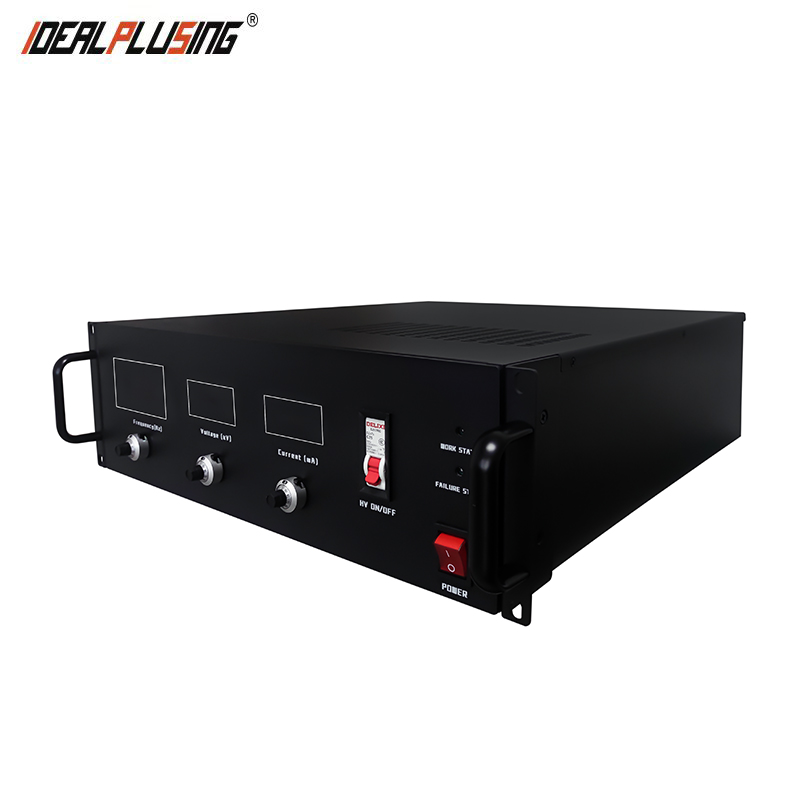

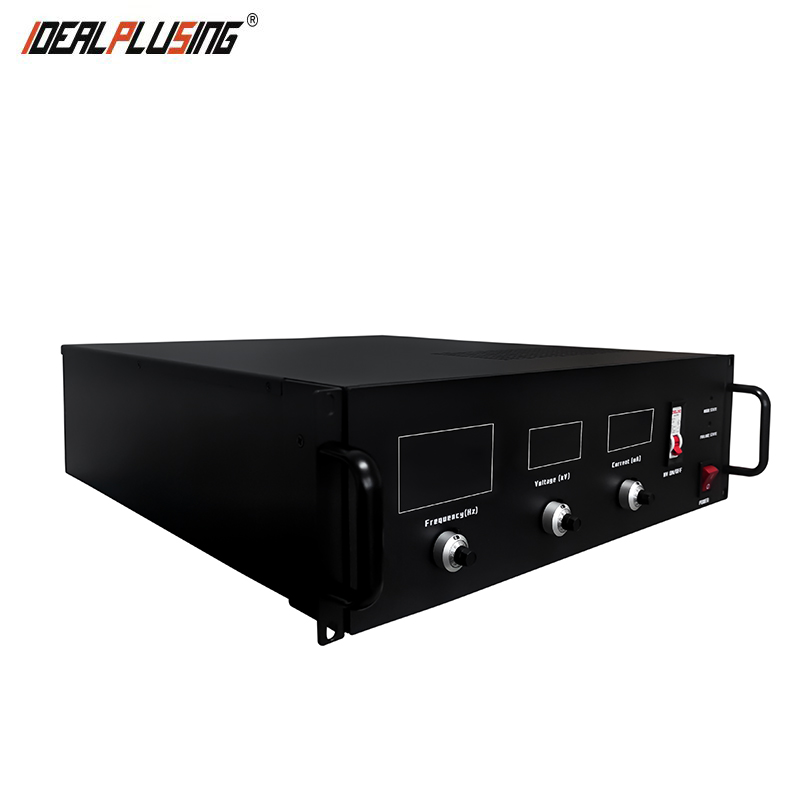

15kHz-30kHz 4000W High Voltage Low Current Switch Power Supply Converts Ac to Ac Cable Aging test High Voltage Ac Power Supply
Product Description
High Voltage AC Power Supply 10kHz-50kHz 4000W 0-400mA
Specialize in customizing high voltage AC power supplies to meet specific requirements. Offerings range up to 4000W with versatile application capabilities.
Product Description
| Model NO. | IPS-ATDJ10-400mA | Voltage Regulating Mode | Customize |
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Output Frequency | 10kHz / 20kHz / 30kHz / 40kHz / 50kHz |
| Transport Package | Carton/Wooden Box | Origin | China |
Specification
| Model | IPS-ATAJ10-400mA |
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-400mA |
| Output Peak Power | 4000W |
| Output Frequency | 15kHz-30kHz (AF) |
| Waveform | Sine Wave |
| Voltage Regulation | Standard Value 3-5% |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Ambient Temperature | -25~+55ºC |
| Case Material | Aluminum |
| Size | W443*D503*H133(MM) |
| Weight | 16.55 KG |
Product Introduction
⚙️
The high voltage AC power supply is a rack-mounted system designed for DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, and corona equipment matching. It features simple operation, easy installation, and a complete protection circuit suitable for harsh working environments.
Typical Applications
🚀
- DBD dielectric barrier discharge
- Sliding arc experiments
- Electrostatic spinning
- Ozone generator matching
- Cable aging and leakage tests
Details Images
Hot Selling Models
Model: IPS-ATDJ10-400mA
1. Input Voltage: AC 220V±10% 50/60Hz
2. Peak Voltage: 0-10kV
3. Peak Current: 0-400mA
4. Peak Power: 4000W
5. Frequency: 10kHz
6. Waveform: Sine Wave
Model: IPS-ATDJ10-100mA
1. Peak Power: 1000W
2. Peak Voltage: 0-10kV
3. Peak Current: 0-100mA
4. Frequency: 20-40kHz
5. Waveform: Sine Wave
6. Material: Aluminum
Model List Summary
| Model | Output Voltage | Output Current | Frequency | Power (W) |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz-50kHz (FF/AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz-50kHz (FF/AF) | 4000W |
*Note: FF is Fixed Frequency; AF is Adjust Frequency.
Manufacturing & Feedback
Frequently Asked Questions
What are the primary uses for this high voltage AC power supply?
It is primarily used in DBD dielectric barrier discharge experiments, ozone generation, electrostatic spinning, and cable aging tests.
Does the power supply support frequency adjustment?
Yes, we provide both Fixed Frequency (FF) and Adjustable Frequency (AF) models, ranging from 10kHz up to 50kHz depending on the specific model.
Is the output voltage customizable?
We specialize in customizing high voltage outputs to meet your specific requirements, including peak voltage and current levels.
What safety features are integrated into the system?
The power supply includes a complete protection circuit to ensure safe operation even in harsh industrial or laboratory environments.
What type of waveform does the power supply generate?
The system generates a stable Sine Wave, which is ideal for precision experiments like plasma discharge and corona treatment.
Can the unit be mounted in a standard server rack?
Yes, the power supply features a rack-mounted design (e.g., W443*D503*H133MM) for easy integration into standard equipment setups.
