10kHz-20kHz Adjust Frequency Ac Power Supply test Equipment High Spray Drying and Atomization High Voltage Ac Power Supply
Product Description
High Voltage AC Power Supply 10kHz-50kHz 4000W
⚡
We specialize in customizing high voltage AC power supplies to meet your specific requirements. With customized offerings ranging up to 4000W, our solutions are designed for precision and reliability.
Technical Specifications
| Model | IPS-ATAJ10-400mA |
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-400mA |
| Output Peak Power | 4000W |
| Output Frequency | 10kHz-20kHz (AF) |
| Waveform | Sine Wave |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Temperature Coefficient | 100 ppm Per Degree Celsius |
| Case Material | Aluminum |
| Case Size | W443*D503*H133(MM) |
| Weight | 16.55 KG |
Product Features
🔍
The high voltage AC power supply is a rack-mounted system, primarily used in DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, and corona equipment matching. It features simple operation, easy installation, and a complete protection circuit suitable for harsh working environments.
Typical Applications
🚀
• DBD dielectric barrier discharge
• Sliding arc experiments
• Electrostatic spinning
• Ozone generator matching
• Cable aging and leakage tests
• Sliding arc experiments
• Electrostatic spinning
• Ozone generator matching
• Cable aging and leakage tests

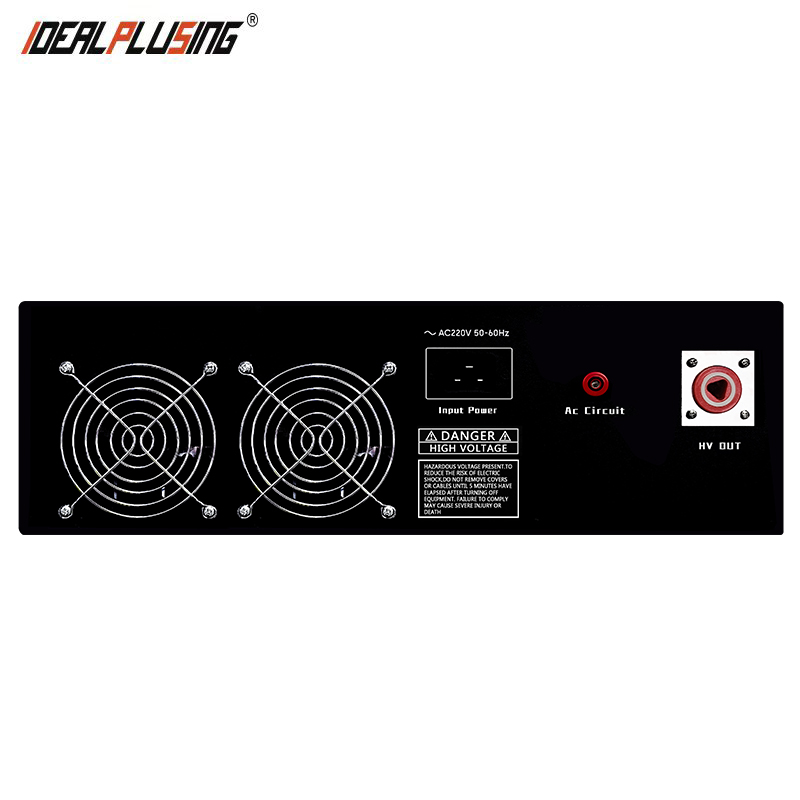

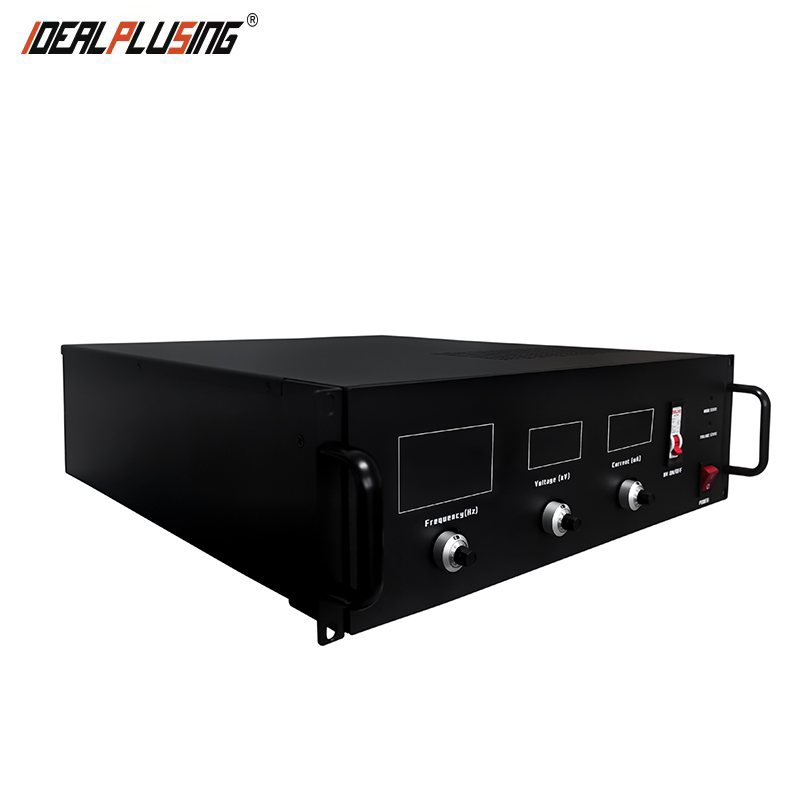

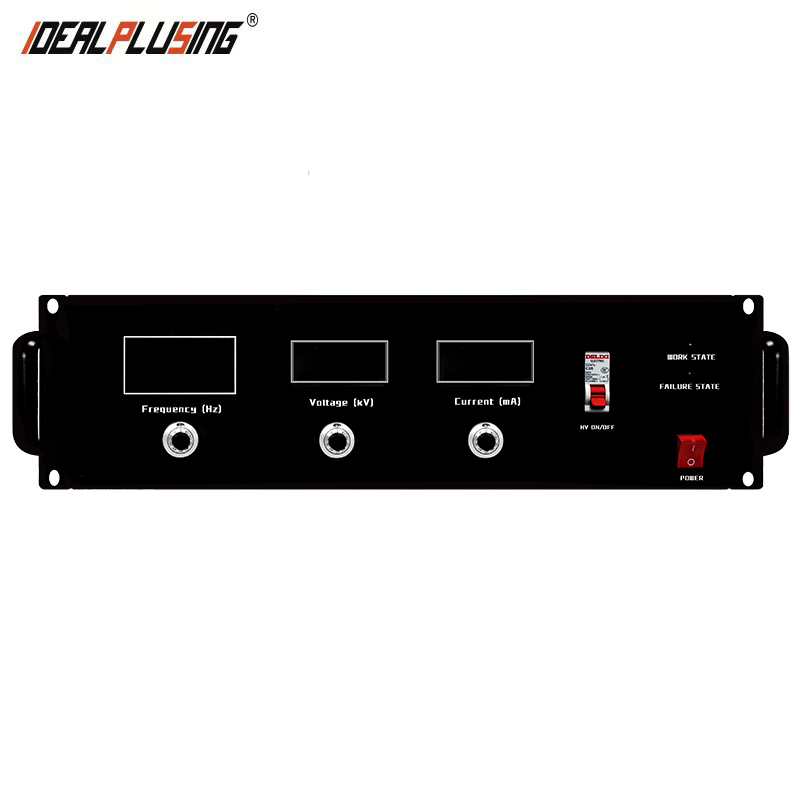

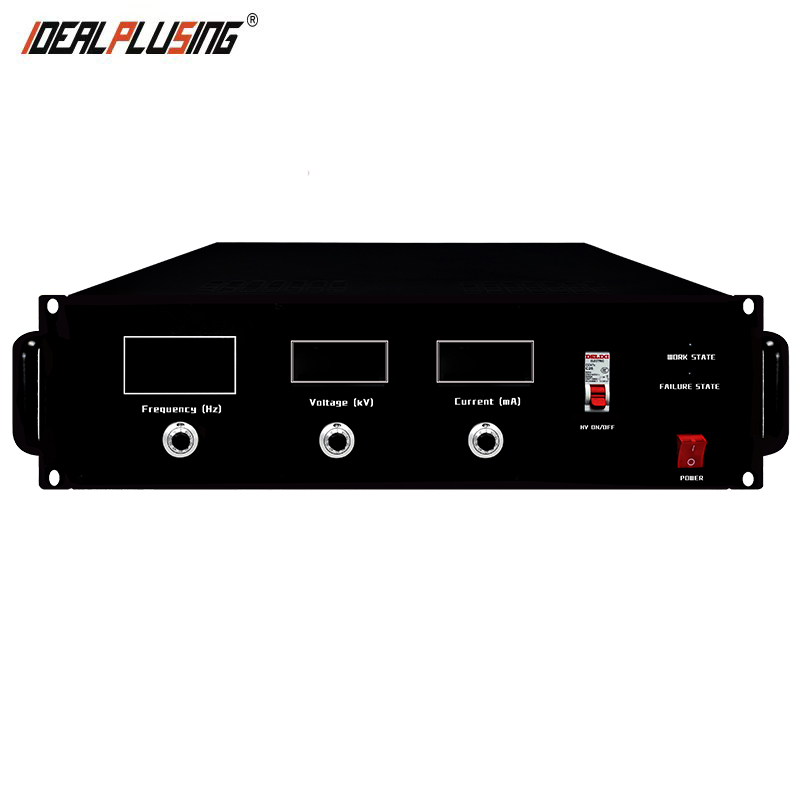

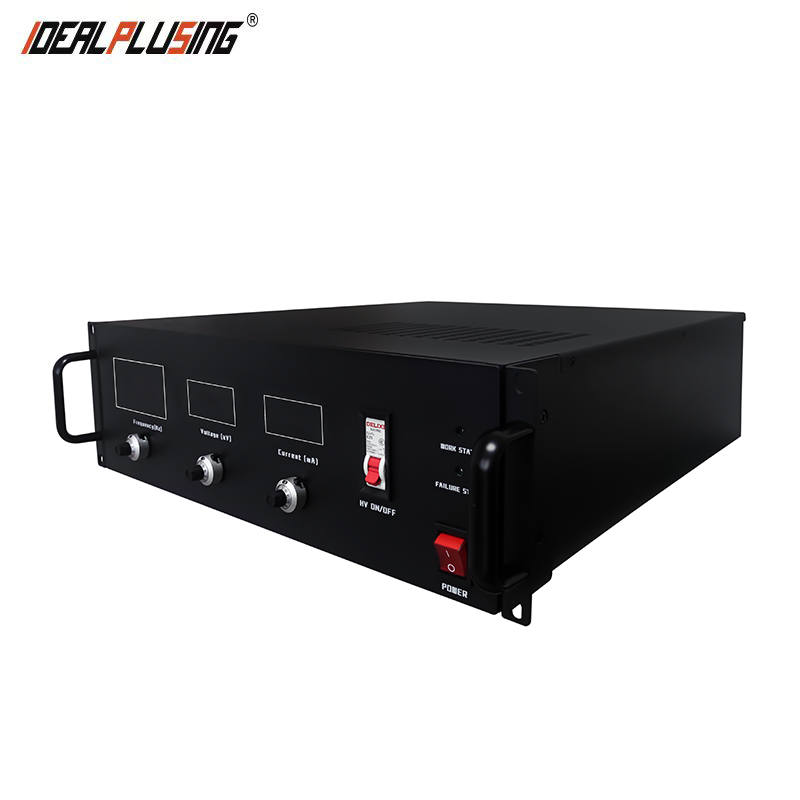

Details Images
Hot Selling Models
Model: IPS-ATDJ10-400mA
1. Peak Voltage: 0-10kV
2. Peak Current: 0-400mA
3. Peak Power: 4000W
4. Frequency: 10kHz
5. Waveform: Sine Wave
1. Peak Voltage: 0-10kV
2. Peak Current: 0-400mA
3. Peak Power: 4000W
4. Frequency: 10kHz
5. Waveform: Sine Wave
Model: IPS-ATDJ10-100mA
1. Peak Voltage: 0-10kV
2. Peak Current: 0-100mA
3. Peak Power: 1000W
4. Frequency: 20-40kHz
5. Waveform: Sine Wave
1. Peak Voltage: 0-10kV
2. Peak Current: 0-100mA
3. Peak Power: 1000W
4. Frequency: 20-40kHz
5. Waveform: Sine Wave
Full Model List
| Model | Peak Voltage | Peak Current | Frequency | Peak Power |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 15kHz-25KHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-40kHz (AF) | 4000W |
Note: FF is Fixed Frequency, AF is Adjust Frequency
Manufacturing & Customization
Frequently Asked Questions
What are the primary uses for this high voltage AC power supply?
It is specifically designed for DBD dielectric barrier discharge, ozone generation, sliding arc experiments, and electrostatic spinning.
Can the output frequency be adjusted?
Yes, we offer both Fixed Frequency (FF) models and Adjust Frequency (AF) models, ranging from 10kHz up to 50kHz depending on the configuration.
What kind of protection does the power supply offer?
The system includes a complete protection circuit to ensure stability and safety, even when operating in harsh industrial or laboratory environments.
Is customization available for specific voltages or power levels?
Absolutely. We specialize in customizing products according to different usage scenarios and actual load requirements up to 4000W.
What is the high voltage stability of these units?
The units provide a stability of ±0.5% per hour after an initial 1-hour startup period.
What is the material of the power supply casing?
The casing is made of high-quality aluminum, providing durability and efficient heat dissipation for the internal components.
