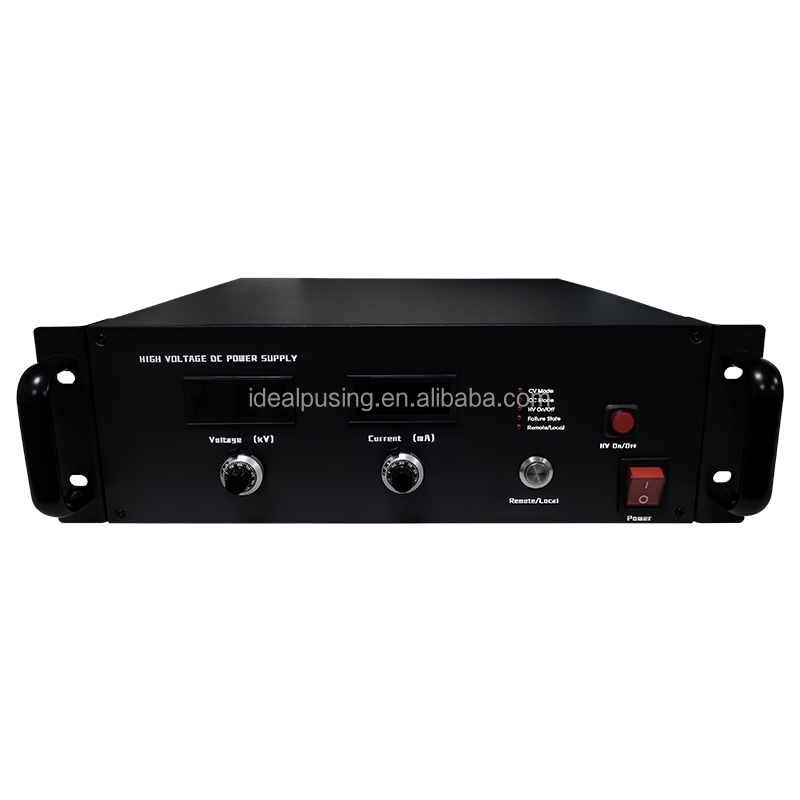

High-quality High Voltage Dc Power Supply Variable 40kv 0.25mA 10w Dc Output Power Supply for Electrostatic Flocking
Product Description
⚡ I. INTRODUCTION & APPLICATION
| 1 | HV series are high voltage DC power supplies, available from 10kV to 200kV output. |
| 2 | Output control can be switched between Remote control and Local control. Output displays and output indicators are direct on the front panels and can lead to the external remote display screen. |
| 3 | The high-voltage output terminal has over-current, over-current, short-circuit protection and arc protection. |
| 4 | The HV series high voltage power supply is widely used in electrostatic applications, such as Electrostatic dust removal, Electrostatic spinning, Electrostatic electret, Electrostatic separation, Electrostatic spraying, and Electrostatic flocking. |
| 5 | The HV series high voltage power supply can also be used in High voltage insulation tests, Material sorting, Metal vaporization, High voltage deburring, and Laboratory test. |
| 6 | Meltblown cloth electrostatic electret equipment |
| 7 | Electrostatic Spinning |
| 8 | Electrostatic Dust Removal |
| 9 | Capacitor Charge |
| 10 | Discharge |
| 11 | Cable Aging Test |
| 12 | Cable Leakage Test |
| 13 | Optical Fiber Withstand Voltage Test |
| 14 | Etc |
🚀 II. PRODUCT FEATURES
| 1 | Output voltage full range adjustable |
| 2 | High voltage Positive output +10kV to +200kV |
| 3 | High voltage Negative output -10kV to -200kV |
| 4 | 4 digits LED display for voltage and current |
| 5 | Low EMI, strong anti-interference ability |
| 6 | OVP, OCP, ARC, and short circuit protections |
🔌 III. OPTIONAL INTERFACE
| 1 | Remote ON/OFF control |
| 2 | 0-10V analog control for voltage and current output |
| 3 | RS485, support Modbus-RTU commands |
| 4 | RS232, support Modbus-RTU commands |
🔋 IV. INPUT VOLTAGE
| Rate Voltage | Single phase 220VAC |
| Range Voltage | 220VAC±10% |
| Frequency | 50/60HZ |
📉 V. OUTPUT SPECIFICATIONS
| Model | IPS-ATDJ40KV-0.25mA |
| Rated Voltage | 0-40KV(Full range adjustable) |
| Rated Current | 0-0.25mA(Full range adjustable) (except 1mA models) |
| Line Regulation | CV≤0.1%FS |
| Load Regulation | CV≤0.1%FS |
| Ripple & Noise | ≤0.5% FS |
| High Voltage stability | ≤0.1% per hour after warm-up for one hour |
| Temperature co-efficiency | 100ppm/°C |
🖥️ VI. DISPLAY
| Meter | 4 digits LED display for voltage and current |
| Voltage Resolution | 0.01kV / 0.1kV |
| Current Resolution | 0.001mA / 0.01mA |
| Voltage Accuracy | ≤0.1%FS+2LSB |
| Current Accuracy | ≤0.1%FS+2LSB |
🛡️ VII. PROTECTION
| Over Voltage (O.V.P.) | Built-in OVP protection (105% limit). Output shuts down when activated. |
| Over Current (O.C.P.) | Built-in OCP protection (105% limit). Output shuts down when activated. |
| Over Temperature (O.T.P.) | Built-in OTP protection (65°C±5°C). Output shuts down when activated. |
| Short Circuit Protection | Output will be shut down when activated. |
⚙️ VIII. GENERAL

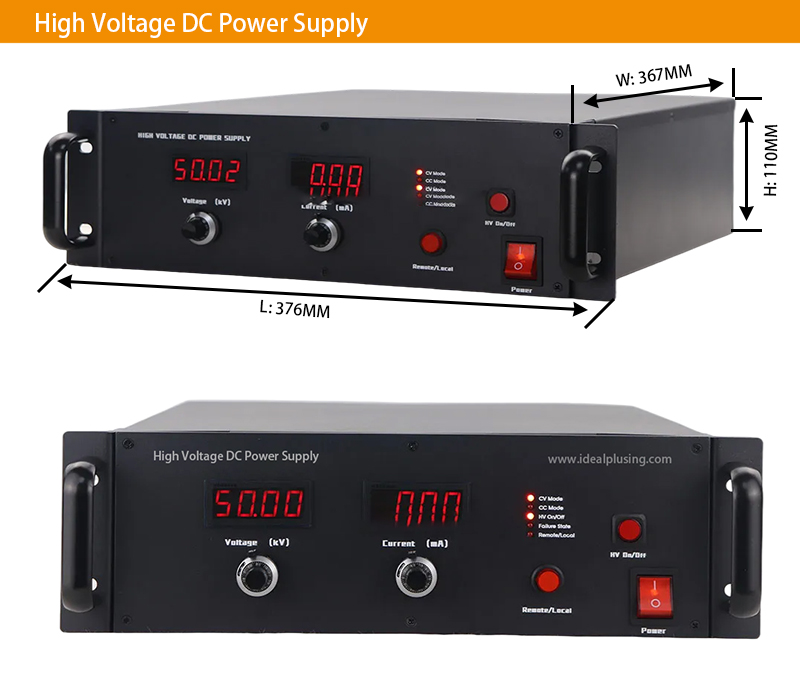

| Dimensions | L376*W367*H110(MM) |
| Weight | Net: 6.5KG / Gross: 9.5KG (Wooden box) |
| Cooling Method | Cooling fan |
| Operating Environment | 0°C~40°C, 10%~80%RH |
| Storage Environment | -20°C~70°C, 10%~90%RH |
➰ IX. HIGH-VOLTAGE OUTPUT CABLE
| Option 1 | Self-contained high voltage cable without shielding. Standard length 1.5m (customizable). |
| Option 2 | High-voltage cable with shielding. Standard length 1.5m (customizable). |

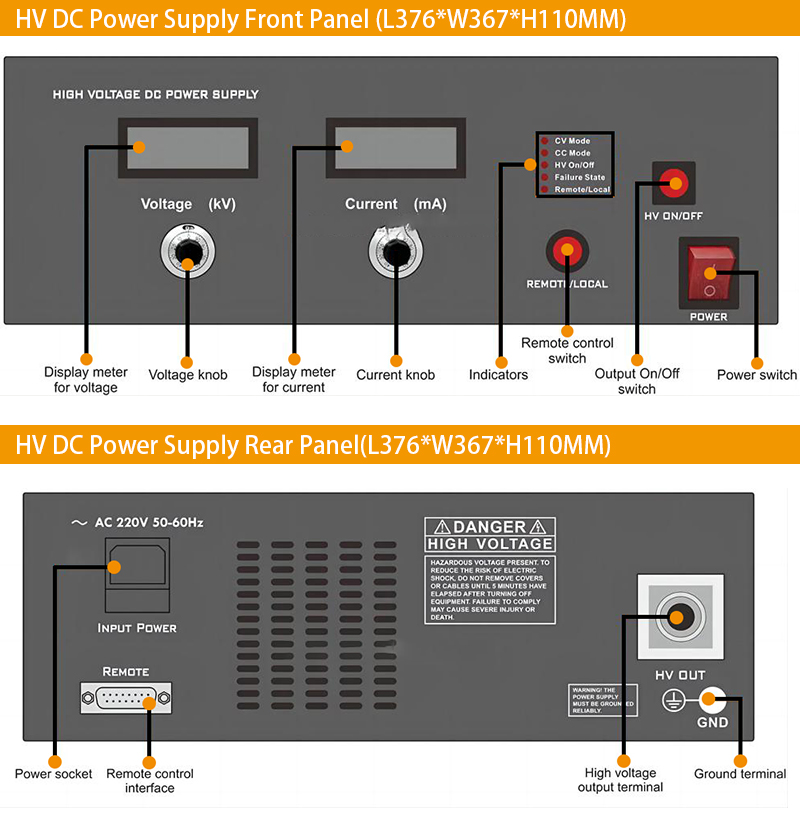

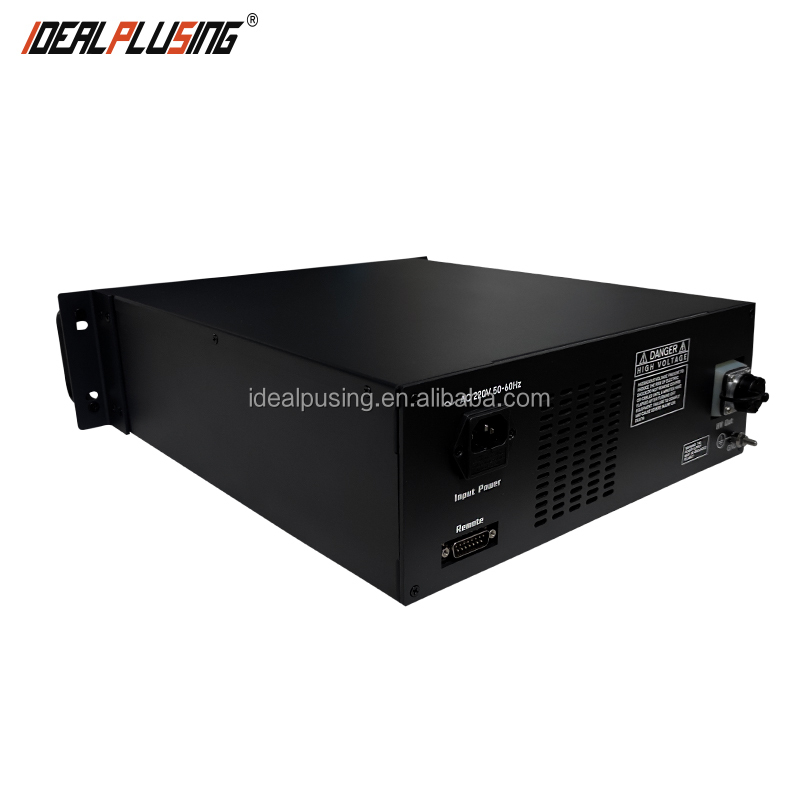

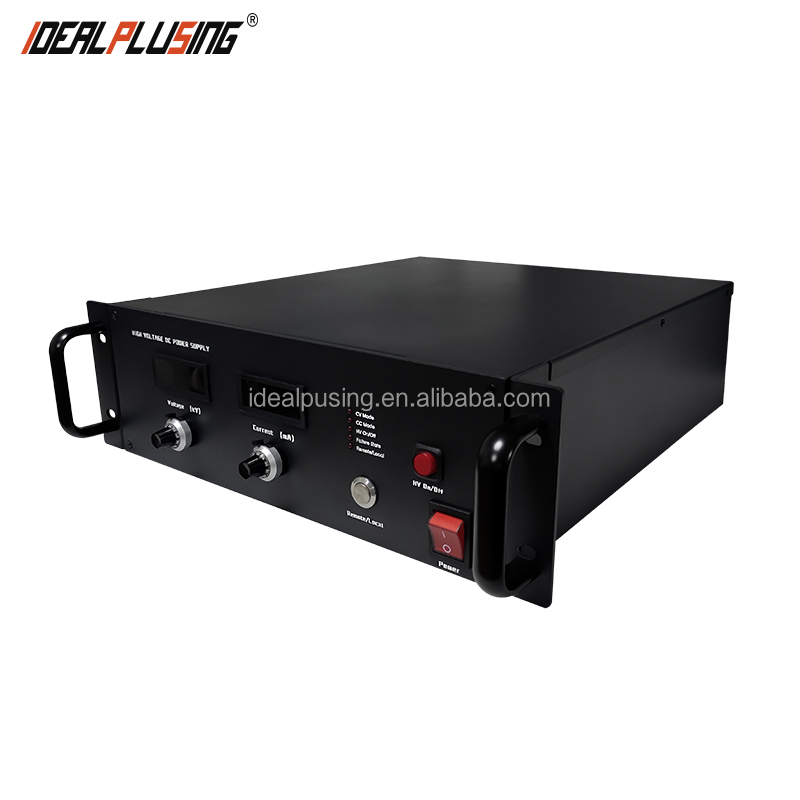

🖼️ X. REFERENCE PICTURES
📋 MODEL LIST
🏭 FACTORY DISPLAY
❓ FREQUENTLY ASKED QUESTIONS
What are the primary applications for the HV series power supply?
The HV series is widely used for electrostatic applications including dust removal, spinning, electret processes, spraying, and flocking, as well as laboratory insulation tests.
Does the unit support remote control?
Yes, control can be switched between Local and Remote. It also supports optional RS485/RS232 Modbus-RTU commands and 0-10V analog control.
What safety protections are built into the device?
The power supply includes comprehensive protection against Over Voltage (OVP), Over Current (OCP), Over Temperature (OTP), short circuits, and arc protection.
How accurate is the voltage and current display?
The unit features a 4-digit LED display with an accuracy of ≤0.1%FS+2LSB, providing precise monitoring for both voltage and current.
Can I request a longer high-voltage output cable?
Standard cables are 1.5 meters long, but other lengths are available as optional requirements to suit your specific setup.
What is the input voltage requirement?
The system operates on a single-phase 220VAC ±10% input at a frequency of 50/60Hz.
