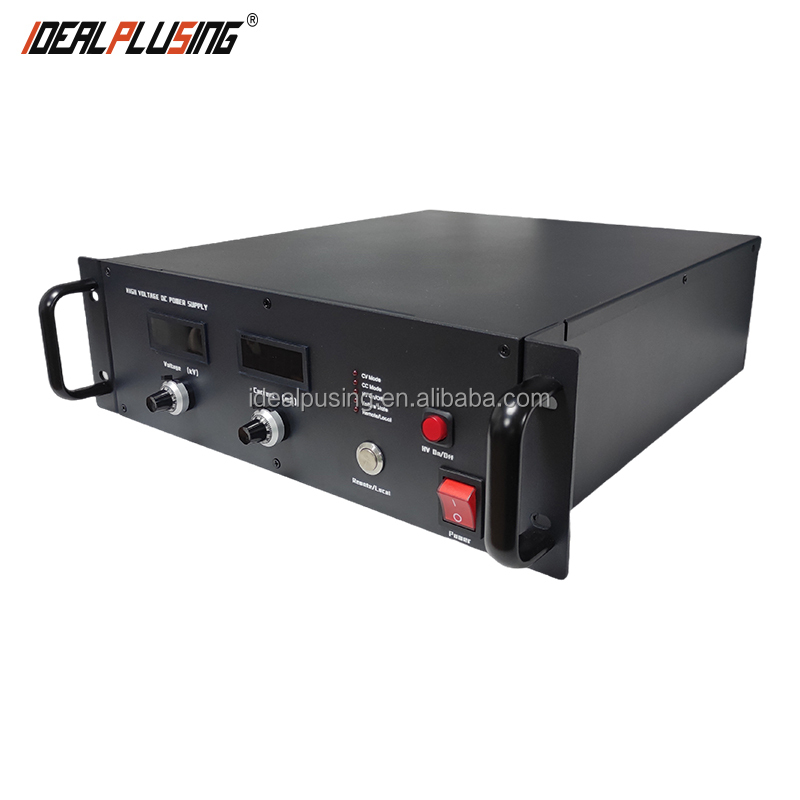

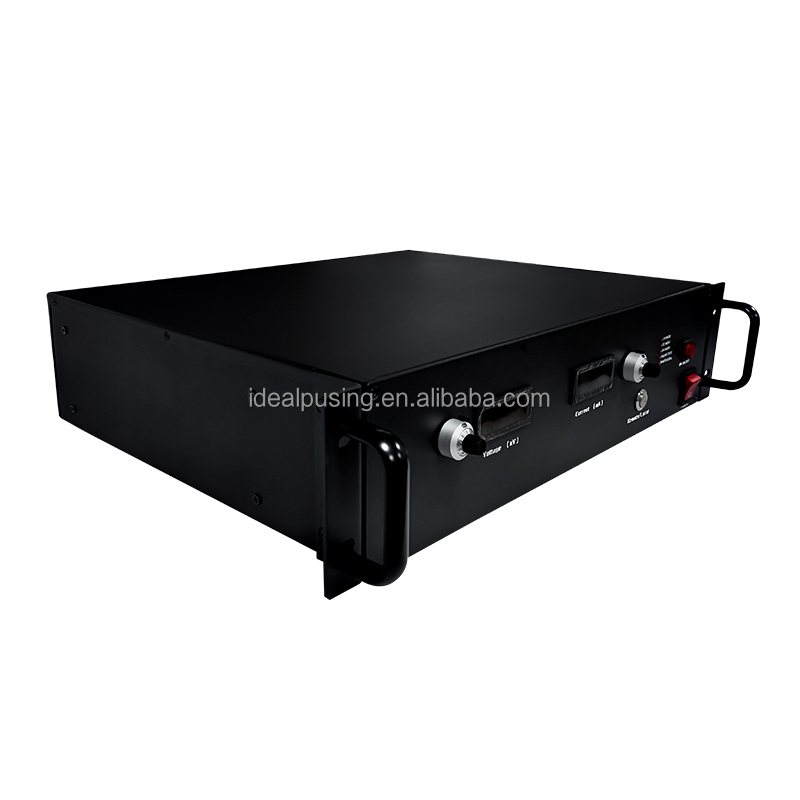

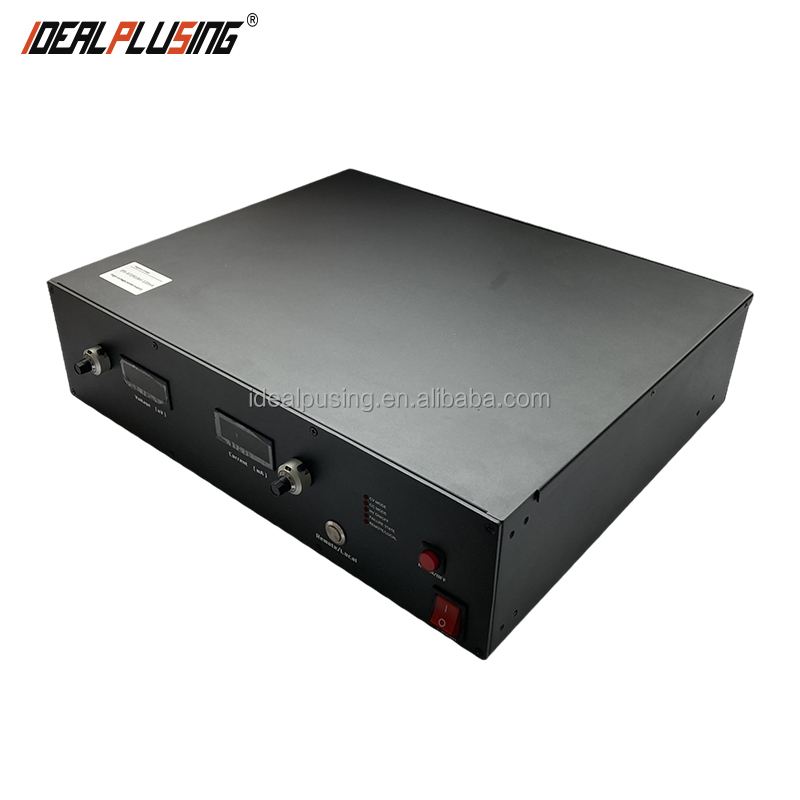

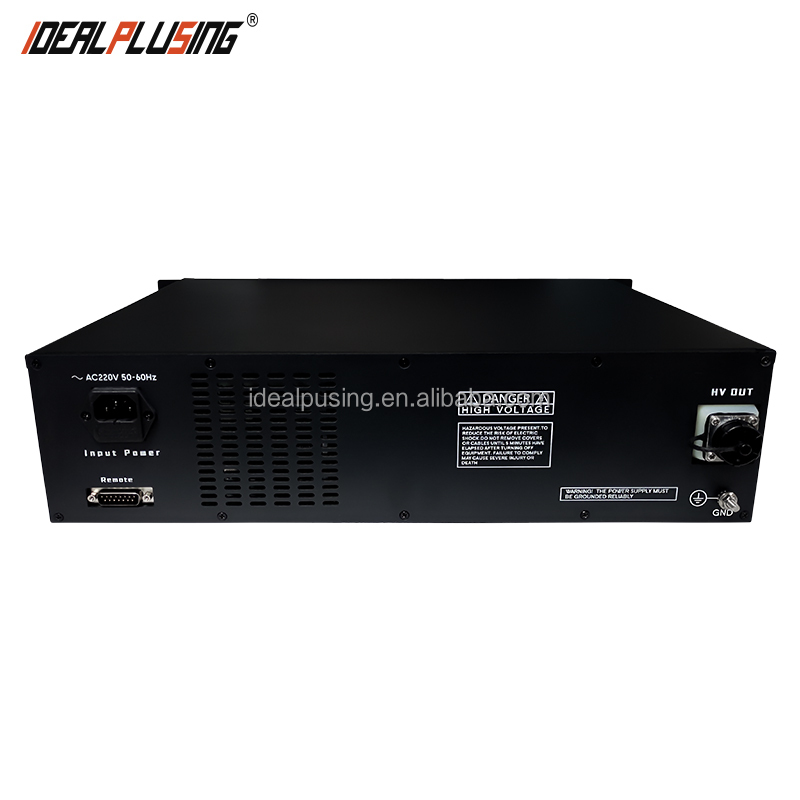

80kv 1.87ma 150w High Voltage High Frequency Ac Dc Power Supply for Electrostatic Sorter
Product Description
🚀 I. INTRODUCTION & APPLICATION
HV series are high voltage DC power supplies, available from 10kV to 200kV output. Output control can be switched between Remote control and Local control. Output displays and output indicators are direct on the front panels and can lead to the external remote display screen.
The high-voltage output terminal has over-current, over-current, short-circuit protection and arc protection.
⚡ Electrostatic applications (Dust removal, spinning, electret, separation, spraying, flocking)
🧪 Laboratory and high voltage insulation tests
🛠️ Material sorting and Metal vaporization
🔍 Cable aging, leakage, and Optical fiber withstand voltage tests
⭐ II. PRODUCT FEATURES
01 Output voltage full range adjustable
02 Positive/Negative output (+/- 10kV to +/- 200kV)

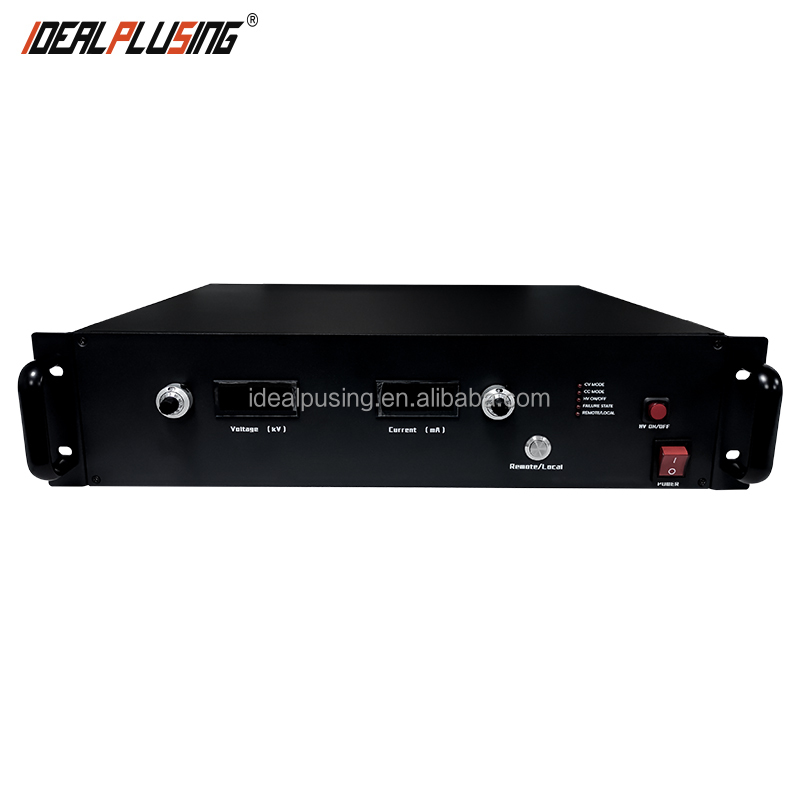

03 4 digits LED display for voltage and current
04 Low EMI, strong anti-interference ability
05 Comprehensive OVP, OCP, ARC, and short circuit protections
⚙️ III & IV. INTERFACE & INPUT
| Optional Interface | Remote ON/OFF, 0-10V analog control, RS485/RS232 (Modbus-RTU) |
| Rate Voltage | Single phase 220VAC ±10% |
| Frequency | 50/60HZ |
📊 V. OUTPUT SPECIFICATIONS
| Model | IPS-ATDJ80KV-1.87mA |
| Rated Voltage | 0-80KV (Full range adjustable) |
| Rated Current | 0-1.87mA (Full range adjustable) |
| Line Regulation | CV≤0.1%FS |
| Load Regulation | CV≤0.1%FS |
| Ripple & Noise | ≤0.5% FS |
| HV Stability | ≤0.1% per hour after warm-up |
| Temp. Co-efficiency | 100ppm/°C |
🛡️ VI & VII. DISPLAY & PROTECTION
| Display Resolution | Voltage: 0.01kV / 0.1kV | Current: 0.001mA / 0.01mA |
| Display Accuracy | ≤0.1%FS+2LSB |
| O.V.P / O.C.P | 105% rated output limit; Auto shut down activation |
| O.T.P | Heat sink limit 65°C±5°C |
| Short Circuit | Instant shut down protection activated |
📦 VIII & IX. GENERAL & ACCESSORIES

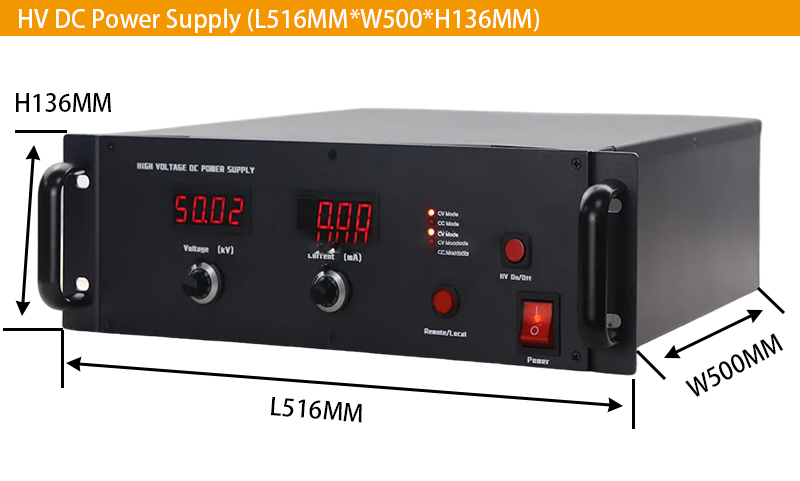

| Dimensions | L492*W367*H110 (MM) |
| Weight (Net/Gross) | 10.5KG / 16KG |
| Cooling Method | Cooling fan |
| Output Cable | 1.5m standard (Shielded or Non-shielded optional) |

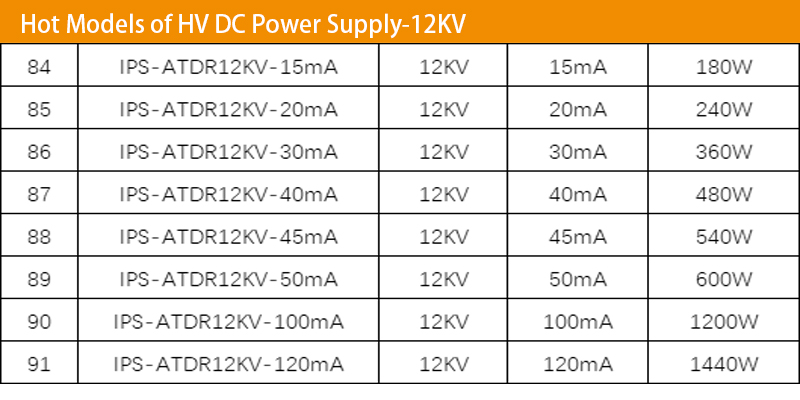

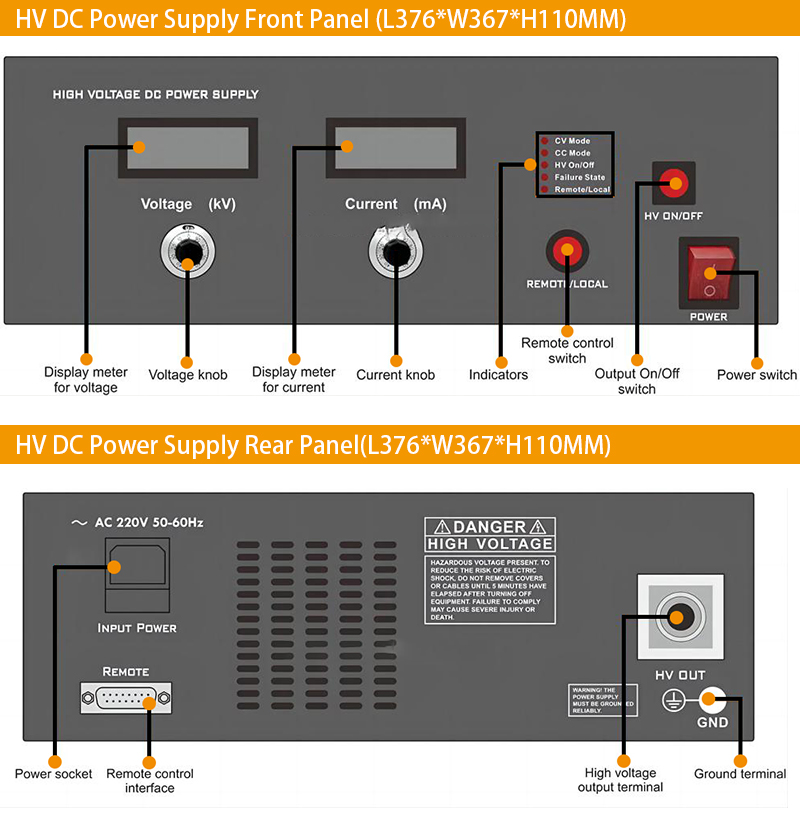

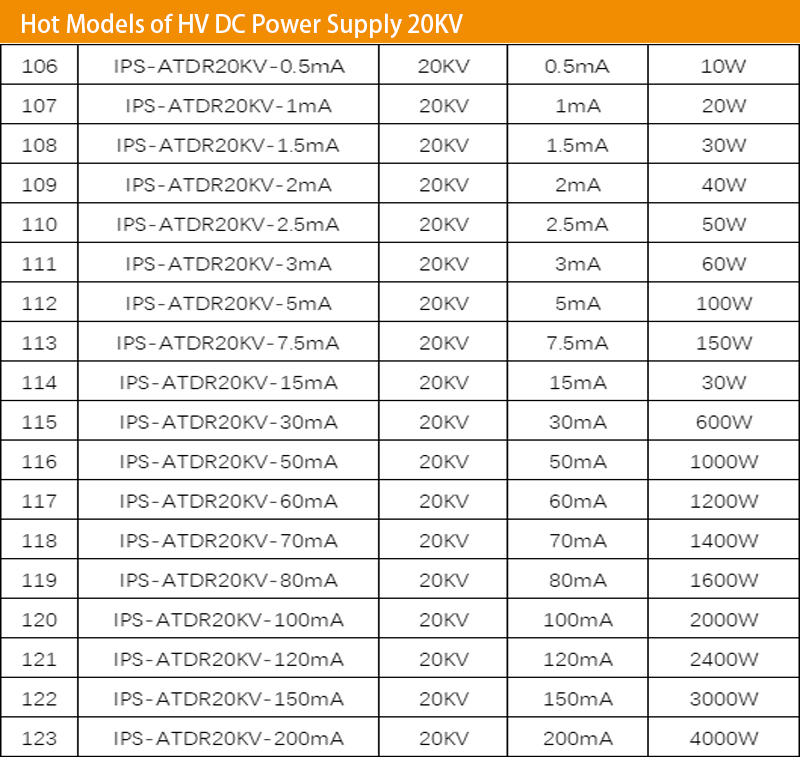

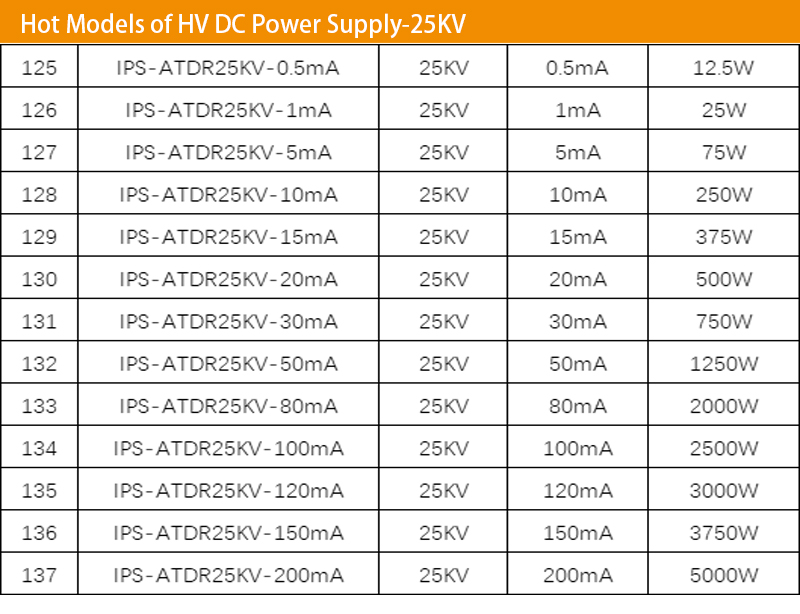

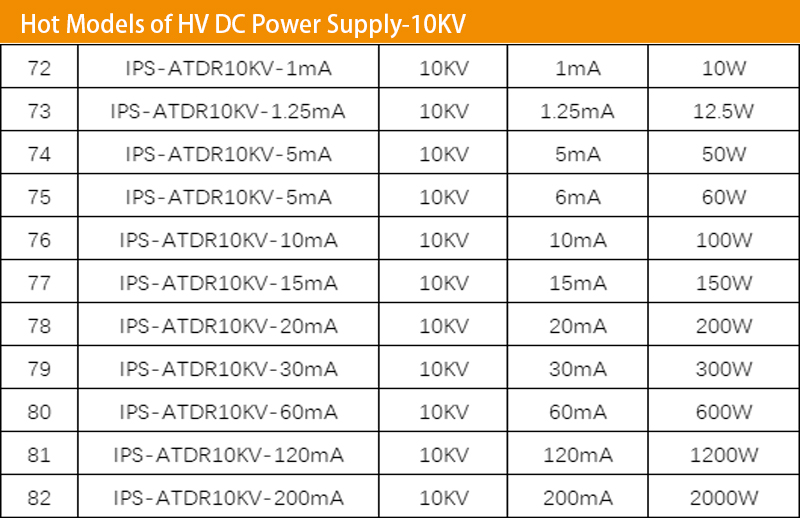

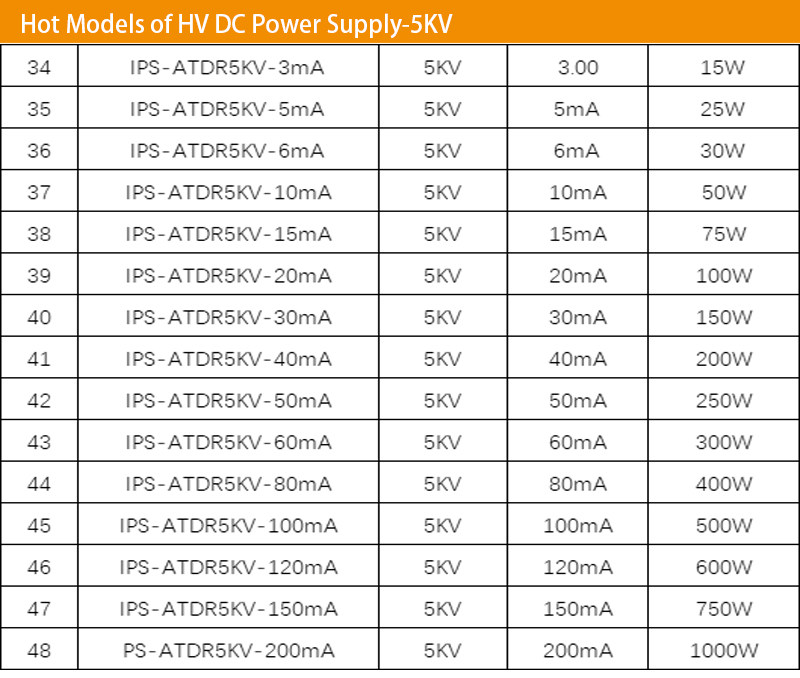

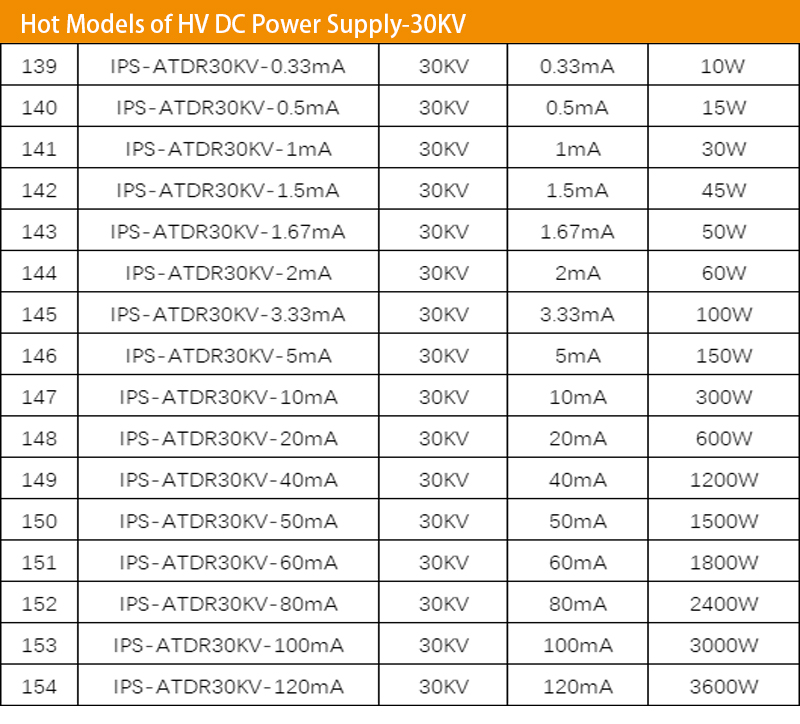

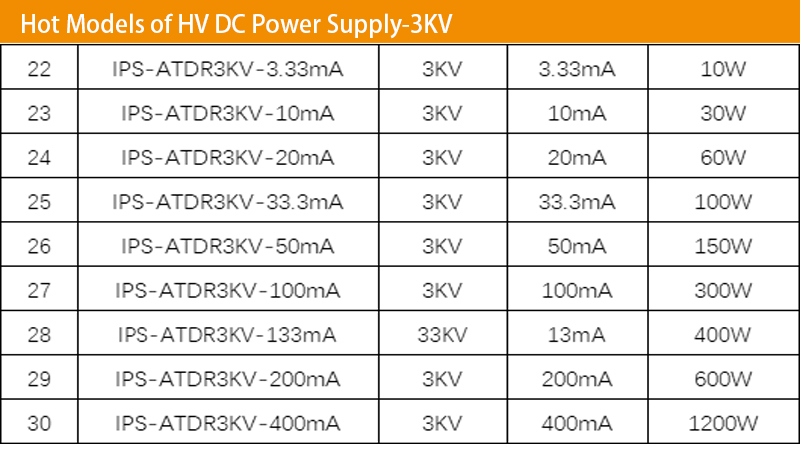

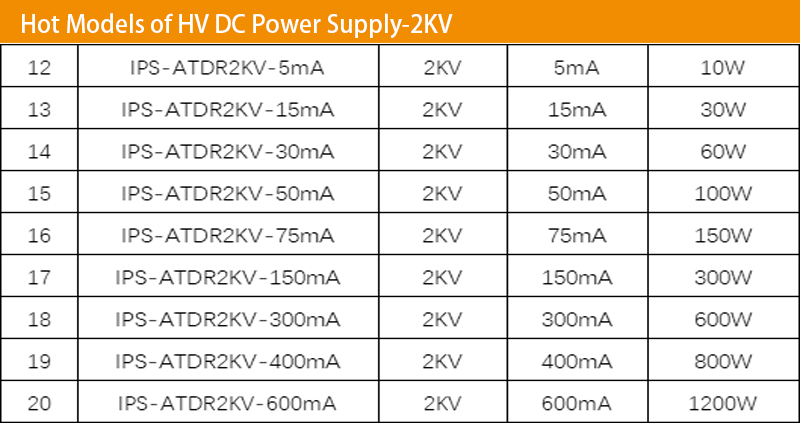

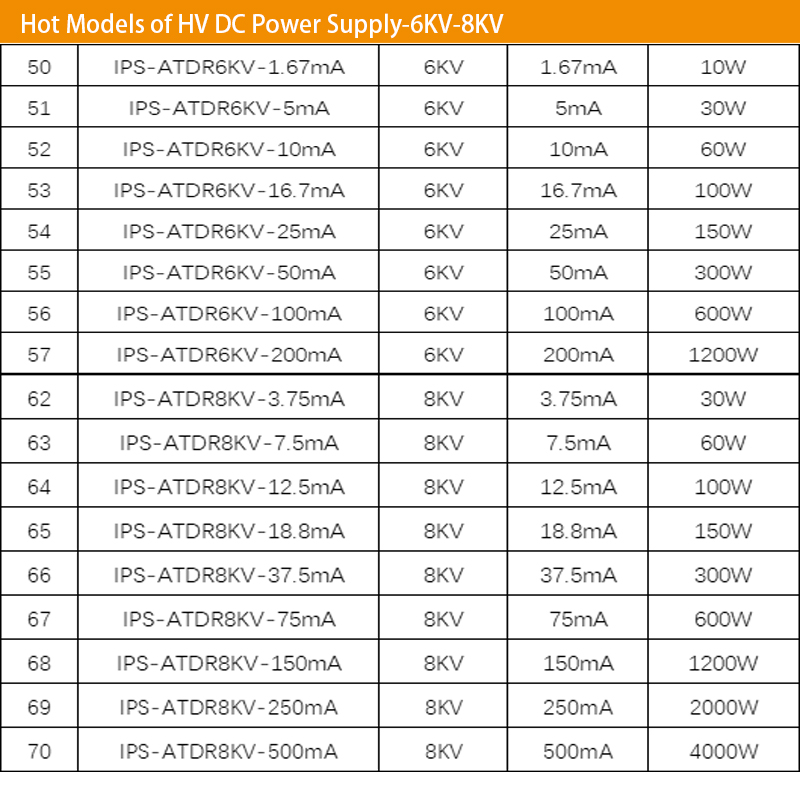

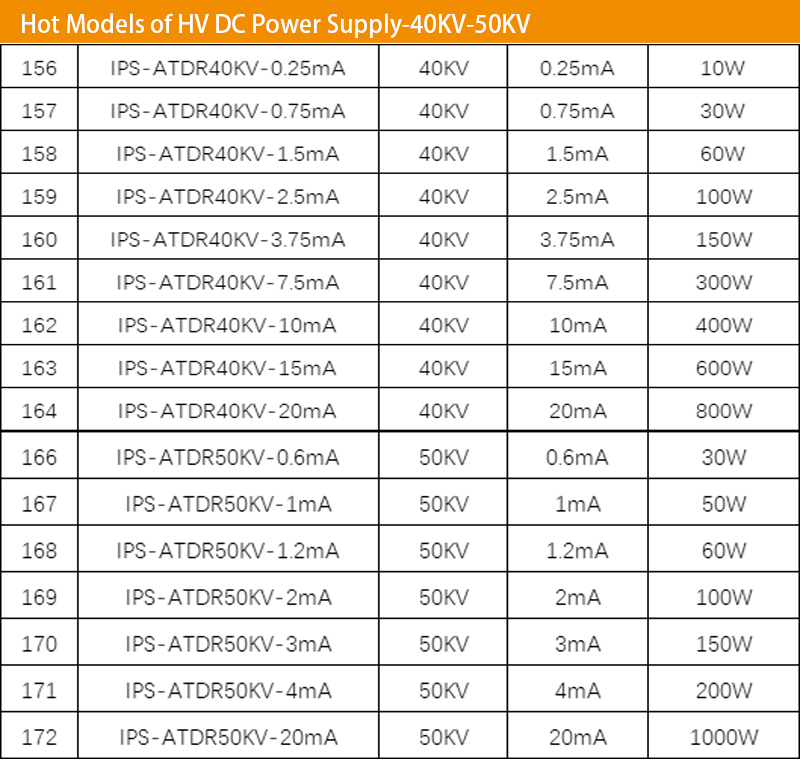

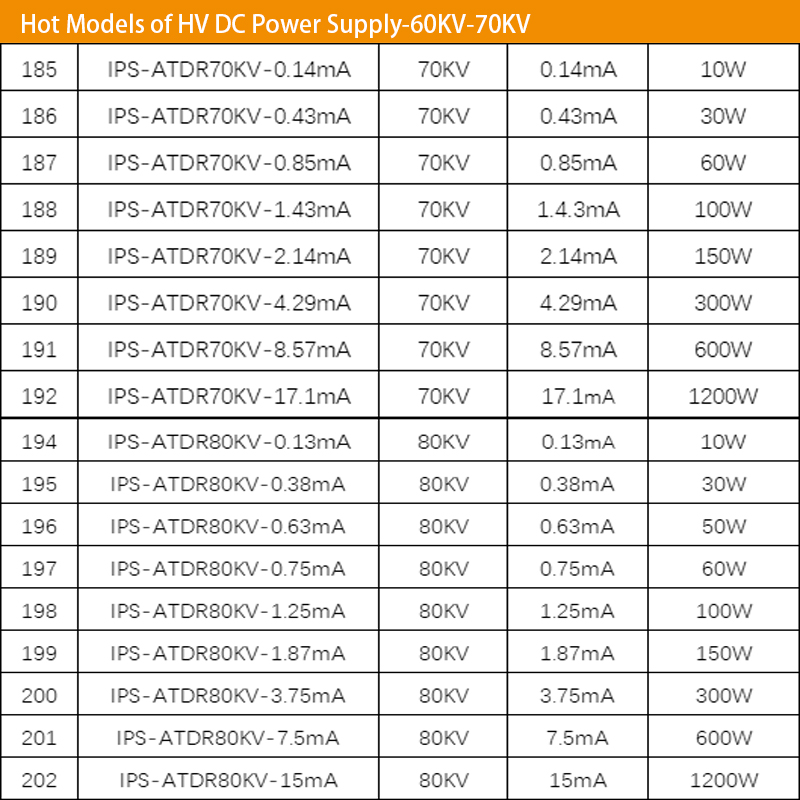

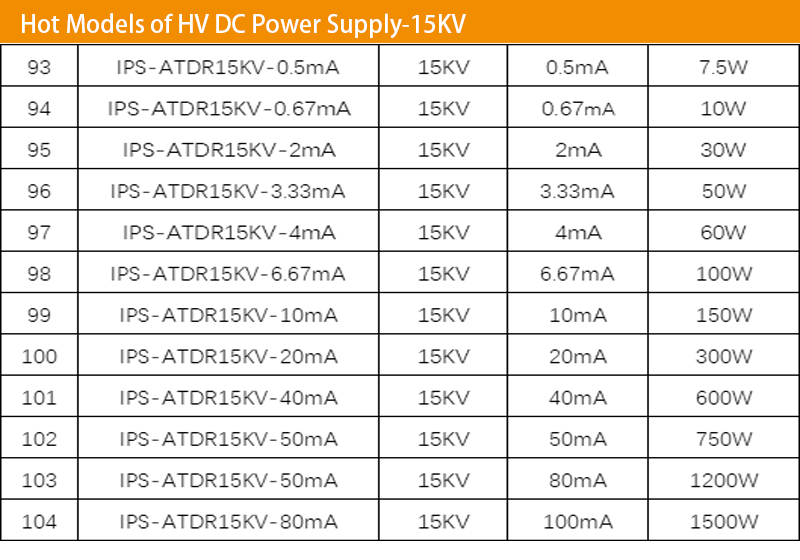

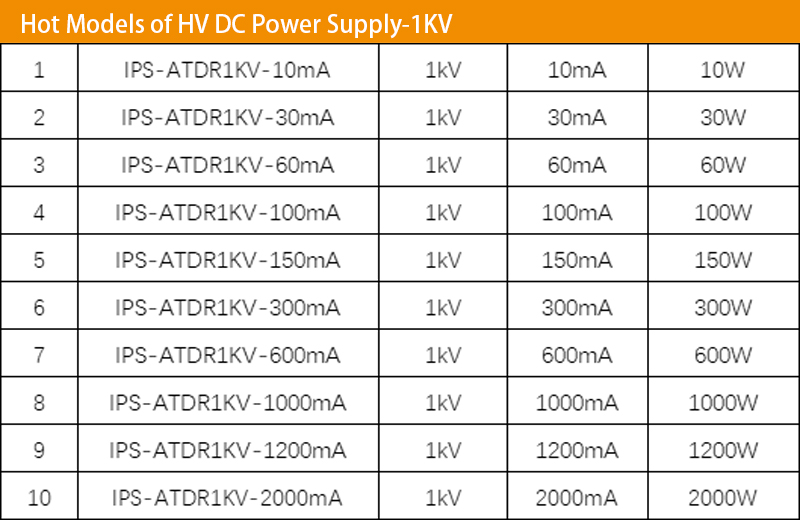

🖼️ X. REFERENCE PICTURES & MODEL LIST
🏭 FACTORY DISPLAY
❓ What is the output voltage range for the HV series?
The HV series high voltage DC power supplies offer an output range from 10kV to 200kV, fully adjustable.
❓ What communication interfaces are supported?
Optional interfaces include 0-10V analog control, RS485, and RS232, both supporting Modbus-RTU commands.
❓ What safety protections are built into the unit?
The unit includes Over Voltage (OVP), Over Current (OCP), Over Temperature (OTP), Arc protection, and Short Circuit protection.
❓ What are the primary industrial applications?
It is widely used in electrostatic spinning, dust removal, electret processes, spraying, flocking, and high-voltage insulation testing.
❓ Can the unit be controlled remotely?
Yes, output control can be easily switched between Local control (front panel) and Remote control (external signals).
❓ What is the standard length of the high-voltage cable?
The standard length is 1.5 meters, though other lengths are available as optional customizations.
