Rack Mount High Voltage Power Supply 100 Kv 5mA 500w Programmable Dc Power Supply 0-100kv for Electrostatic Spraying
Product Description
🚀 INTRODUCTION & APPLICATION
1
HV series are high voltage DC power supplies, available from 10kV to 200kV output.
2
Output control can be switched between Remote control and Local control. Output displays and output indicators are direct on the front panels and can lead to the external remote display screen.
3
The high-voltage output terminal has over-current, over-current, short-circuit protection and arc protection.
4
The HV series high voltage power supply is widely used in electrostatic applications, such as Electrostatic dust removal, Electrostatic spinning, Electrostatic electret, Electrostatic separation, Electrostatic spraying, and Electrostatic flocking.
5
The HV series high voltage power supply can also be used in High voltage insulation tests, Material sorting, Metal vaporization, High voltage deburring, and Laboratory test.
⚡ Meltblown cloth electrostatic electret equipment
🌀 Electrostatic Spinning
🧹 Electrostatic Dust Removal
🔋 Capacitor Charge / Discharge
🔬 Cable Aging / Leakage Test
📡 Optical Fiber Withstand Voltage Test
💎 PRODUCT FEATURES
| Output Voltage | Full range adjustable |
| Positive Output | +10kV to +200kV |
| Negative Output | -10kV to -200kV |
| Display | 4 digits LED for voltage and current |
| Performance | Low EMI, strong anti-interference ability |
| Safety | OVP, OCP, ARC, and short circuit protections |
🔌 OPTIONAL INTERFACE
🔘 Remote ON/OFF control
📊 0-10V analog control for voltage and current
💻 RS485, support Modbus-RTU commands
💻 RS232, support Modbus-RTU commands
⚙️ TECHNICAL SPECIFICATIONS
| INPUT PARAMETERS | |
| Rate Voltage | Single phase 220VAC |
| Range Voltage | 220VAC±10% |
| Frequency | 50/60HZ |
| OUTPUT PARAMETERS | |
| Model | IPS-ATDJ100KV-5mA |
| Rated Voltage | 0-100KV (Full range adjustable) |
| Rated Current | 0-5mA (Full range adjustable, except 1mA models) |
| Line Regulation | CV≤0.1%FS |
| Load Regulation | CV≤0.1%FS |
| Ripple & Noise | ≤0.5% FS |
| Voltage Stability | ≤0.1% per hour after warm-up |
| Temp Co-efficiency | 100ppm/°C |
🛡️ DISPLAY & PROTECTION
| Meter Type | 4 digits LED display for voltage and current |
| Voltage Resolution | 0.01kV / 0.1kV |
| Current Resolution | 0.001mA / 0.01mA |
| Accuracy | ≤0.1%FS+2LSB |
| OVP | Built-in (105% limit), auto shut down |
| OCP | Built-in (105% limit), auto shut down |
| OTP | Heat sink limit 65°C±5°C, auto shut down |
| Short Circuit | Automatic output shut down |
📦 GENERAL INFORMATION
| Dimensions | L516*W500*H136(MM) |
| Weight | Net 22KG / Gross 30KG (Wooden box) |
| Cooling | Forced air cooling (Fan) |
| Environment | 0°C~40°C, 10%~80%RH |
| HV Cable Option 1 | Non-shielded, 1.5m standard (length optional) |
| HV Cable Option 2 | Shielded, 1.5m standard (length optional) |

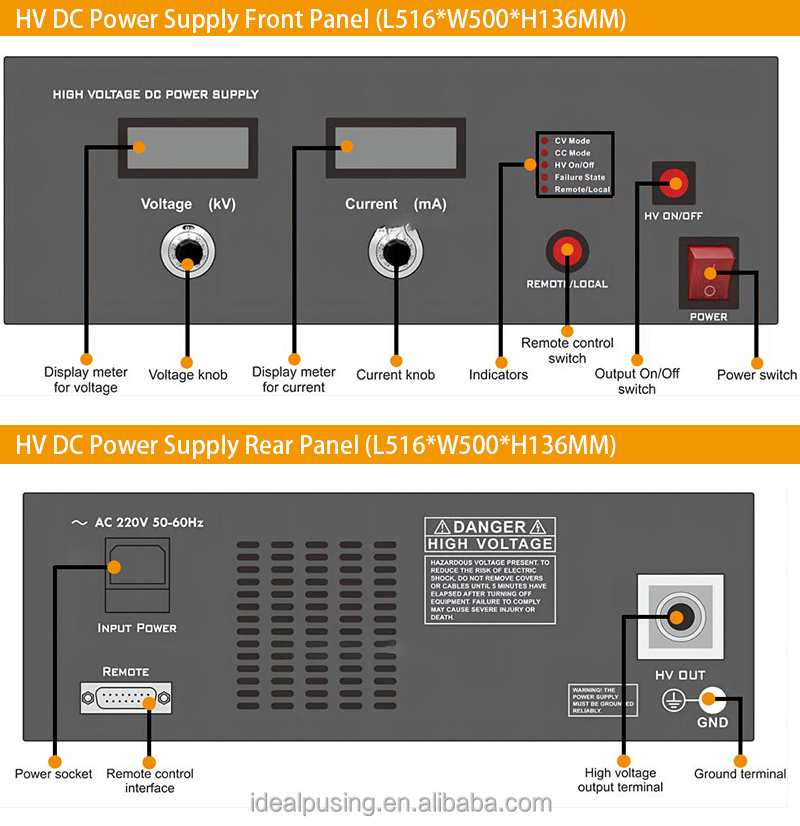

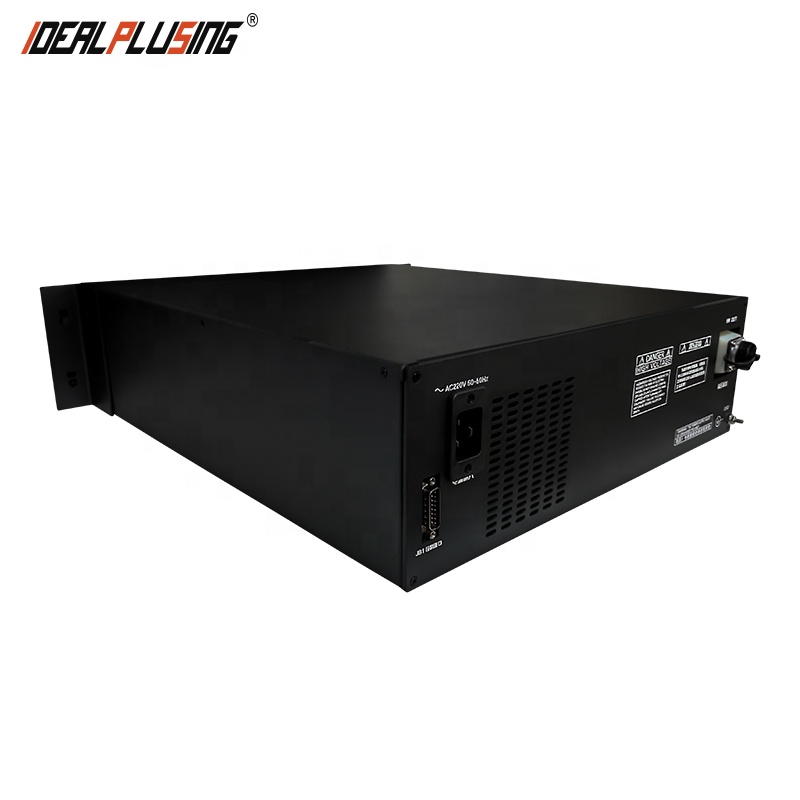

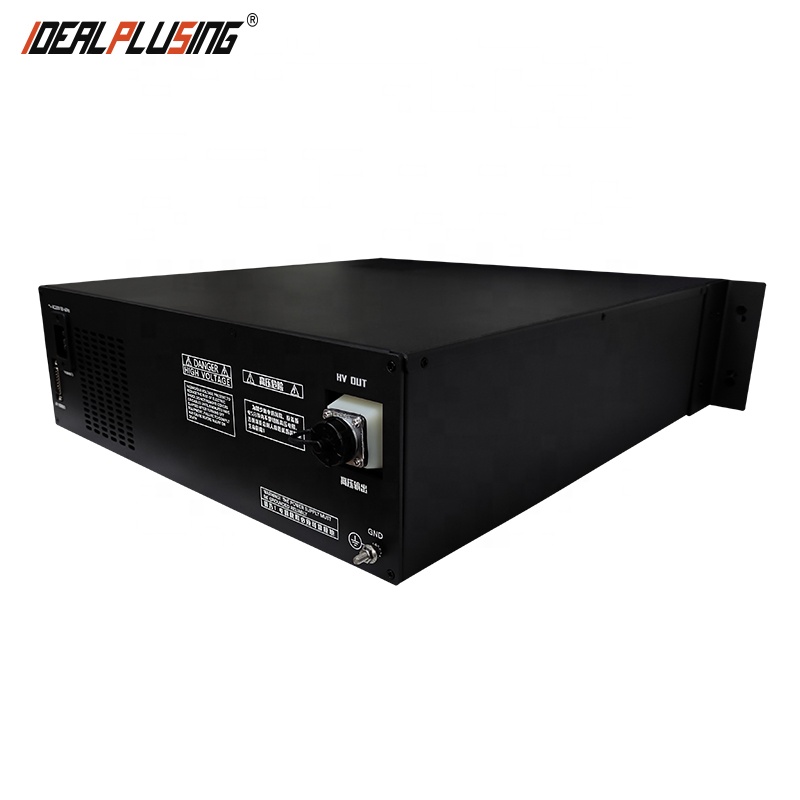

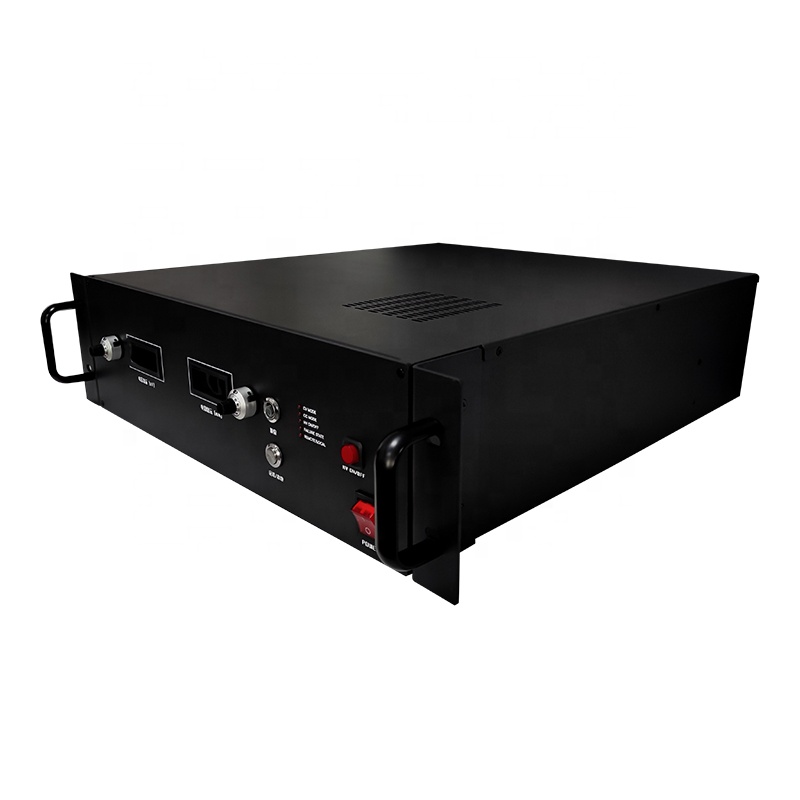

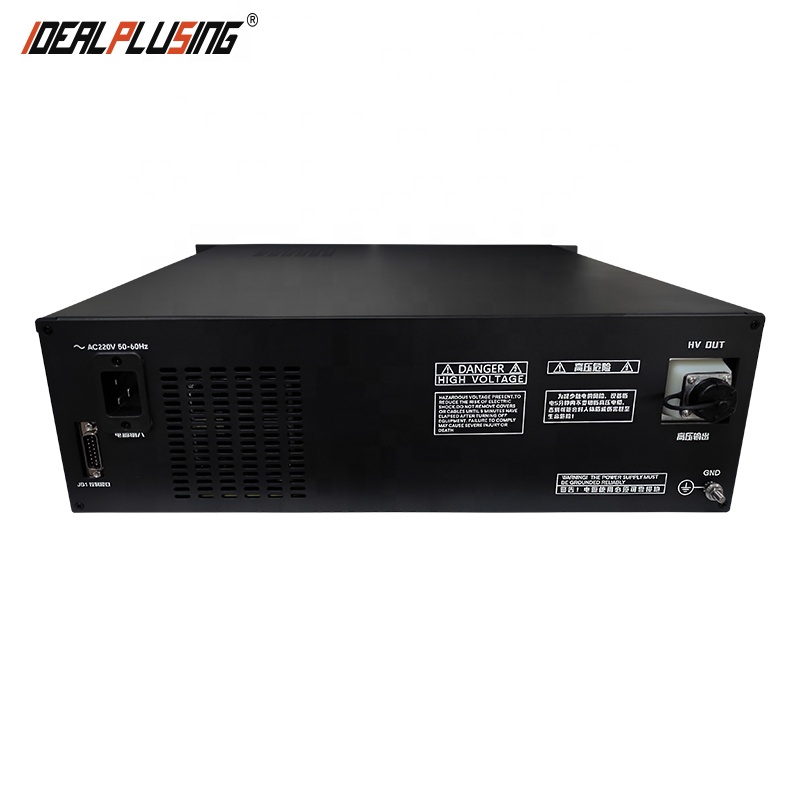

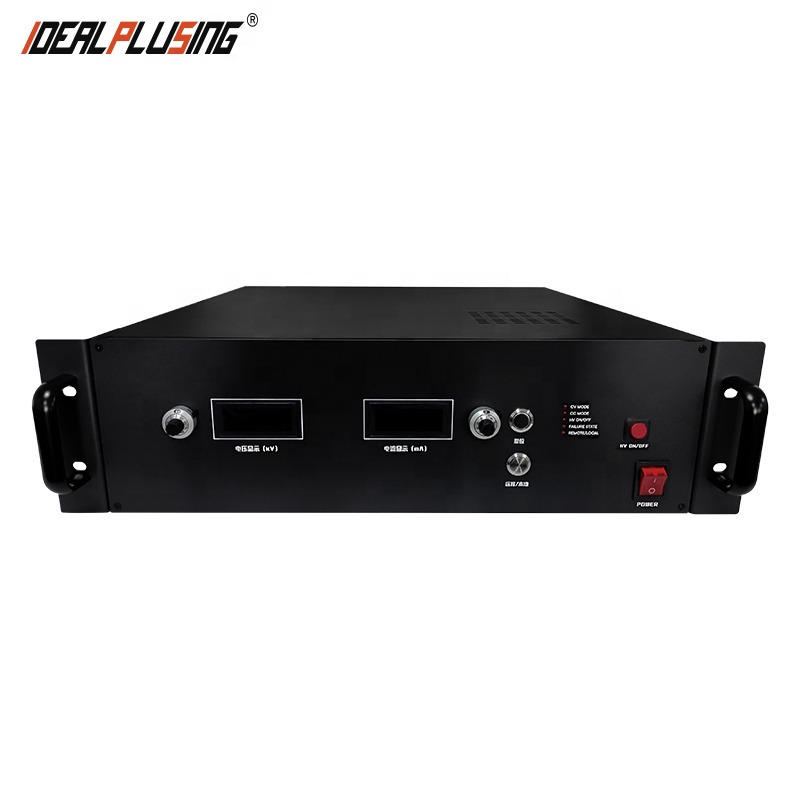

📸 REFERENCE PICTURES

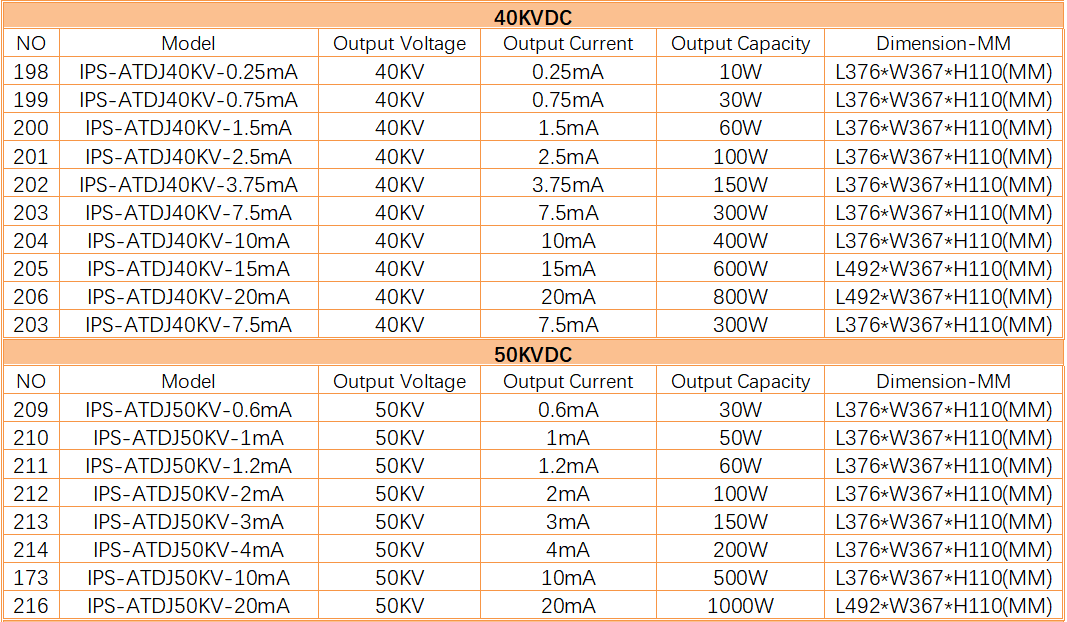

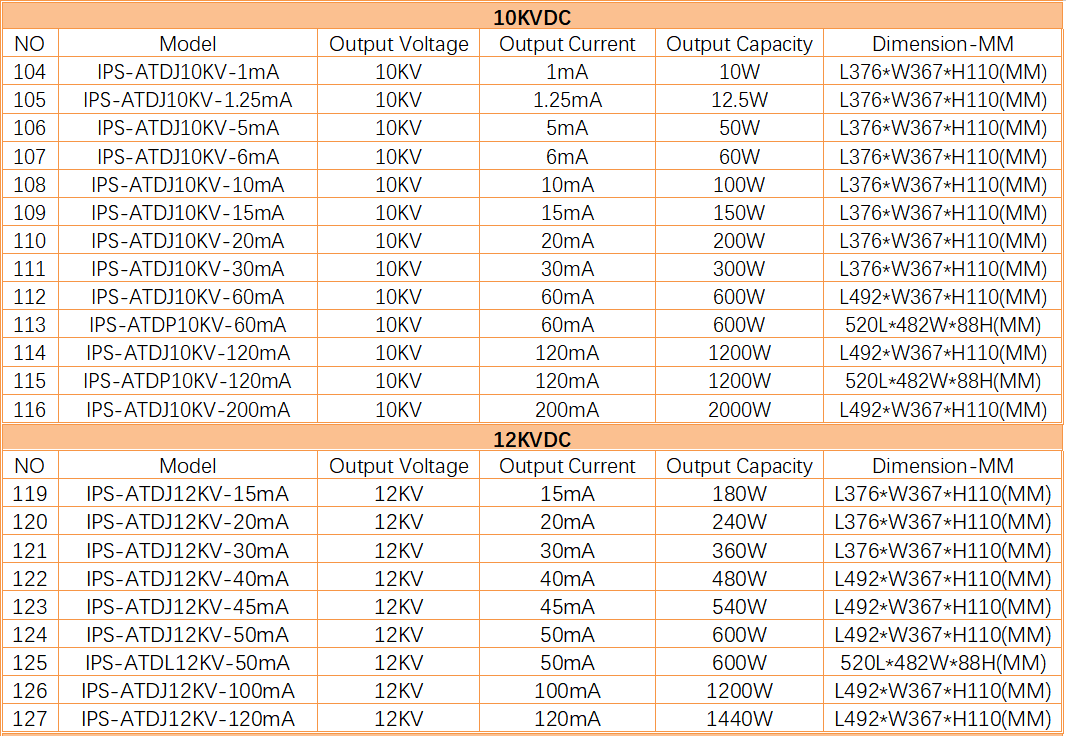

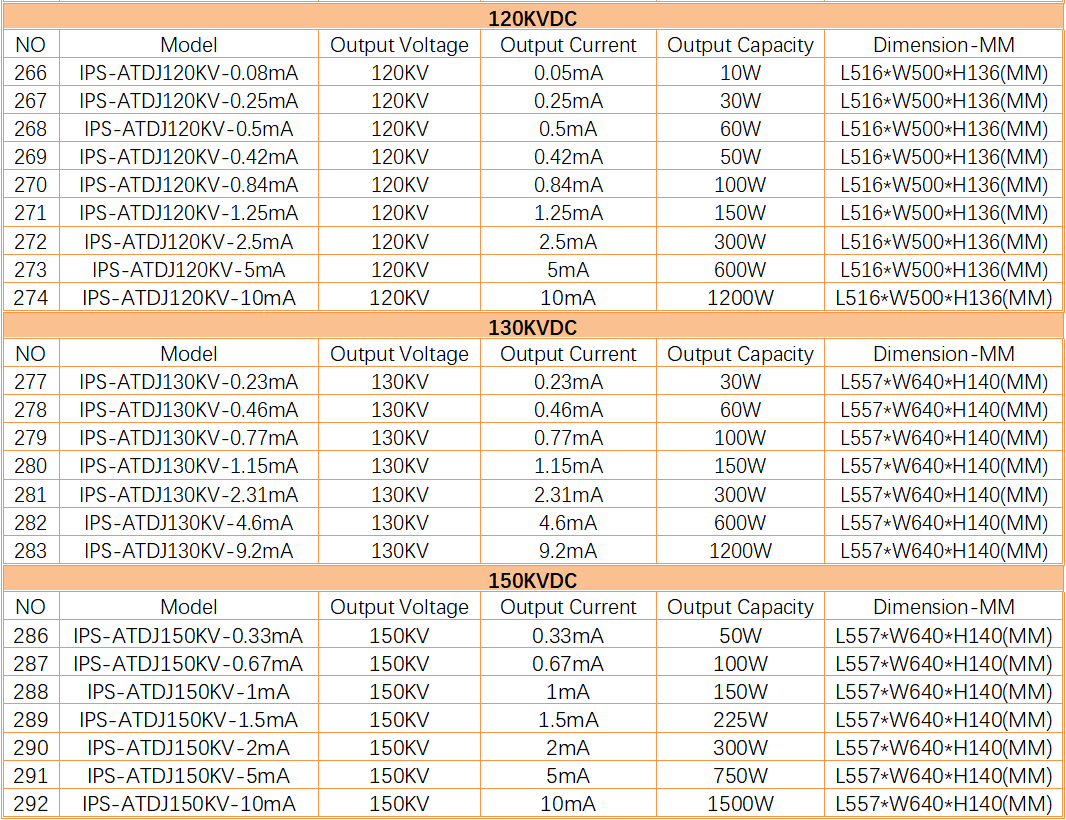

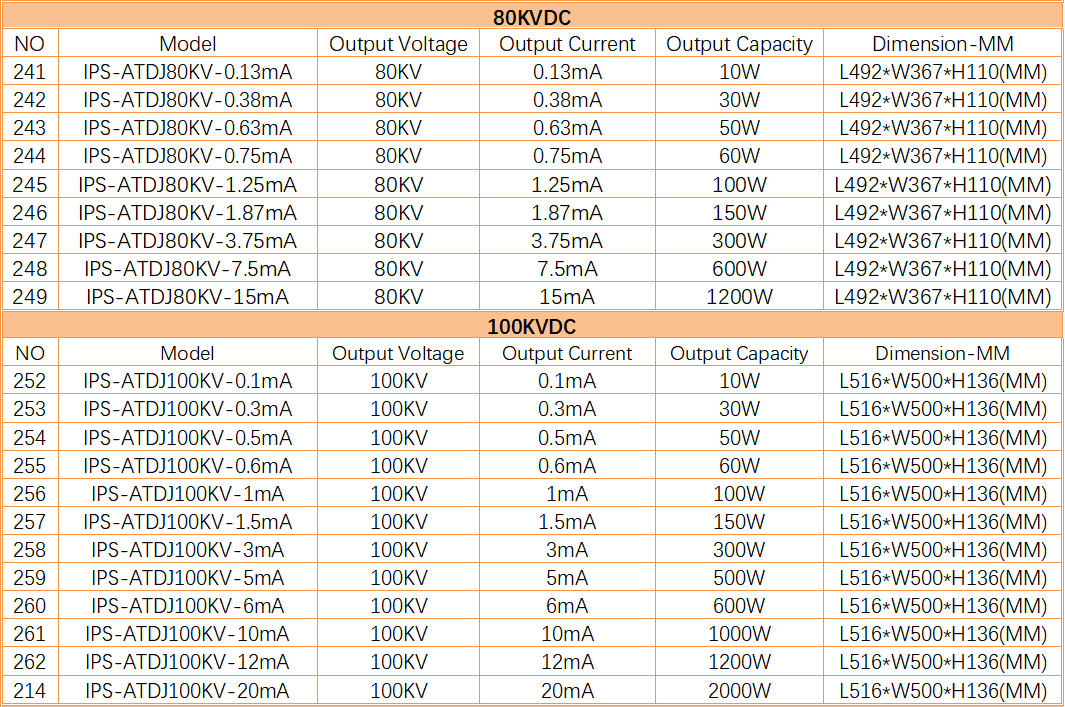

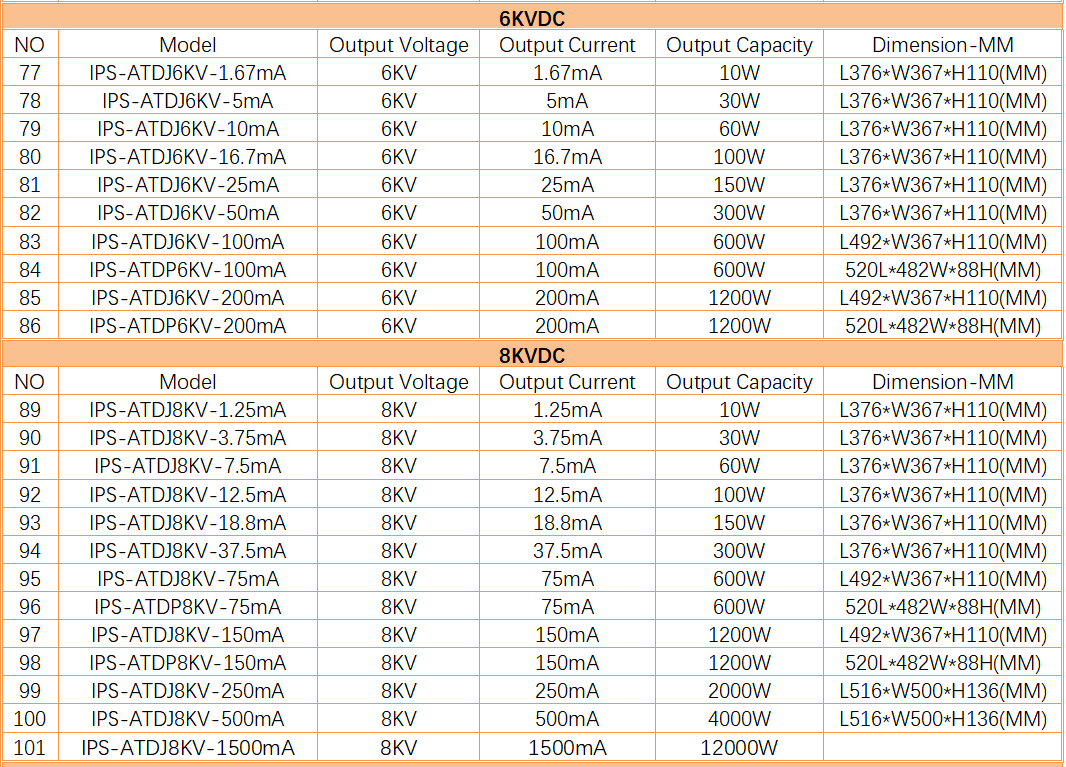

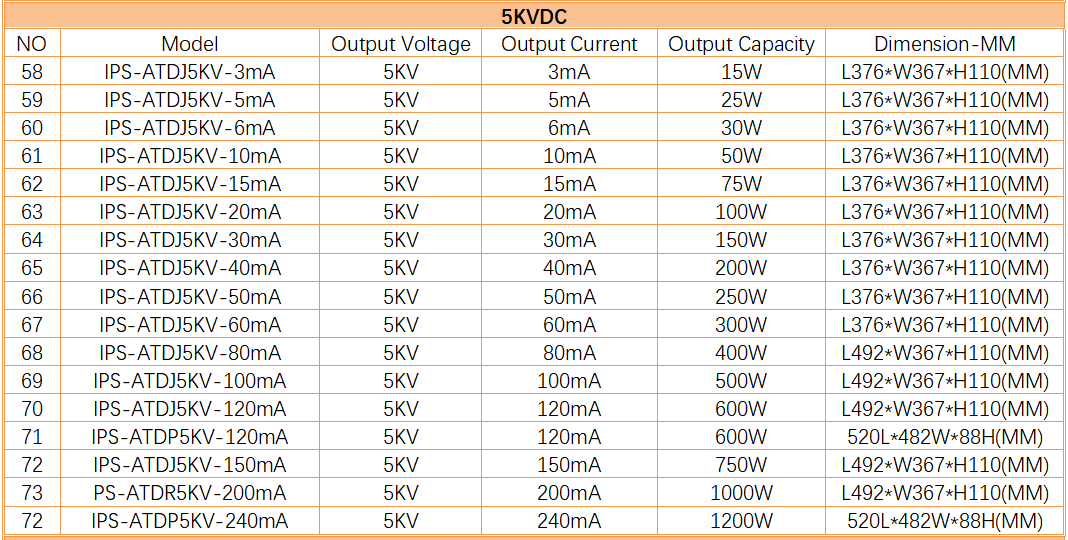

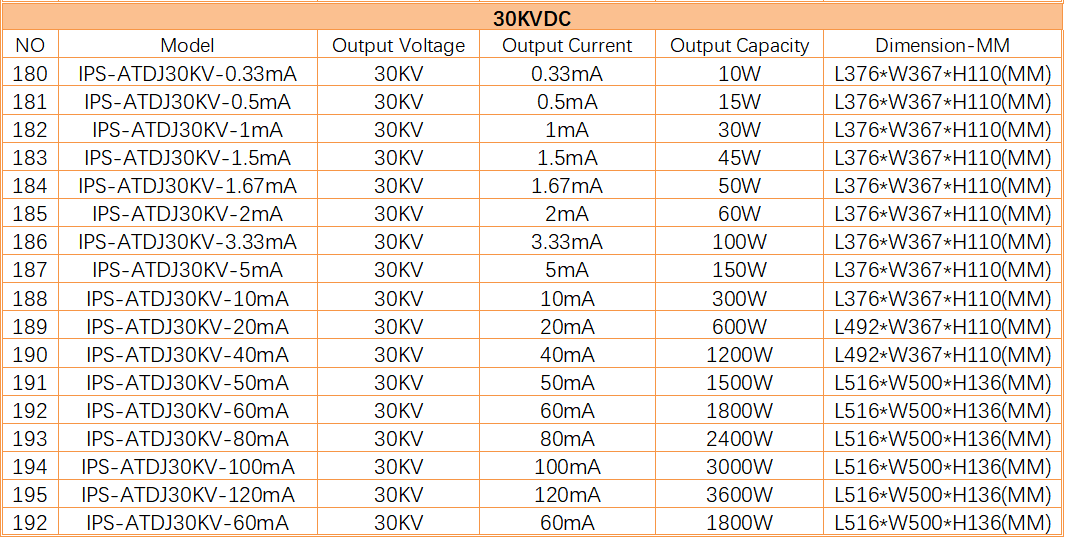

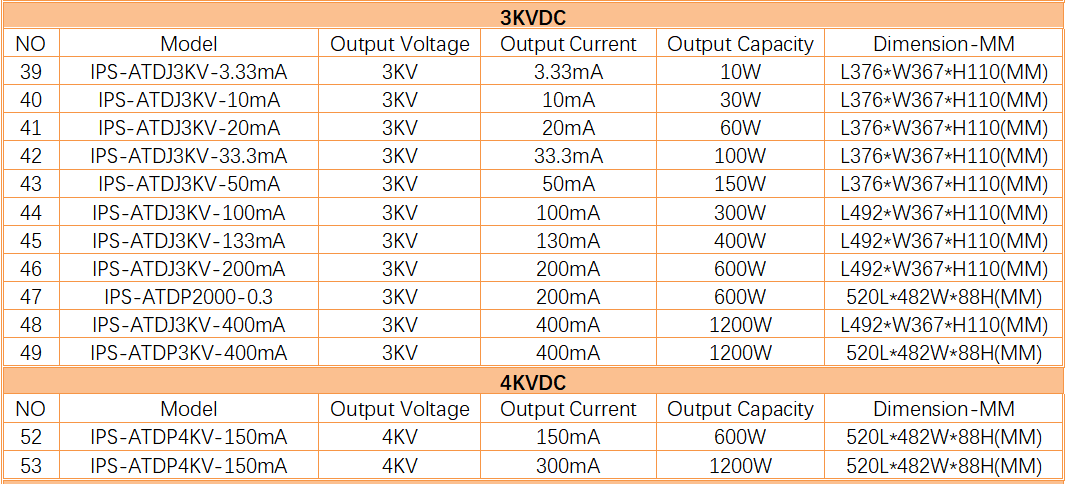

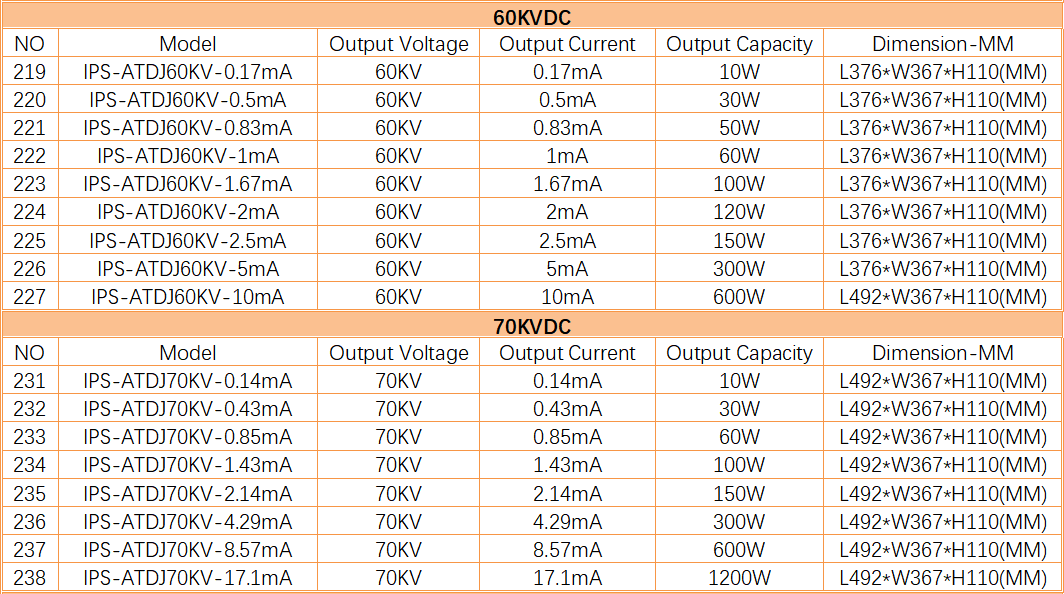

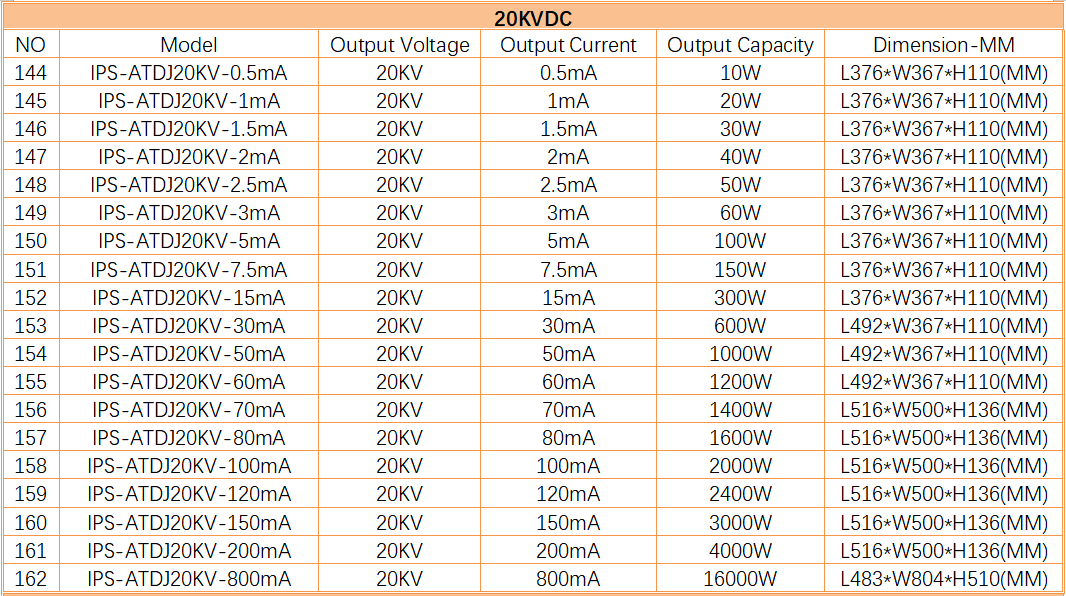

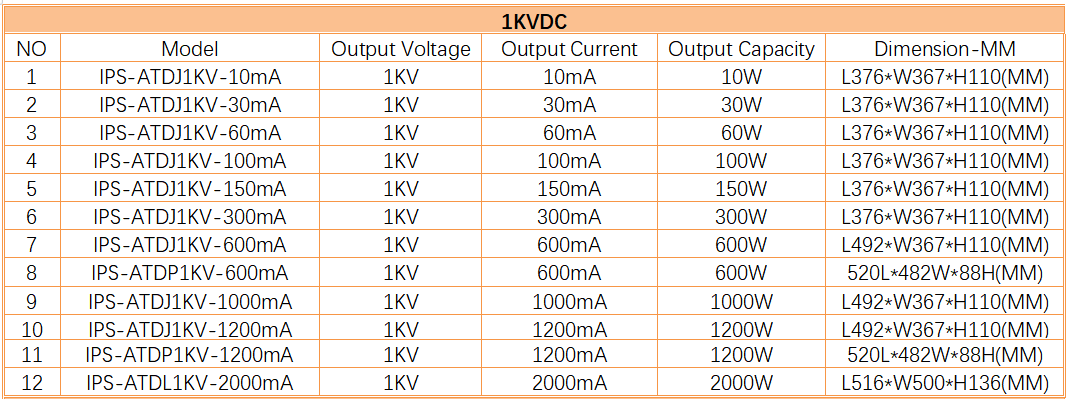

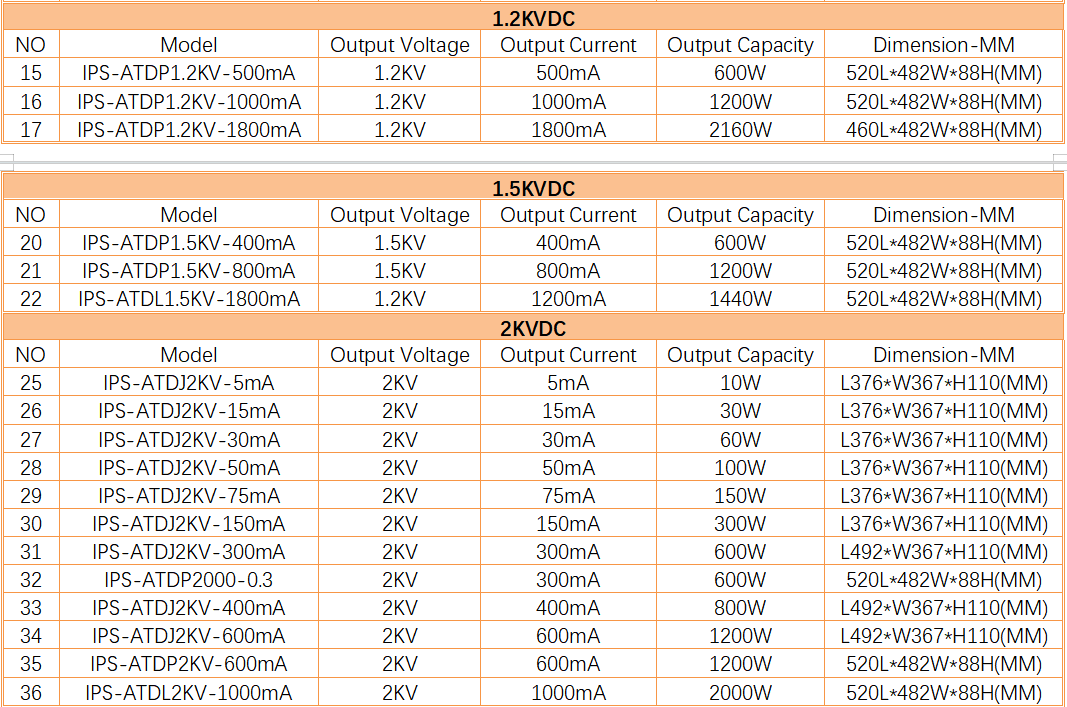

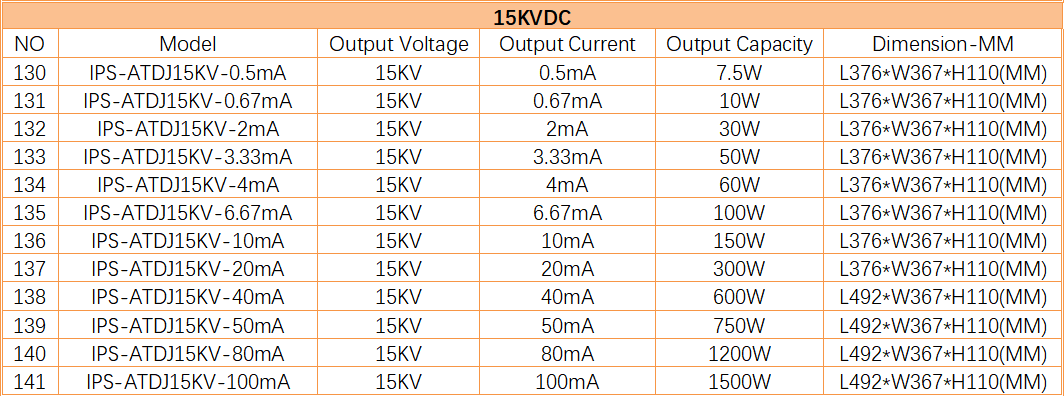

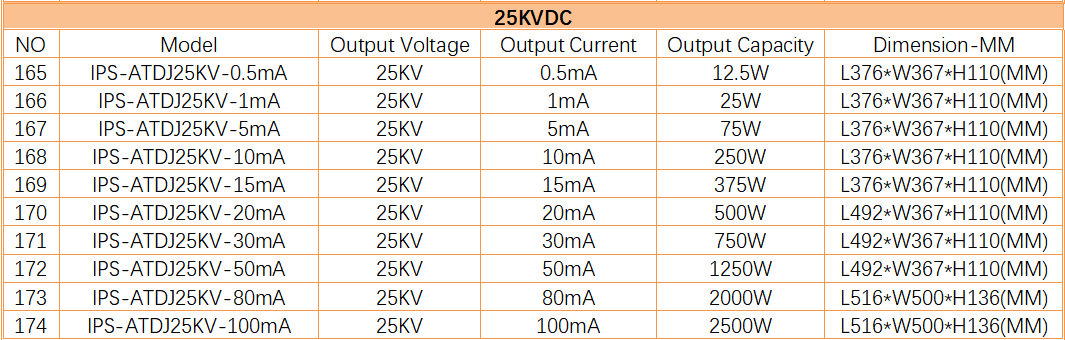

📋 MODEL LIST
🏭 FACTORY DISPLAY
❓ FREQUENTLY ASKED QUESTIONS
What is the maximum output voltage of the HV series?
The HV series high voltage DC power supplies are available with output ranges from 10kV up to a maximum of 200kV, depending on the specific model.
Does the power supply support remote control?
Yes, control can be switched between Local and Remote modes. It supports 0-10V analog control as well as RS485/RS232 Modbus-RTU digital communication.
What safety protections are built into the unit?
The unit includes comprehensive protection features: Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection, and Arc Protection.
Can I customize the length of the high-voltage cable?
The standard high-voltage cable length is 1.5 meters. However, other lengths are optional and can be customized based on your specific requirements.
What are the common applications for this power supply?
It is widely used in electrostatic spinning, dust removal, electret processes, spraying, flocking, as well as cable testing and laboratory insulation tests.
How accurate is the voltage and current display?
The unit features a 4-digit LED display with an accuracy of ≤0.1%FS+2LSB, providing precise monitoring for critical high-voltage applications.
