The New a High-voltage Power Supply 25kv 0.5ma 12.5w High Power Dc Power Supply for Melt Blown Cloth to Add Static Electricity
Product Description
📋I. INTRODUCTION & APPLICATION
1
HV series are high voltage DC power supplies, available from 10kV to 200kV output.
2

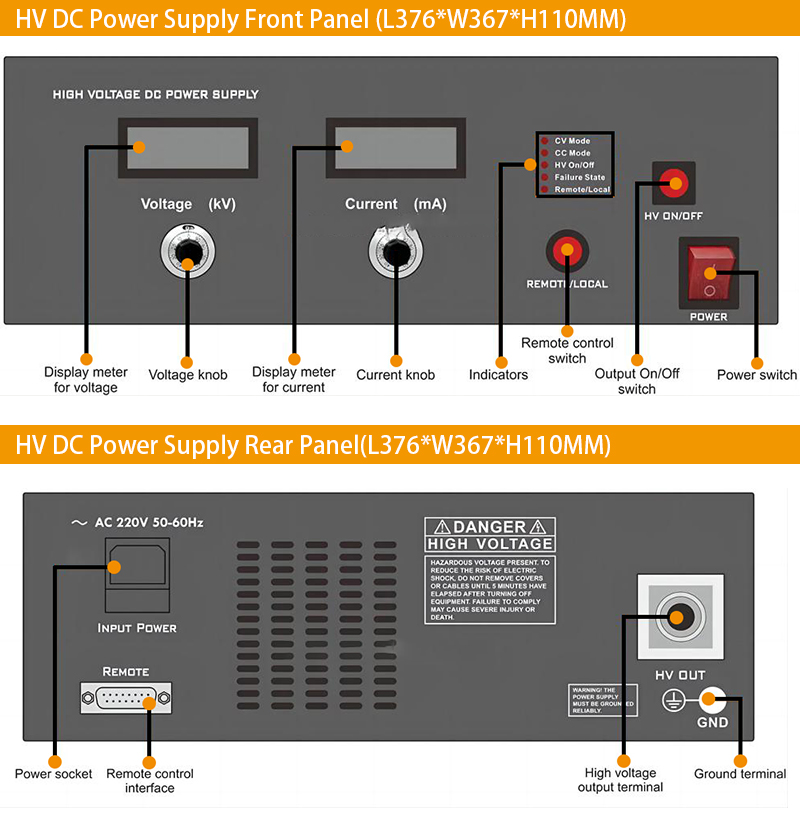

Output control can be switched between Remote control and Local control. Output displays and output indicators are direct on the front panels and can lead to the external remote display screen.
3
The high-voltage output terminal has over-current, over-current, short-circuit protection and arc protection.
4
The HV series high voltage power supply is widely used in electrostatic applications, such as Electrostatic dust removal, Electrostatic spinning, Electrostatic electret, Electrostatic separation, Electrostatic spraying, and Electrostatic flocking.
5
The HV series high voltage power supply can also be used in High voltage insulation tests, Material sorting, Metal vaporization, High voltage deburring, and Laboratory test.
6
Meltblown cloth electrostatic electret equipment
7
Electrostatic Spinning
8
Electrostatic Dust Removal
9
Capacitor Charge
10
Discharge
11
Cable Aging Test
12
Cable Leakage Test
13
Optical Fiber Withstand Voltage Test
14
Etc
✨II. PRODUCT FEATURES
| 1 | Output voltage full range adjustable |
| 2 | High voltage Positive output +10kV to +200kV |
| 3 | High voltage Negative output -10kV to -200kV |
| 4 | 4 digits LED display for voltage and current |
| 5 | Low EMI, strong anti-interference ability |
| 6 | OVP, OCP, ARC, and short circuit protections |
📗III. OPTIONAL INTERFACE
| 1 | Remote ON/OFF control |
| 2 | 0-10V analog control for voltage and current output |
| 3 | RS485, support Modbus-RTU commands |
| 4 | RS232, support Modbus-RTU commands |
⚡IV. INPUT & OUTPUT SPECS
| INPUT VOLTAGE | |
| Rate Voltage | Single phase 220VAC |
| Range Voltage | 220VAC±10% |
| Frequency | 50/60HZ |
| OUTPUT PARAMETERS | |
| Model | IPS-ATDJ25KV-0.5mA |
| Rated Voltage | 0-25KV (Full range adjustable) |
| Rated Current | 0-0.5mA (Full range adjustable) (except 1mA models) |
| Line Regulation | CV≤0.1%FS |
| Load Regulation | CV≤0.1%FS |
| Ripple & Noise | ≤0.5% FS |
| HV Stability | ≤0.1% per hour after warm-up for one hour |
| Temp Co-efficiency | 100ppm/°C |
💻VI. DISPLAY & PROTECTION
| Meter | 4 digits LED display for voltage and current |
| Voltage Res. | 0.01kV / 0.1kV |
| Current Res. | 0.001mA / 0.01mA |
| Accuracy | ≤0.1%FS+2LSB (Voltage & Current) |
| O.V.P. | Built-in OVP protection (105% limit). Shut down when activated. |
| O.C.P. | Built-in OCP protection (105% limit). Shut down when activated. |
| O.T.P. | Heat sink limit 65°C±5°C. Shut down when activated. |
| Short Circuit | The output will be shut down when activated. |
📦VIII. GENERAL INFORMATION

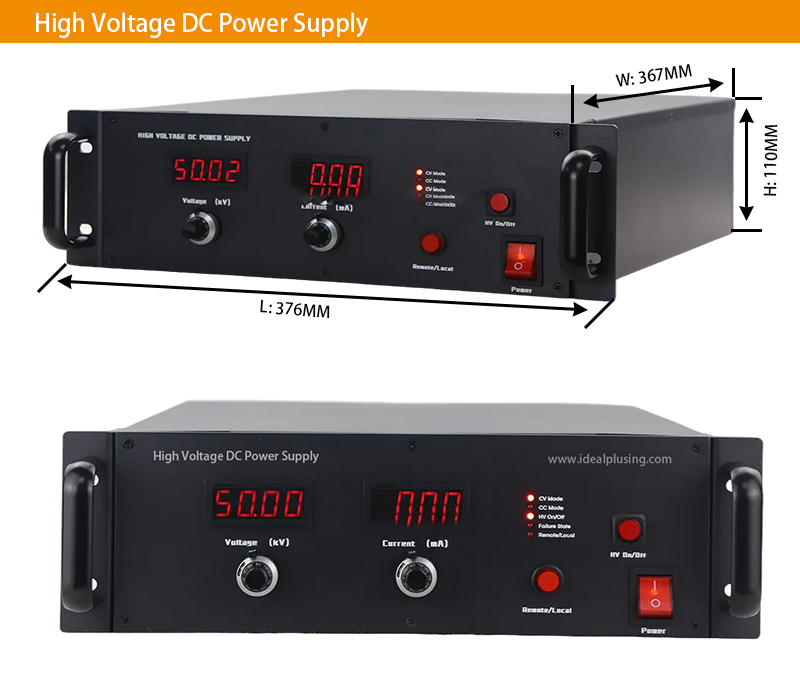

| Dimensions | L376*W367*H110(MM) |
| Weight (N/G) | 6.55KG / 9.5KG (Wooden carton box) |
| Cooling | Cooling fan |
| Environment | 0°C~40°C, 10%~80%RH (Operating) |
| Storage | -20°C~70°C, 10%~90%RH |
| HV Cable Option 1 | Self-contained high voltage cable without shielding (1.5m standard). |
| HV Cable Option 2 | High-voltage cable with shielding (1.5m standard). |
📷X. REFERENCE PICTURES
📝MODEL LIST GALLERY
🏭FACTORY DISPLAY
❓Frequently Asked Questions
What are the primary applications for the HV series power supply?
The HV series is widely used in electrostatic processes like spinning, dust removal, and electret for meltblown cloth, as well as high-voltage insulation and cable testing.
How accurate is the voltage and current display?
The power supply features a 4-digit LED display with a high accuracy of ≤0.1%FS+2LSB for both voltage and current monitoring.
What safety protections are built into the unit?
It includes comprehensive protection systems: Over Voltage (OVP), Over Current (OCP), Over Temperature (OTP), Arc protection, and Short Circuit protection.
Can the power supply be controlled remotely?
Yes, it supports switching between local and remote control, including 0-10V analog control and digital communication via RS485 or RS232 (Modbus-RTU).
What kind of output cables are available?
Two types are optional: a self-contained high voltage cable without shielding and a high-voltage cable with shielding. Standard length is 1.5 meters.
Is the output voltage fully adjustable?
Yes, the output voltage is fully adjustable across the entire rated range, from 0 up to the maximum rated voltage (e.g., 25kV, 200kV).
