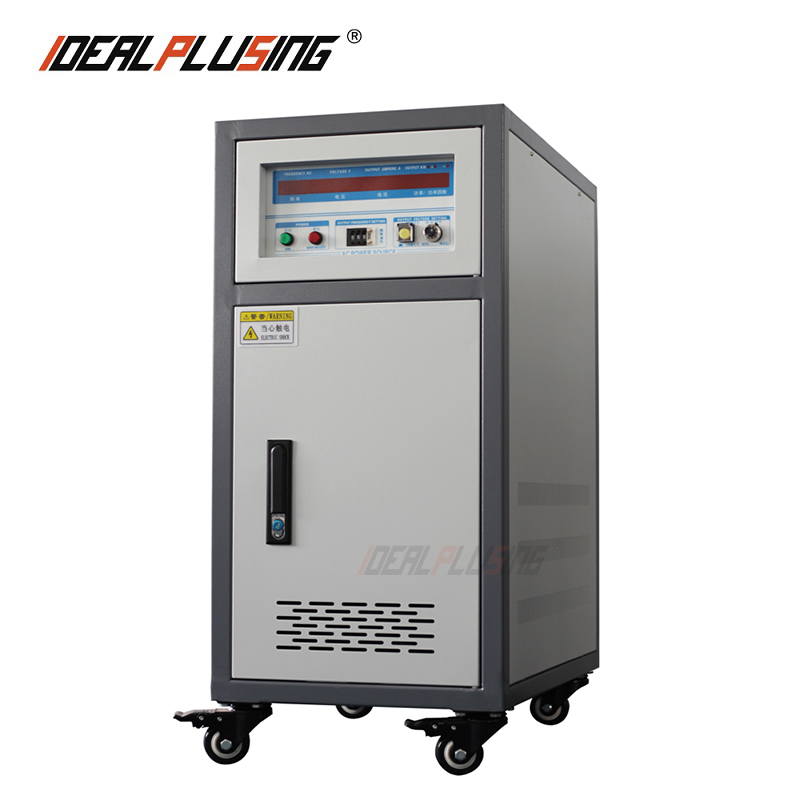

IDEALPLUSING 10kVA-15kVA Three Phase Variable Frequency Power Supply 380VAC for Industrial Equipment OEM/ODM
Product Description
Factory Price Variable Frequency Drive 10KVA 15KVA 3-phase 380VAC Variable Frequency Power Supply
Friendly Reminder
The prices shown on this page are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. Our company adheres to the principle of integrity and avoids price misrepresentation.
1Complete isolation of input and output technology, safe and reliable power supply.
2SPWM sine wave pulse width modulation technology for fast response and stable output.
3IGBT high-frequency static inverter: small size, lightweight, and low noise.
4Unique double-loop control mode for high precision and superior waveform quality.
5Highly integrated module drive circuit with strong overload capacity and high efficiency.
6Suitable for resistive, inductive, rectifier, and various other loads.
7Multiple protection functions for overheating, overcurrent, and short circuits.
8Parameter memory function with 10 groups of shortcut operations.
9Online adjustable voltage and frequency with real-time frequency changes.
Industrial Applications
Home appliances
Motors
Power tools
Switching power supplies
Power adapters
UPS
Information & communication
Photovoltaic
Lamps
Electronic transformers
Electronic components
Low-voltage distribution
Power Industry
FC61 Series (Single Phase)
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
|---|---|---|---|---|
| Capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated Power (KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| Max Current (Low) | 4.2A | 8.4A | 17A | 25A |
| Max Current (High) | 2.1A | 4.2A | 8.4A | 12.5A |
| Dimension (CM) | 43*18*44 | 43*18*44 | 43*18*47 | 43*65*52 |
FC62 Series (Three Phase Input)
| Model | IPS-FC6210 | IPS-FC6220 | IPS-FC6230 | IPS-FC6245 |
|---|---|---|---|---|
| Capacity (KVA) | 10KVA | 20KVA | 30KVA | 45KVA |
| Rated Power (KW) | 8KW | 16KW | 24KW | 36KW |
| Input Phase | 3 phases 4 wires 380VAC±15% | |||
| Output Phase | Single phase 2 wires, 0-300V | |||
Hot Selling Models
IPS-FC6102
Single-phase 2KVA 1.6KW
IPS-FC6250
3-phase to Single-phase 50KVA
IPS-FC6310
Single-phase to 3-phase 10KVA
Product Detail Views
Application Scope
Professional Customization
We specialize in customizing AC/DC/AC power supply solutions to meet specific requirements. Our offerings for frequency converters range up to 2000KVA. Please explore our capabilities or submit inquiries for detailed information. Our dedicated team endeavors to respond promptly.
Q: Why are there different frequencies like 50Hz and 60Hz?
A: Different regions settled on different standards. Europe and most of Asia use 50Hz, while the Americas and parts of Japan use 60Hz. A static frequency converter allows you to change between these standards to power equipment in different regions.
Q: What types of loads can this power supply support?
A: It is highly versatile and suitable for resistive, inductive, rectifier, and other types of loads common in industrial and domestic environments.
Q: What are the main protection features?
A: The system includes automatic protection and alarms for overvoltage, overcurrent, overload, over temperature, and short-circuit conditions.
Q: Can the output voltage and frequency be adjusted?
A: Yes, both voltage and frequency can be adjusted online. Frequency can be set via software between 40Hz and 499.9Hz depending on the model.
Q: What cooling method is used?
A: These units utilize forced fan cooling to ensure stable operation within a temperature range of 0°C to 45°C.
Q: What is the response time for voltage stabilization?
A: The system features a very fast response time, typically ≤2ms, ensuring high-quality power even under changing load conditions.
