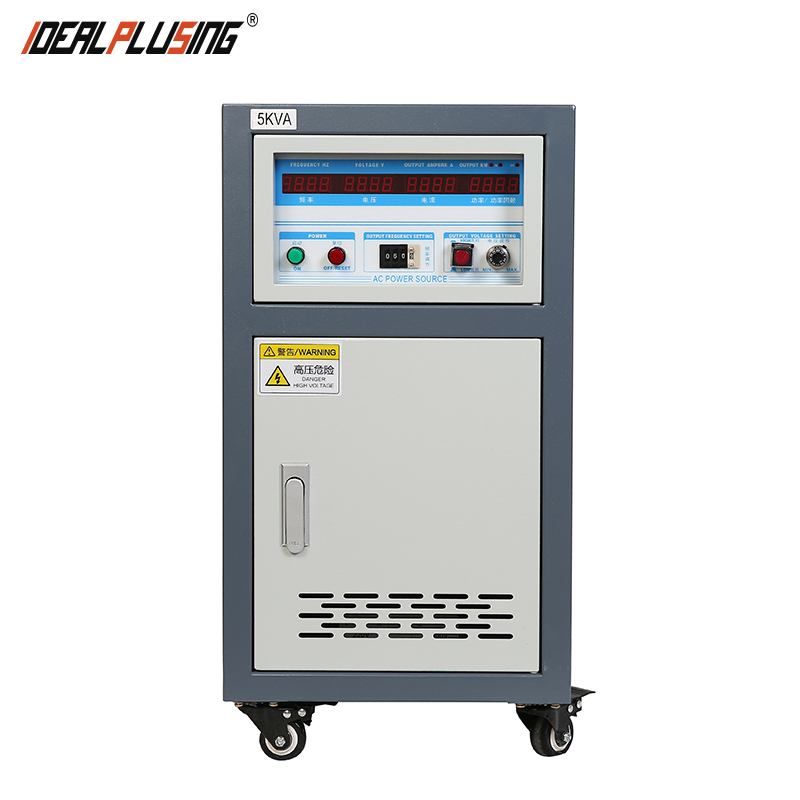

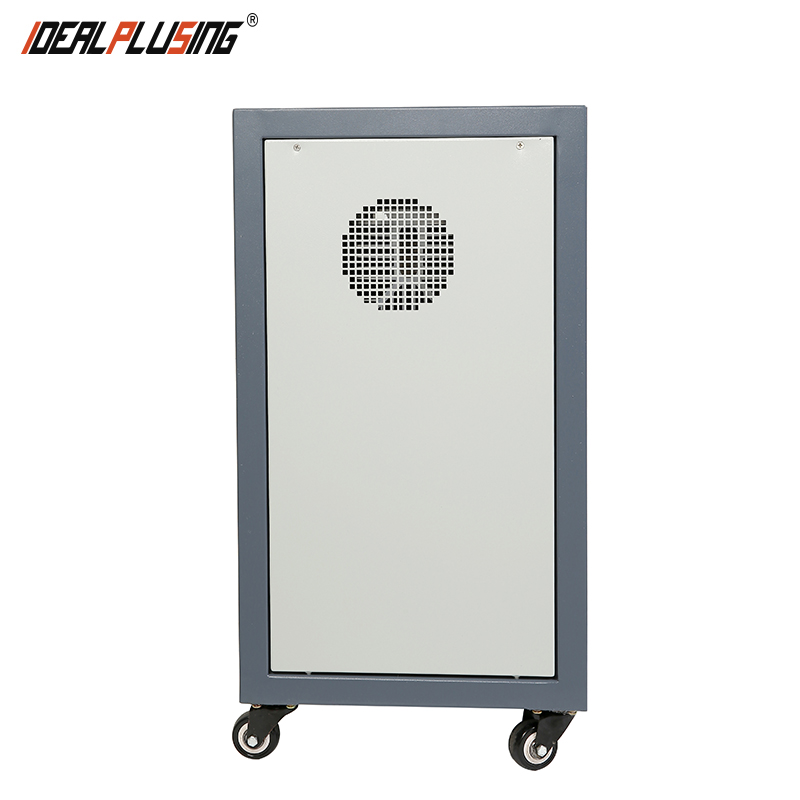

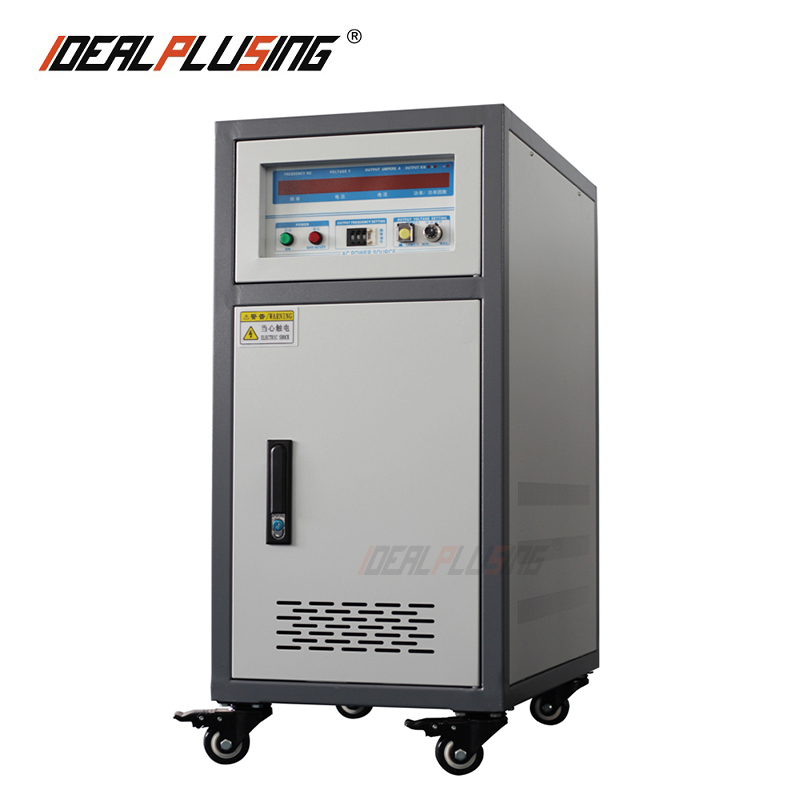

IDEALPLUSING 10kVA-30kVA Three Phase Static Frequency Converter 380VAC 50Hz/60Hz to 400Hz Pure Sine Wave OEM/ODM
Product Description
High Quality 50hz 60hz to 400hz AC Frequency Converter
Three-phase 380VAC 10KVA 20KVA 30KVA Variable Frequency Power Supply
Three-phase 380VAC 10KVA 20KVA 30KVA Variable Frequency Power Supply
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
Product Features
1
Complete isolation of input and output technology, safe and reliable power supply
2
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output
3
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
4
Unique double-loop control mode for high precision and excellent waveform quality
5
Strong overload capacity, low loss, and high efficiency with integrated module drive circuit
6
Suitable for resistive, inductive, rectifier, and other various loads
7
Multiple protection: Overheating, overcurrent, and short circuit protection
8
Parameter memory function with 10-group shortcut key operations
9
Online adjustable voltage and frequency with real-time frequency changes
Main Applications
| Home appliances | Motors | Power tools | Switching power supplies |
| Power adapters | UPS | Information and communication | Photovoltaic |
| Lamps | Electronic transformers | Electronic components | Low-voltage distribution |
| Power | Other industries | ||
Technical Specifications
FC61 Series (Single Phase)
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
|---|---|---|---|---|
| Output capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated power output(KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| AC output Max Current (Low/High) | 4.2A / 2.1A | 8.4A / 4.2A | 17A / 8.4A | 25A / 12.5A |
| Circuit mode | IGBT/SPWM | |||
FC62 Series (Three Phase Input, Single Phase Output)
| Model | IPS-FC6220 | IPS-FC6230 | IPS-FC6245 | IPS-FC6260 |
|---|---|---|---|---|
| Output capacity (KVA) | 20KVA | 30KVA | 45KVA | 60KVA |
| Rated power output(KW) | 16KW | 24KW | 36KW | 48KW |
| Max Current (Low) | 168A | 250A | 375A | 500A |
Hot Selling Models
IPS-FC6102 (2KVA 1.6KW)
IPS-FC6250 (50KVA 40KW)
IPS-FC6310 (10KVA 8KW)
IPS-FC6330 (30KVA 24KW)
IPS-FC68100 (100KVA 80KW)
IPS-FC68200 (200KVA 160KW)
Product Details

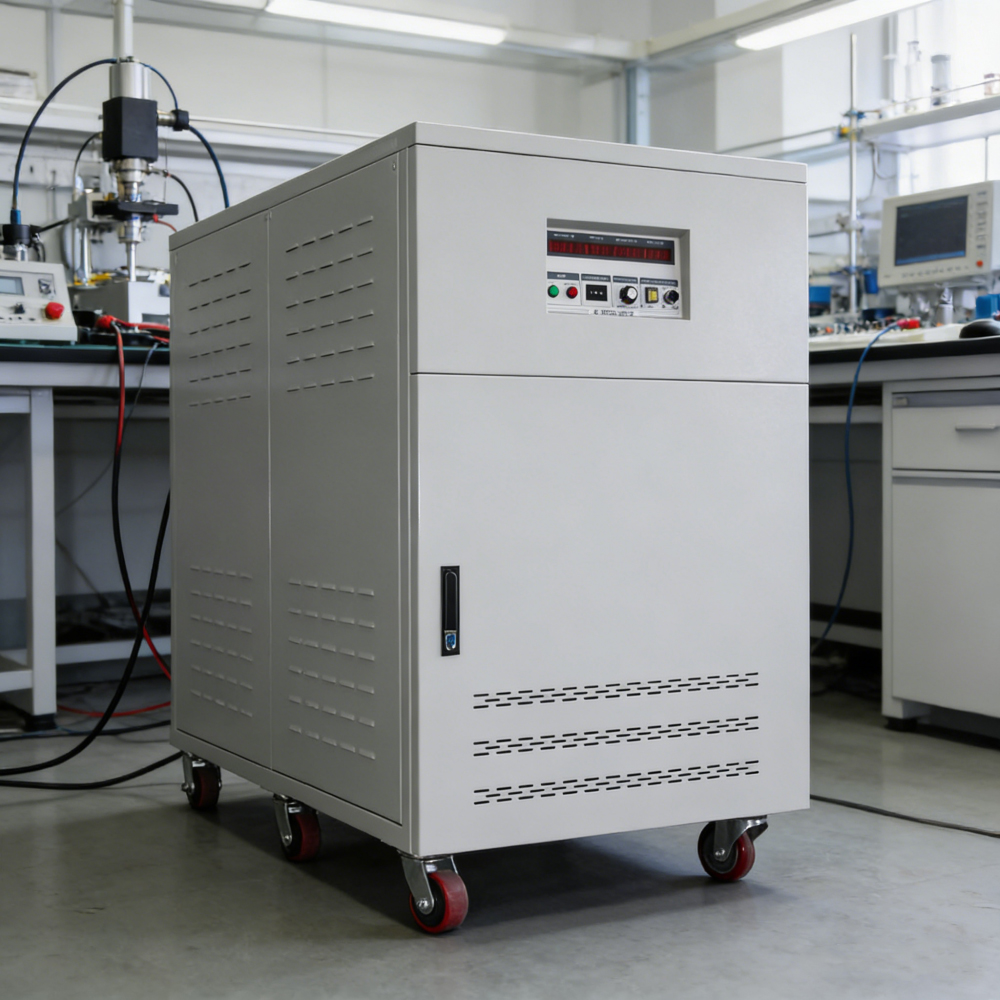

Application Scope
About Our Specialization
We specialize in customizing AC/DC/AC power supply to meet your specific requirements. With customized frequency converters, our offerings range up to 2000KVA. Please submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour.
Frequently Asked Questions
Why are there 50Hz and 60Hz power systems?
The frequency was selected arbitrarily when systems were stand-alone. 50Hz became common in Europe and Africa, while 60Hz became the norm in the Americas and parts of Asia. A frequency converter allows you to change between them seamlessly.
What is the advantage of SPWM technology?
SPWM (Sine Wave Pulse Width Modulation) technology provides a fast response speed and a very stable output waveform, making it safe for sensitive electronic equipment.
Can I adjust the voltage and frequency while the unit is running?
Yes, our frequency converters allow the power supply voltage and frequency to be adjusted online, and the frequency can change in real-time as per your testing requirements.
What kind of protection does the unit offer?
The units are equipped with comprehensive protection for abnormal conditions including overheating, overcurrent, overload, over-voltage, and short-circuit scenarios with automatic jump protection and alarms.
What types of loads can these converters handle?
Our frequency converters are highly versatile and suitable for resistive, inductive, rectifier, and other types of loads, including home appliances, motors, and power tools.
Is the output capacity customizable?
Absolutely. While we have standard models like 10KVA and 30KVA, we specialize in customizing units to meet specific requirements, with capabilities reaching up to 2000KVA.
