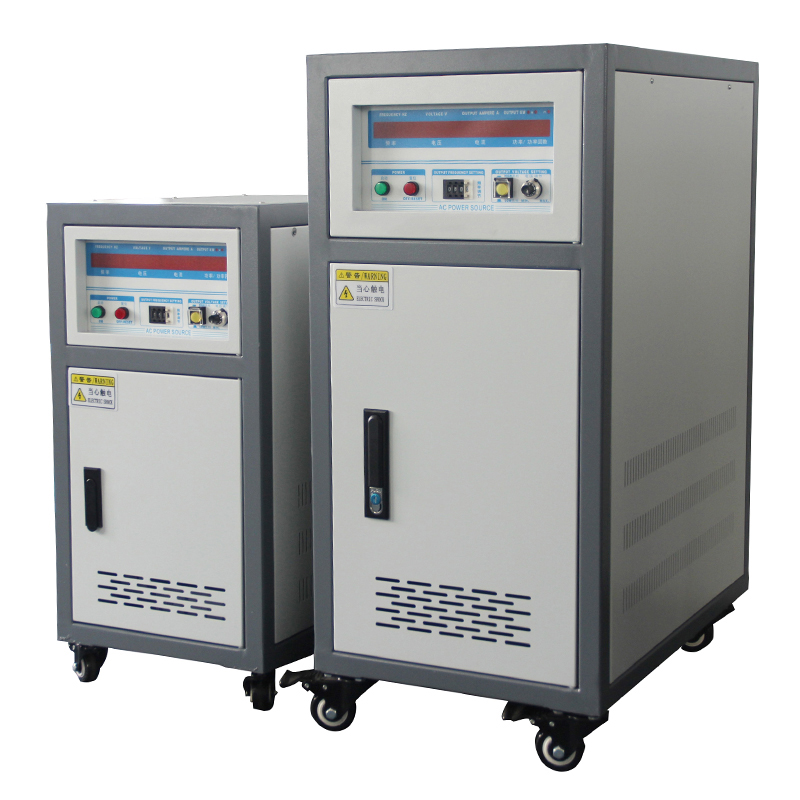

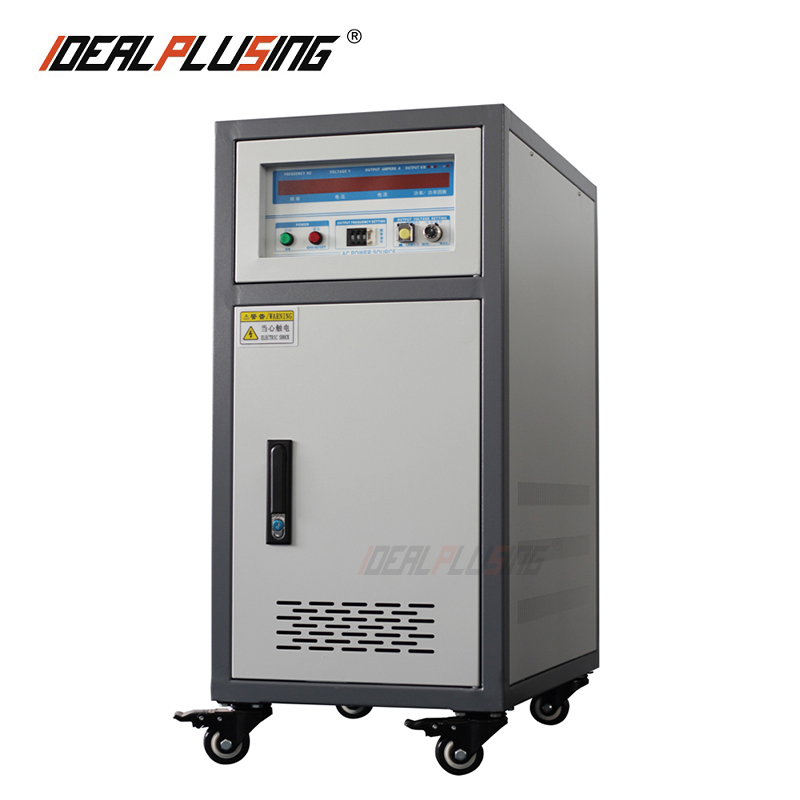

IDEALPLUSING 10kVA-50kVA Frequency and Voltage Converter 50Hz/60Hz to 400Hz High Performance OEM/ODM
Product Description
High-performance 60Hz/50Hz Frequency and Voltage Converters
10KVA 20KVA 30KVA 40KVA 50KVA 400Hz Customizable AC Power Supply
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. Our company always adheres to the principle of integrity. Thank you for your understanding and trust.
Product Features
1
Complete isolation of input and output technology, safe and reliable power supply.
2
SPWM sine wave pulse width modulation technology for fast response and stable output.
3
IGBT high-frequency static inverter: small size, lightweight, low noise, and high efficiency.
4
Unique double-loop control mode (instantaneous and effective value) for high precision and quality.
5
Highly integrated module drive circuit with strong overload capacity and low loss.
6
Suitable for resistive, inductive, rectifier, and other diverse loads.
7
Multiple protection for overheating, overcurrent, and short circuits.
8
Parameter memory function with 10-group shortcut key operations.
9
Online adjustable voltage and frequency with real-time frequency changes.
Applications
Home appliancesMotors
Power toolsSwitching power supplies
Power adaptersUPS
CommunicationPhotovoltaic
LampsTransformers
Electronic componentsDistribution
Power Industry
Technical Specifications
| FC61 Series (Single-Phase) | ||||
|---|---|---|---|---|
| Model | Capacity (KVA) | Power Output (KW) | Max Current (Low) | Max Current (High) |
| IPS-FC61005 | 0.5KVA | 0.4KW | 4.2A | 2.1A |
| IPS-FC6101 | 1KVA | 0.8KW | 8.4A | 4.2A |
| IPS-FC6102 | 2KVA | 1.6KW | 17A | 8.4A |
| IPS-FC6105 | 5KVA | 4KW | 42A | 21A |
| IPS-FC6110 | 10KVA | 8KW | 84A | 42A |
| FC62 Series (Three-Phase Input) | ||||
|---|---|---|---|---|
| Model | Capacity (KVA) | Power Output (KW) | Max Current (Low) | Max Current (High) |
| IPS-FC6220 | 20KVA | 16KW | 168A | 84A |
| IPS-FC6230 | 30KVA | 24KW | 250A | 125A |
| IPS-FC62100 | 100KVA | 80KW | 834A | 417A |
| IPS-FC62200 | 200KVA | 160KW | 1667A | 834A |
Hot Selling Models
IPS-FC6102 (2KVA / 1.6KW)
IPS-FC6250 (50KVA / 40KW)
IPS-FC6310 (10KVA / 8KW)
IPS-FC6330 (30KVA / 24KW)
IPS-FC68100 (100KVA / 80KW)
IPS-FC68200 (200KVA / 160KW)
Detail Images
Application Scope
We specialize in customizing AC/DC/AC power supply to meet your specific requirements. With customized frequency converters, our offerings range up to 2000KVA. Please explore our capabilities and submit inquiries for further information.
Frequently Asked Questions
Q: Why are there both 50Hz and 60Hz power systems?
A: These frequencies were selected arbitrarily before systems were interconnected. AEG in Germany established 50Hz across Europe, while Westinghouse settled on 60Hz in the US. You can use a static frequency converter to change between them.
Q: What modulation technology is used in these converters?
A: We use SPWM (Sine Wave Pulse Width Modulation) technology, which ensures fast response speeds and highly stable output waveforms.
Q: Are these power supplies safe for sensitive electronic equipment?
A: Yes, our technology features complete isolation between input and output, providing a safe and reliable power supply suitable for delicate electronic components.
Q: What kind of protection functions are built-in?
A: Our systems include multiple protection functions for abnormal conditions such as overheating, overcurrent, overvoltage, overload, and short circuits, including automatic jump protection and alarms.
Q: Can the output frequency be adjusted in real-time?
A: Yes, the power supply voltage and frequency can be adjusted online via software, and the frequency can change in real-time within the specified ranges (typically 40~499.9Hz).
Q: What types of loads can these frequency converters handle?
A: They are versatile and suitable for resistive, inductive, rectifier, and other complex loads commonly found in home appliances, motors, and industrial tools.
