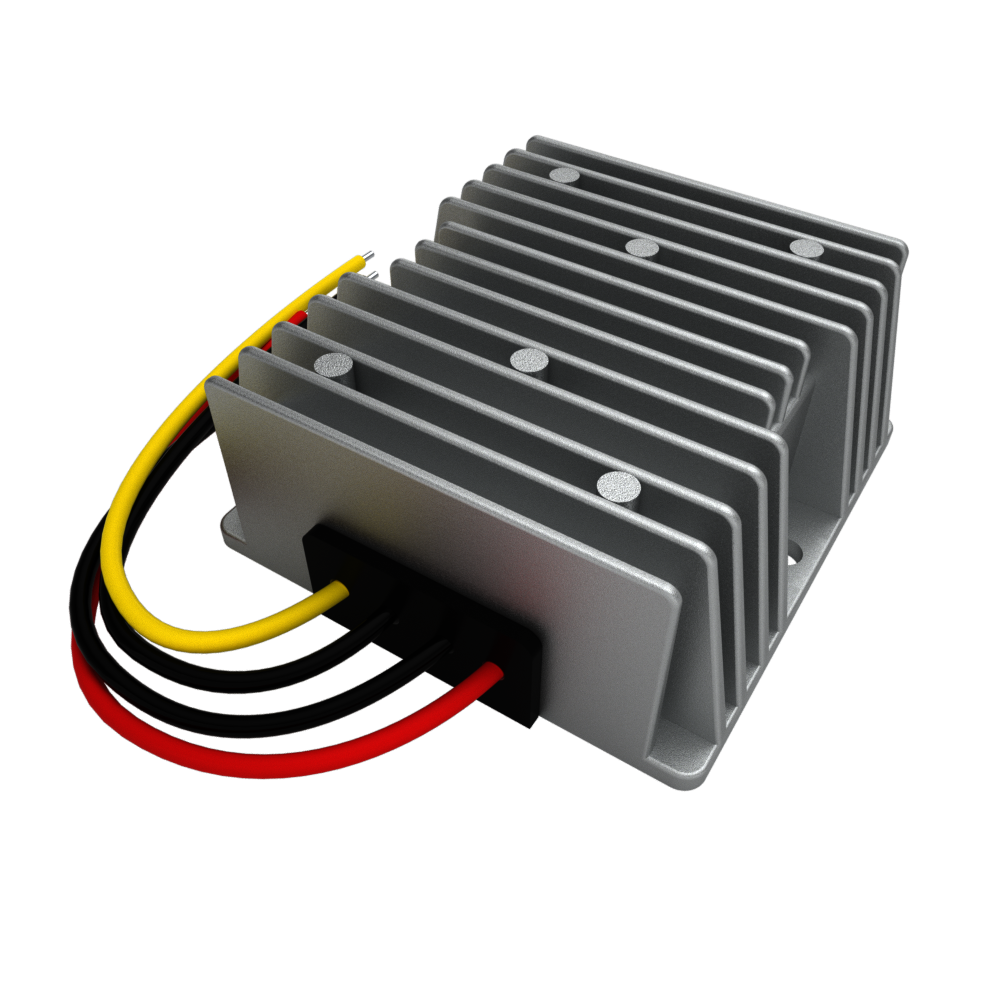

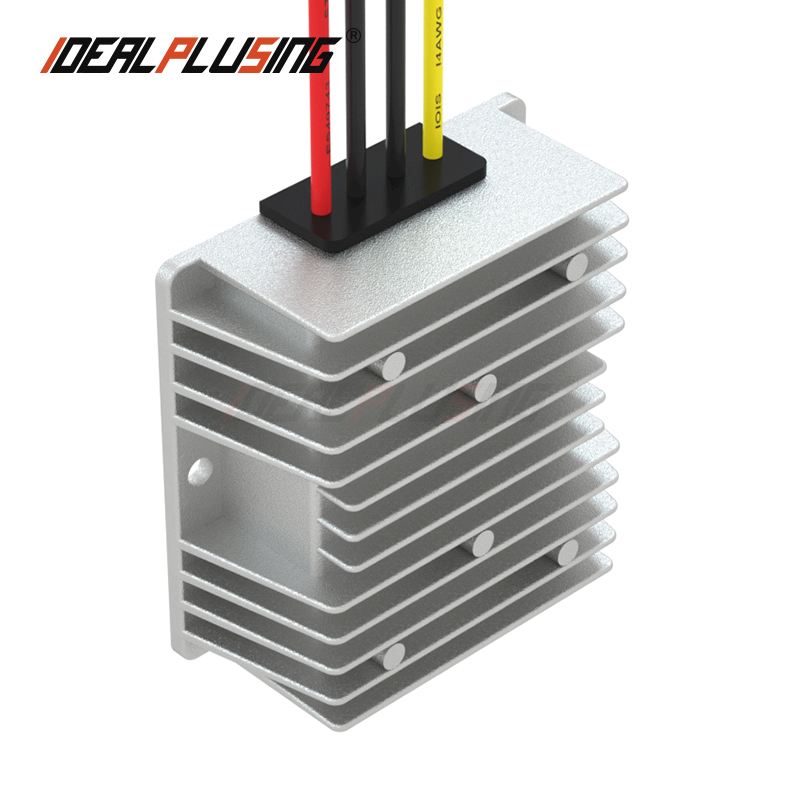

IDEALPLUSING Waterproof Step Down Ac Dc Converter 12/24V to 5V 5A 25W Transformer 12/24 Volt to 5Volt
Product Description
Professional Power Conversion Solutions
We are a team specializing in power conversion solutions. Our products are widely used in electric vehicles, automobiles, RVs, and other vehicles, in the marine, communication, and industries.

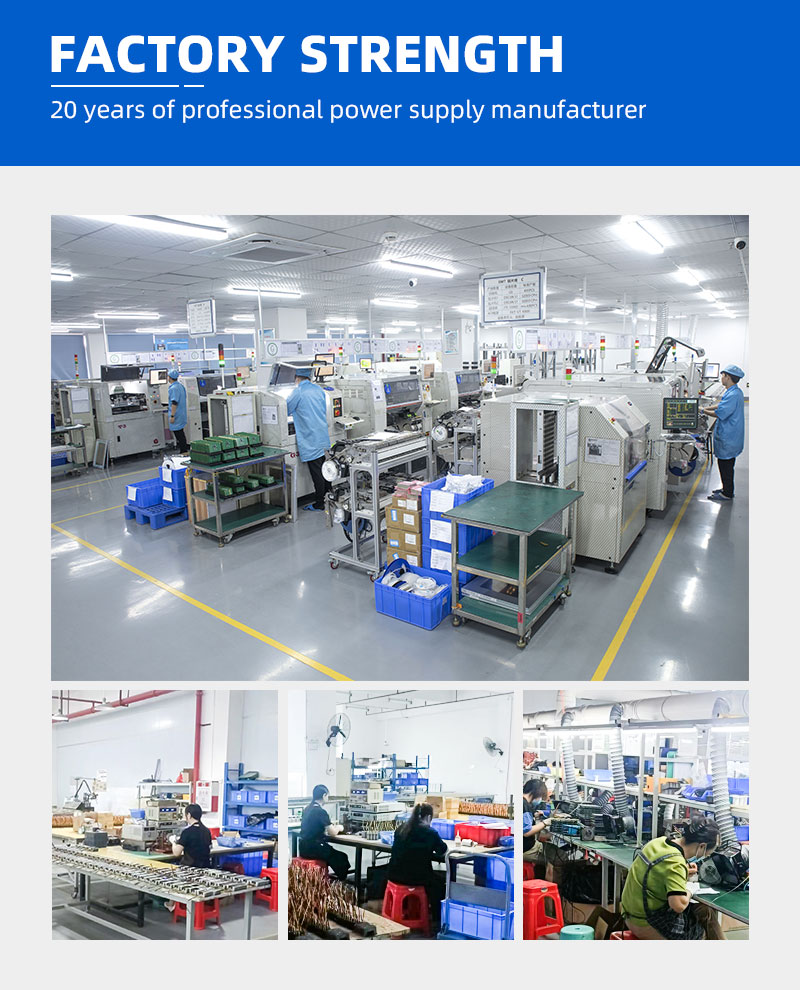

Since 2001, our team has been providing power solutions. We have developed more than 5000+ power supply solutions. The power range is from 1 watt to 200 kilowatts and the input voltage is up to 2000 volts.

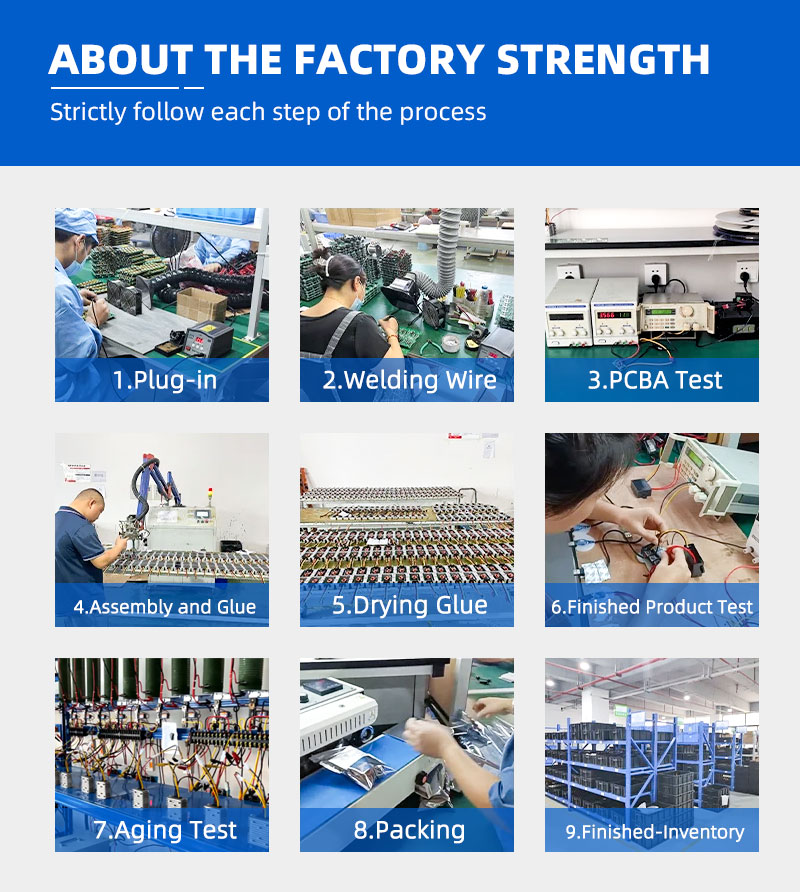

Our R&D team has more than 24 years of experience, and production management experience of more than 16 years. We have perfect test equipment and management processes to ensure high reliability. The design life of the products is 15 to 20 years, and the warranty of some products is 1-3 years. The products meet high requirements for customers worldwide and are suitable for complex working environments.
Core Advantages & Capabilities
- We specialize in customizing products according to different usage scenarios and actual loads.
- Our professional sales engineers can develop tailored plans for your specific requirements.
- Inquiry and consultation are available to explore potential solutions for your projects.
| Parameter of step down ac dc 12/24 volt to 5 volt | |
|---|---|
| Product Name | step down ac dc 12/24 volt to 5 volt |
| Type | Non-Isolate |
| Model | IPS-DTD1224S55 |
| INPUT | |
| Input rated voltage | 12/24 VDC |
| Input voltage range | 8~28 or 11~39 VAC |
| OUTPUT | |
| Conversion Efficiency | 96% |
| Output voltage | 5DC |
| Output current | 5A |
| Output rated power | 25W |
| Output peak power | 125% |
| OTHERS | |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 50mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP65 |
| Protections | Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage optional |
| Machine size | 74*74*32 (MM) |
| NW | 300G |
| Cooling way | Free air convection |
| Certifications | CE, RoHS |
| Customize | Support |
Frequently Asked Questions
What is the conversion efficiency of this DC converter?
The converter features a high conversion efficiency of 96%, ensuring minimal energy loss during operation.
Is this product suitable for outdoor use?
Yes, it has an IP65 waterproof rating and a wide working temperature range from -40°c to +80°c, making it suitable for complex and outdoor environments.
What safety protections are built into the device?
The converter includes protections for over-load, over-current, over-temperature, and short-circuits. Over-voltage protection is also available as an option.
Can I customize the power supply according to my specific needs?
Yes, we support customization, OEM, and ODM services. We can tailor solutions based on your usage scenarios and load requirements.
What certifications does the product hold?
The product is fully certified with CE and RoHS standards, ensuring it meets international quality and safety requirements.
What is the typical design life of these power supplies?
Our products are designed for high reliability with a design life of 15 to 20 years.
