Industrial DC DC Buck Voltage Converter 48V to 5V 12V 13.5V 13.8V 19V 24V 36V DC to DC Converter for Wide Input Voltage Range
Product Description

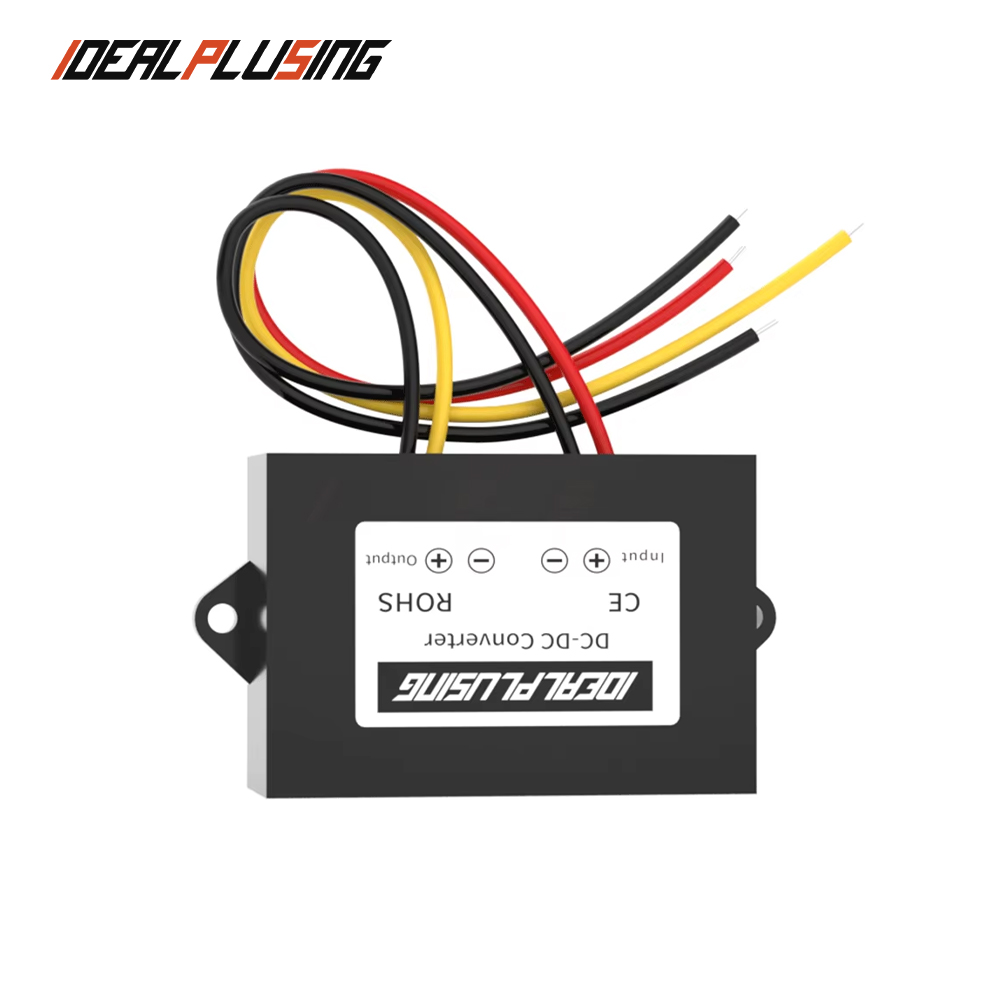

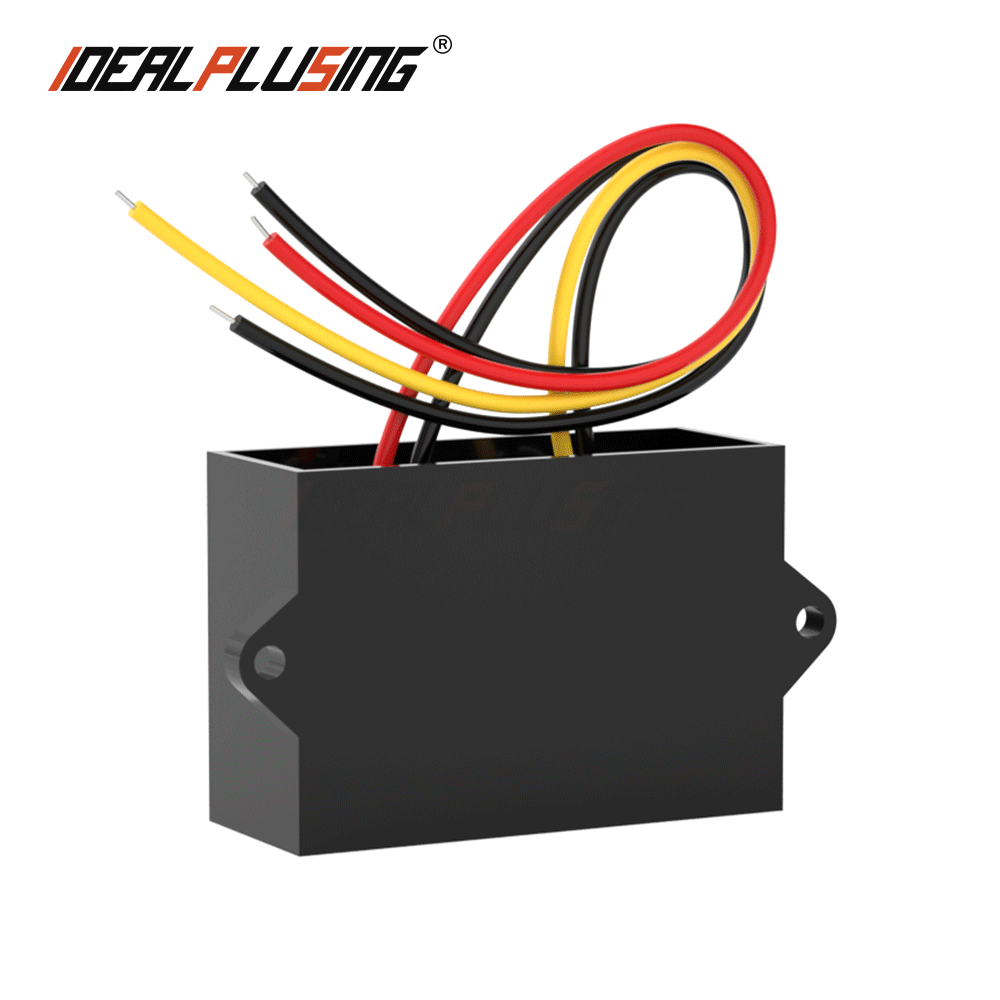

Industrial DC DC Buck Voltage Converter
Advanced Power Solutions: 48V to 5V, 12V, 13.5V, 13.8V, 19V, 24V, 36V for Wide Input Voltage Range
⚡
High Efficiency Control
PWM control type provides high efficiency with excellent output voltage ripple and noise management. PFM control ensures low power consumption during long-term use and small loads.
🛠️
Customizable Design
Specialized customization for DC-DC converters meeting specific requirements. Input/Output ranges from 1V to 1000V DC and 1A to 1000A with both isolated and non-isolated options.
🛡️
Industrial Grade
Widely used in mobile phones, digital cameras, and portable media players. Robust chopper circuit design ensures reliability in diverse environments.
Product Specification
| Parameter | Detail |
|---|---|
| Type | Non-isolated |
| Model | IPS-DTD48S510 |
| Input Voltage | 8-60VDC |
| Output Voltage | 5VDC |
| Output Current | 10A |
| Output Power | 50W |
| Shell Material | Plastic |

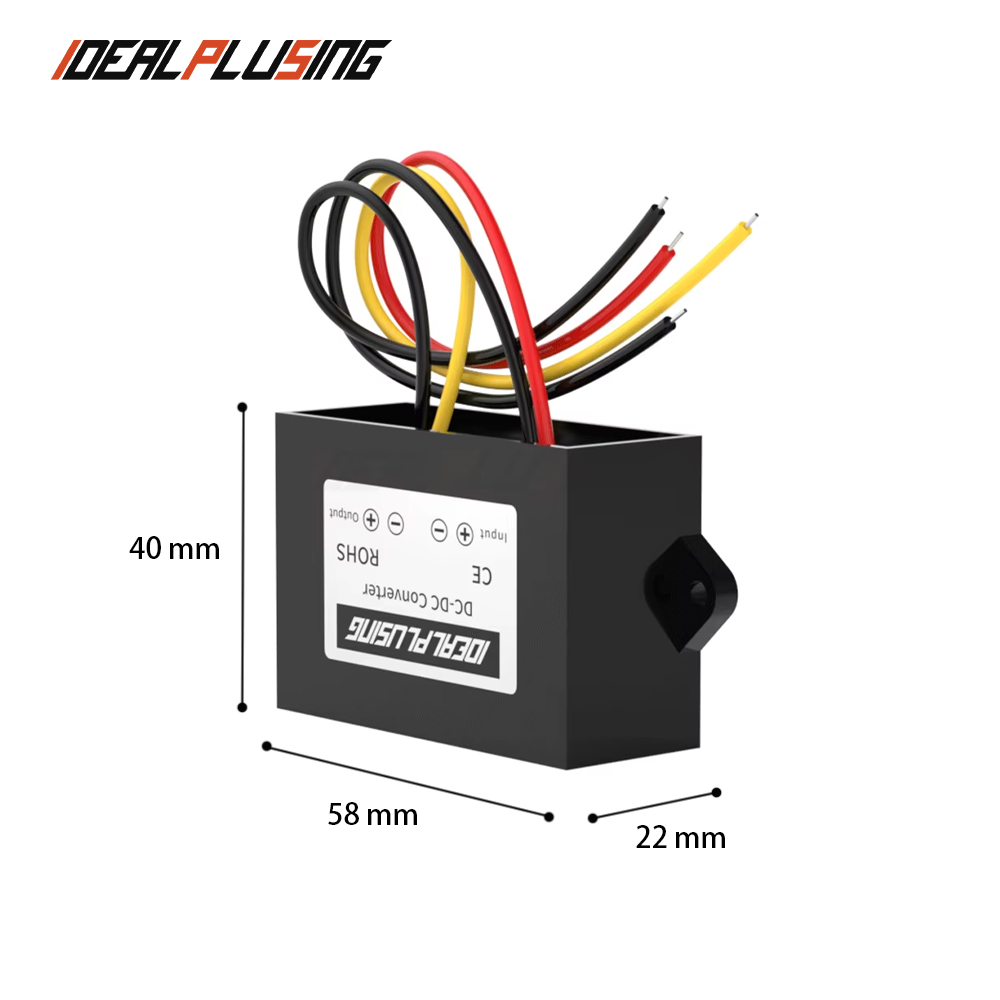

| Dimensions | 58*40*22MM |
| Net Weight | 0.1KG |
| Waterproof Level | IP67 |
Hot Selling Models
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210
Industrial Model List Highlights
| NON ISOLATED SERIES | |||
|---|---|---|---|
| Type | Model/Series | Input to Output | Output Current Options |
| Boost Converter | IPS-DTD12S24** | 12V to 24V | 1A to 50A |
| Buck Converter | IPS-DTD24S12** | 24V to 12V | 1A to 100A |
| Buck Converter | IPS-DTD48S12** | 48V to 12V | 1A to 60A |
| Buck-Boost | IPS-DTD8~40S12* | 8~40V to 12V | 1A to 25A |
High Power & Specialized Converters
Technical Applications & Guidelines
1. Comprehensive Protection: All standard units feature output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
2. High Reliability: Small aluminum casing models are high-temperature resistant, ideal for outdoor and high-demand applications.
3. Inductive Loads: For motors, magnetic valves, and coils, we recommend a power supply 3-5 times the rated power of the load.
4. Isolated vs Non-Isolated: Isolated products are safer for precious loads as they prevent high input voltage from passing to the output in case of failure.

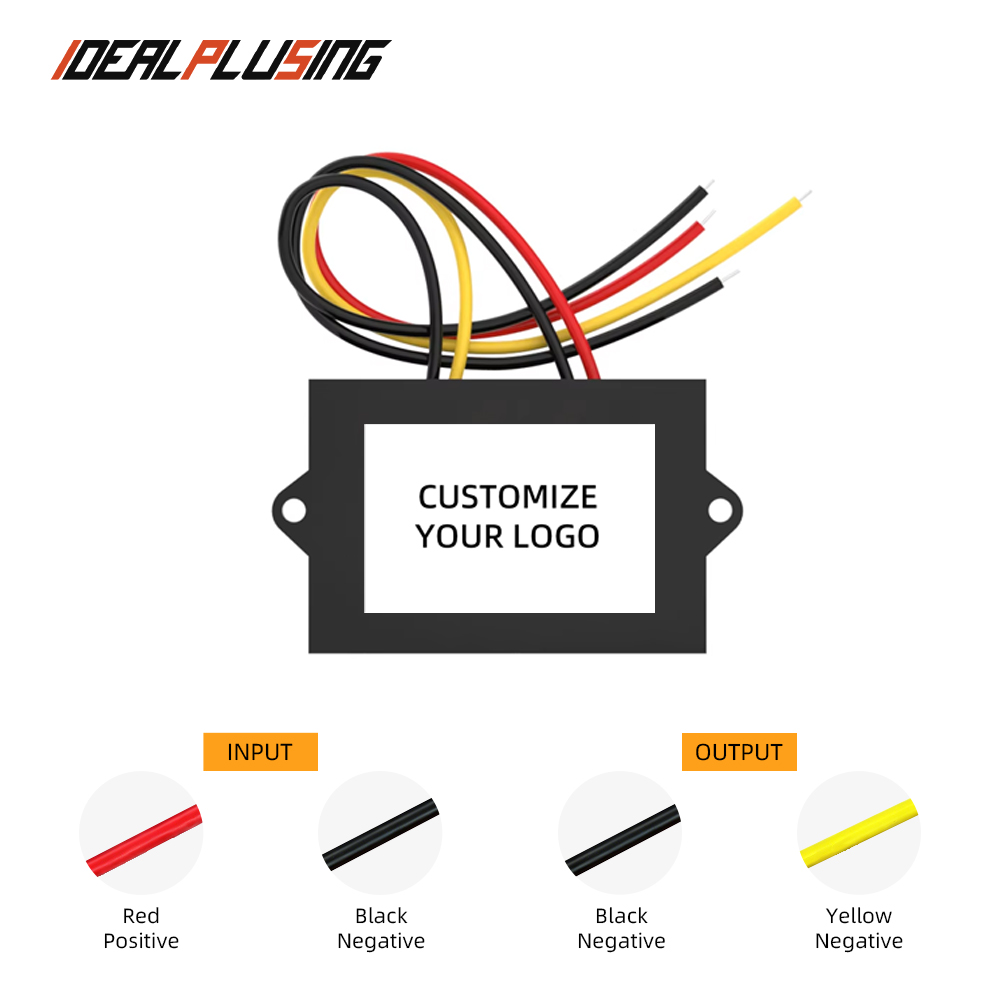

5. Input Polarity: Isolated units support negative voltage input. Note: 0V line to red wire, negative voltage line to black wire.
Product Showcase
Frequently Asked Questions
What is the difference between PWM and PFM control?
PWM (Pulse Width Modulation) offers high efficiency and low noise for heavy loads. PFM (Pulse Frequency Modulation) is optimized for low power consumption during long-term use or small load conditions.
Do these converters have built-in protection?
Yes, most units include output overcurrent, short-circuit, input undervoltage, and overheating protection. However, step-up series may require external fuses for short-circuit protection.
Can I use these for motor or inductive loads?
Yes. For inductive loads like motors or magnetic valves, it is recommended to use a power supply with 3-5 times the rated power of the load to handle start-up surges.
Why should I choose an isolated converter?
Isolated converters provide the highest level of safety. They prevent high input voltage from reaching the output side in the event of a failure, protecting your valuable equipment.
Are the converters waterproof?
Many of our industrial models, such as the IPS-DTD48S510, feature an IP67 waterproof rating, making them suitable for harsh or outdoor environments.
Can you customize the voltage and current?
Absolutely. We specialize in customizing converters from 1V to 1000V DC and 1A to 1000A to meet specific industrial requirements.
