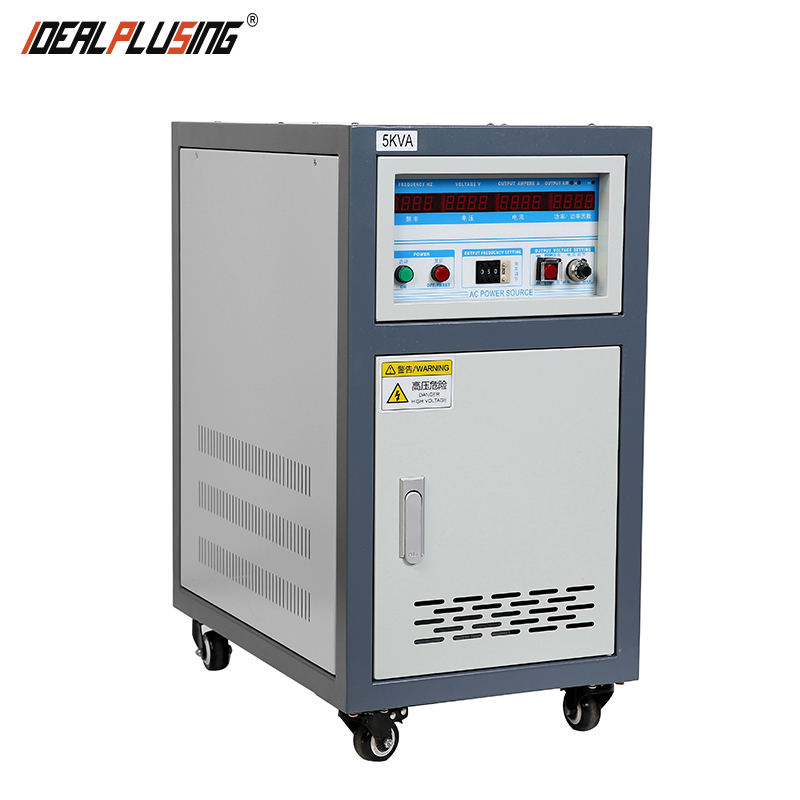

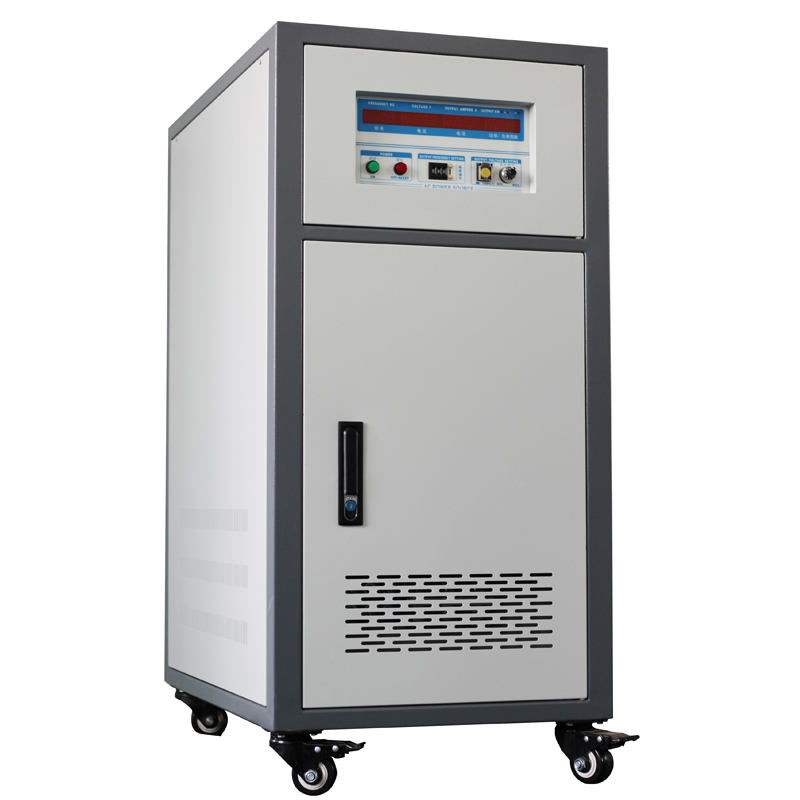

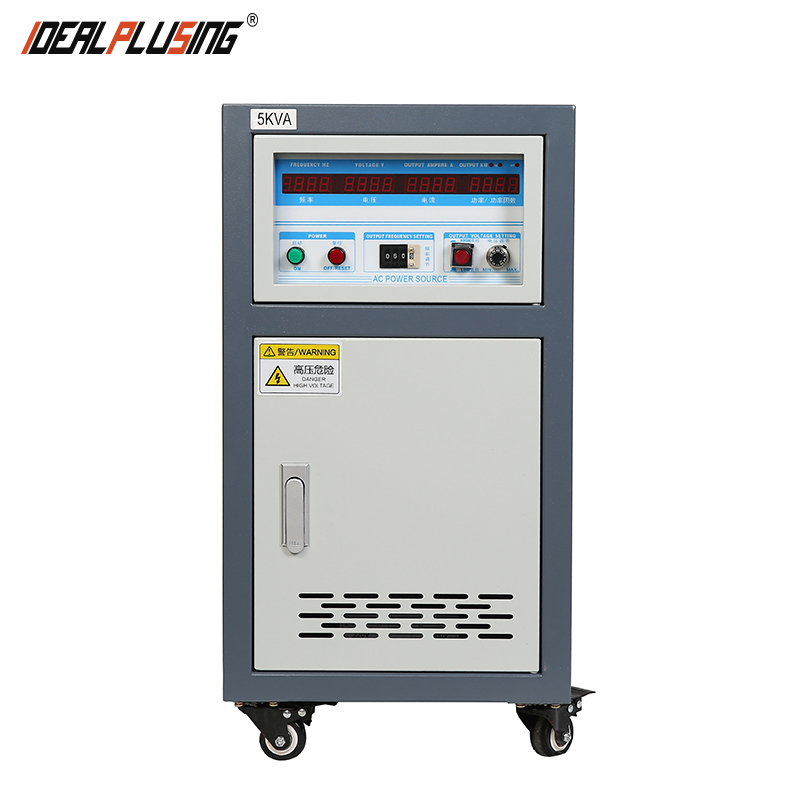

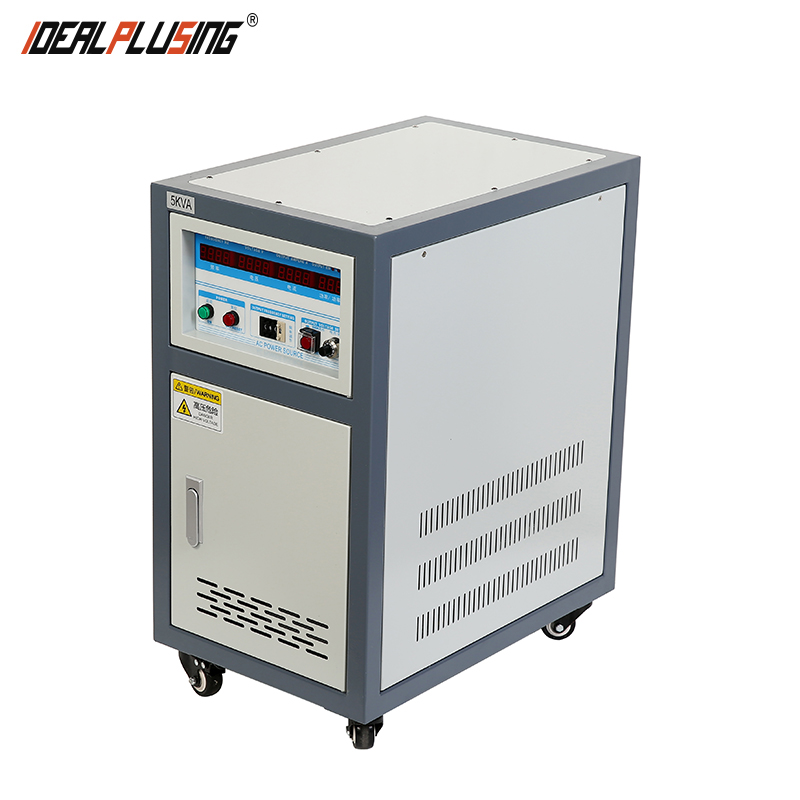

10KVA 20KVA 30KVA Industrial Medical Frequency Converter Single-Phase to Three-Phase 400hz AC Variable Frequency Power Supply
Product Description
10KVA 20KVA 30KVA Industrial Medical Frequency Converter Single-Phase to Three-Phase 400hz AC Variable Frequency Power Supply
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. Always adhering to the principle of integrity and avoiding price misrepresentation. Thank you for your understanding and trust.
Product Features
Complete isolation of input and output technology, safe and reliable power supply.
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output.
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency.
The unique double-loop control mode of instantaneous value and effective value is adopted, with high control precision and good waveform quality, which can adapt to various loads.
High power IGBT module and highly integrated module drive circuit, reliable operation, strong overload capacity, low loss, and high efficiency.
Suitable for resistive, inductive, rectifier, and other loads.
It has multiple protection functions for abnormal conditions such as overheating, overcurrent, and short circuit.
It has the function of setting parameter memory, (10-groups) shortcut key operation.
The power supply voltage and frequency can be adjusted online, and the frequency can change in real-time.
Applications
Home appliances
Motors
Power tools
Switching power supplies
Power adapters
UPS
Information and communication
Photovoltaic
Lamps
Electronic transformers
Electronic components
Low-voltage distribution
Power
Other industries
Specification
| FC61 Series Specifications | ||||
|---|---|---|---|---|
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
| Output capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated power output(KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| AC output Max Current (Low-grade) | 4.2A | 8.4A | 17A | 25A |
| AC output Max Current (High-grade) | 2.1A | 4.2A | 8.4A | 12.5A |
| Product Dimension (cm) | 43*18*44CM | 43*18*47CM | 43*65*52CM | |
| Net weight (kg) | 26KG | 32KG | 37KG | 48KG |
| Model | IPS-FC6105 | IPS-FC6106 | IPS-FC6110 | IPS-FC6115 |
| Output capacity (KVA) | 5KVA | 6KVA | 10KVA | 15KVA |
| Rated power output(KW) | 4KW | 4.8KW | 8KW | 12KW |
| AC output Max Current (Low-grade) | 42A | 50A | 84A | 125A |
| AC output Max Current (High-grade) | 21A | 25A | 42A | 63A |
| Product Dimension (cm) | 43*65*52CM | 55*74*52CM | ||
| Net weight (kg) | 63KG | 80KG | 145KG | 175KG |
| Circuit mode | IGBT/SPWM | |||
| AC input | Single-phase 220V/50Hz or 60Hz | |||
| AC output phase | Single-phase 220V | |||
| Voltage Low range | 0~150V Adjustable | |||
| Voltage High range | 0~300V adjustable | |||
| Frequency | 40~499.9HZ can be setting by software | |||
| Frequency / Load stability rate | ≤±0.1% / ±0.5% | |||
| Waveform distortion / Response time | ≤2% / Max 2ms | |||
| Indication resolution | Freq: 0.1Hz, Volt: 0.1V, Current: 0.01A, Power: 1W (4 digits display) | |||
| Protection / Cooling | Overvoltage, over current, overload, over temperature, short-circuit protection and alarm / Forced fan cooling | |||
| Environment Temp / Humidity | 0ºC~45ºC / Relative 0~90% (non-condensing) | |||
| FC62 Series Specifications | ||||
|---|---|---|---|---|
| Model | IPS-FC6220 | IPS-FC6230 | IPS-FC6245 | IPS-FC6260 |
| Output capacity (KVA) | 20KVA | 30KVA | 45KVA | 60KVA |
| Rated power output(KW) | 16KW | 24KW | 36KW | 48KW |
| AC output Max Current (Low-grade) | 168A | 250A | 375A | 500A |
| AC output Max Current (High-grade) | 84A | 12A | 188A | 250A |
| Product Dimension (cm) | 58*74*52 CM | 70*120*110CM | ||
| Net weight (kg) | 285KG | 385KG | 420KG | 560KG |
| Model | IPS-FC62100 | IPS-FC62120 | IPS-FC62150 | IPS-FC62200 |
| Output capacity (KVA) | 100KVA | 120KVA | 150KVA | 200KVA |
| Rated power output(KW) | 80KW | 96KW | 120KW | 160KW |
| AC output Max Current (Low-grade) | 834A | 1000A | 1250A | 1667A |
| AC output Max Current (High-grade) | 417A | 500A | 625A | 834A |
| Product Dimension (cm) | 80*120*150CM | 100*150*160CM | ||
| Net weight (kg) | 960KG | 1150KG | 1450KG | 1900KG |
| Circuit mode | IGBT/SPWM | |||
| AC input | Three-phase 220V/50Hz or 60Hz | |||
| AC output phase | 3-phases 380V | |||
| Voltage Low range / High range | 0~150V Adjustable / 0~300V adjustable | |||
| Frequency | 40~499.9HZ can be setting by software | |||
| Frequency / Load stability rate | ≤±0.1% / ±0.5% | |||
| Waveform distortion / Response time | ≤2% / Max 2ms | |||
| Protection / Cooling | Overvoltage, over current, overload, over temperature, short-circuit protection and alarm / Forced fan cooling | |||
| FC63 Series Specifications | ||||||
|---|---|---|---|---|---|---|
| Model | IPS-FC6303 | IPS-FC6306 | IPS-FC6310 | IPS-FC6315 | IPS-FC6320 | |
| Rated Capacity (KVA) | 3KVA | 6KVA | 10KVA | 15KVA | 20KVA | |
| Phase Capacity (KVA) | 1KVA | 2KVA | 3.3KVA | 5KVA | 7KVA | |
| Max Current output (0~150V) | 8.4A | 16.8A | 28A | 42A | 50A | |
| Max Current output (0~300V) | 4.2A | 8.4A | 14A | 21A | 25A | |
| Dimensions (MM) | 190*305*430 | 280*450*500 | 620*320*620 | 950*560*650 | ||
| Weight (Kg) | 30KG | 35KG | 45KG | 60KG | 78KG | |
| Model | IPS-FC6330 | IPS-FC6345 | IPS-FC6360 | IPS-FC63100 | IPS-FC63120 | |
| Rated Capacity (KVA) | 30KVA | 45KVA | 60KVA | 100KVA | 120KVA | |
| Phase Capacity (KVA) | 10KVA | 15KVA | 20KVA | 33KVA | 40KVA | |
| Max Current output (0~150V) | 84A | 125A | 168A | 276A | 336A | |
| Max Current output (0~300V) | 42A | 63A | 84A | 138A | 168A | |
| Dimensions (MM) | 950*560*650 | 700*1340*1280 | 1700*1750*1000 | |||
| Weight (Kg) | 140KG | 170KG | 280KG | 650KG | 1050KG | |
| Model | IPS-FC63400 | IPS-FC63500 | IPS-FC63600 | |||
| Rated Capacity (KVA) | 400KVA | 500KVA | 600KVA | |||
| Phase Capacity (KVA) | 134KVA | 167KVA | 200KVA | |||
| Max Current output (0~150V) | 1112A | 1400A | 1667A | |||
| Max Current output (0~300V) | 556A | 700A | 833A | |||
| Dimensions (MM) | 1650*850*1090 | 1650*800*1200 | ||||
| Weight (Kg) | 1250KG | 1350KG | 1450KG | |||
| AC Input | Single phase 220V/50Hz,60Hz (Model 03-30) / Three phase 380V/50Hz,60Hz (Model 45-600) | |||||
| AC Output Phase | Trip phase (phase difference 120°±2°) | |||||
| AC Output Voltage | Low range phase voltage:0V~150V (line: 0V~260V) / High range phase voltage:0V~300V (line: 0V~520V) | |||||
| Frequency Stability Rate | ≤±0.1% | |||||
| Load Stability Rate | ±0.5% | |||||
| Waveform Distortion / Response | ≤±2% (resistance load) / ≤2ms | |||||
| FC68 Series Specifications | ||||
|---|---|---|---|---|
| Model | IPS-FC68005 | IPS-FC6801 | IPS-FC6802 | IPS-FC6803 |
| Rated Capacity (KVA) | 500VA | 1KVA | 2KVA | 3KVA |
| Max Current output (0V-150V) | 4.2A | 8.4A | 16.8A | 25A |
| Max Current output (0V-300V) | 2.1A | 4.2A | 8.4A | 12.5A |
| Dimension H*W*D(mm) | 187*428*440MM | 650*430*520MM | ||
| Model | IPS-FC6805 | IPS-FC6810 | IPS-FC6815 | IPS-FC6820 |
| Rated Capacity (KVA) | 5KVA | 10KVA | 15KVA | 20KVA |
| Max Current output (0V-150V) | 42A | 84A | 126A | 168A |
| Max Current output (0V-300V) | 21A | 42A | 63A | 84A |
| Dimension H*W*D(mm) | 650*430*520MM | 900*450*710MM | 900*560*710MM | 1200*560*800MM |
| Model | IPS-FC6830 | IPS-FC6845 | IPS-FC6860 | IPS-FC68100 |
| Rated Capacity (KVA) | 30KVA | 45KVA | 60KVA | 100KVA |
| Max Current output (0V-150V) | 250A | 375A | 500A | 834A |
| Max Current output (0V-300V) | 125A | 188A | 250A | 417A |
| Dimension H*W*D(mm) | 1200*560*800MM | 1200*850*1020MM | 1600*800*1200MM | |
| AC Input | Single-phase 380V/50Hz,60Hz (Model 005-03) / Three-phase 380V/50Hz,60Hz (Model 05-100) | |||
| Circuit Mode / Output Phase | IGBT/PWM / Single phase | |||
| Voltage Low / High Range | 0V~150V / 0V~300V | |||
| Frequency / Stability / Distortion | 40~499.9HZ / ≤±0.1% / ≤2% (linear load) | |||
| Protector | Input no fuse switch, output fuse switch, electronic circuit speed detection for over voltage, over current, over load, over temperature, short circuit and alarm. | |||
| Common Specifications | ||
|---|---|---|
| Phase number | Single-phase (500VA-45KVA) | Three-phase (3KVA-400KVA) |
| Production method | IGBT / PWM pulse width modulation mode | |
| Input Voltage (optional) | 1-Phase 2-wire + G: 110V (2-5KVA), 200V/230V/240V ± 10% | 3-phase 4-wire + G: Y connection 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ± 10% 3-phase 4-wire + G: Y connection: 380/220, 400/230, 415/240, 460/265, 480/277V ± 10% 3-phase 3-wire + G: delta connection: 220, 230, 240, 380, 400, 415, 440V ± 10% |
| Output Frequency (optional) | 40~499.9HZ can be setting by software / Frequency 40.0hz to 1990.9hz (programmable) | |
| Output Voltage | 110V system: 0-150V (Low Range) 220V system: 0-300V (High Range) |
Options: 1. 0-600V; 2. Standard setting voltage: ± 10% ~ + 25%, - 10% -- 30% preset |
| Stability Rates | Load stability rate: ≤±1% / Frequency stability: ≤±0.01% / Harmonic distortion: Sine wave ≤2% | |
| Metering Displays | 4-digit display: digital frequency meter (res 0.1hz/step), digital voltmeter (res 0.1V), digital ammeter (res 0.1A), digital wattmeter (res 0.1W) | |
| Protector | It has overload, over high temperature, short circuit, instantaneous power-off protection and alarm device | |
| Environment | Temperature: 0-40 deg ºC / Work environment humidity: 0~90% (non-condensing state) | |
Hot Selling Models
IPS-FC6102
Single-phase Input and Single-phase Output 2KVA 1.6KW
IPS-FC6250
3-phase Input and Single-phase Output 50KVA 40KW
IPS-FC6310
Single-phase Input and 3-phase Output 10KVA 8KW
IPS-FC6330
Single-phase Input and 3-phase Output 30KVA 24KW
IPS-FC68100
3-phases Input and 3-phase Output 100KVA 80KW
IPS-FC68200
3-phases Input and 3-phase Output 200KVA 160KW
Details Images

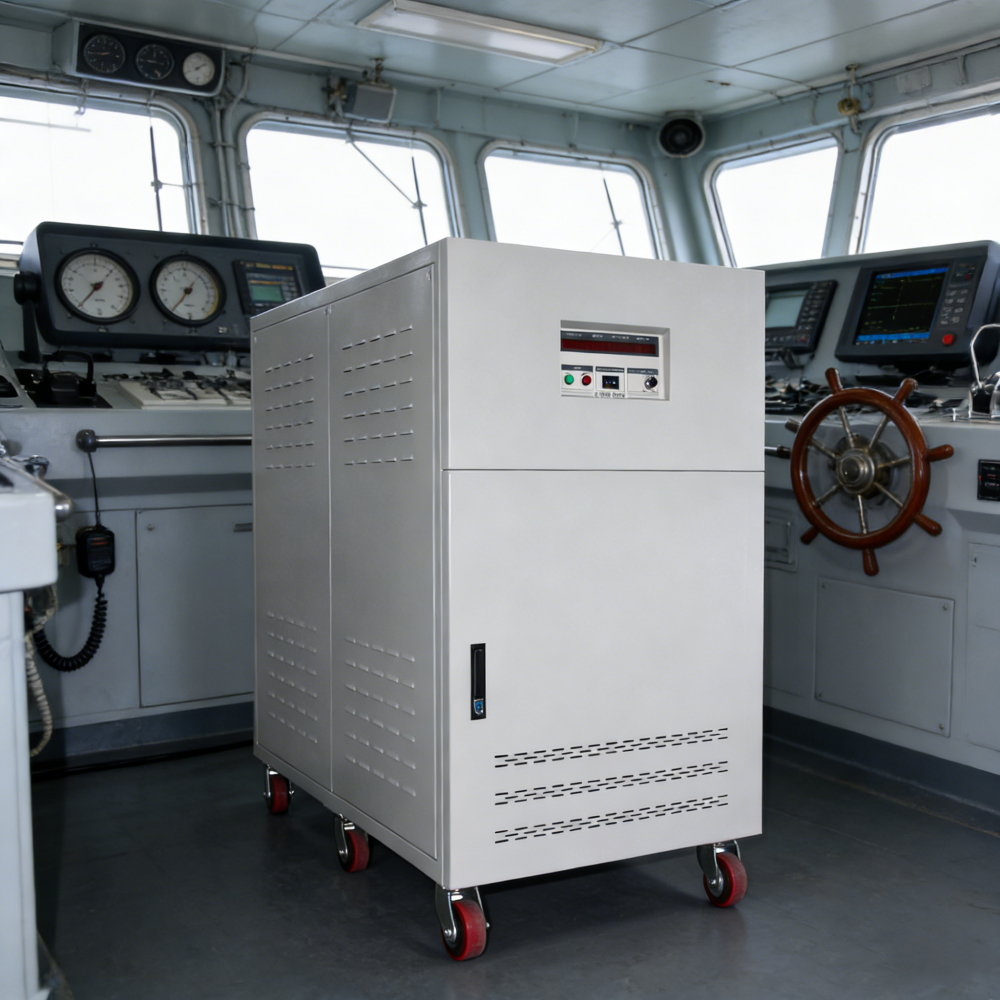

Application Scope
Model list
| NO | Capacity | Model | Input voltage and frequency | Output voltage and frequency |
|---|---|---|---|---|
| IPS-FC61 Series-Single Phase Input, Single Phase Output | ||||
| 1 | 2KVA | IPS-FC6102 | Single phase 2 wires 220VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| 2 | 3KVA | IPS-FC6103 | Single phase 2 wires 220VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| 3 | 5KVA | IPS-FC6105 | Single phase 2 wires 220VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| 4 | 10KVA | IPS-FC6110 | Single phase 2 wires 220VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| 5 | 15KVA | IPS-FC6115 | Single phase 2 wires 220VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| IPS-FC62 Series-Three Phases Input, Single Phase Output | ||||
| 6 | 10KVA | IPS-FC6210 | 3 phases 4 wires 380VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| 7 | 15KVA | IPS-FC6215 | 3 phases 4 wires 380VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| 8 | 20KVA | IPS-FC6220 | 3 phases 4 wires 380VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| 9 | 30KVA | IPS-FC6230 | 3 phases 4 wires 380VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| 10 | 40KVA | IPS-FC6240 | 3 phases 4 wires 380VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| 11 | 45KVA | IPS-FC6245 | 3 phases 4 wires 380VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| 12 | 50KVA | IPS-FC6250 | 3 phases 4 wires 380VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| 13 | 60KVA | IPS-FC6260 | 3 phases 4 wires 380VAC±15% 50/60Hz | Single phase 2 wires, 0-300V 40.00-499.9Hz |
| IPS-FC63 Series-Single Phase Input, Three Phases Output | ||||
| 14 | 6KVA | IPS-FC6306 | Single phase 2 wires 220VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 15 | 10KVA | IPS-FC6310 | Single phase 2 wires 220VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 16 | 15KVA | IPS-FC6315 | Single phase 2 wires 220VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 17 | 20KVA | IPS-FC6320 | Single phase 2 wires 220VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 18 | 30KVA | IPS-FC6330 | Single phase 2 wires 220VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| IPS-FC68-Series-Three Phases Input, Three Phases Output | ||||
| 19 | 10KVA | IPS-FC6810 | 3 phases 4 wires 380VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 20 | 15KVA | IPS-FC6815 | 3 phases 4 wires 380VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 21 | 20KVA | IPS-FC6820 | 3 phases 4 wires 380VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 22 | 30KVA | IPS-FC6830 | 3 phases 4 wires 380VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 23 | 45KVA | IPS-FC6845 | 3 phases 4 wires 380VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 24 | 60KVA | IPS-FC6860 | 3 phases 4 wires 380VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 25 | 75KVA | IPS-FC6875 | 3 phases 4 wires 380VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 26 | 90KVA | IPS-FC6890 | 3 phases 4 wires 380VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 27 | 100KVA | IPS-FC68100 | 3 phases 4 wires 380VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 28 | 150KVA | IPS-FC68150 | 3 phases 4 wires 380VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
| 29 | 200KVA | IPS-FC68200 | 3 phases 4 wires 380VAC±15% 50/60Hz | 3 phases 4 wires, 0-520V 40.00-499.9Hz |
Company Profile
We specialize in customizing AC/DC/AC power supplies to meet your specific requirements. With customized frequency converters of any kind, our offerings range up to 2000KVA. Please submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
FAQ
Why are there 50Hz and 60Hz power system frequencies?
The frequency (50 Hz or 60 Hz) of AC power sources was selected arbitrarily when local power systems were local and stand-alone. Early systems ran on frequencies from 15 Hz to 90 Hz. Below 45 Hz, incandescent light bulbs flickered noticeably, which established 50Hz as the European standard led by AEG. In North America, Westinghouse settled on 60Hz. Standard frequencies spread globally based on colonial and commercial zones of influence. For devices requiring conversion between standards, static frequency converters are utilized to seamlessly bridge the gap.
What is an industrial frequency converter used for?
Industrial frequency converters adjust the frequency and voltage of an AC power source. They are widely used in medical equipment, testing laboratories, aviation, and military systems to simulate global grid conditions or safely test devices under differing electrical norms.
Can a single-phase input converter power a three-phase motor?
Yes, our variable frequency converters can take a single-phase input (such as 220V standard household or industrial line) and output a stable three-phase supply (such as 380V or 400V) to run three-phase industrial motors and machinery smoothly.
What protections do these frequency converters offer?
They feature comprehensive protection designs, including fast circuit detection for overvoltage, overcurrent, overload, over-temperature, and short circuits, complete with automatic shutdown mechanisms and alarm notifications to prevent equipment damage.
What are the main applications of 400Hz frequency converters?
400Hz frequency converters are primarily used in aerospace, aviation, military electronics, and marine applications where lightweight motors and transformers are required. They deliver precise high-frequency power simulation for aircraft testing, radar, and navigation systems.
How does SPWM technology improve frequency converter performance?
Sinusoidal Pulse Width Modulation (SPWM) ensures a highly stable output with low harmonic distortion. It offers fast response speeds, cleaner waveforms, and high control precision, making the power supply suitable for highly sensitive loads like medical equipment.
