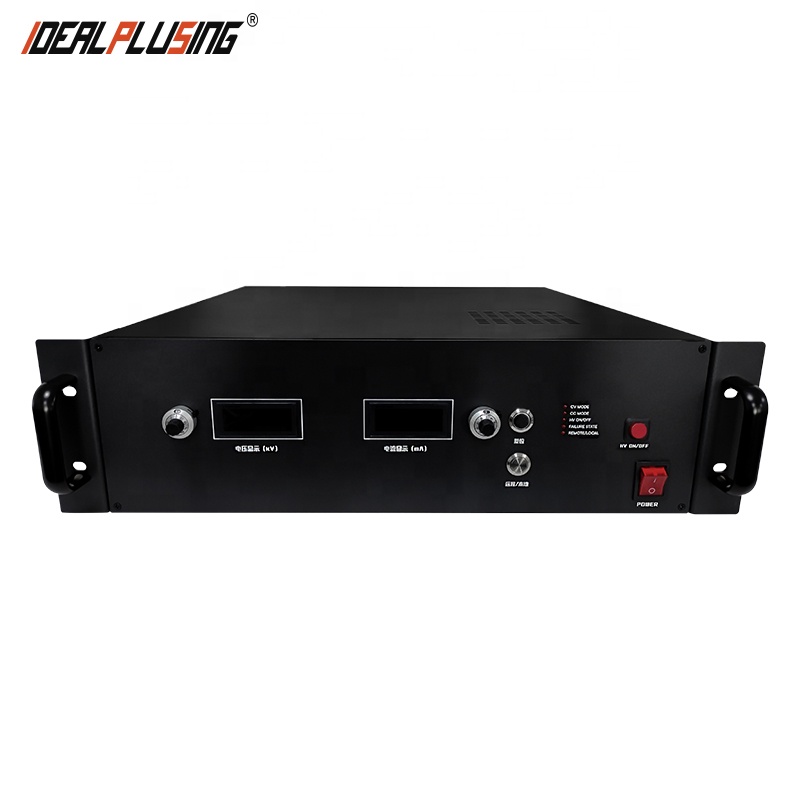

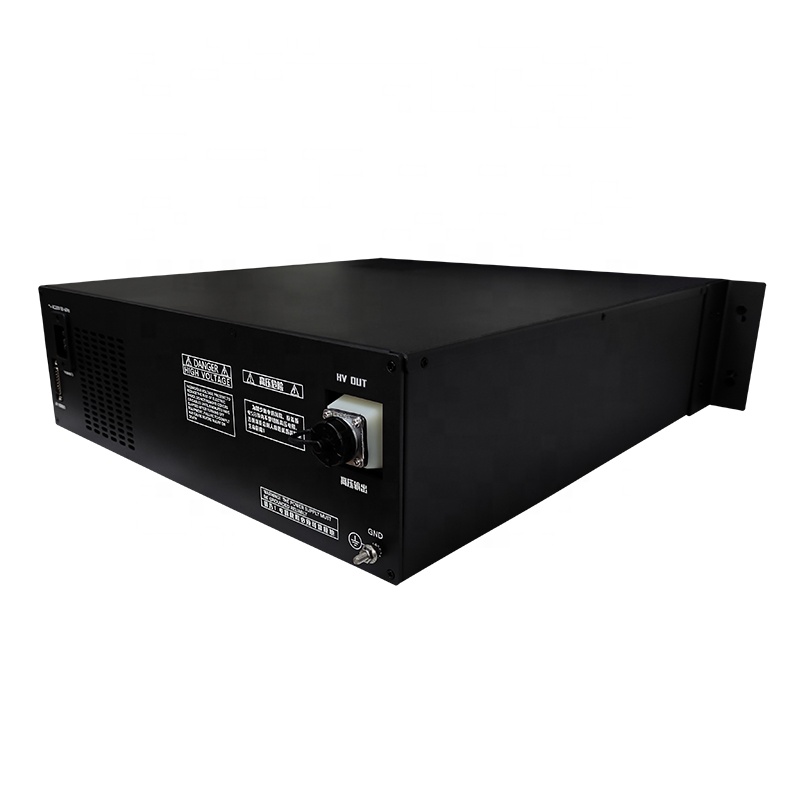

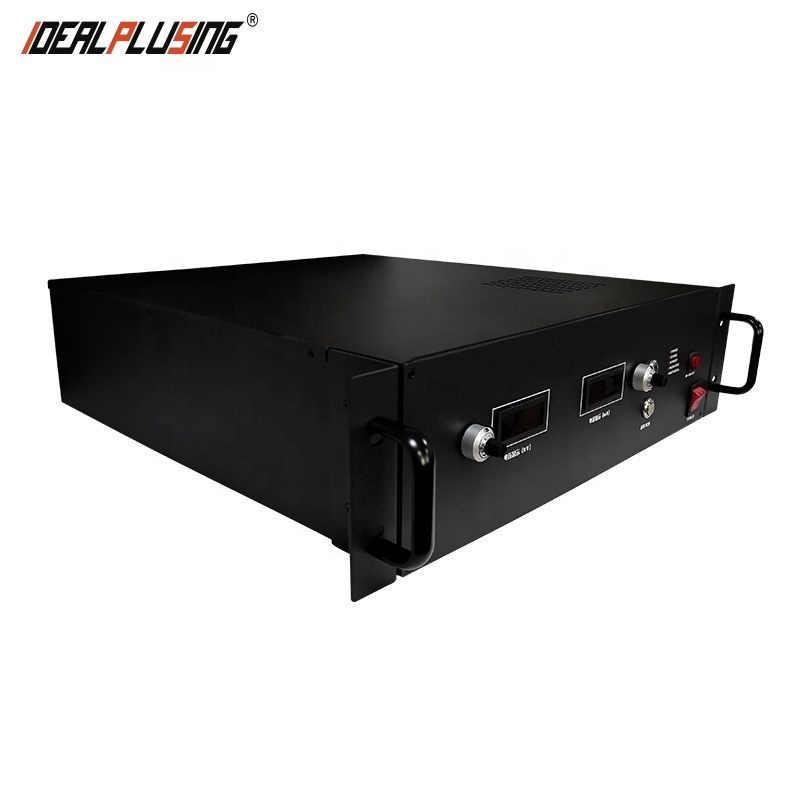

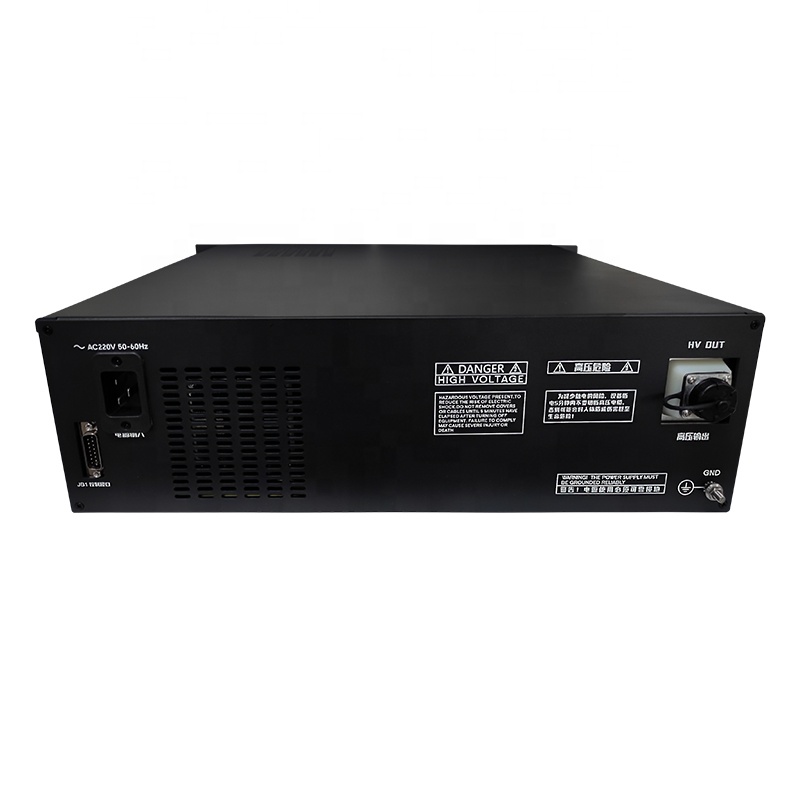

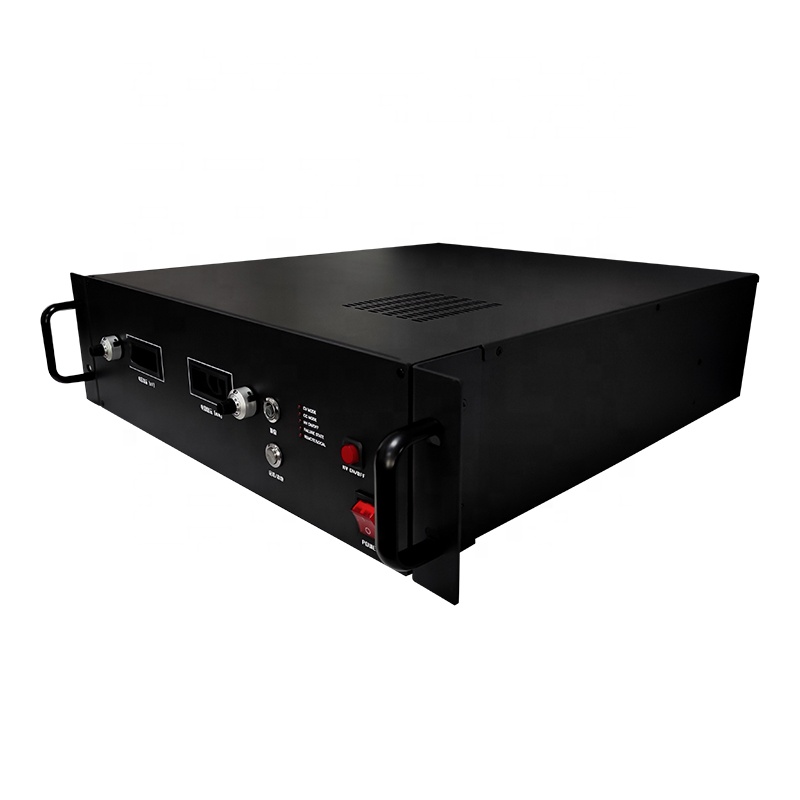

Nanofiber Electrospinning Source Custom 100 Kv High Voltage Power Supply 0-100kv 10kv 20kv 30kv 40kv 50kv 60kv 80kv
Product Description
⚡ INTRODUCTION & APPLICATION
01HV series are high voltage DC power supplies, available from 10kV to 200kV output.
02Output control can be switched between Remote control and Local control. Output displays and indicators are on the front panels.
03High-voltage output terminal features over-current, short-circuit, and arc protection.
04Widely used in electrostatic applications: dust removal, spinning, electret, separation, spraying, and flocking.
05Ideal for insulation tests, material sorting, metal vaporization, and laboratory experiments.
| Meltblown Cloth | Electrostatic electret equipment |
| Industrial Use | Electrostatic Spinning & Dust Removal |
| Testing | Cable Aging, Leakage & Optical Fiber Withstand Voltage Tests |
| Power Ops | Capacitor Charge & Discharge |
⚙️ PRODUCT FEATURES & INTERFACES
✓Voltage full range adjustable (+/- 10kV to 200kV)
✓4 digits LED display for high precision
✓Low EMI with strong anti-interference
✓Full Protection: OVP, OCP, ARC, Short Circuit
✓Remote ON/OFF & 0-10V Analog control
✓RS485/RS232 Support (Modbus-RTU)
📊 TECHNICAL SPECIFICATIONS
| Input & Output Data | |
|---|---|
| Input Voltage | Single phase 220VAC ±10%, 50/60HZ |
| Model | IPS-ATDJ100KV-20mA |
| Rated Voltage | 0-100KV (Full range adjustable) |
| Rated Current | 0-20mA (Full range adjustable) |
| Line Regulation | CV ≤ 0.1% FS |
| Load Regulation | CV ≤ 0.1% FS |
| Ripple & Noise | ≤ 0.5% FS |
| Stability | ≤ 0.1% per hour (after warm-up) |
| Temperature Co-eff | 100ppm/°C |
🛡️ DISPLAY & PROTECTION
| Display Meter | 4 digits LED (Voltage/Current) |
| Resolution | Voltage: 0.01kV-0.1kV / Current: 0.001mA-0.01mA |
| Accuracy | ≤ 0.1% FS + 2LSB |
| O.V.P / O.C.P | Built-in (105% limit), automatic shutdown |
| O.T.P | 65°C ± 5°C heat sink limit |
| Short Circuit | Automatic output shutdown protection |
📦 GENERAL & CABLE INFO
| Dimensions | L516 * W500 * H136 (MM) |
| Weight | Net: 22KG / Gross: 30KG |
| Cooling | Forced air cooling (Fan) |
| Environment | Operating: 0°C~40°C | Storage: -20°C~70°C |
| HV Cable Type 1 | Self-contained, non-shielded (1.5m standard) |
| HV Cable Type 2 | Shielded high-voltage cable (1.5m standard) |
🖼️ REFERENCE PICTURES
📋 MODEL LIST
🏭 FACTORY DISPLAY
❓ FREQUENTLY ASKED QUESTIONS
What is the output voltage range for the HV series?
The HV series provides a wide output range from 10kV up to 200kV, available in both positive and negative output configurations.
What kind of safety protections are included?
The units include Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection, and Arc Protection to ensure equipment safety.
Can I control the power supply via a computer?
Yes, the power supply supports remote control through RS485 or RS232 interfaces using standard Modbus-RTU commands, as well as 0-10V analog control.
What are the primary applications for this high voltage supply?
It is widely used for electrostatic spinning, meltblown cloth electret, electrostatic dust removal, cable aging tests, and various laboratory high-voltage experiments.
Is the high-voltage cable customizable?
Standard cables are 1.5 meters long. We offer both shielded and non-shielded options, and other lengths can be customized upon request.
How is the voltage and current monitored?
The front panel features a clear 4-digit LED display that shows real-time voltage and current with high resolution and accuracy.
