Non-Isolated 48V to 5V 12V 13.8V 19V 20V 24V 36V DC-DC Converters Step Down DC DC Converter for Automation Equipment 30A 35A 40A
Product Description
⚡
Non-Isolated DC-DC Converters - High Power Step Down
Features: DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage.
These units are widely used in automation equipment, mobile devices, digital cameras, and portable media players.
PWM control provides high efficiency and low noise, while PFM control ensures low power consumption during long-term use and small loads.
Custom Power Supply Solutions
🎯 We focus on research, development, and service of DC to DC power supply modules, rectifiers, and inverters. Our goal is to provide efficient, reliable, and cost-effective power solutions across all industries.
⚙️ Specialization: Customizing DC-DC converters to meet specific requirements. Input and output ranges from 1V to 1000V DC and 1A to 1000A. Options include both isolated and non-isolated designs.
Product Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolate |
| Model | IPS-DTD48S1210 |
| Input Voltage | 9-60VDC |
| Output Voltage | 5VDC |
| Output Current | 30Amps |
| Output Power | 150Watts |
| Material | Aluminum |

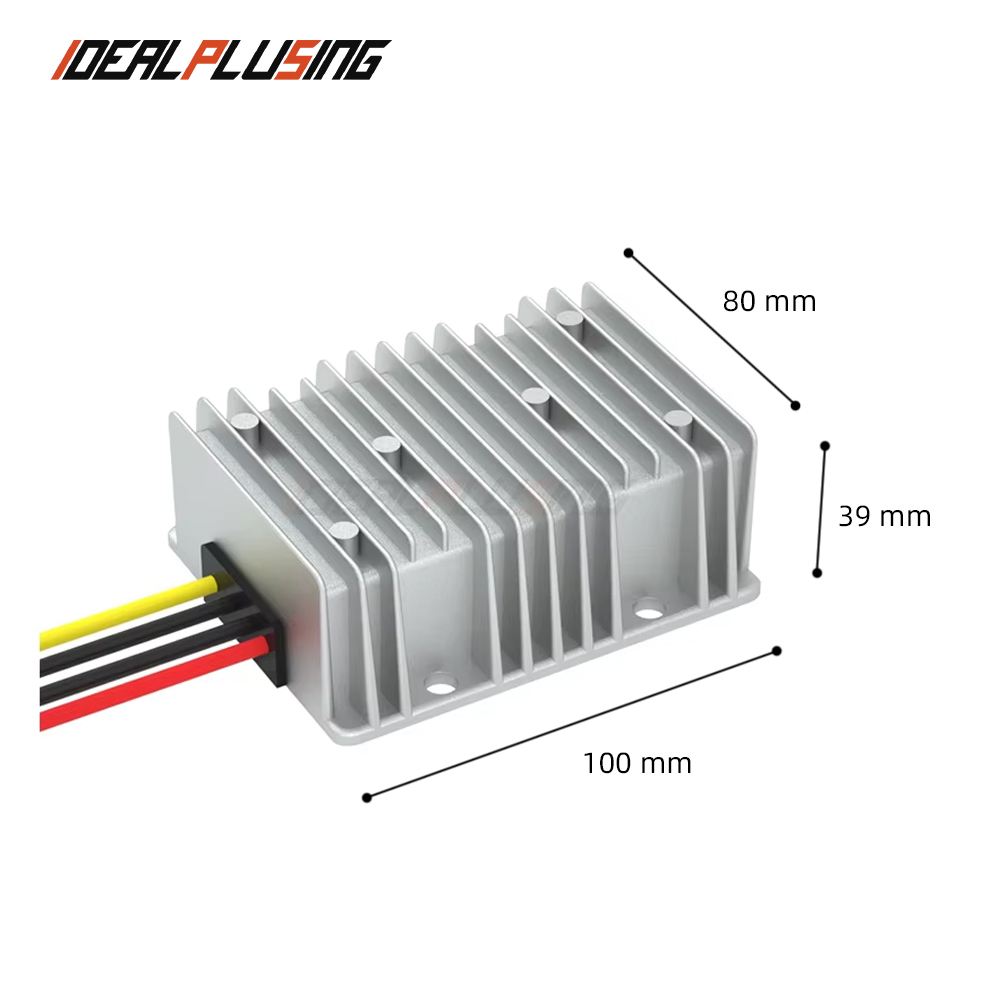

| Size | 100*80*39MM |
| Net Weight | 500G |
| Waterproof Level | IP67 |
Model Selection Guide
| NON-ISOLATED SERIES | |||
|---|---|---|---|
| Type | Model/Series | Input to Output | Output Current Options |
| DC-DC Boost | IPS-DTD12S24** | 12V to 24V | 1A to 50A |
| DC-DC Buck | IPS-DTD24S12** | 24V to 12V | 1A to 100A |
| DC-DC Buck | IPS-DTD48S12** | 48V to 12V | 1A to 60A |
| Boost & Buck | IPS-DTD8~40S12* | 8~40V to 12V | 1A to 25A |
Hot Selling Models Showcase
Technical Product Application Details
Protection Features: Standard output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
Installation Note: Add appropriate fuses at the input end for step-up series to prevent damage during short circuits.
Inductive Loads: For motors, coils, and speakers, use a power supply 3-5 times the rated power of the load.
Safety Recommendation: For precious loads, isolated products are recommended to prevent high input voltage from passing to the output.

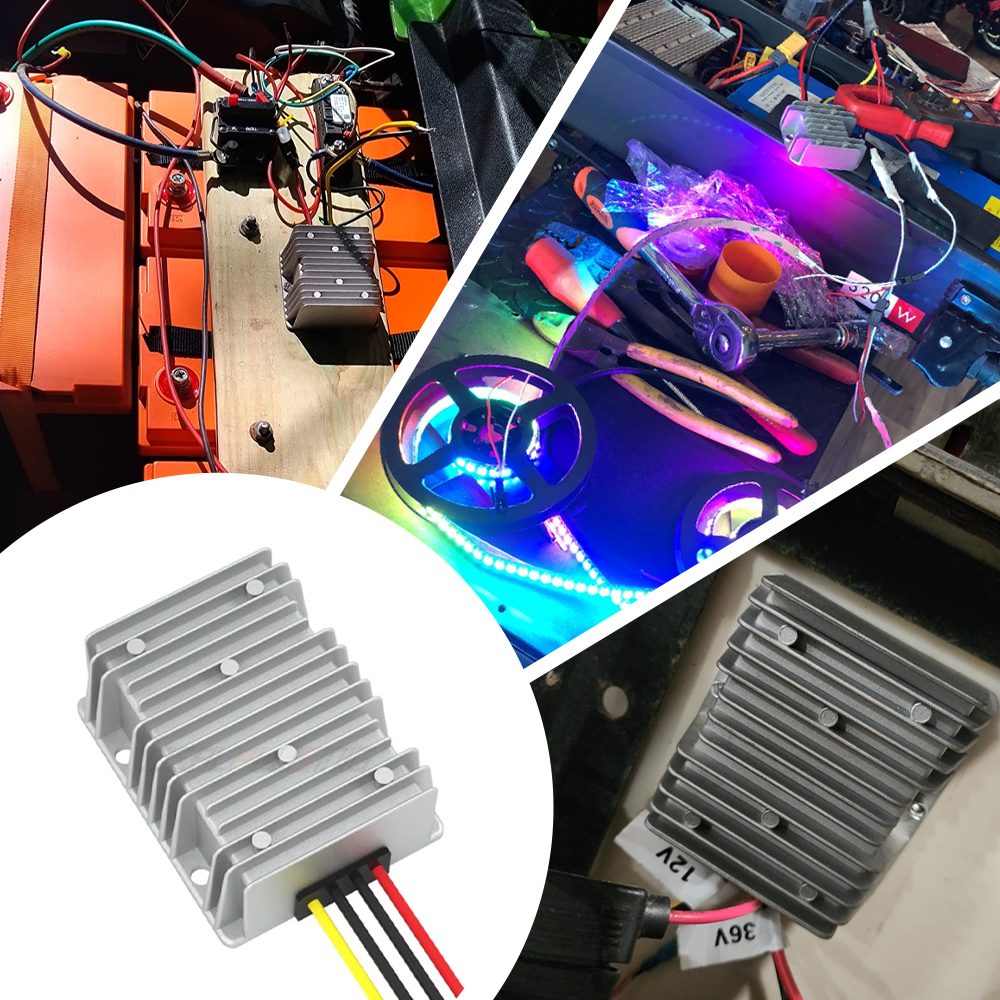

Product Installation & Performance
Industrial & Rack Mount Solutions
Frequently Asked Questions
1. What is the difference between PWM and PFM control?
PWM (Pulse Width Modulation) provides high efficiency and stable output with low noise, ideal for standard operation. PFM (Pulse Frequency Modulation) is better for low power consumption during long-term use and light load conditions.
2. When should I choose an isolated DC-DC converter?
Isolated converters are highly recommended when powering expensive or sensitive equipment. They provide a safety barrier that prevents high input voltage from reaching the output in case of component failure.
3. Do these converters support motor or inductive loads?
Yes, but for inductive loads like motors or magnetic valves, you should select a converter with 3 to 5 times the rated power of the load to handle start-up surges.
4. Are the converters waterproof for outdoor use?
Many models, such as the IPS-DTD48S1210, feature an IP67 waterproof rating and aluminum shells, making them suitable for harsh and outdoor environments.
5. Can I customize the input and output voltages?
Yes, we specialize in customization. We can provide solutions ranging from 1V to 1000V and 1A to 1000A to meet specific industrial requirements.
6. What happens if there is an input undervoltage?
Standard buck-boost and step-down products include input undervoltage protection, which safely shuts down the unit to prevent circuit damage.
