Single-Phase 220V Input Variable Frequency Power Supply 50hz 60hz to 400hz 20KVA 3-Phase Output Frequency Inverter
Product Description
Single-Phase 220V Input Variable Frequency Power Supply
50Hz/60Hz to 400Hz 20KVA 3-Phase Output Frequency Inverter
📢 Friendly Reminder
The prices shown on this page are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. These online prices are for preliminary budget reference only.
🚀 Product Feature
1Complete isolation of input and output technology, safe and reliable power supply.
2SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output.
3IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency.
4Unique double-loop control mode of instantaneous value and effective value for high precision and good waveform.
5Highly integrated module drive circuit, reliable operation, and strong overload capacity.
6Suitable for resistive, inductive, rectifier, and other loads.
7Multiple protection functions for overheating, overcurrent, and short circuit.
8Setting parameter memory function with 10-groups shortcut key operation.
9Voltage and frequency can be adjusted online in real-time.
🛠️ Industry Applications
| No. | Application Field | No. | Application Field |
|---|---|---|---|
| 1 | Home appliances | 8 | Photovoltaic |
| 2 | Motors | 9 | Lamps |
| 3 | Power tools | 10 | Electronic transformers |
| 4 | Switching power supplies | 11 | Electronic components |
| 5 | Power adapters | 12 | Low-voltage distribution |
| 6 | UPS | 13 | Power |
| 7 | Information and communication | 14 | Other industries |
📊 Technical Specifications
FC61 Series (Single-Phase Input & Output)
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
|---|---|---|---|---|
| Output capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated power (KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| Max Current (Low-grade) | 4.2A | 8.4A | 17A | 25A |
| Dimension (cm) | 43*18*44CM | 43*18*47CM | 43*65*52CM | |
FC62 Series (3-Phase Input, Single-Phase Output)
| Model | IPS-FC6220 | IPS-FC6230 | IPS-FC6245 | IPS-FC6260 |
|---|---|---|---|---|
| Output capacity (KVA) | 20KVA | 30KVA | 45KVA | 60KVA |
| Rated power (KW) | 16KW | 24KW | 36KW | 48KW |
| AC Input | Three-phase 220V/50Hz or 60Hz | |||
| AC Output Phase | Single-phase 220V (Adjustable ranges) | |||
🔥 Hot Selling Models
IPS-FC6102 (2KVA 1.6KW)
IPS-FC6250 (50KVA 40KW)
IPS-FC6310 (10KVA 8KW)

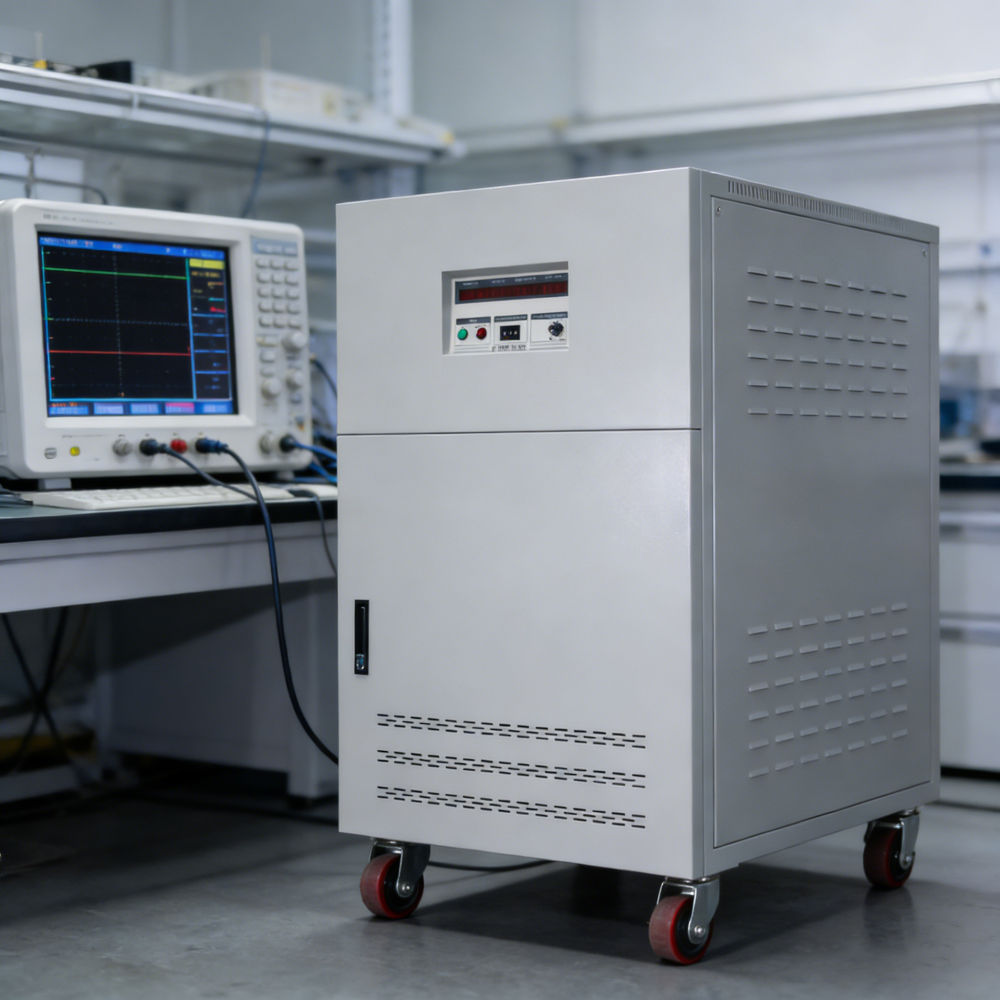

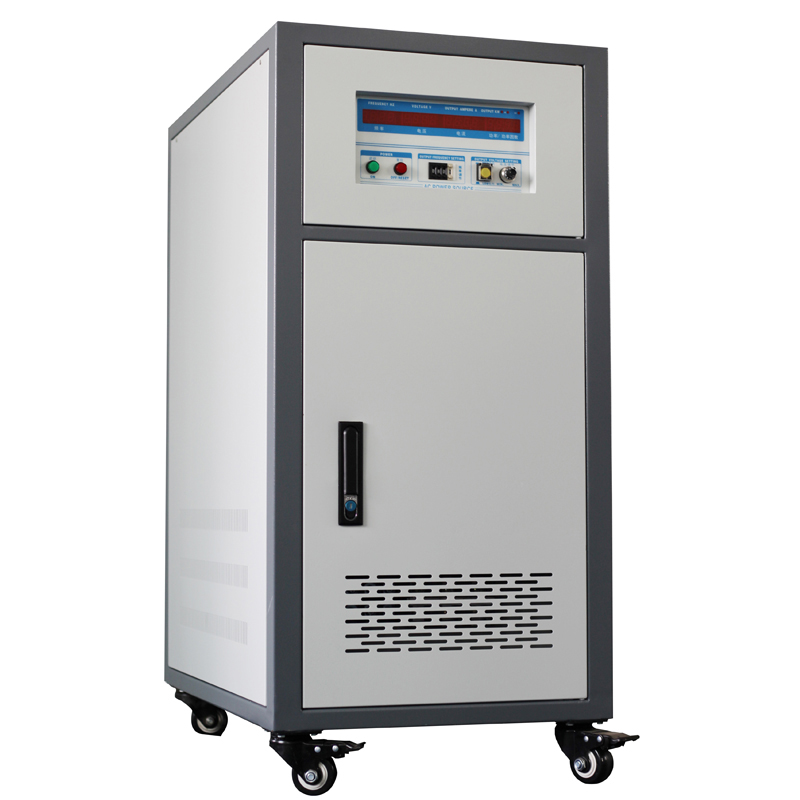

📷 Detailed View
🌍 Application Scope
We specialize in customizing AC/DC/AC power supplies to meet your specific requirements. With customized frequency converters available up to 2000KVA, our team ensures precision and reliability for every industrial application.
❓ Frequently Asked Questions
Why are there different frequencies like 50Hz and 60Hz?
Frequency standards evolved regionally: 50Hz became the norm in Europe, Asia, and Africa, while 60Hz is used in the Americas and parts of the Pacific. Frequency converters allow equipment designed for one standard to operate safely on another.
Can this unit convert Single-Phase to Three-Phase power?
Yes, our FC63 series is specifically designed for single-phase input and three-phase output, allowing you to run industrial 3-phase machinery in locations where only single-phase power is available.
Is the output voltage and frequency adjustable?
Absolutely. Most models support adjustable output frequencies from 40.0Hz to 499.9Hz and variable voltage ranges (typically 0-150V or 0-300V), which can be set via software or panel controls.
What kind of protection does the power supply offer?
The system includes comprehensive protection against overvoltage, overcurrent, overload, over-temperature, and short circuits, complete with an automatic jump protection and alarm device.
What types of loads are compatible with this inverter?
Our variable frequency power supplies are highly versatile and suitable for resistive, inductive, and rectifier loads, including motors, power tools, home appliances, and sensitive electronic testing equipment.
How is the cooling handled for high-capacity models?
The units utilize a forced fan cooling system to maintain optimal operating temperatures between 0°C and 45°C, ensuring stable performance even under high-load conditions.
