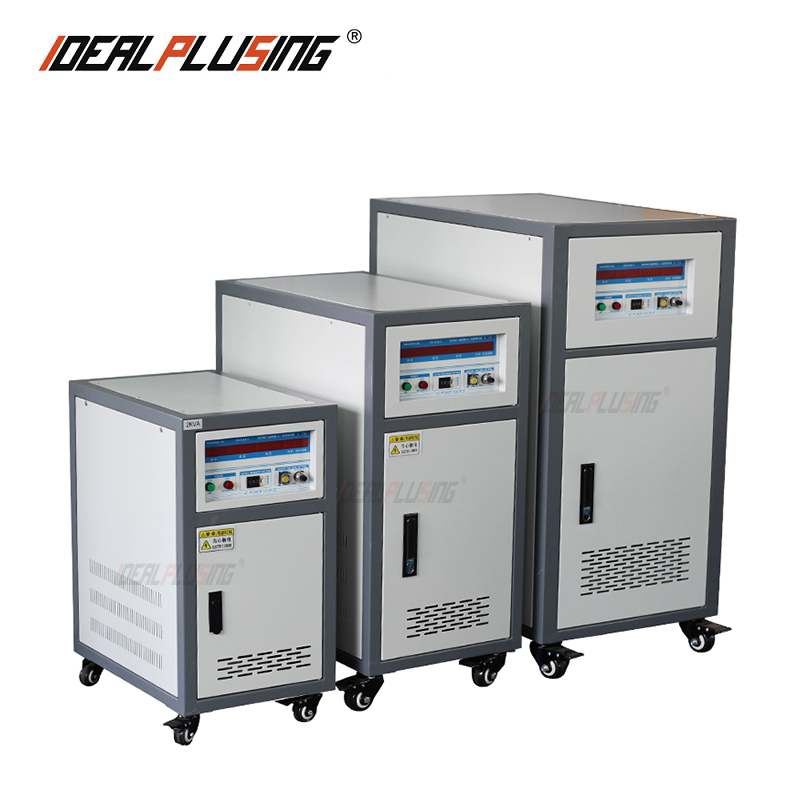

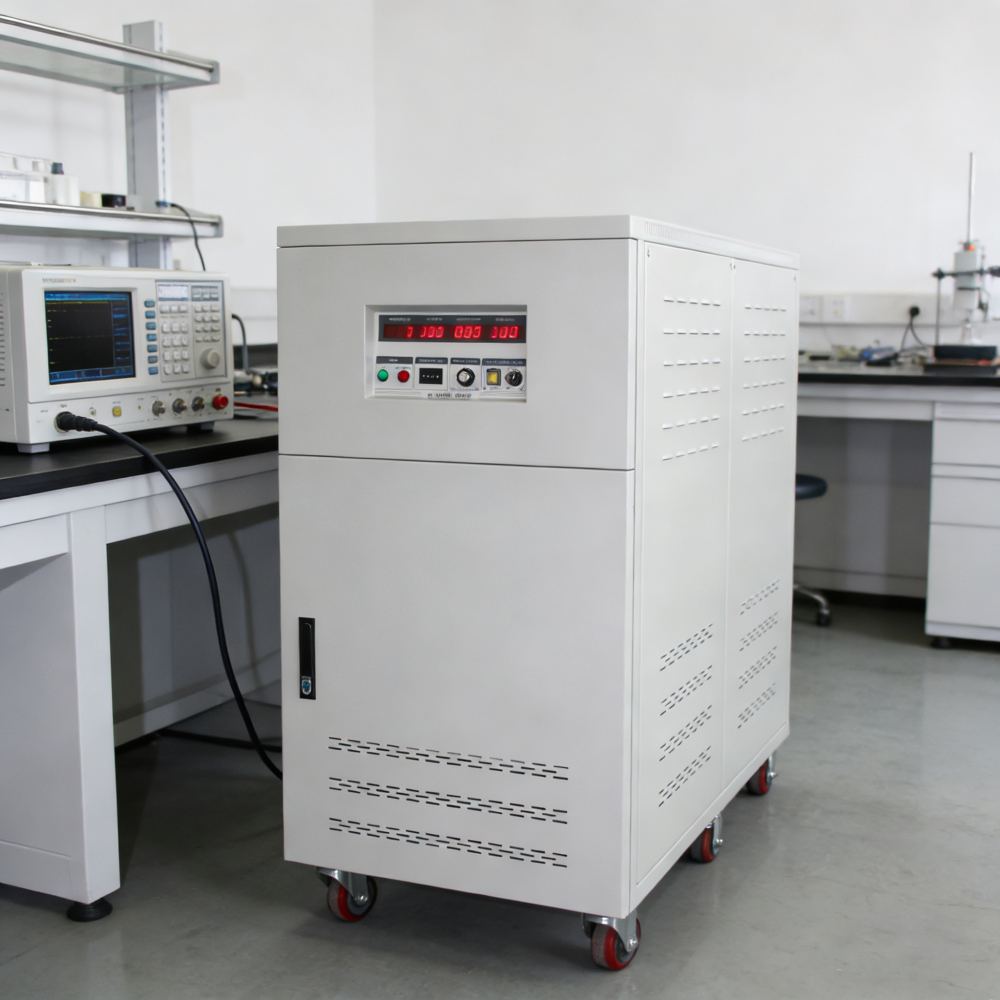

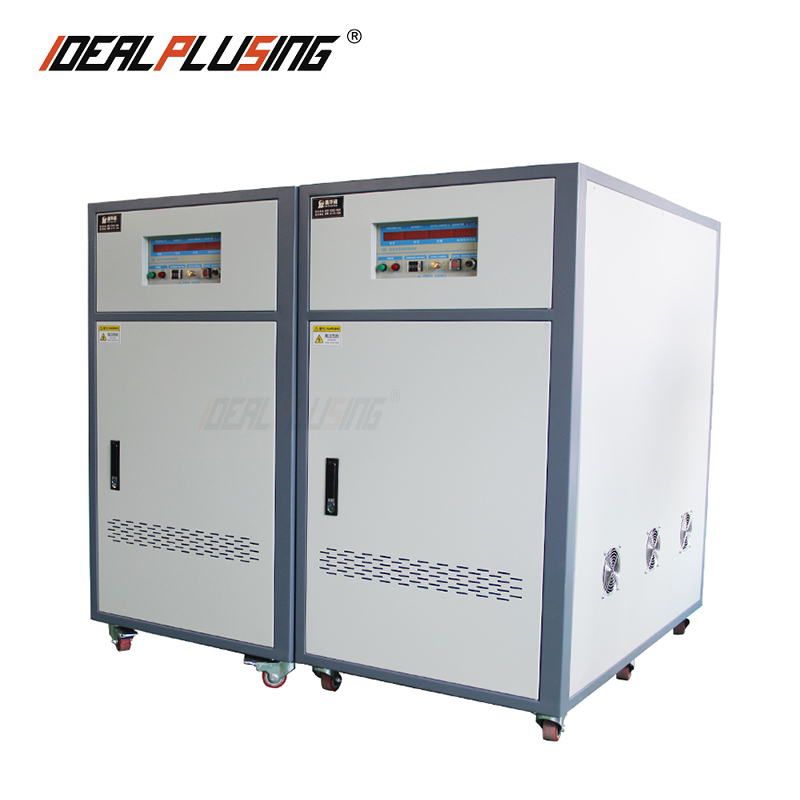

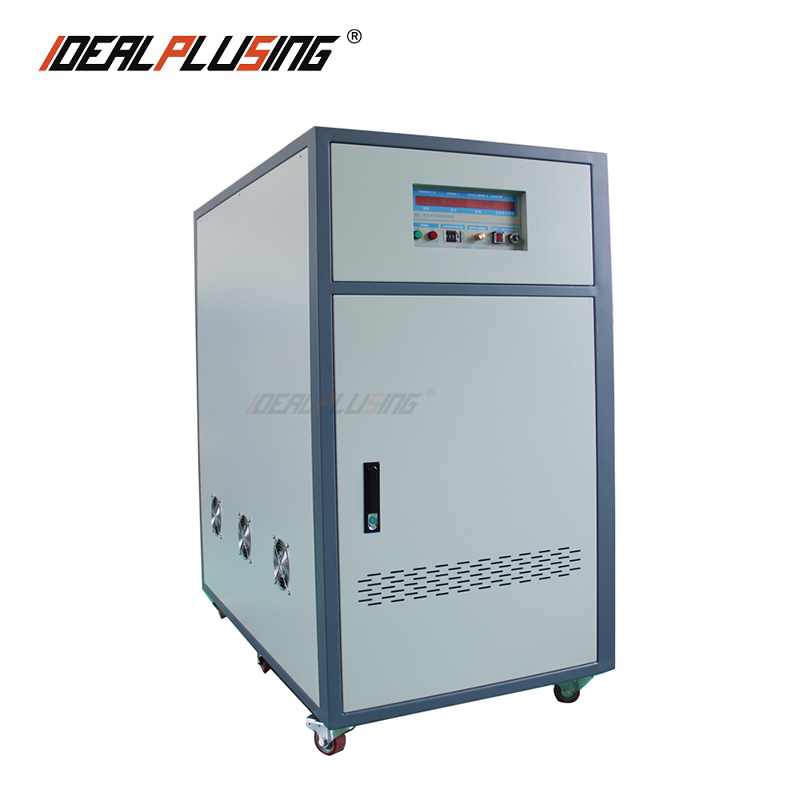

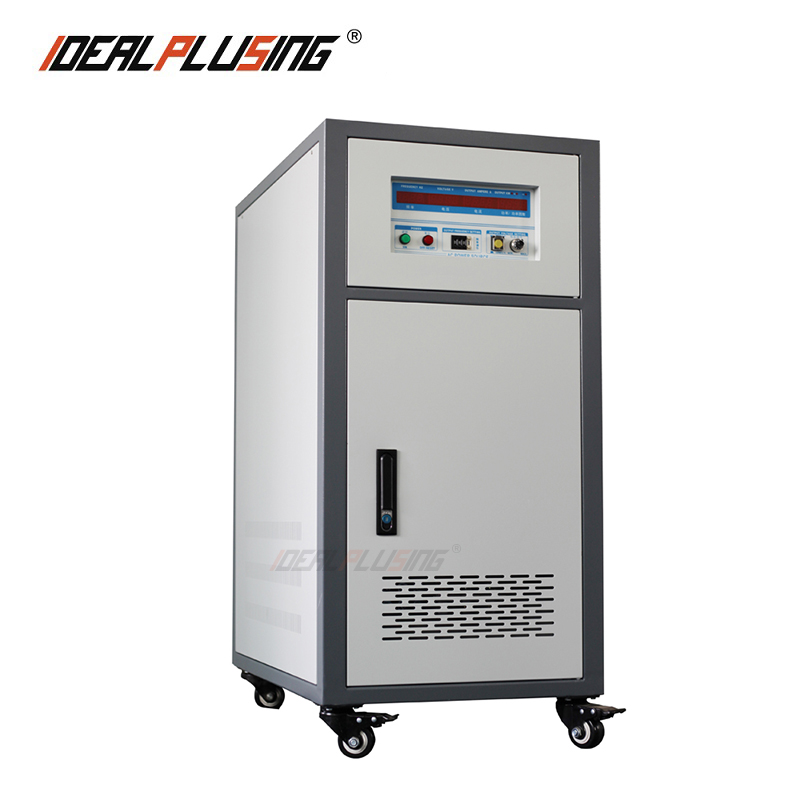

High-quality Single-phase Variable Frequency Power Supply 2KVA 3KVA 5KVA Frequency Converter 50/60 HZ for Home Appliances
Product Description
High-quality Single-phase Variable Frequency Power Supply 2KVA 3KVA 5KVA Frequency Converter 50/60 HZ for Home Appliances
⚠️ Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment.
Our company always adheres to the principle of integrity and avoids price misrepresentation. Thank you for your understanding and trust.
Product Feature
1
Complete isolation of input and output technology, safe and reliable power supply
2
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output
3
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
4
The unique double-loop control mode of instantaneous value and effective value is adopted, with high control precision and good waveform quality, which can adapt to various loads
5
High power IGBT module and highly integrated module drive circuit, reliable operation, strong overload capacity, low loss, and high efficiency
6
Suitable for resistive, inductive, rectifier, and other loads
7
It has multiple protection functions for abnormal conditions such as overheating, overcurrent, and short circuit
8
It has the function of setting parameter memory, (10-groups) shortcut key operation
9
The power supply voltage and frequency can be adjusted online, and the frequency can change in real-time
🛠️ Applications
01 Home appliances
02 Motors
03 Power tools
04 Switching power supplies
05 Power adapters
06 UPS
07 Information & communication
08 Photovoltaic
09 Lamps
10 Electronic transformers
11 Electronic components
12 Low-voltage distribution
13 Power
14 Other industries
Specification
| FC61 Series Specifications | ||||
|---|---|---|---|---|
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
| Output capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated power output(KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| AC output Max Current (Low-grade) | 4.2A | 8.4A | 17A | 25A |
| AC output Max Current (High-grade) | 2.1A | 4.2A | 8.4A | 12.5A |
| Product Dimension(cm) | 43*18*44CM | 43*18*47CM | 43*65*52CM | |
| Net weight (kg) | 26KG | 32KG | 37KG | 48KG |
| FC61 Series Specifications (Cont.) | ||||
|---|---|---|---|---|
| Model | IPS-FC6105 | IPS-FC6106 | IPS-FC6110 | IPS-FC6115 |
| Output capacity (KVA) | 5KVA | 6KVA | 10KVA | 15KVA |
| Rated power output(KW) | 4KW | 4.8KW | 8KW | 12KW |
| AC output Max Current (Low-grade) | 42A | 50A | 84A | 125A |
| AC output Max Current (High-grade) | 21A | 25A | 42A | 63A |
| Product Dimension(cm) | 43*65*52CM | 55*74*52CM | ||
| Net weight (kg) | 63KG | 80KG | 145KG | 175KG |
| Circuit mode | IGBT/SPWM | |||
| AC input | Single-phase 220V/50Hz or 60Hz | |||
| Output Phase | Single-phase 220V | |||
| Voltage Low range | 0~150V Adjustable | |||
| Voltage High range | 0~300V adjustable | |||
| Frequency | 40~499.9HZ can be setting by software | |||
| Frequency stability rate | Frequency stability rate | |||
| Load voltage stabilizing rate | Load voltage stabilizing rate | |||
| Waveform distortion degree | Waveform distortion degree | |||
| Response time | Response time | |||
| Digit frequency | 4 digits display, resolution 0.1Hz | |||
| Digit voltage | 4 digits virtual value display, resolution 0.1V | |||
| Digit current | 4 digits virtual value display, resolution 0.01A | |||
| Digit power | 4 digits virtual value display, resolution 1W | |||
| Protection | Overvoltage, over current, overload, over temperature and short-circuit, as well as automatic jump protection and alarm device | |||
| Cooling | Forced fan cooling | |||
| Working temperature | 0ºC~45ºC | |||
| Environment humidity | Relative 0~90%( non-coagulation state ) | |||
| FC62 Series Specifications | ||||
|---|---|---|---|---|
| Model | IPS-FC6220 | IPS-FC6230 | IPS-FC6245 | IPS-FC6260 |
| Output capacity (KVA) | 20KVA | 30KVA | 45KVA | 60KVA |
| Rated power output(KW) | 16KW | 24KW | 36KW | 48KW |
| AC output Max current (low-grade) | 168A | 250A | 375A | 500A |
| AC output Max current (high-grade) | 84A | 12A | 188A | 250A |
| Product Dimension(cm) | 58*74*52 CM | 70*120*110CM | ||
| Net weight (kg) | 285KG | 385KG | 420KG | 560KG |
| FC62 Series Specifications (Cont.) | ||||
|---|---|---|---|---|
| Model | IPS-FC62100 | IPS-FC62120 | IPS-FC621150 | IPS-FC62200 |
| Output capacity (KVA) | 100KVA | 120KVA | 150KVA | 200KVA |
| Rated power output(KW) | 80KW | 96KW | 120KW | 160KW |
| AC output Max current (low-grade) | 834A | 1000A | 1250A | 1667A |
| AC output Max current (high-grade) | 417A | 500A | 625A | 834A |
| Product Dimension(cm) | 80*120*150CM | 100*150*160CM | ||
| Net weight (kg) | 960KG | 1150KG | 1450KG | 1900KG |
| Circuit mode | IGBT/SPWM | |||
| AC input | Three-phase 220V/50Hz or 60Hz | |||
| Output Phase | 3-phases 380V | |||
| Voltage Low range | 0~150V Adjustable | |||
| Voltage High range | 0~300V adjustable | |||
| Frequency | 40~499.9HZ can be setting by software | |||
| Frequency stability rate | Frequency stability rate | |||
| Load voltage stabilizing rate | Load voltage stabilizing rate | |||
| Waveform distortion degree | Waveform distortion degree | |||
| Response time | Response time | |||
| Digit frequency | 4 digits display, resolution 0.1Hz | |||
| Digit voltage | 4 digits virtual value display, resolution 0.1V | |||
| Digit current | 4 digits virtual value display, resolution 0.01A | |||
| Digit power | 4 digits virtual value display, resolution 1W | |||
| Protection | overvoltage, over current, overload, over temperature and short-circuit, as well as automatic jump protection and alarm device | |||
| Cooling | Forced fan cooling | |||
| Working temperature | 0ºC~45ºC | |||
| Environment humidity | Relative 0~90%( non-coagulation state ) | |||
| FC63 Series Specifications | |||||
|---|---|---|---|---|---|
| Model | IPS-FC6303 | IPS-FC6306 | IPS-FC6310 | IPS-FC6315 | IPS-FC6320 |
| Rated Capacity (KVA) | 3KVA | 6KVA | 10KVA | 15KVA | 20KVA |
| Phase Capacity (KVA) | 1KVA | 2KVA | 3.3KVA | 5KVA | 7KVA |
| Max Current output (0~150V) | 8.4A | 16.8A | 28A | 42A | 50A |
| Max Current output (0~300V) | 4.2A | 8.4A | 14A | 21A | 25A |
| Dimensions (MM) | 190*305*430MM | 280*450*500MM | 620*320*620MM | 950*560*650MM | |
| Weight(Kg) | 30KG | 35KG | 45KG | 60KG | 78KG |
| AC Input | Single phase 220V/50Hz,60Hz | ||||
| FC63 Series Specifications (Cont.) | |||||
|---|---|---|---|---|---|
| Model | IPS-FC6330 | IPS-FC6345 | IPS-FC6360 | IPS-FC63100 | IPS-FC63120 |
| Rated Capacity (KVA) | 30KVA | 45KVA | 60KVA | 100KVA | 120KVA |
| Phase Capacity (KVA) | 10KVA | 15KVA | 20KVA | 33KVA | 40KVA |
| Max Current output (0~150V) | 84A | 125A | 168A | 276A | 336A |
| Max Current output (0~300V) | 4.2A | 63A | 84A | 138A | 168A |
| Dimensions (MM) | 950*560*650MM | 700*1340*1280MM | 1700*1750*1000MM | ||
| Weight(Kg) | 140KG | 170KG | 280KG | 650KG | 1050KG |
| AC Input | Single phase 220V/50Hz,60Hz | Three phase 380V/50Hz,60Hz | |||
| FC63 Series High Power Specifications | |||
|---|---|---|---|
| Model | IPS-FC63400 | IPS-FC63500 | IPS-FC63600 |
| Rated Capacity (KVA) | 400KVA | 500KVA | 600KVA |
| Phase Capacity (KVA) | 134KVA | 167KVA | 200KVA |
| Max Current output (0~150V) | 1112A | 1400A | 1667A |
| Max Current output (0~300V) | 556A | 700A | 833A |
| Dimensions (MM) | 1650*850*1090MM | 1650*800*1200MM | |
| Weight(Kg) | 1250KG | 1350KG | 1450KG |
| AC Input | Three phase 380V/50Hz,60Hz | ||
| Phase | Trip phase (phase difference 120°±2°) | ||
| Output Frequency | 40~499.9HZ can be setting by software | ||
| AC Voltage Output | |||
| Low Range | Phase voltage:0V~150V (line voltage:0V~260V) | ||
| High Range | Phase voltage:0V~300V (line voltage:0V~520V) | ||
| Frequency Stability Rate | ≤±0.1% | ||
| Load Stability Rate | ±0.5% | ||
| Waveform Distortion | ≤±2%(resistance load) | ||
| Response Time | ≤2ms | ||
| Indication Resolution | |||
| Digit Frequency | 4 digit resolution 0.1Hz (IPS-FC63400 /IPS-FC63500 /IPS-FC63600 A,B,C phase can change optionally) | ||
| Digit Voltage | 4 digit resolution 0.1V | ||
| Digit Current | 4 digit resolution: below 4A:0.001A; above 4A:0.01A | ||
| Digit Power | 4 digit resolution 1W | ||
| Protection | Input no fuse switch, output fuse switch, electronics circuit speed detect the over voltage, over current, over load, over temperature, short circuit and automatic jump protection and alarm. | ||
| Cooling | Forced fan cooling | ||
| Environment | |||
| Operation Temperature | 0ºC~45ºC | ||
| Relative Humility | 0~90%(non condensing ) | ||
| Working Temperature | 0ºC~45ºC, Relative 0~90%( non-coagulation state ) | ||
| FC68 Series Specifications | ||||
|---|---|---|---|---|
| Model | IPS-FC68005 | IPS-FC6801 | IPS-FC6802 | IPS-FC6803 |
| Rated Capacity (KVA) | 500KVA | 1KVA | 2KVA | 3KVA |
| AC Output Max Current (0V-150V) | 4.2A | 8.4A | 16.8A | 25A |
| AC Output Max Current (0V-300V) | 2.1A | 4.2A | 8.4A | 12.5A |
| Dimension H*W*D(mm) | 187*428*440MM | 650*430*520MM | ||
| AC Input | Single-phase 380V/50Hz,60Hz | |||
| FC68 Series Specifications (Cont.) | ||||
|---|---|---|---|---|
| Model | IPS-FC6805 | IPS-FC6810 | IPS-FC6815 | IPS-FC6820 |
| Rated Capacity (KVA) | 5KVA | 10KVA | 15KVA | 20KVA |
| AC Output Max Current (0V-150V) | 42A | 84A | 126A | 168A |
| AC Output Max Current (0V-300V) | 21A | 42A | 63A | 84A |
| Dimension H*W*D(mm) | 650*430*520MM | 900*450*710MM | 900*560*710MM | 1200*560*800MM |
| AC Input | Three-phase 380V/50Hz,60Hz | |||
| FC68 Series High Power Specifications | ||||
|---|---|---|---|---|
| Model | IPS-FC6830 | IPS-FC6845 | IPS-FC6860 | IPS-FC68100 |
| Rated Capacity (KVA) | 30KVA | 45KVA | 60KVA | 100KVA |
| AC Output Max Current (0V-150V) | 250A | 375A | 500A | 834A |
| AC Output Max Current (0V-300V) | 125A | 188A | 250A | 417A |
| Dimension H*W*D(mm) | 1200*560*800MM | 1200*850*1020MM | 1600*800*1200MM | |
| AC Input | Three-phase 380V/50Hz,60Hz | |||
| Circuit Mode | IGBT/PWM | |||
| AC Output | ||||
| Phase | Single phase | |||
| Low Range Voltage | 0V~150V | |||
| High Range Voltage | 0V~300V | |||
| Frequency | 40~499.9HZ can be setting by software | |||
| Frequency Stability Rate | ≤±0.1% | |||
| Load Stability Rate | ±0.5% | |||
| Waveform Distortion | ≤2%(linear load) | |||
| Respond Time | Max 2ms | |||
| Indication Resolution | ||||
| Digit Frequency | 4 digit resolution 0.1Hz | |||
| Digit Voltage | 4 digit resolution 0.1V | |||
| Digit Current | 4 digit resolution below 4A:0.001A above 4A:0.01A | |||
| Digit Power | 4 digit resolution below 200W:0.1W above 200W:1W | |||
| Digit Frequency (PF) | 4 digit resolution 0.001 | |||
| Protector | Input no fuse switch, output fuse switch, electronics circuit speed detect the over voltage, over current, over load, over temperature, short circuit and automatic jump protection and alarm. | |||
| Cooling | Forced fan cooling | |||
| Environment | ||||
| Operate Temperature | 0ºC~45ºC | |||
| Related Humility | 0~90%(non condensing ) | |||
| Common Specifications | |||
|---|---|---|---|
| Parameter | Single-phase | Three-phase | |
| Capacity | 500VA-45KVA | 3KVA-400KVA | |
| Production method | IGBT / PWM pulse width modulation mode | ||
| Input Voltage (optional) | 1-Phase 2-wire + G:110V(2-5KVA) , 200V/230V/240Z±10% | 3-phase 4-wire + G:Y connection 190/110,200/115.208/120,220/128,230/132,240/139V±10% 3-phase 4-wire + G: Y connection:380/220,400/230,415/240,400/254,460/265.480/277V±10% 3-phase 3-wire + G: delta connection:220,230,240,380,400,415,440V±10% |
|
| Output Frequency (optional) | 40~499.9HZ can be setting by software | ||
| Output Voltage | 110V system: 0-150V(Low Range) 220V system: 0-300V(High Range) |
Options: 1. 0-600v; 2. Standard setting voltage: ± 10% ~ + 25%, - 10% -- 30% preset | |
| Load stability rate | ≤±1% | ||
| Frequency | Frequency 40.0hz to 1990.9hz (programmable) | ||
| Frequency stability | ≤±0.01% | ||
| Harmonic distortion | Sine wave, ≤2% | ||
| Frequency table | 4-digit, digital frequency meter, resolution 0.1hz/step | ||
| Voltmeter | 4-digit, digital voltmeter, resolution 0.1V | ||
| Ammeter | 4-digit, digital ammeter, resolution 0.1A | ||
| Wattmeter | 4-digit, digital wattmeter, resolution 0.1W | ||
| Protector | It has overload, over high temperature, short circuit, instantaneous power-off protection and alarm device | ||
| Temperature | Temperature: 0-40deg. ºC | ||
| Work environment | 0.90% (noncondensing state) | ||
Hot selling models
IPS-FC6102
Single-phases Input and Single-phase Output 2KVA 1.6KW
IPS-FC6250
3-phase Input and Single-phase Output 50KVA 40KW
IPS-FC6310
Single-phases Input and 3-phase Output 10KVA 8KW
IPS-FC6330
Single-phases Input and 3-phase Output 30KVA 24KW
IPS-FC68100
3-phases Input and 3-phase Output 100KVA 80KW
IPS-FC68200
3-phases Input and 3-phase Output 200KVA 160KW
Details Images
Application Scope
Model list
We specialize in customizing AC/DC/AC power supplies to meet your specific requirements. With customized any kind of frequency converters, our offerings range up to 2000KVA. Please submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
FAQ
Why are there 50Hz and 60Hz power standards globally?
The frequency (50 Hz or 60 Hz) of AC power sources was selected arbitrarily when electrical systems were stand-alone and not interconnected. Early generators driven by water mills powered factories at frequencies ranging from 15 Hz to over 90 Hz. Once incandescent lighting was introduced, frequencies below 45 Hz caused noticeable flickering. European companies like AEG established 50Hz as their standard, while Westinghouse in the US settled on 60Hz. These standards spread globally based on historical regional influences.
Can I run a 60Hz appliance on a 50Hz electrical system?
Directly running a 60Hz appliance on a 50Hz supply can cause overheating, reduced performance, or damage to the internal motors and transformers. To ensure safe and stable operation, you can use a static frequency converter to convert the power supply to the correct frequency required by your appliance.
What are the advantages of IGBT/SPWM frequency converters?
IGBT high-frequency static inverters provide compact sizing, lighter overall weight, low operational noise, and exceptional efficiency. Combining this with SPWM (Sine Wave Pulse Width Modulation) technology ensures super-fast response speeds, outstanding control precision, and pure, stable sine wave outputs compatible with multiple load types.
What types of load are compatible with these power supplies?
Our variable frequency power supplies feature an advanced double-loop control mode designed to handle a wide variety of loads, including highly demanding resistive, inductive, rectifier, and non-linear loads.
What built-in protections do your frequency converters offer?
To guarantee reliable operation, our units are equipped with comprehensive electronic protection circuits that instantaneously detect and trigger safety shutdowns or alarms for overvoltage, overcurrent, overload, over-temperature, and short-circuit faults.
Can you customize power outputs beyond standard specifications?
Yes, we specialize in customizing AC/DC/AC power supply solutions tailored to your precise operational demands, supporting specialized frequency conversion configurations up to 2000KVA.
