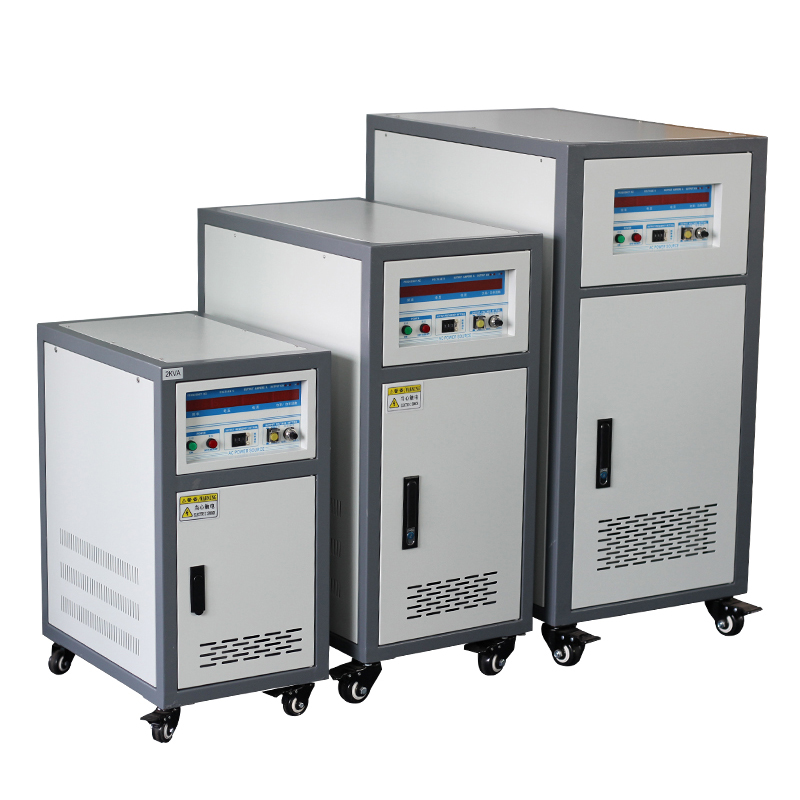

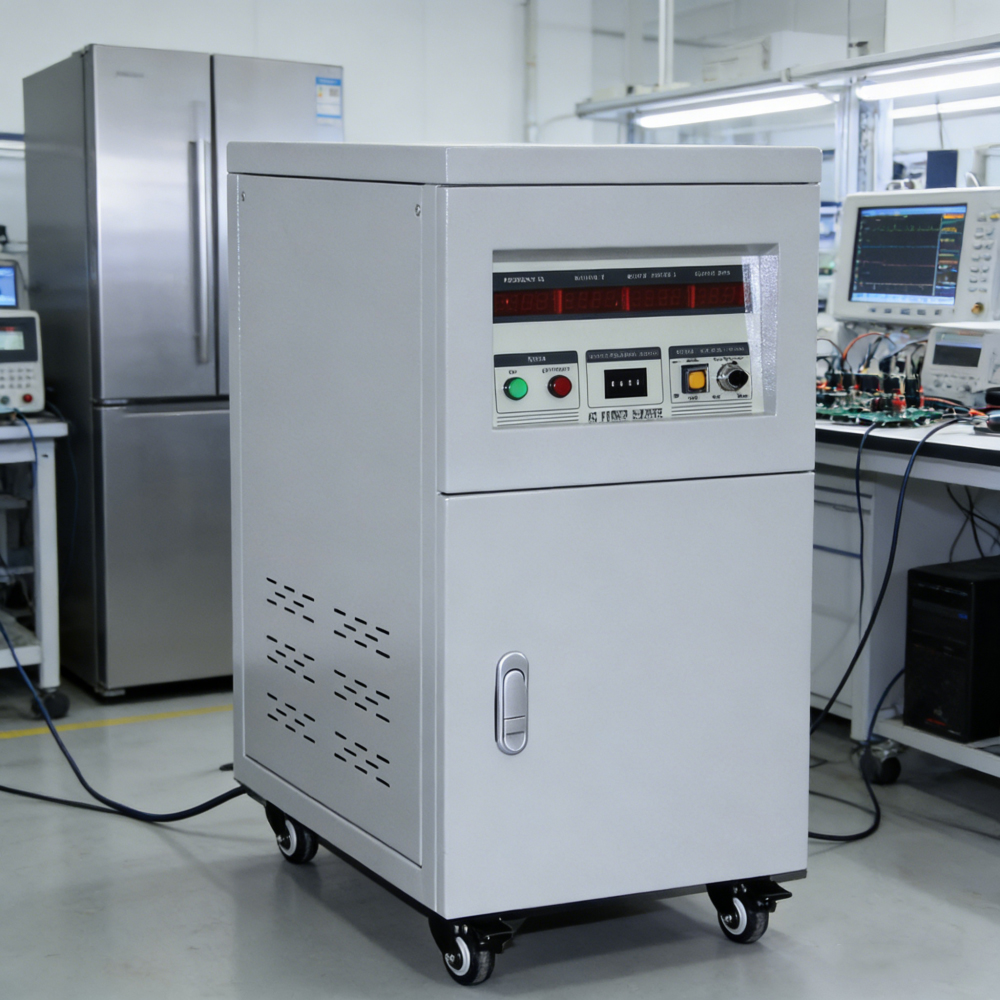

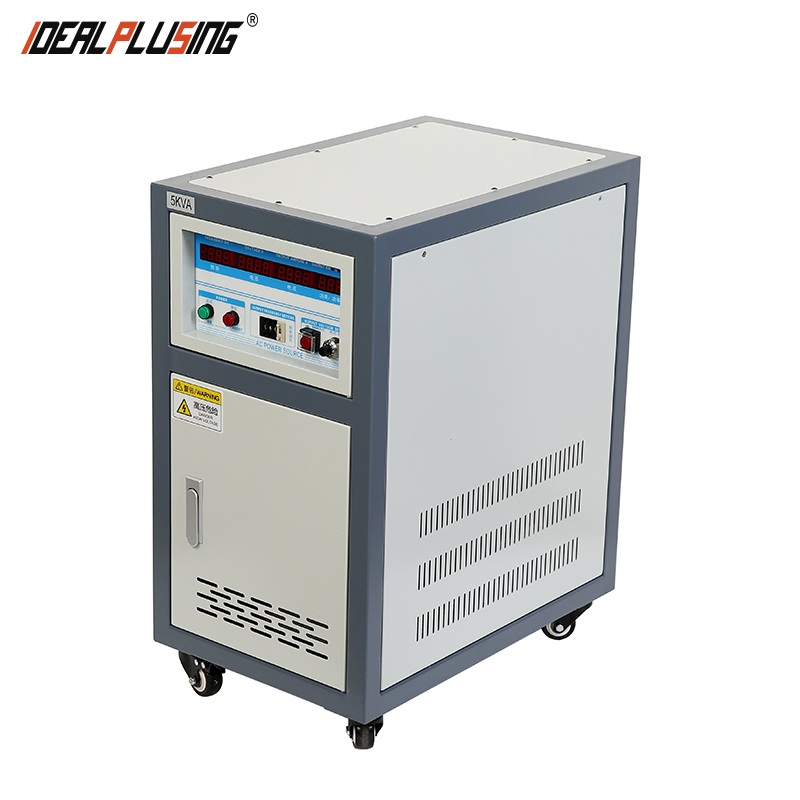

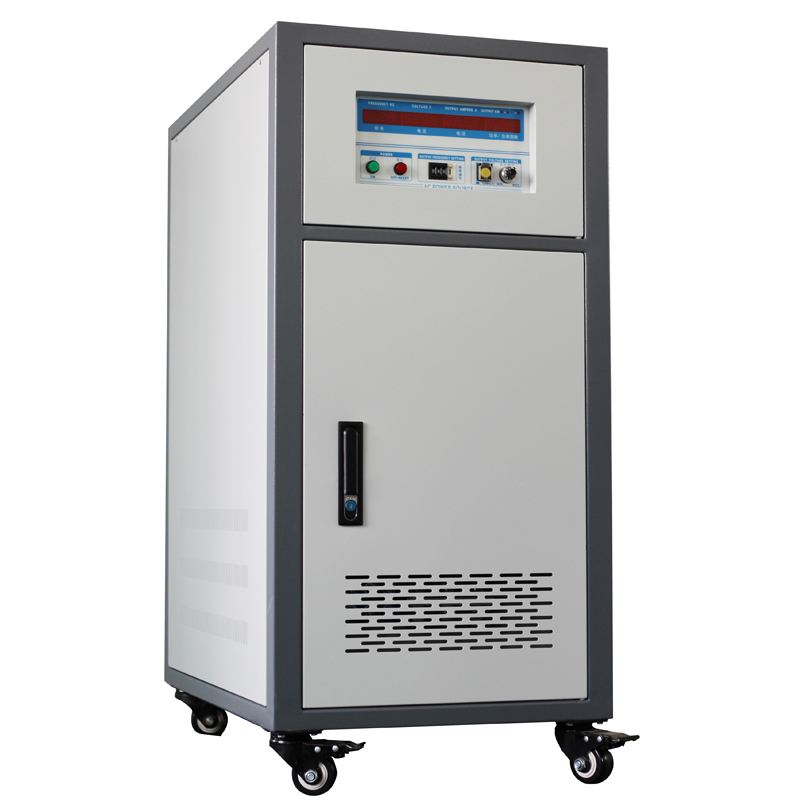

Three-phase Input and Single-phase Output 50hz 60Hz AC Frequency Converter 45KVA 36KW AC Power Supply for Home Appliances
Product Description
Three-phase Input and Single-phase Output 50Hz 60Hz AC Frequency Converter 45KVA 36KW AC Power Supply for Home Appliances
💡 Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
⚙️ Product Feature
1Complete isolation of input and output technology, safe and reliable power supply.
2SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output.
3IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency.
4Unique double-loop control mode of instantaneous value and effective value for high precision and waveform quality.
5High power IGBT module and integrated drive circuit for strong overload capacity and low loss.
6Suitable for resistive, inductive, rectifier, and other complex loads.
7Multiple protection functions: overheating, overcurrent, and short circuit.
8Parameter memory function with 10-group shortcut key operation.
9Power supply voltage and frequency can be adjusted online in real-time.
🏠 Application Fields
| NO. | Application | NO. | Application |
|---|---|---|---|
| 1 | Home appliances | 8 | Photovoltaic |
| 2 | Motors | 9 | Lamps |
| 3 | Power tools | 10 | Electronic transformers |
| 4 | Switching power supplies | 11 | Electronic components |
| 5 | Power adapters | 12 | Low-voltage distribution |
| 6 | UPS | 13 | Power Industry |
| 7 | Information and communication | 14 | Other industries |
📊 Product Specifications
FC61 Series
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
|---|---|---|---|---|
| Output capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated power output (KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| Max Current (Low-grade) | 4.2A | 8.4A | 17A | 25A |
| Max Current (High-grade) | 2.1A | 4.2A | 8.4A | 12.5A |
| Net weight (kg) | 26KG | 32KG | 37KG | 48KG |
🔥 Hot Selling Models
IPS-FC6102
1-phase Input/Output 2KVA 1.6KW
IPS-FC6250
3-phase Input, 1-phase Output 50KVA 40KW
IPS-FC6310
1-phase Input, 3-phase Output 10KVA 8KW
IPS-FC6330
1-phase Input, 3-phase Output 30KVA 24KW
IPS-FC68100
3-phase Input/Output 100KVA 80KW
IPS-FC68200
3-phase Input/Output 200KVA 160KW
📸 Detailed Product Images
🌐 Application Scope
📝 Customization Services
We specialize in customizing AC/DC/AC power supply systems to meet your specific requirements. With customized frequency converters, our offerings range up to 2000KVA. Please submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour.
❓ FAQ
Q1: Why are there different frequencies like 50Hz and 60Hz?
The frequency (50 Hz or 60 Hz) was selected arbitrarily when systems were stand-alone. Generally, 50Hz is common in Europe, Africa, and most of Asia, while 60Hz is the norm in the Americas. Our static frequency converters allow you to change between them seamlessly to power global equipment.
Q2: Can this converter be used for inductive loads like motors?
Yes, our frequency converters are designed to adapt to various loads, including resistive, inductive (like motors), and rectifier loads, thanks to the SPWM pulse width modulation and double-loop control technology.
Q3: What kind of protection features are included?
The units include comprehensive protection for abnormal conditions such as overheating, overcurrent, overvoltage, overload, and short circuits, complete with automatic jump protection and alarm devices.
Q4: Is it possible to adjust the output voltage and frequency online?
Absolutely. The power supply voltage and frequency can be adjusted online, and the frequency can change in real-time. It also features a memory function for 10 groups of preset parameters.
Q5: What is the benefit of the isolation technology used?
Complete isolation of input and output technology ensures a safe and reliable power supply by preventing electrical interference and protecting sensitive downstream equipment.
Q6: Do you offer customization for higher capacities?
Yes, we specialize in high-capacity customization. While standard series go up to several hundred KVA, we can customize units up to 2000KVA based on your specific industrial or home appliance requirements.
