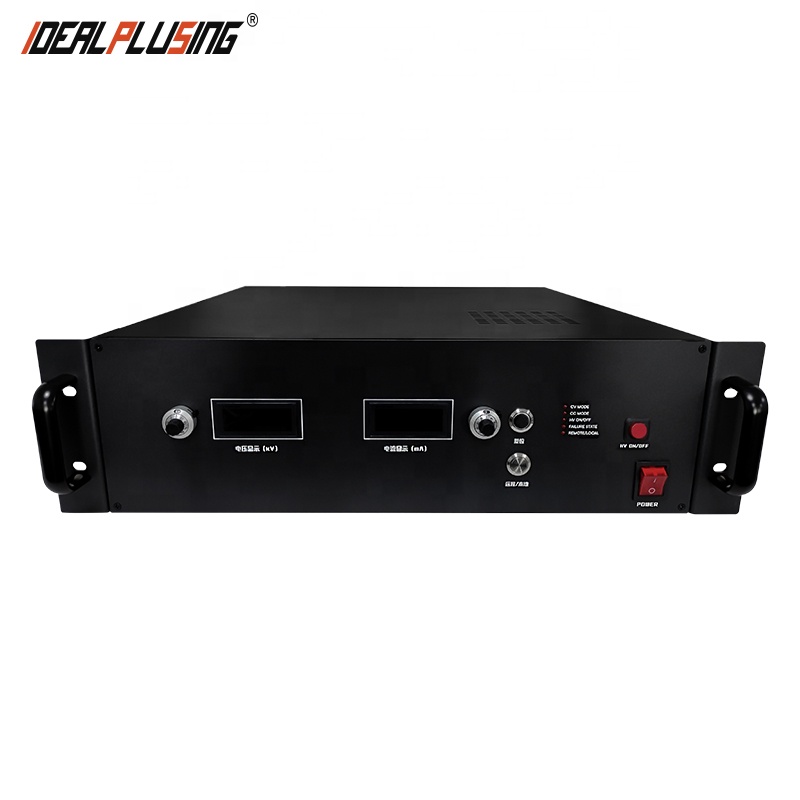

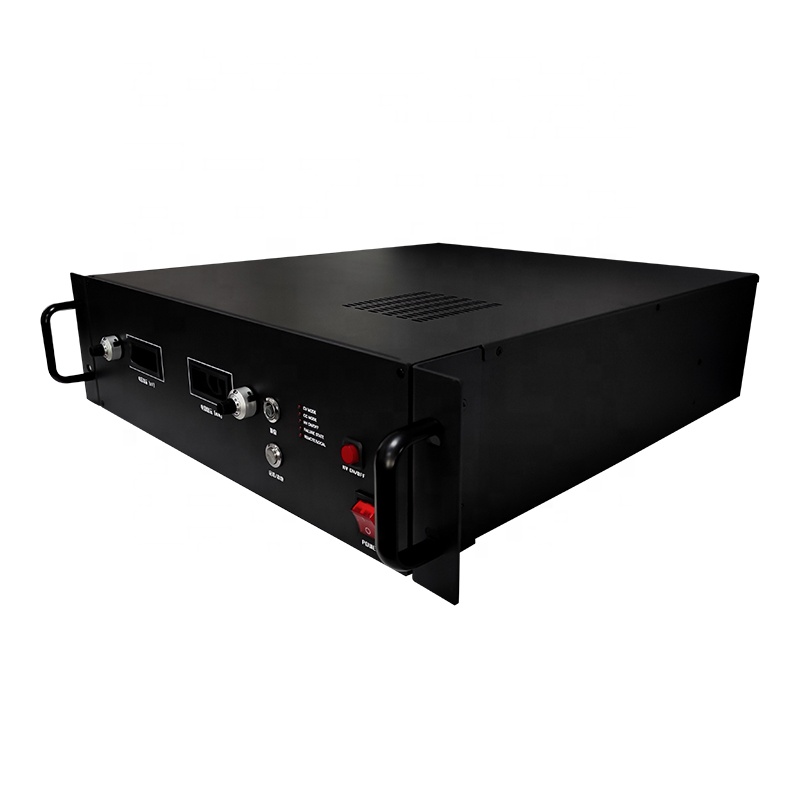

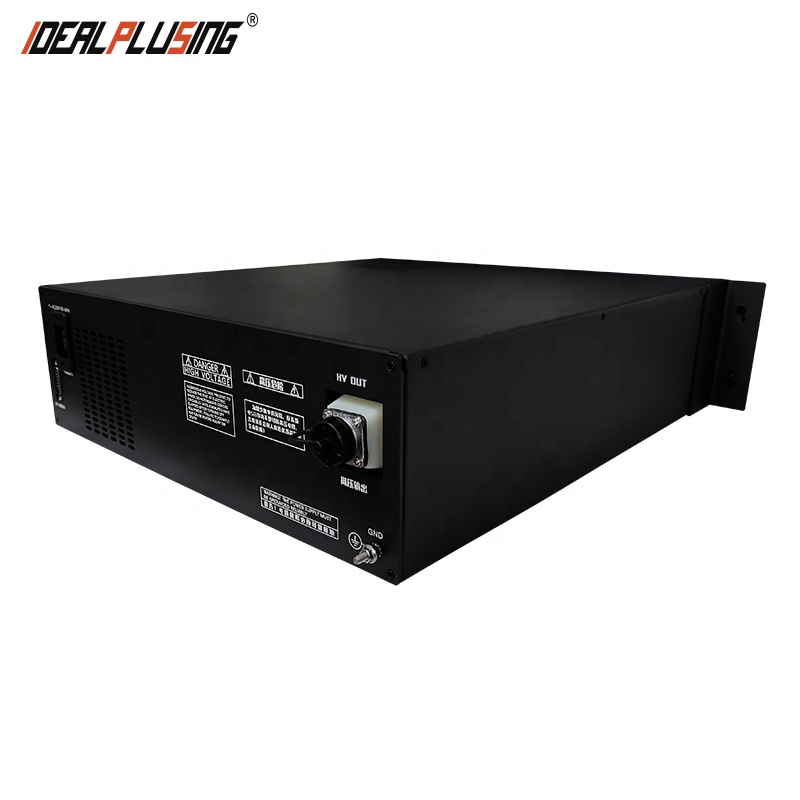

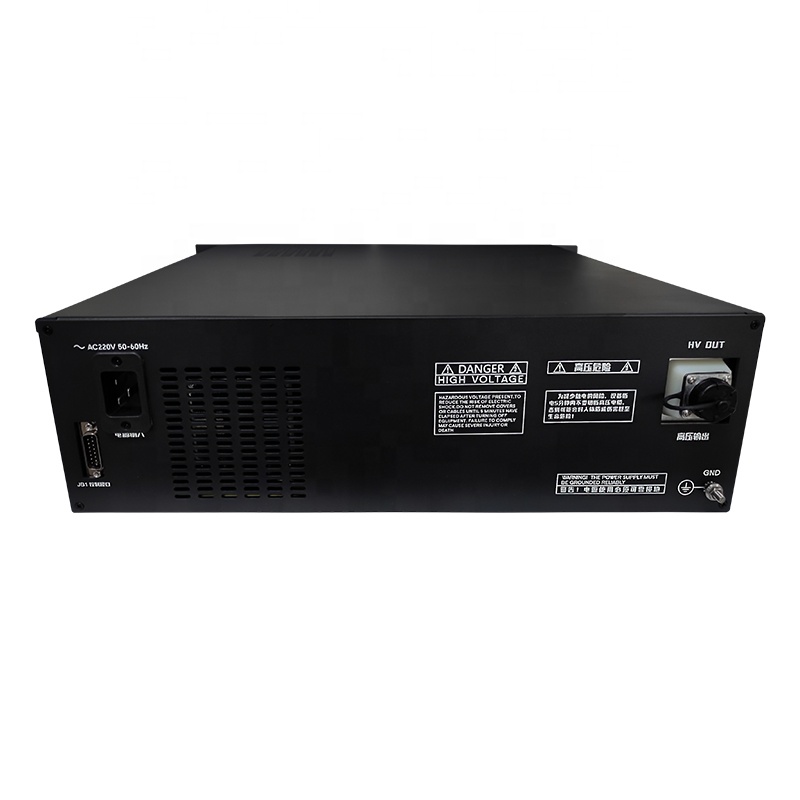

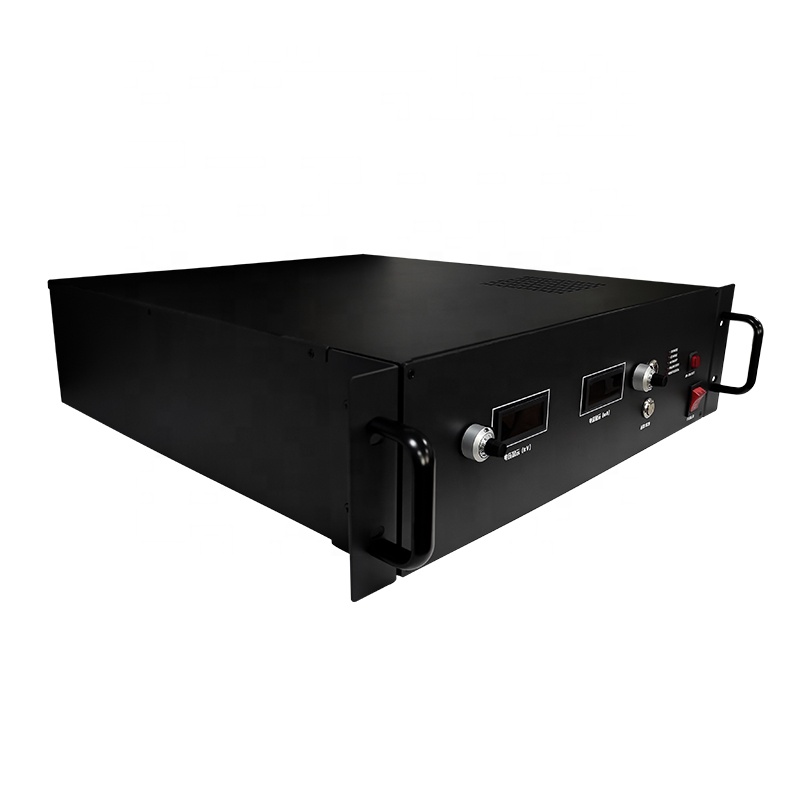

Ac to Dc Variable Power Supply 30kv 40kv 50kv 60kv 80Kv 100kv High Voltage Power Supply 30kv 5mA 150w for Electrostatic Spinning
Product Description
I. INTRODUCTION & APPLICATION
HV series are high voltage DC power supplies, available from 10kV to 200kV output. Control can be flexibly switched between Remote and Local modes. Output displays and indicators are integrated on the front panels and can be extended to external remote screens.
Safety is prioritized with integrated protections including over-current, short-circuit, and arc protection at the high-voltage terminal.
Electrostatic Applications
✔Electrostatic dust removal
✔Electrostatic spinning & electret
✔Electrostatic separation & spraying
✔Electrostatic flocking
✔Meltblown cloth equipment
Testing & Industrial Use
✔High voltage insulation tests
✔Material sorting & Metal vaporization
✔Cable aging & leakage tests
✔Optical Fiber Withstand Voltage Test
✔Capacitor Charge/Discharge & Lab tests
II. PRODUCT FEATURES
✦Output voltage full range adjustable
✦Positive (+10kV to +200kV) or Negative (-10kV to -200kV) output
✦4 digits LED display for voltage and current
✦Low EMI, strong anti-interference ability
✦Comprehensive OVP, OCP, ARC, and short circuit protections
III. OPTIONAL INTERFACE
⚙Remote ON/OFF control
⚙0-10V analog control for voltage and current
⚙RS485 interface (Modbus-RTU)
⚙RS232 interface (Modbus-RTU)
IV & V. TECHNICAL SPECIFICATIONS
| Model | IPS-ATDJ30KV-5mA |
| Input Voltage | Single phase 220VAC ±10% (50/60Hz) |
| Rated Output Voltage | 0-30KV (Full range adjustable) |
| Rated Output Current | 0-5mA (Full range adjustable) |
| Line Regulation | CV ≤ 0.1% FS |
| Load Regulation | CV ≤ 0.1% FS |
| Ripple & Noise | ≤ 0.5% FS |
| Voltage Stability | ≤ 0.1% per hour (after 1h warm-up) |
| Temperature Coefficient | 100ppm/°C |
VI. DISPLAY RESOLUTION
📈Voltage: 0.01kV / 0.1kV
📈Current: 0.001mA / 0.01mA
⚖Accuracy: ≤0.1%FS+2LSB
VII. PROTECTION SYSTEMS
🛡O.V.P: 105% rated limit, auto shut down
🛡O.C.P: 105% rated limit, auto shut down
🛡O.T.P: Heat sink limit 65°C±5°C
🛡Short Circuit Protection enabled
VIII & IX. GENERAL DATA & ACCESSORIES
| Dimensions | L376 * W367 * H110 (MM) |
| Weight | Net: 7KG / Gross: 10KG (Wooden Box) |
| Cooling Method | Forced air cooling (Cooling fan) |
| Operating Temp | 0°C ~ 40°C, 10%~80%RH |
| HV Output Cable | Self-contained or Shielded options (1.5m standard, customizable) |
X. REFERENCE PICTURES
MODEL LIST & TECHNICAL DATA
FACTORY DISPLAY
Frequently Asked Questions
What is the output voltage range of the HV series?
The HV series high voltage DC power supplies offer an output range from 10kV up to 200kV, and the voltage is fully adjustable from zero to the rated maximum.
What safety protections are built into the power supply?
Units include Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), and Short Circuit Protection with automatic shutdown capabilities.
Can these power supplies be controlled remotely?
Yes, the units support Remote ON/OFF control and can be configured with 0-10V analog control or digital interfaces like RS485 and RS232 using Modbus-RTU commands.
What are the main applications for this equipment?
They are widely used for electrostatic spinning, dust removal, electret processes, capacitor charging, and various high-voltage insulation or cable leakage tests.
Is the high-voltage cable customizable?
Yes. We offer both self-contained and shielded high-voltage cables. While the standard length is 1.5 meters, other lengths are optional based on your requirements.
How stable is the voltage output?
The high voltage stability is ≤0.1% per hour after a one-hour warm-up period, ensuring reliable performance for precision laboratory and industrial tests.
