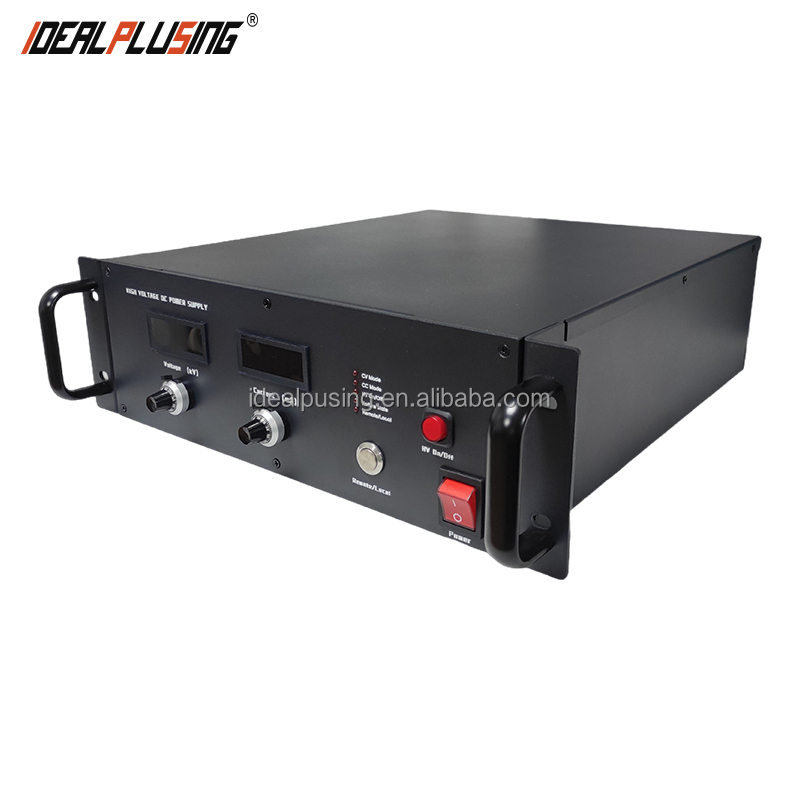

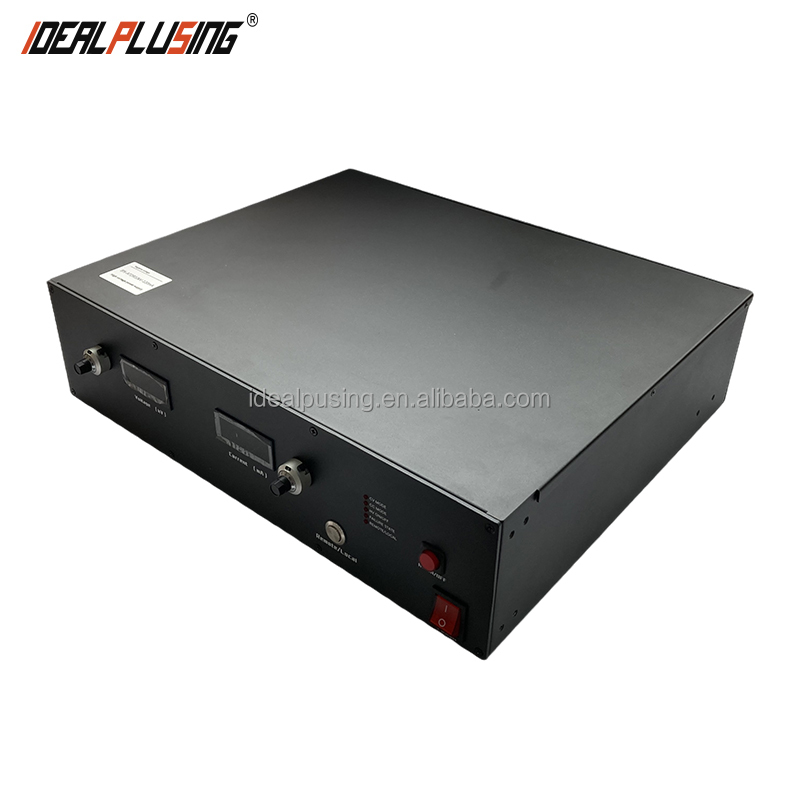

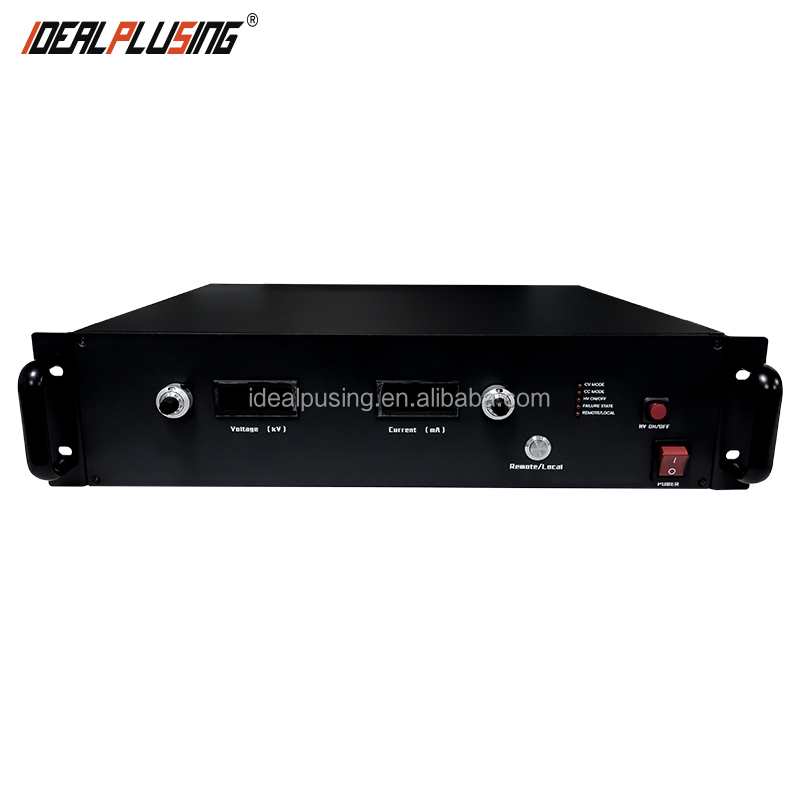

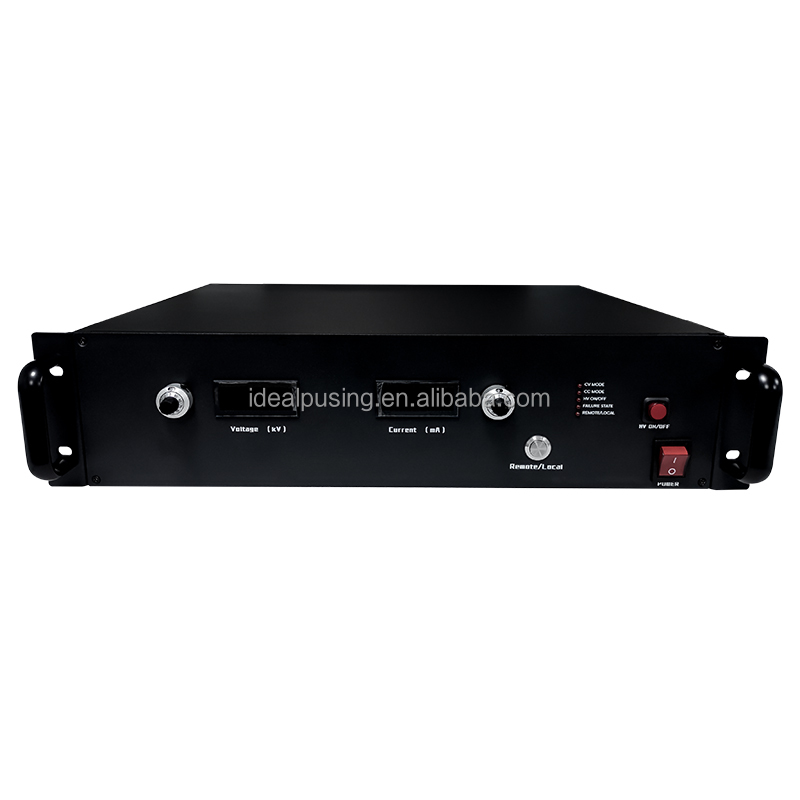

Wholesale High Voltage High Frequency Power Supply 70kv 0.85ma 60w Variable Voltage Power Supplies for Super Capacitor Charging
Product Description
⚡ I. INTRODUCTION & APPLICATION
1HV series are high voltage DC power supplies, available from 10kV to 200kV output.
2Output control can be switched between Remote control and Local control. Output displays and output indicators are direct on the front panels and can lead to the external remote display screen.
3The high-voltage output terminal has over-current, over-current, short-circuit protection and arc protection.
4The HV series high voltage power supply is widely used in electrostatic applications, such as Electrostatic dust removal, Electrostatic spinning, Electrostatic electret, Electrostatic separation, Electrostatic spraying, and Electrostatic flocking.
5The HV series high voltage power supply can also be used in High voltage insulation tests, Material sorting, Metal vaporization, High voltage deburring, and Laboratory test.
6Meltblown cloth electrostatic electret equipment
7Electrostatic Spinning
8Electrostatic Dust Removal
9Capacitor Charge
10Discharge
11Cable Aging Test
12Cable Leakage Test
13Optical Fiber Withstand Voltage Test
14Etc
💎 II. PRODUCT FEATURES
1Output voltage full range adjustable
2High voltage Positive output +10kV to +200kV
3High voltage Negative output -10kV to -200kV
44 digits LED display for voltage and current
5Low EMI, strong anti-interference ability
6OVP, OCP, ARC, and short circuit protections
🔌 III. OPTIONAL INTERFACE
| 1 | Remote ON/OFF control |
| 2 | 0-10V analog control for voltage and current output |
| 3 | RS485, support Modbus-RTU commands |
| 4 | RS232, support Modbus-RTU commands |
⚙️ IV. INPUT VOLTAGE
| Rate Voltage | Single phase 220VAC |
| Range Voltage | 220VAC±10% |
| Frequency | 50/60HZ |
📊 V. OUTPUT
| Model | IPS-ATDJ70KV-0.85mA |
| Rated Voltage | 0-70KV(Full range adjustable) |
| Rated Current | 0-0.85mA(Full range adjustable) (except 1mA models) |
| Line Regulation | CV≤0.1%FS |
| Load Regulation | CV≤0.1%FS |
| Ripple & Noise | ≤0.5% FS |
| High Voltage stability | ≤0.1% per hour after warm-up for one hour |
| Temperature co-efficiency | 100ppm/°C |
🖥️ VI. DISPLAY
| Meter | 4 digits LED display for voltage and current |
| Voltage Resolution | 0.01kV / 0.1kV |
| Current Resolution | 0.001mA / 0.01mA |
| Voltage Accuracy | ≤0.1%FS+2LSB |
| Current Accuracy | ≤0.1%FS+2LSB |
🛡️ VII. PROTECTION
| Over Voltage (O.V.P.) | Built-in OVP protection with limit of 105% rated output voltage. Output shuts down when activated. |
| Over Current (O.C.P.) | Built-in OCP protection with limit of 105% rated output voltage. Output shuts down when activated. |
| Over Temperature (O.T.P.) | Built-in OTP protection with heat sink temperature limit of 65°C±5°C. Output shuts down when activated. |
| Short Circuit | The output will be shut down when short circuit protection is activated. |
📏 VIII. GENERAL
| Dimension | L492*W367*H110(MM) |
| Net/Gross Weight | 9.5KG/15KG(Wooden carton box package) |
| Cooling method | Cooling fan |
| Operating Environment | 0°C~40°C, 10%~80%RH |
| Storage Environment | -20°C~70°C, 10%~90%RH |
🧵 IX. HIGH-VOLTAGE OUTPUT CABLE
1Self-contained high voltage cable without shielding. Standard length 1.5m, other lengths optional.
2High-voltage cable with shielding. Standard length 1.5m, other lengths optional.

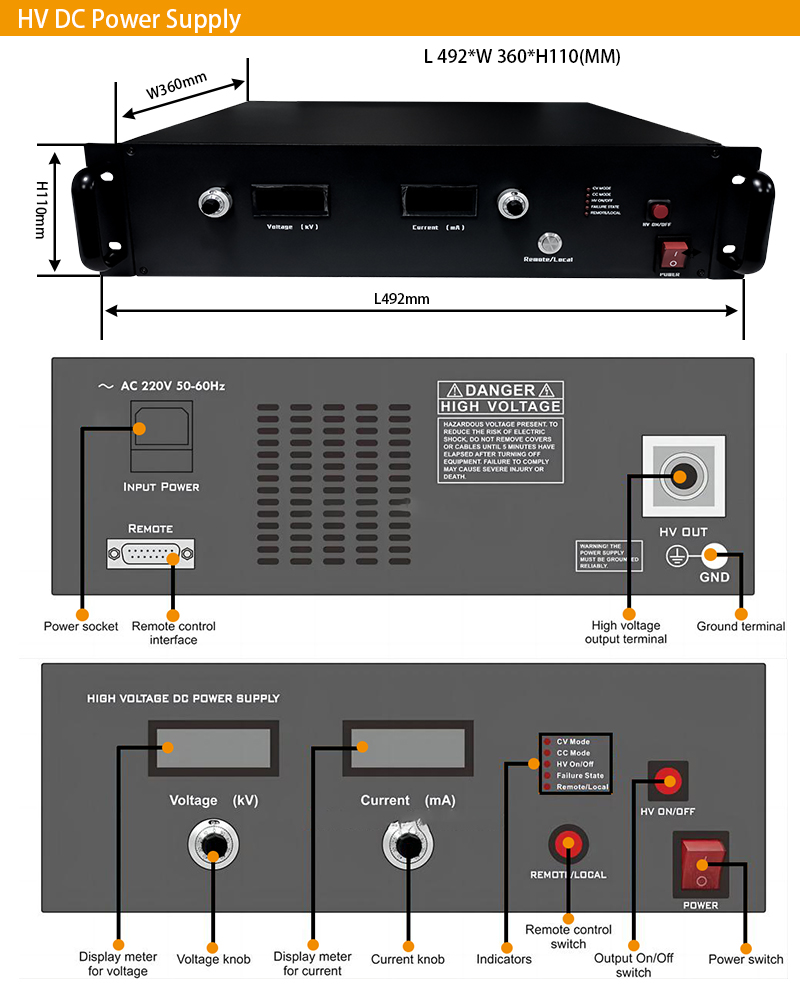

🖼️ X. REFERENCE PICTURES
📋 MODEL LIST
🏭 FACTORY DISPLAY
❓ Frequently Asked Questions
What is the output range of the HV series power supplies?
The HV series provides a wide range of DC output voltages, from 10kV up to 200kV, suitable for various high-voltage applications.
What kind of safety protections are included?
The units feature comprehensive protection systems, including Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), and Short Circuit/Arc protection.
Can the output be controlled remotely?
Yes, the power supply supports both local and remote control. Optional interfaces include 0-10V analog control, RS485, and RS232 with Modbus-RTU support.
What are the primary applications for this equipment?
It is widely used in electrostatic spinning, dust removal, electret processes, capacitor charging, and high-voltage insulation testing.
How is the power supply cooled?
The system utilizes high-efficiency cooling fans to maintain stable operating temperatures during continuous use.
Is the high-voltage cable customizable?
Yes, we offer both shielded and non-shielded high-voltage cables. While the standard length is 1.5 meters, other lengths are available as optional upgrades.
