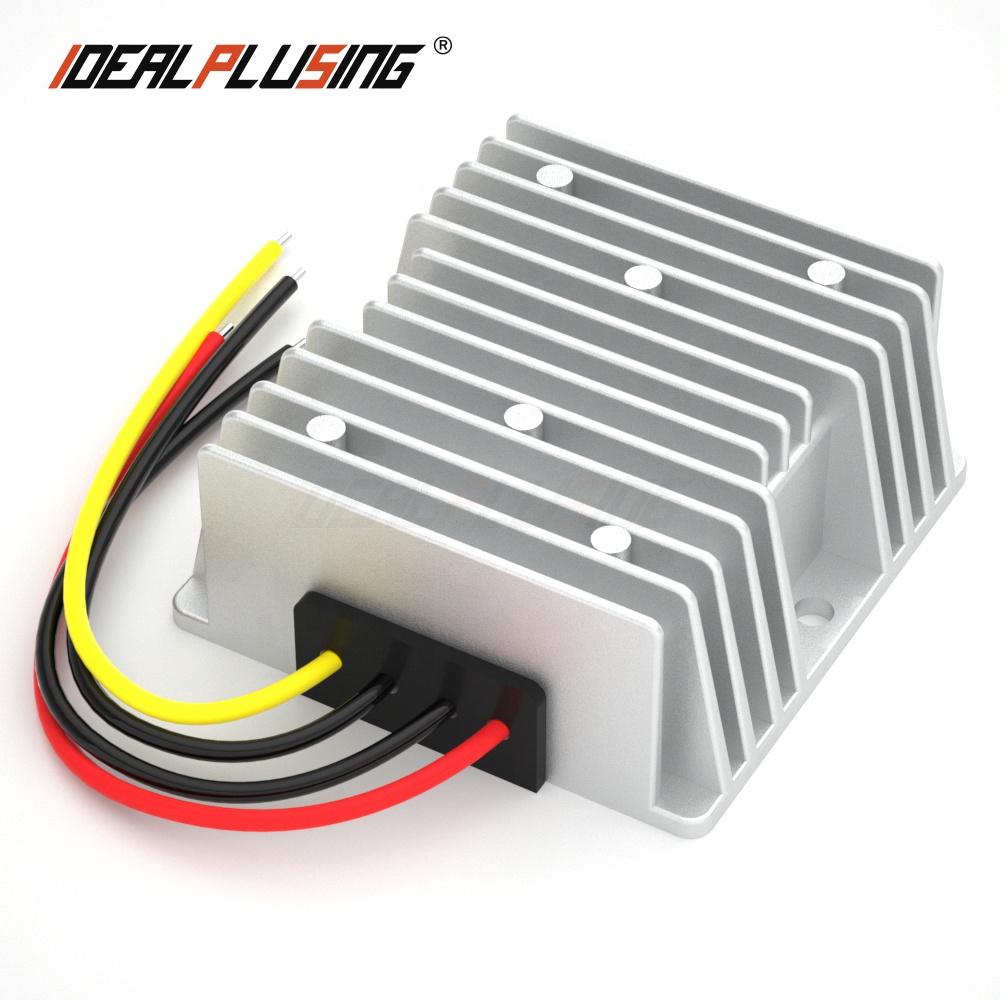

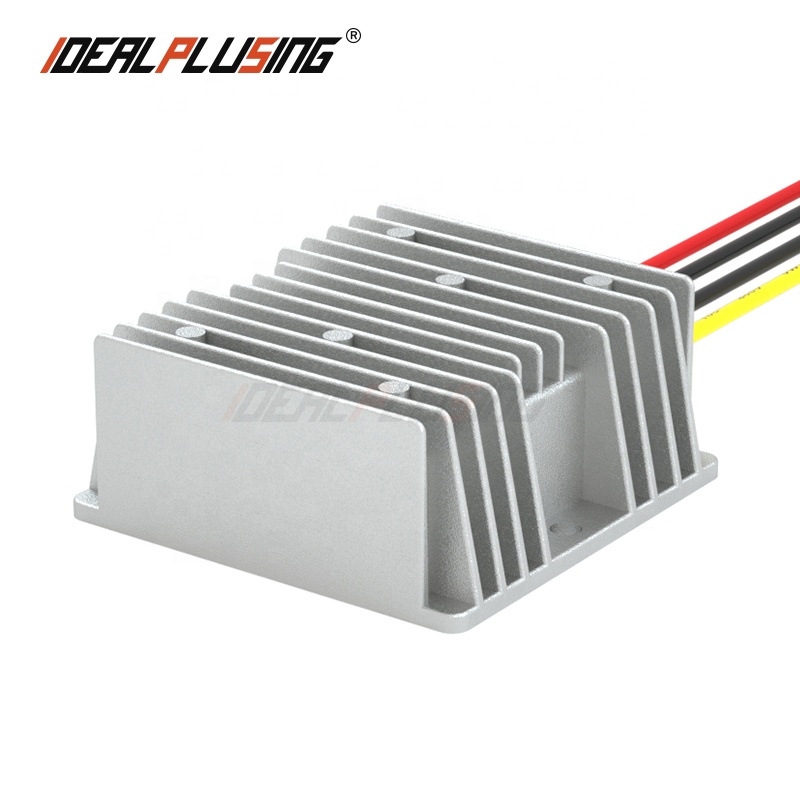

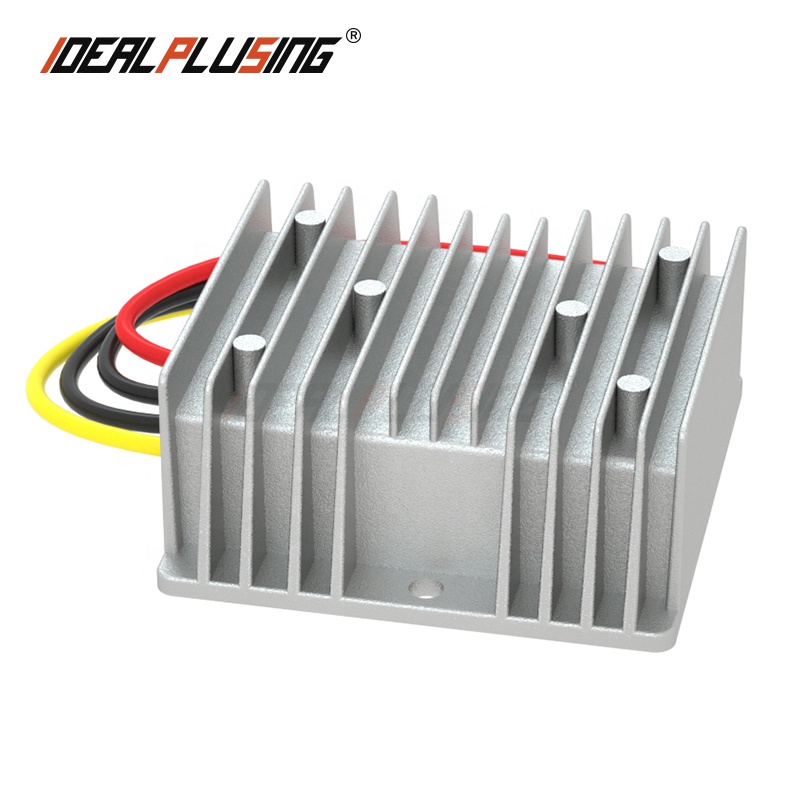

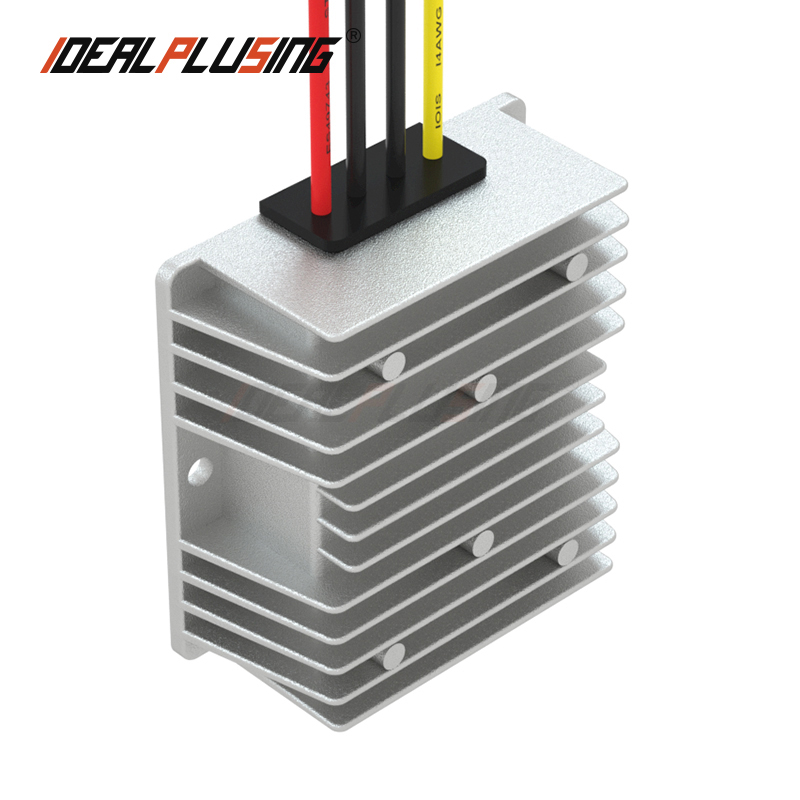

Wide Input (30-120v) 36v 48v 56v 60v 72v 80v 100v 110v 96v to 12v 10a Dc to Dc Step Down Converter Module
Product Description
Wide Input (30-120v) 36v 48v 56v 60v 72v 80v 100v 110v 96v to 12v 10a DC to DC Step Down Converter Module
★ Features & Overview
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories: Boost type, boost & buck type, and buck type. Three kinds of control can be adopted according to the demand. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load. PFM control is implemented when PWM/PFM converts to small load, and it is automatically converted to PWM control when heavy load occurs. At present, DC-DC converters are widely used in mobile phones, MP3, digital cameras, portable media players and other products. It belongs to chopper circuit in the classification of circuit types.
Customization Capabilities
We focus on the research and development of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and charger systems. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A. We provide both isolated and non-isolated converter design options.
📋 Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Brand or OEM |
| Type | Non-isolate |
| Model | Base on model |
| Input Voltage | Base on model |
| Output Voltage | Base on model |
| Output Current | Base on model |
| Output Power | Base on model |
| Shell Material | Aluminum |
| Waterproof Level | IP67 |
⚙ Model Series Reference
| Type | Model/Series | Input to Output | Output Current Options |
|---|---|---|---|
| Boost Converter | IPS-DTD12S24** | 12V to 24V | 1A to 50A |
| Buck Converter | IPS-DTD24S12** | 24V to 12V | 1A to 100A |
| Wide Input Buck | IPS-DTD48S12** | 48V to 12V | 1A to 60A |
| High Voltage Buck | IPS-DTD72S12** | 72V to 12V | 1A to 50A |
| Extreme Wide Input | IPS-DTD96S12** | 96V to 12V | 1A to 20A |
| Isolated Series | IPS-DTDYI48S12* | 30-60V to 12V | 1A to 20A |
🔥 Hot Selling Models
IPS-DTD30-60S1210
Type: Non-Isolate
IPS-DTD20-100S122
Type: Non-Isolate
IPS-DTD15-40S1210
Type: Non-Isolate
💡 Application & Technical Guide
- 1All buck-boost products include overcurrent, short-circuit, and undervoltage protection.
- 2Step-up products require external fuses for short-circuit protection.
- 3Gold aluminum casing is recommended for high-temperature outdoor applications.
- 4For inductive loads (motors, valves), use a supply 3-5 times the rated load power.
- 5Isolated converters are safest for carrying precious loads to prevent direct high-voltage pass-through.
- 6Isolated power supplies support negative voltage input (Red: 0V, Black: Negative).
🖼 Product Gallery
❓ Frequently Asked Questions
What is the main function of this DC-DC converter?
It effectively converts a wide range of input DC voltages (30-120V) to a stable 12V output, suitable for various electronic devices and industrial equipment.
Is the module waterproof for outdoor use?
Yes, the module features an IP67 waterproof rating and is housed in a durable aluminum shell, making it suitable for outdoor and harsh environments.
Why should I choose an isolated converter for my equipment?
Isolated converters provide a safety barrier that prevents high input voltage from reaching the output end in case of a component failure, protecting sensitive and precious loads.
What protection features are included?
Most models include output overcurrent protection, output short-circuit protection, input undervoltage protection, and overheating protection.
Can this converter be used for motor applications?
Yes, but for inductive loads like motors, we recommend using a converter with 3-5 times the rated power of the motor to handle the initial surge current.
Do you offer customization for specific voltages?
Yes, we specialize in customization for both isolated and non-isolated designs, with ranges covering 1V-1000V and currents up to 1000A.
