1 Year Warranty 110Vdc to 24VDC 10A 20A 30A 40A 50A 60A 19INCH 2U Rack Mount Telecom DC-DC Converter
Product Description
1 Year Warranty 110Vdc TO 24VDC 10A 20A 30A 40A 50A 60A 19INCH 2U Rack Mount Telecom DC-DC Converter
1. INFORMATION
DC-DC Converter / DC Conversion Power Supply is specially designed for meeting the requirements of all kinds of communication equipment of communication and electric power departments.
DC-DC Converter / DC Conversion Power Supply adopts the high-frequency switching technology and has many good points, including high accuracy voltage stabilizing, low output noise, strong capacity of resisting disturbance, small volume, lightweight, beautiful external shape, etc. DC-DC Converter / DC Conversion Power Supply is the ideal configuration supplying power to the communication equipment of different voltage grades.
2. FEATURES
1
The use of advanced dual-tube forward switch technology, the isolation between the design of the module to prevent the interaction between the modules.
2
In the case of N + 1 backup, even if one or several modules fail, it does not affect the parallel operation of other modules, and between modules can achieve automatic current sharing.
3
Meet the 220VDC, 110VDC, 24VDC power supply system requirements. Input voltage range is wide, basically applicable to a variety of power grid system power supply requirements, compatibility is better.
4
Header module with 3 and a half of the table display, display the output current and voltage, simple and practical.
5
Module with a width of 19 inches, the height of 2U standard rack-mounted design, the user installed.
6
Wide operating temperature range. -10℃ ~ +50℃ temperature range can be full output power.
7
Small size, light weight, easy after-sales maintenance.
8
Input and output completely isolated, safe and reliable.
9
Advanced current control mode and stable and reliable circuit topology.
10
All the key components used in all imported devices.
11
Protection function comprehensive, the output over-voltage, over-current, short circuit, the whole overheating protection.
12
Can be more than a parallel flow and use. (Optional)
3. MAIN PARAMETER
| Technical Data (IPS-DTD110S24) | 5 | 10 | 20 | 30 | 40 | 50 | Test Conditions | |
|---|---|---|---|---|---|---|---|---|
| Input Voltage Range (VDC) | 110VDC (90-140VDC) | |||||||
| Module Power Surge (A) | DC ≤ 2A | Output Full Load | ||||||
| Output Float Voltage (V) | 24VDC | Factory Settings | ||||||
| Output Current (A) | 5A | 10A | 20A | 30A | 40A | 50A | Output Limit 101%~105% | |
| Load Regulation | ≤±0.5% | Output without load to full load | ||||||
| Power Regulation | ≤±0.2% | |||||||
| Dynamic Response | 100usMax | 20%~100% Load | ||||||
| Phone Scale Noise Voltage (mV) | ≤2 | Noise meter | ||||||
| Peak - peak Noise Voltage (mV) | ≤100 | 0~20MHz | ||||||
| Efficiency | ≥83% | |||||||
| Current Deviation | ≤±5% | |||||||
| Temperature Coefficient (℃) | 0.02% | |||||||
| Over-temperature protection (℃) | 95±5 | Radiator will close when temperature is over 95℃, can recover. | ||||||
| Working Temperature (℃) | -5~45 | |||||||
| Storage Temperature (℃) | -10~85 | |||||||
| Working Humidity | 5%~95% | Non-condensing | ||||||
| Insulation Strength | Leakage Current <30mA | 500Vdc/1min | ||||||
| Insulation Resistance (MΩ) | ≥20 | DC 1KV | ||||||
| MTBF (hrs.) | 100000 | |||||||
| Net Weight (Kg) | 7.5 | |||||||
| Gross Weight (Kg) | 9.5 | |||||||
| Dimension | Rack-mounted (mm) (L * H * D) | 482*88*240(MM) | ||||||
| Dimension | Package | 613*155*413(MM) | ||||||

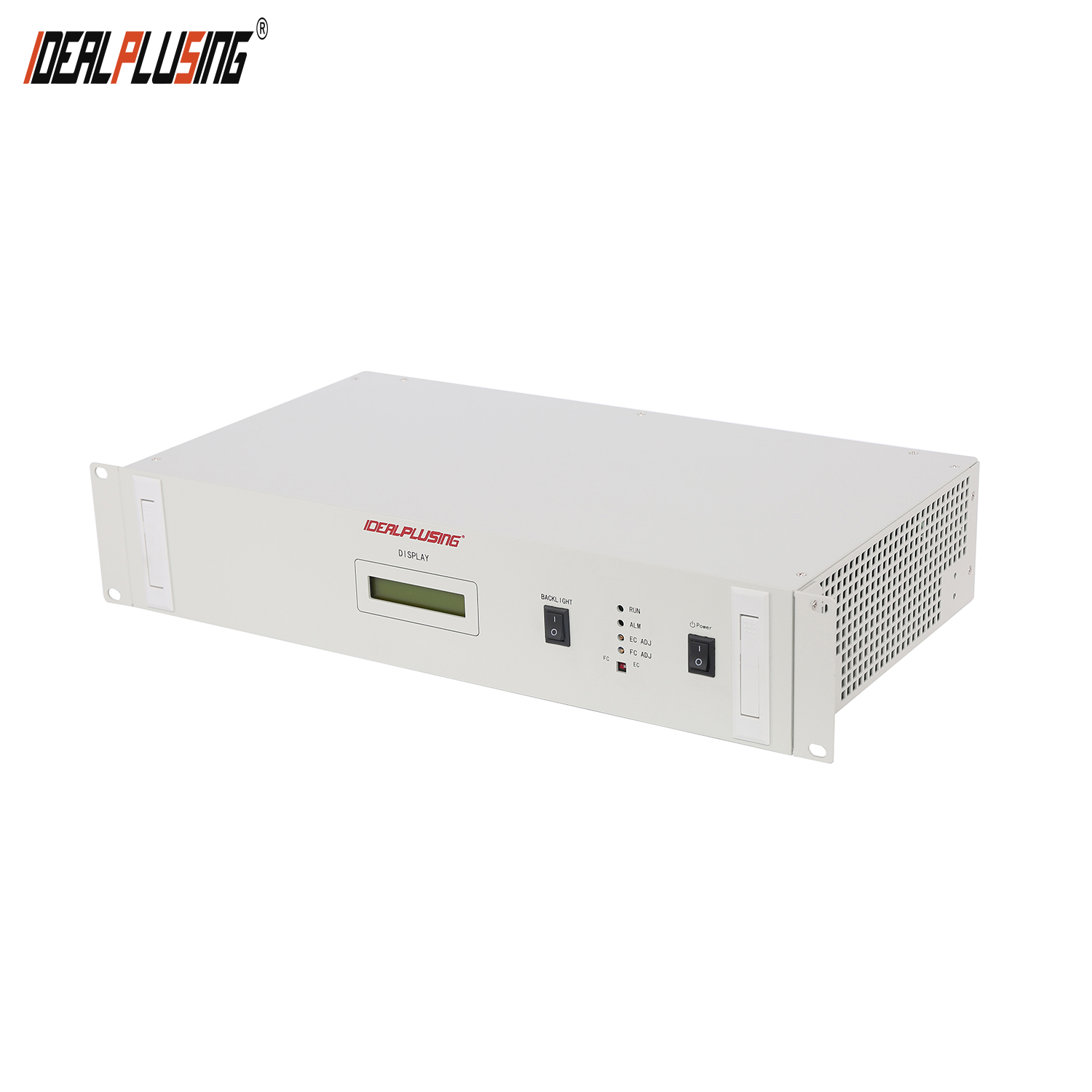

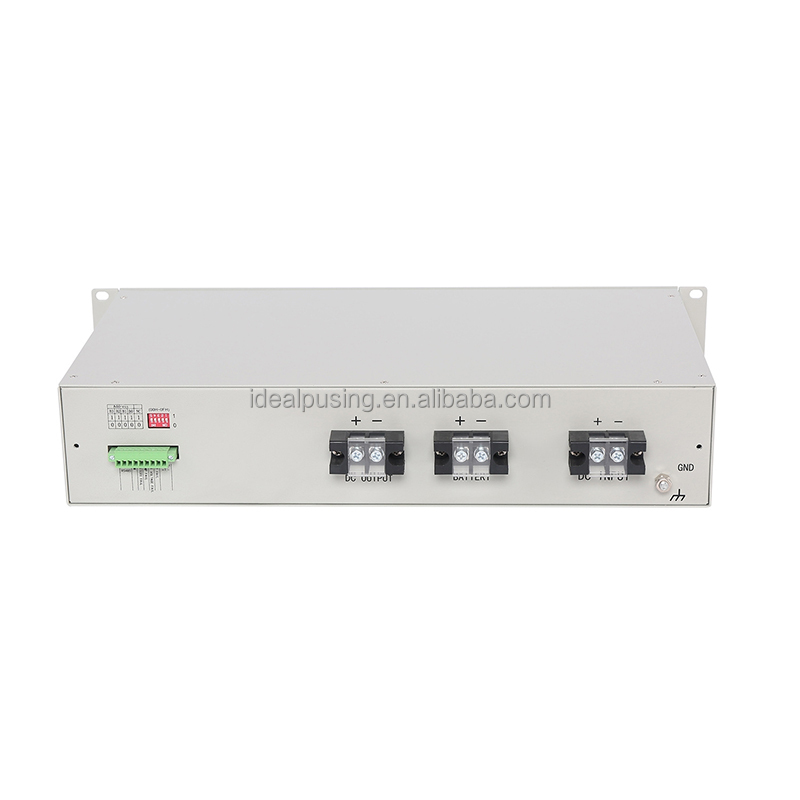

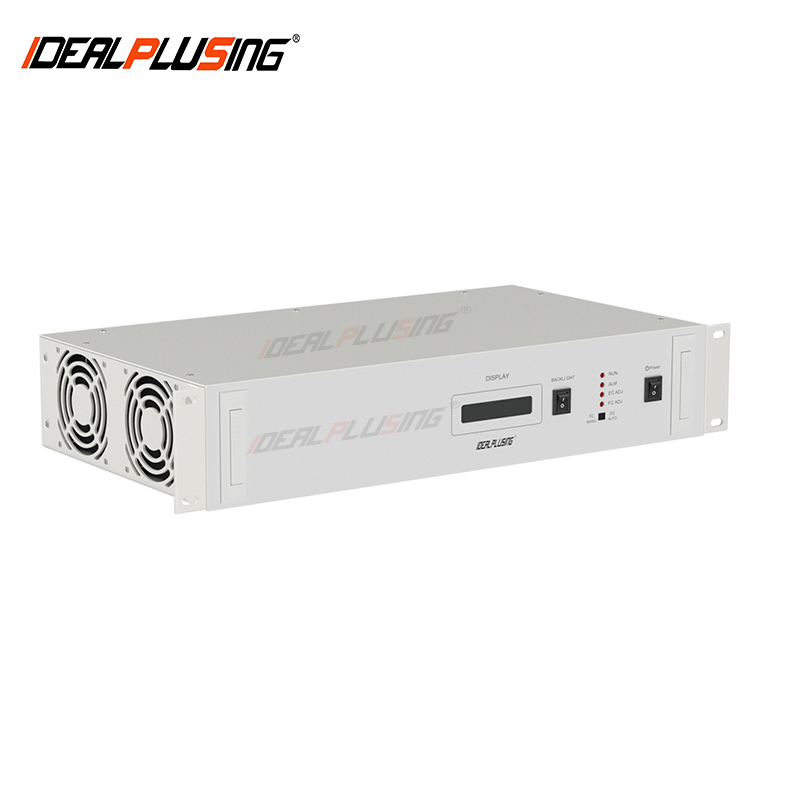

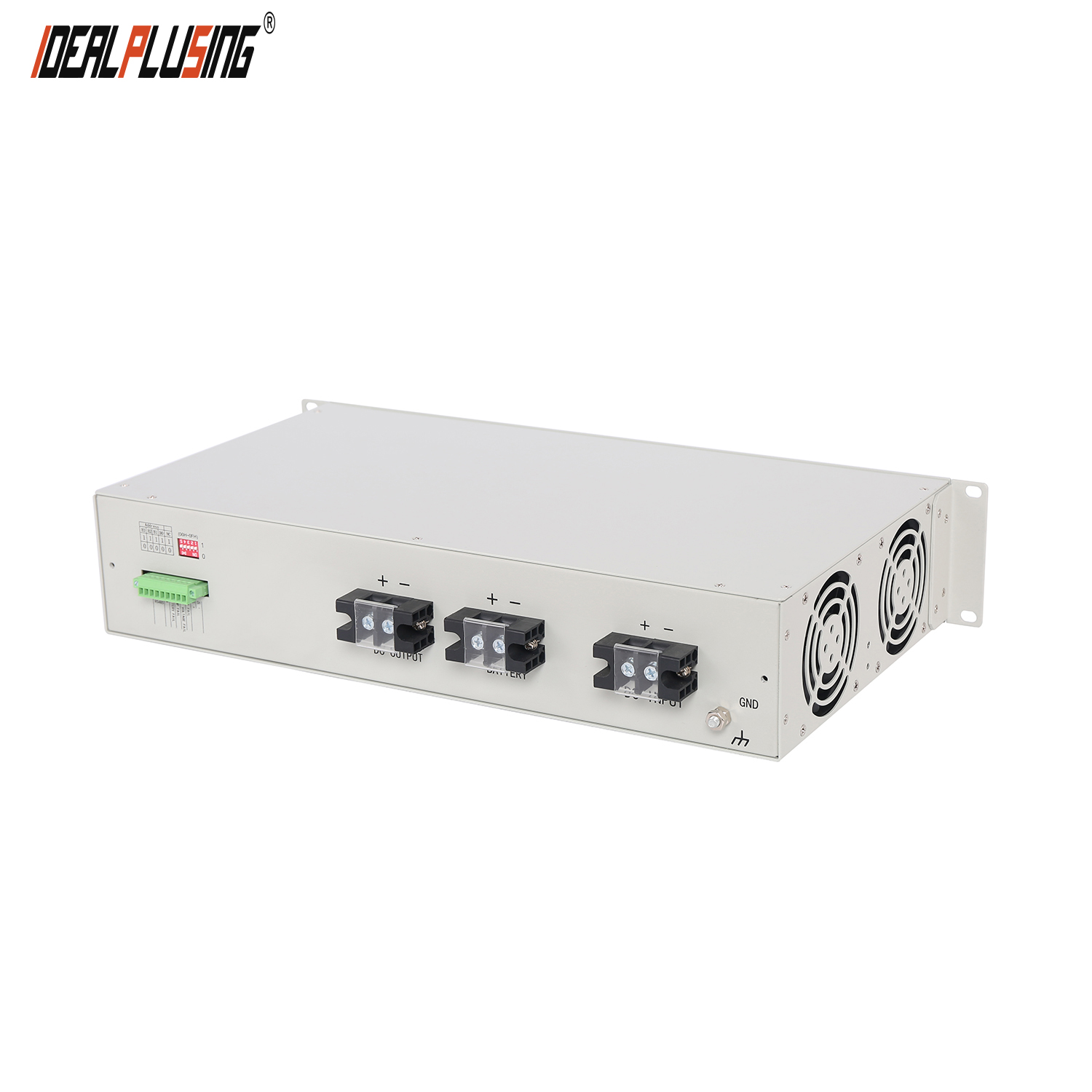

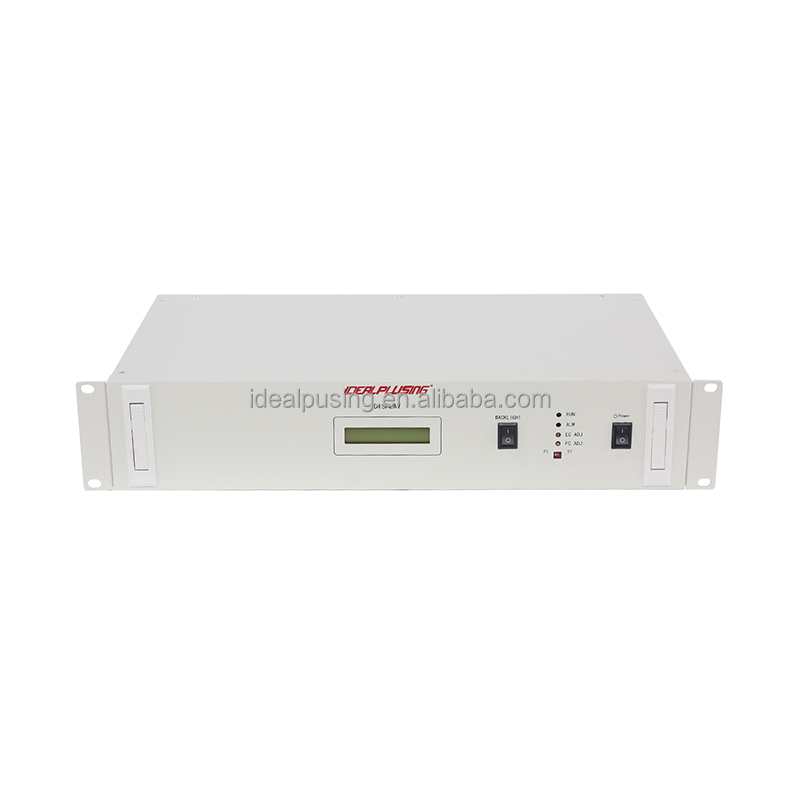

4. REFERENCE PICTURE (WITH BATTERY PORT)
5. BASIC CONNECTION
Factory Display
Frequently Asked Questions (FAQ)
What are the main application fields for this DC-DC Converter?
This DC-DC Converter is specifically designed to meet the power supply requirements of various communication equipment within electric power and communication departments.
How does the N+1 backup system function in this converter module?
In an N+1 backup scenario, if one or more modules experience a failure, it does not affect the parallel operation of the remaining modules. They will achieve automatic current sharing seamlessly.
What are the input and output voltage ranges of this DC-DC Converter?
It meets power systems requiring 110VDC (with a wide input range of 90-140VDC) and converts it to a stable float output voltage of 24VDC.
What safety and protection mechanisms are built into the unit?
The converter features comprehensive protection features, including output over-voltage, over-current, short circuit, and complete system over-temperature protection. Additionally, the radiator automatically closes when temperatures exceed 95±5℃ and recovers once cooled.
What mounting size standard does the module conform to?
The unit utilizes a standard 19-inch width and 2U height design, allowing for convenient installation in standard rack-mount telecom enclosures.
What temperature ranges are supported under full output power?
The converter can supply full output power within a temperature range of -10℃ to +50℃, ensuring high performance in diverse environmental conditions.
