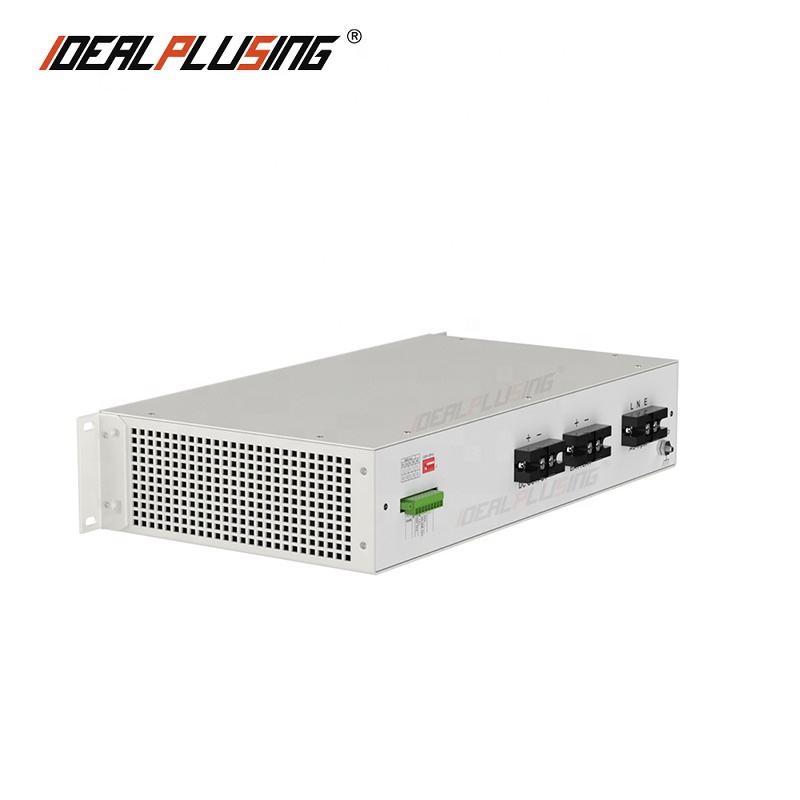

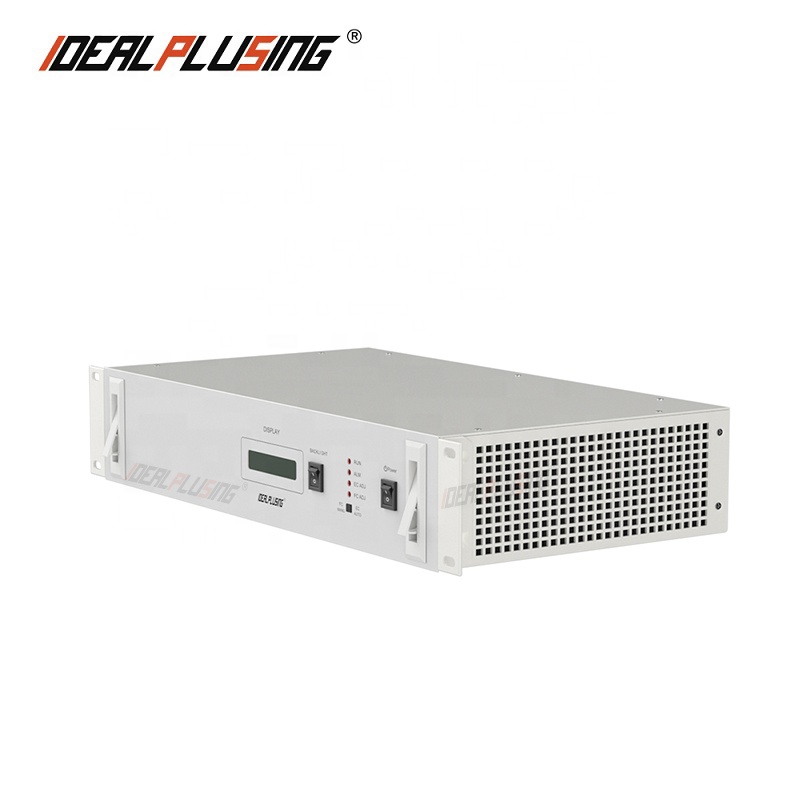

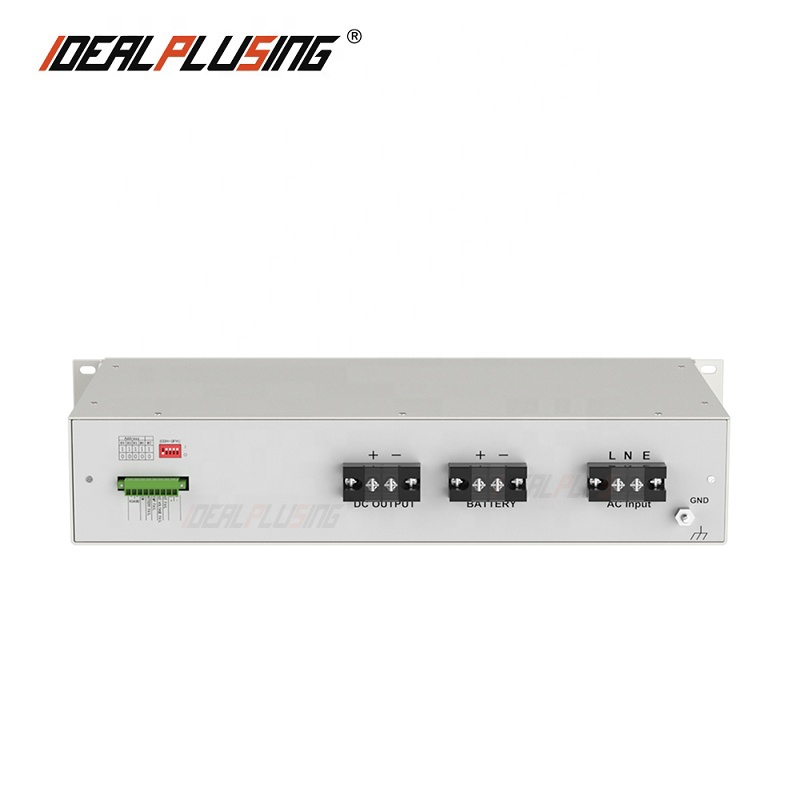

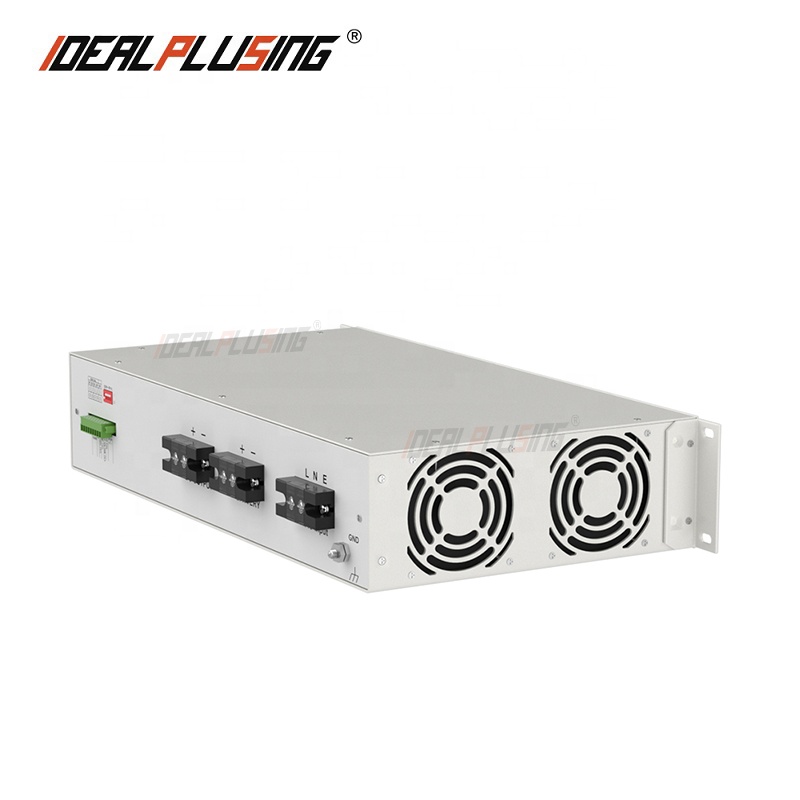

High Voltage and High Current Customized by Factory 220VDC to 48VDC 50A 19 Inch Rack 2400W Dc Dc Converter
Product Description
IPS-DTD220S4850 220VDC to 48VDC 50A DC-DC Converter

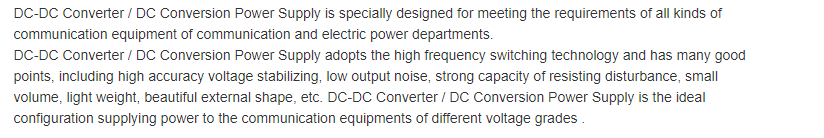

📋 I. PRODUCT INFORMATION
🔗 MODEL QUICK REFERENCE
5V-12V-12A
12/24V-12V-10A
48V-12V-10A
48V-12V-100A
72V-12V-8A
120V-12V-20A
12V-48V-40A
12V-24V-3A
48V-24A-125A
12V-24V-150A
80V-24V-30A
18~36V-28V-20A
12V-56-5A
12V-56V-20A
24V-48V-50A
48V-48V-30A
220V-48V-50A
220V-110V-20A
🚀 II. MAIN FEATURES
✔ Advanced dual-tube forward switch technology with isolated module design.
✔ N + 1 backup support for seamless operation and automatic current sharing.
✔ Compatible with 220V DC, 110V DC, and 24V DC power supply systems.

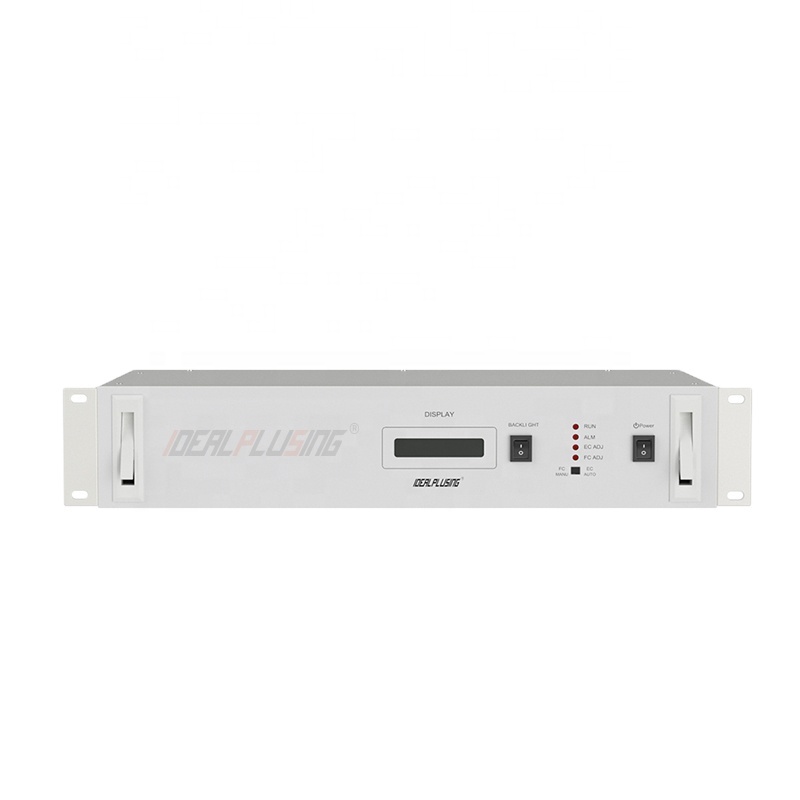

✔ Digital table display for real-time output current and voltage monitoring.
✔ Standard 19-inch width, 2U rack-mounted design for easy installation.
✔ Wide operating temperature range: -10°C to +50°C at full power.
✔ Fully isolated input and output for maximum safety and reliability.
✔ Compact size and light weight, facilitating easy maintenance.
✔ Comprehensive protection: over-voltage, over-current, short circuit, and overheating.
✔ High-quality imported key components for long-term stability.

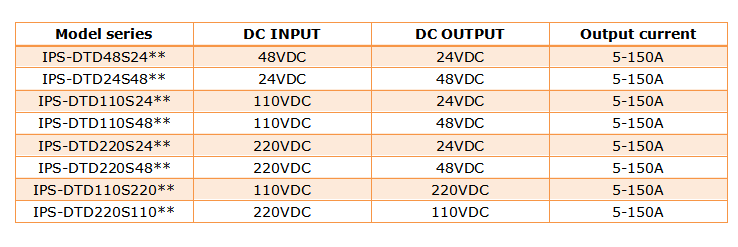

⚙️ III. CUSTOMIZE RANGE
📊 IV. TECHNICAL PARAMETERS
| Technical Data | IPS-DTD220S4850 | Test Conditions |
|---|---|---|
| Input Voltage Range | 180~270 VDC | - |
| Input Current | 12.8A | - |
| Module Power Surge | DC ≤ 2A | Output Full Load |
| Output Float Voltage | 48VDC | Factory Settings |
| Output Current | 50A | Limit 101%~105% |
| Load Regulation | ≤ ±0.5% | No load to full load |
| Efficiency | ≥ 83% | - |
| Dynamic Response | 100us Max | 20%~100% Load |
| Peak-peak Noise | ≤ 100 mV | 0~20MHz |
| Over-temperature Protection | 95 ± 5°C | Auto-recoverable |
| Working Humidity | 5%~95% | Non-condensing |
| Net Weight | 7.5 Kg | - |
| Dimension (L*H*D) | 482*88*240 mm | Rack-mounted |
🏭 FACTORY DISPLAY
💡 RECOMMENDED PRODUCTS
Frequently Asked Questions
What is the input voltage range for this DC-DC converter?
The IPS-DTD220S4850 supports a wide DC input voltage range from 180VDC to 270VDC, making it suitable for various power grid systems.
Can multiple units be used in parallel?
Yes, the unit supports N+1 backup. Modules can achieve automatic current sharing, and if one module fails, it does not affect the operation of others in the parallel system.
What kind of protection features are included?
The converter includes comprehensive protection functions such as output over-voltage, over-current, short circuit, and full-unit overheating protection (95°C threshold).
What is the physical size and installation type?
This is a standard 2U rack-mounted design with a width of 19 inches. Its dimensions are 482mm x 88mm x 240mm (L*H*D).
Is the input isolated from the output?
Yes, the input and output are completely isolated, ensuring high safety and reliability for connected electronic equipment.
What is the efficiency rating of this converter?
The converter is highly efficient, with an efficiency rating of ≥ 83% under standard operating conditions.
