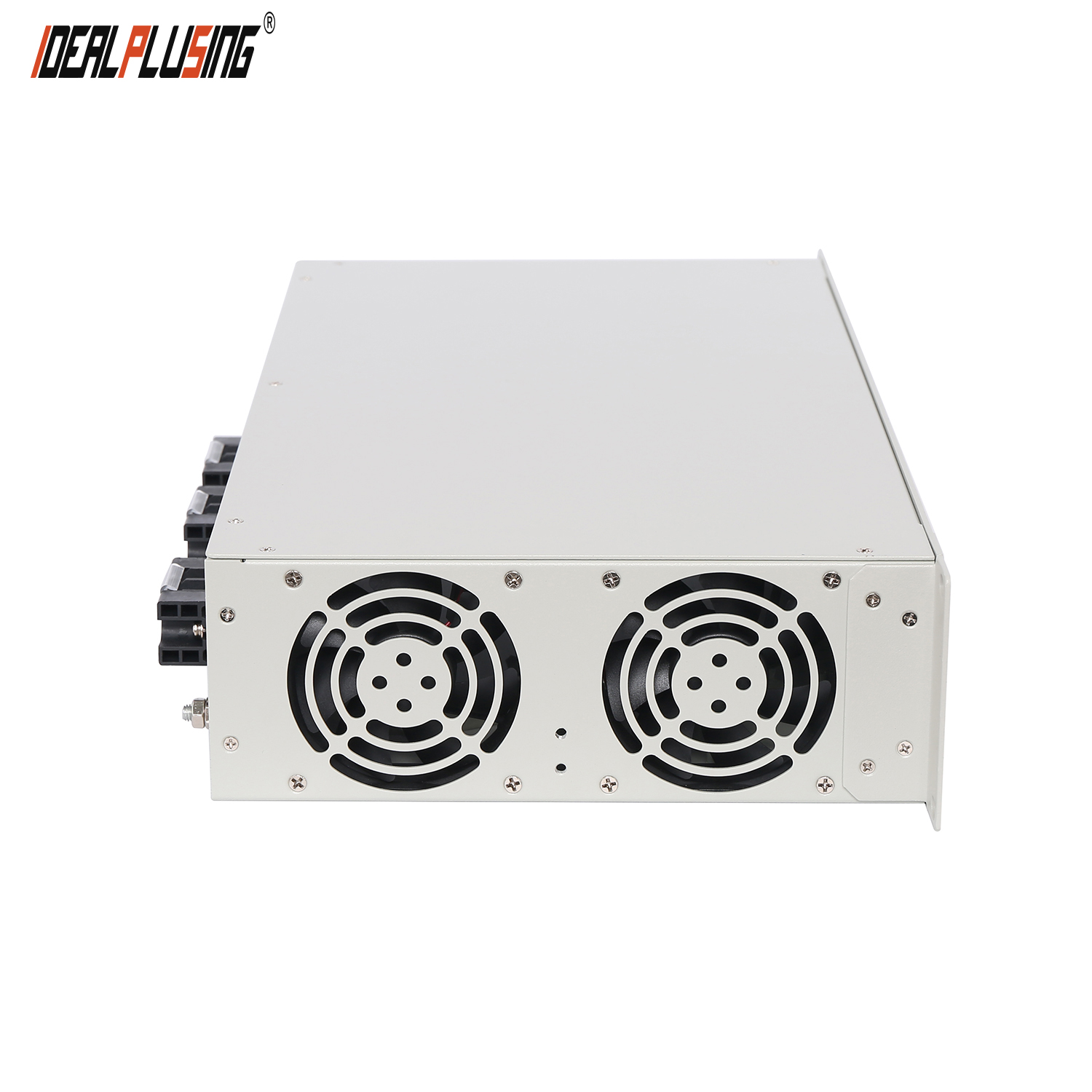

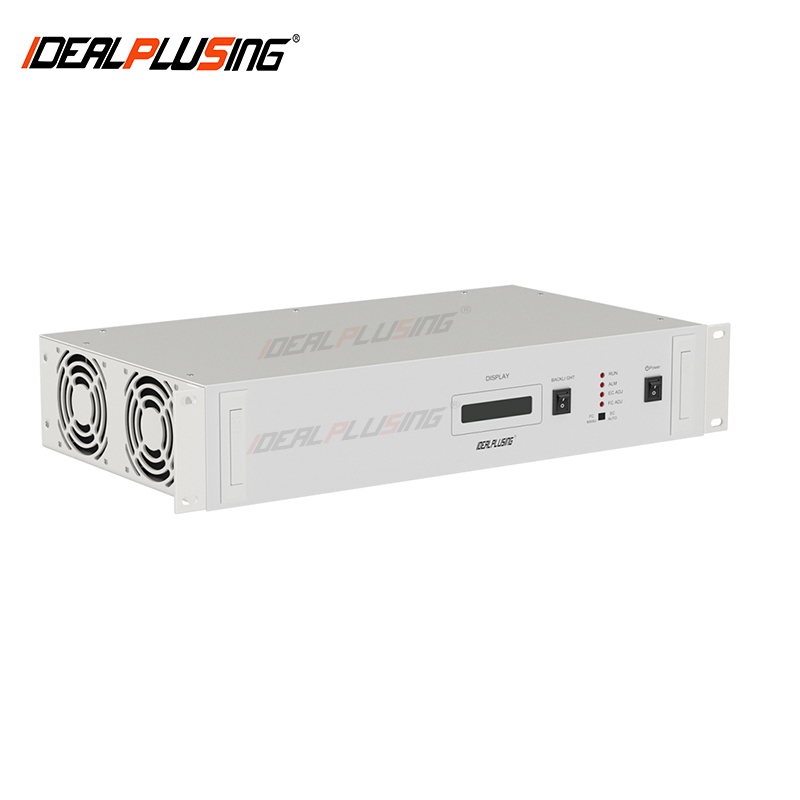

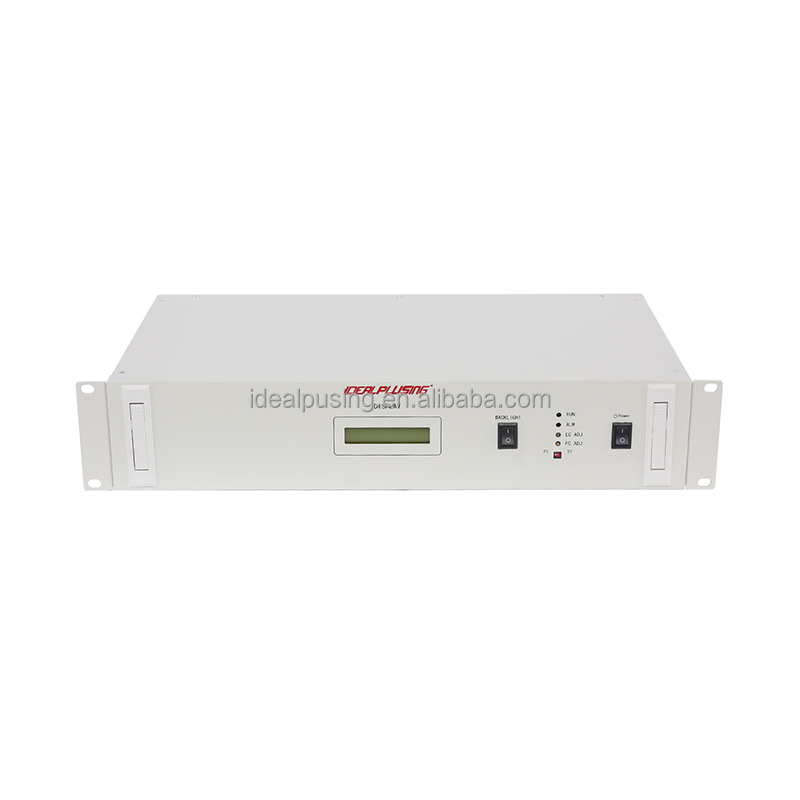

IPS-DTD220S4850 DC to Dc Step Down 220v to 48v 50a 2400w Converter for Motor Use
Product Description
IPS-DTD220S4850 DC to DC Step Down 220V to 48V 50A 2400W Converter
1. INFORMATION
DC-DC Converter / DC Conversion Power Supply is specially designed for meeting the requirements of all kinds of communication equipment of communication and electric power departments.
DC-DC Converter / DC Conversion Power Supply adopts the high-frequency switching technology and has many good points, including high accuracy voltage stabilizing, low output noise, strong capacity of resisting disturbance, small volume, lightweight, beautiful external shape, etc. DC-DC Converter / DC Conversion Power Supply is the ideal configuration supplying power to the communication equipment of different voltage grades.
DC-DC Converter / DC Conversion Power Supply adopts the high-frequency switching technology and has many good points, including high accuracy voltage stabilizing, low output noise, strong capacity of resisting disturbance, small volume, lightweight, beautiful external shape, etc. DC-DC Converter / DC Conversion Power Supply is the ideal configuration supplying power to the communication equipment of different voltage grades.
2. FEATURES
✔
Advanced dual-tube forward switch technology with module isolation to prevent interaction.
✔
N + 1 backup support: failure of one module does not affect others; automatic current sharing.
✔
Wide input voltage range, applicable to 220VDC, 110VDC, and 24VDC power systems.
✔

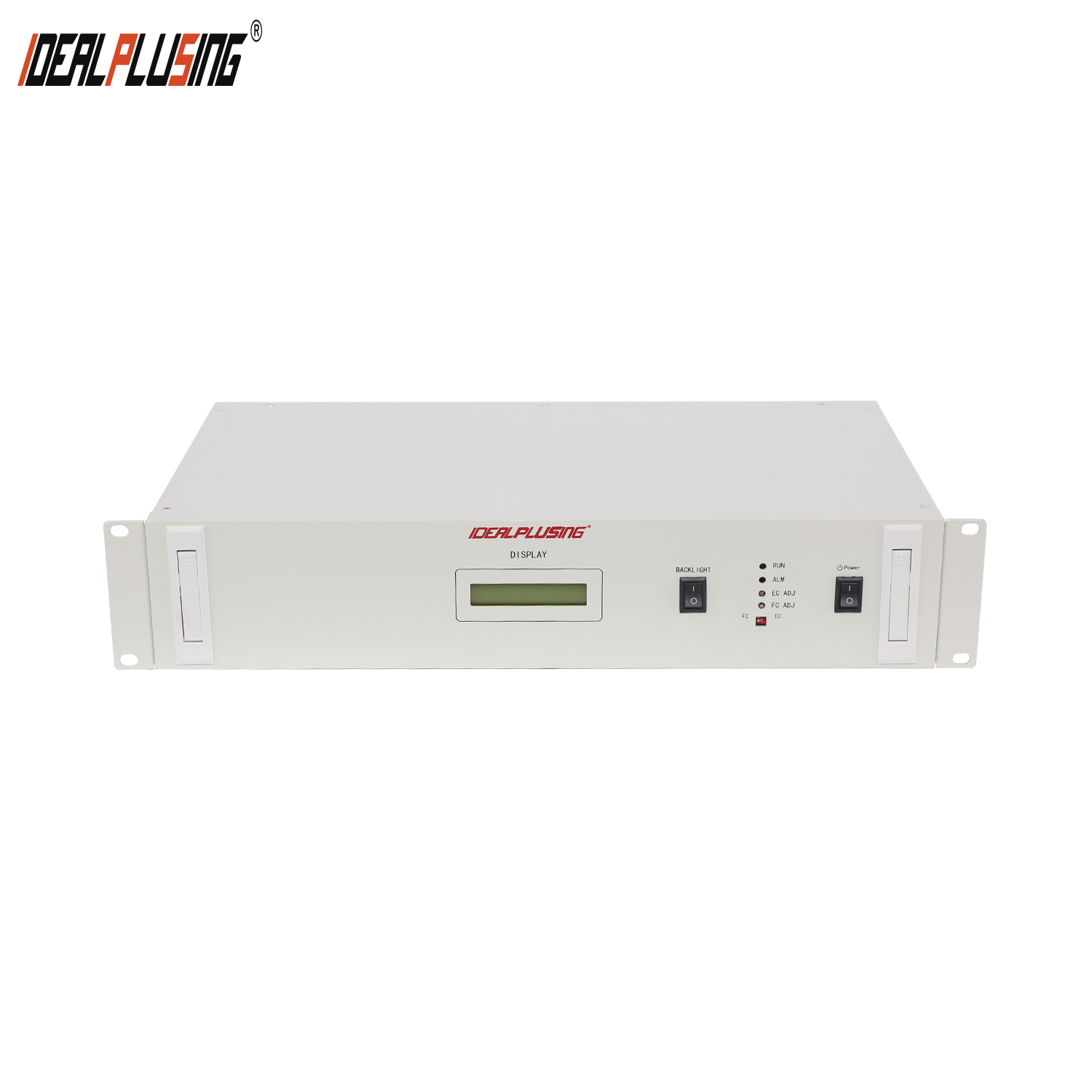

Header module with real-time table display for output current and voltage.
✔
Standard 19-inch width and 2U height rack-mounted design for easy installation.
✔
Wide operating temperature range (-10℃ ~ +50℃) with full power output.
✔
Completely isolated input and output for maximum safety and reliability.
✔
Advanced current control mode and stable circuit topology.
✔
Key components utilize high-quality imported devices.
✔
Comprehensive protection: over-voltage, over-current, short circuit, and overheating.
3. MAIN PARAMETER
| Technical Data (IPS-DTD220S48) | 10 | 20 | 30 | 40 | 50 | Test Conditions | |
|---|---|---|---|---|---|---|---|
| Input Voltage Range (VDC) | 180~270VDC | - | |||||
| Module Power Surge (A) | DC≤2A | Output Full Load | |||||
| Output Float Voltage (V) | 48VDC | Factory Settings | |||||
| Output Current (A) | 10A | 20A | 30A | 40A | 50A | Limit 101%~105% | |
| Load Regulation | ≤±0.5% | No load to full load | |||||
| Peak - peak Noise Voltage (mV) | ≤100 | 0~20MHz | |||||
| Efficiency | ≥83% | - | |||||
| Over-temperature protection (℃) | 95±5 | Radiator close >95℃ | |||||
| Working Humidity | 5%~95% | Non-condensing | |||||
| Net Weight (Kg) | 7.5 | - | |||||
| Dimension | Rack-mounted (mm) | 482*88*240(MM) | L * H * D | ||||

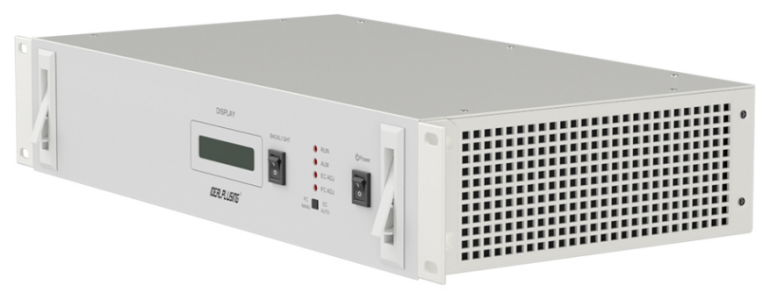

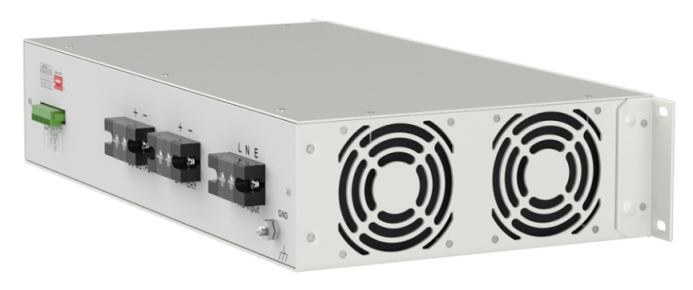

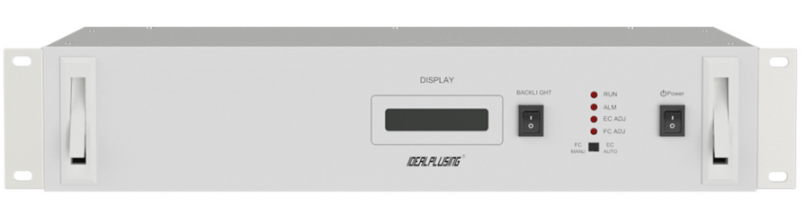

4. REFERENCE PICTURES

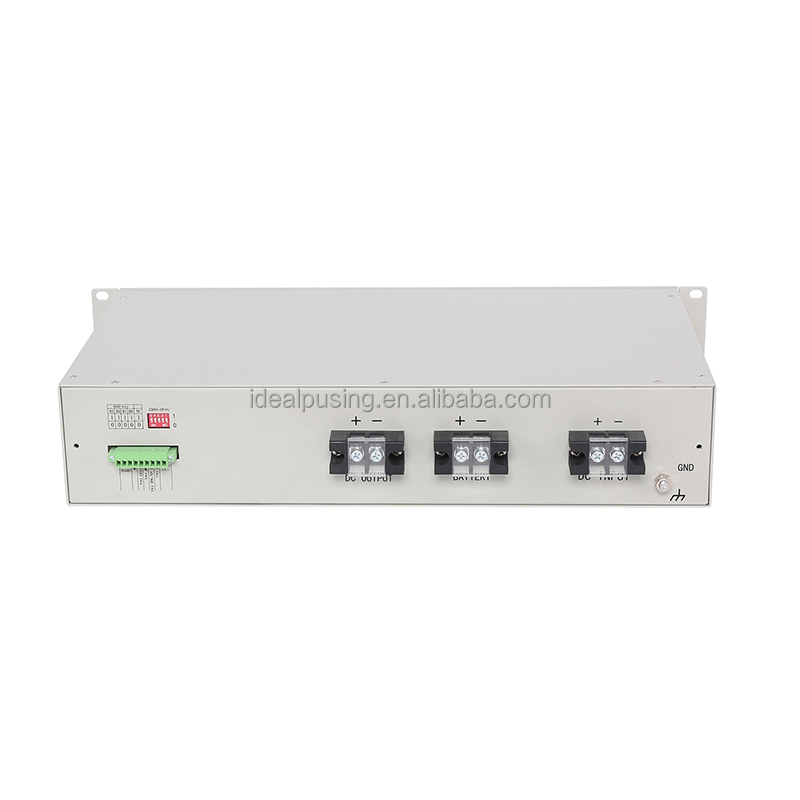

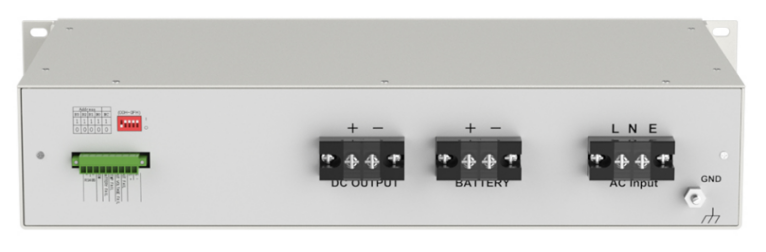

5. BASIC CONNECTION
Frequently Asked Questions
Q1: What is the main application of the IPS-DTD220S4850 converter?
A: It is primarily designed for communication equipment in electric power departments and motor use, converting 220VDC down to a stable 48VDC.
Q2: Can this unit handle high-temperature environments?
A: Yes, it operates within a range of -10℃ to +50℃. It also includes an over-temperature protection system that activates at 95±5℃.
Q3: Does it support parallel operation for higher power needs?
A: Yes, it features N+1 backup technology, allowing multiple modules to work in parallel with automatic current sharing.
Q4: Is the output voltage adjustable?
A: The standard factory float voltage is set to 48VDC, which is ideal for most communication and motor applications.
Q5: How do I monitor the output during operation?
A: The module is equipped with a header display that shows real-time output current and voltage for easy monitoring.
Q6: What are the installation requirements for this converter?
A: It features a standard 19-inch 2U rack-mounted design, making it compatible with most industrial power racks and cabinets.
