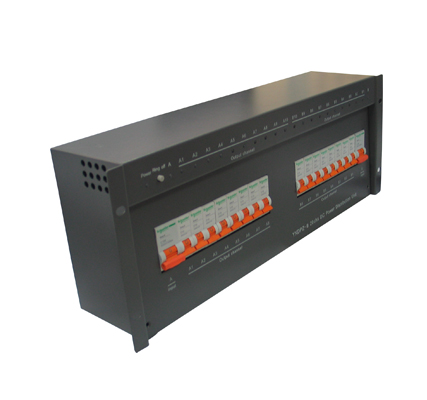

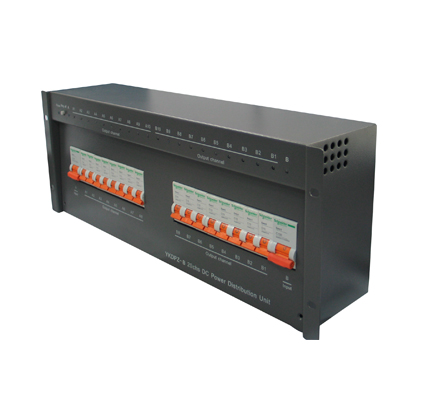

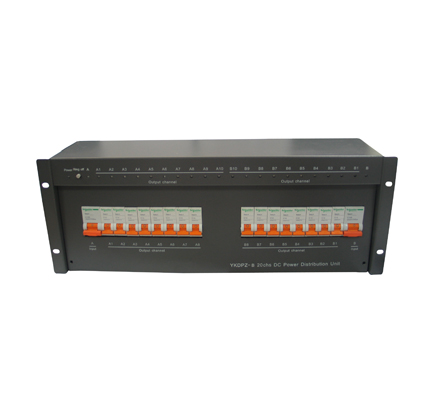

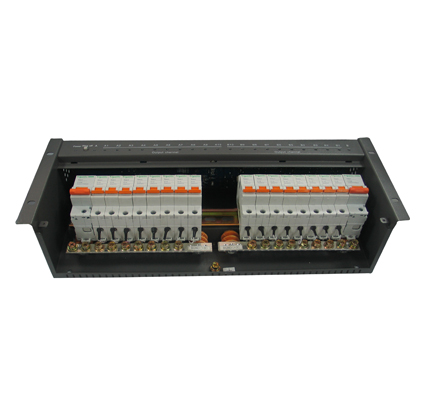

Made in China Custtomized 1-18 Channels Power Distribution System PDU
Product Description

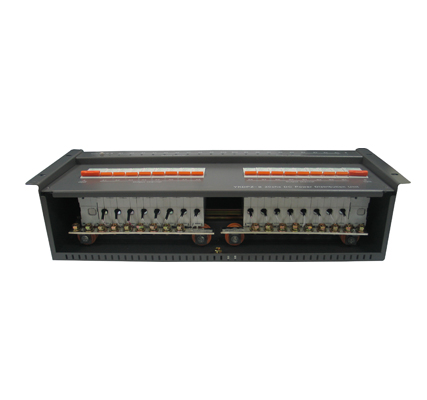

Product Model: IPSDPZ-B
🚀 Product Information
IPSDPZ-B is a DC power distribution system module with a 19-inch standard structure. Its compact design ensures it is easy to install and operate within various rack environments.
This system features an A-B dual-channel input and supports multi-channel output, with a maximum capacity of up to 18 channels. For enhanced safety and monitoring, it includes a visual-aural alarm system that triggers upon failure, complemented by an LED display for real-time running status updates.
With 18 channels of rack power distribution, this unit offers excellent performance and reliable quality. It is widely utilized across sectors such as Telecom, BTS, Mobile, Unicom, electric power, public security, and more.
🛠️ Customize Range
Regarding PDU/DC Distribution Units, we offer comprehensive customization for all kinds of PDUs according to your specific requirements.
| DC Distribution Unit Customization Specifications | ||
|---|---|---|
| Input Options | ||
| Channel | Voltage (Optional) | Circuit Breaker / Air Switch |
| 2 Channels | -48/24/220/110VDC or -48/24/220/110VAC | 10A, 16A, 32A, 63A, 100A, 125A / 800A |
| Output Options | ||
| Channel | Voltage (Optional) | Circuit Breaker / Air Switch |
| 1-36 Channels (Customizable) | -48/24/220/110VDC or -48/24/220/110VAC | 10A, 16A, 32A, 63A, 100A, 125A / 800A (Optional) |
| Alarming | With or without alarming function (Optional) | |
| Rack Mount | 2U - 6U height customization available | |
📊 Technical Specification
| Item | Technical Specification |
|---|---|
| Rated Voltage | -48VDC / 24VDC / 220VDC / 110VDC or -48VAC / 24VAC / 220VAC / 110VAC |
| Insulation Resistance | ≥30MΩ |
| Insulating Intensity | Input—housing: AC1000V, 50Hz, 1 minute Output-housing: AC1000V, 50Hz, 1 minute |
| Input Channels | 2 channels; DC-48V, 10A to 125A circuit breaker/air switch optional |
| Output Channels | 1-18 channels; DC-48V; 10A to 125A current capacity optional |
| Alarm System | Visual-aural alarm signal. Red LED illuminates and buzzer sounds upon channel failure. |
| Working Environment | Temp: 0℃ ~ 40℃; Humidity: ≤90% (+20±5℃); Pressure: 70Kpa ~ 106Kpa |
| Dimension & Weight | 483 mm * 176 mm * 95 mm (L*D*H); Approx 5.5Kg |
🔔 Frequently Asked Questions
What is the standard mounting size for the IPSDPZ-B?
The unit is designed with a standard 19-inch structure, making it compatible with most industrial telecom racks.
How does the alarm system notify users of a fault?
It uses a visual-aural system. A red LED will light up and an audible buzzer will sound if any channel fails.
Can I customize the number of output channels?
Yes, the system is highly flexible and can be customized to support anywhere from 1 to 36 output channels.
What are the available voltage options for this DC PDU?
It supports multiple DC voltages including -48V, 24V, 220V, and 110V, as well as AC options if required.
What is the typical weight and dimensions of the 18-channel unit?
The standard dimensions are 483mm x 176mm x 95mm, and it weighs approximately 5.5Kg.
In which industries is this power distribution unit commonly used?
It is widely used in Telecom, BTS stations, mobile networks, electric power systems, and public security infrastructure.
