19 Inch Rack Mount 2U DC DC Converter Transformer 220v to 110v Dc 10A 20A 2200w Inverter Rectifier for Telecom
Product Description
📢 PART 1: PRODUCT INFORMATION
DC-DC Converter / DC Conversion Power Supply is specially designed for meeting the requirements of all kinds of communication equipment of communication and electric power departments.
It adopts the high frequency switching technology and has many good points, including high accuracy voltage stabilizing, low output noise, strong capacity of resisting disturbance, small volume, light weight, and beautiful external shape. It is the ideal configuration supplying power to communication equipment of different voltage grades.
⚡ PART 2: KEY FEATURES
✔
Advanced dual-tube forward switch technology with module isolation design to prevent interaction.
✔
N + 1 backup support: failure of one module does not affect parallel operation and automatic current sharing.
✔
Compatible with 220V DC, 110V DC, and 24V DC systems with a wide input voltage range.
✔
Header module with clear table display for output current and voltage monitoring.
✔
Standard 19-inch width and 2U height rack-mounted design for easy installation.
✔
Wide operating temperature range: -10 ℃ ~ +50 ℃ with full output power capacity.
✔
Input and output completely isolated, ensuring safe and reliable performance.
✔
Comprehensive protection: over-voltage, over-current, short circuit, and overheating protection.
📊 PART 3: TECHNICAL SPECIFICATIONS
| Technical Data | Value | Test Conditions |
|---|---|---|
| Input Voltage Range | 180V-270VDC | |
| INPUT Current (A) | 11.11A | |
| Module Power Surge (A) | DC≤2A | Output Full Load |
| Output Float Voltage (V) | 110VDC | Factory Settings |
| Output Current (A) | 20A | Output Limit 101%～105% |
| Load Regulation | ≤±0.5% | Output without load to full load |
| Power Regulation | ≤±0.2% | |
| Dynamic Response | 100us Max | 20%～100% Load |
| Phone Scale Noise (mV) | ≤2 | Noise meter |
| Peak - peak Noise (mV) | ≤100 | 0~20MHz |
| Efficiency | ≥83% | |
| Current Deviation | ≤±5% | |
| MTBF (hrs.) | 100,000 | |
| Dimension (MM) | 482*88*240 | Rack-mounted (L * H * D) |

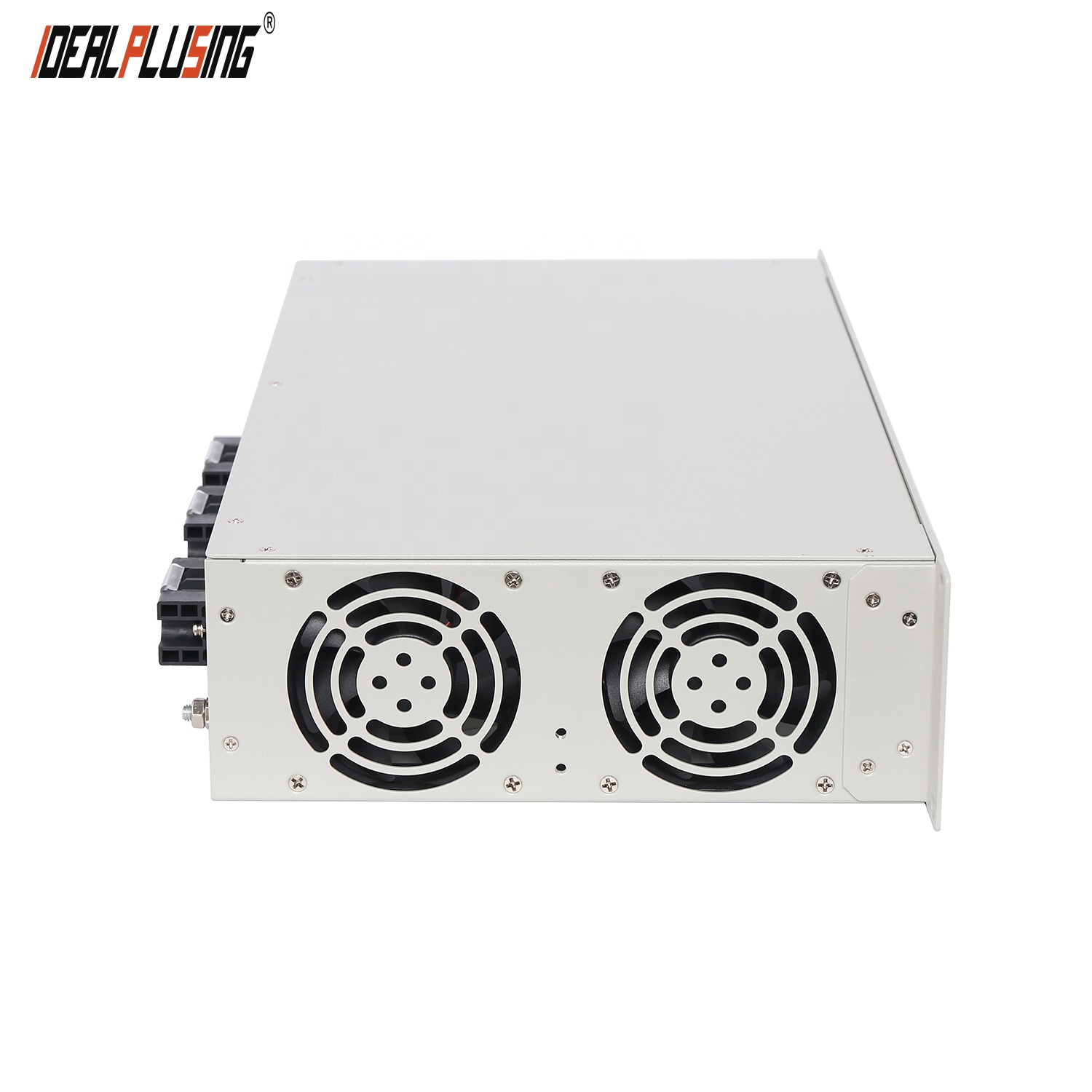

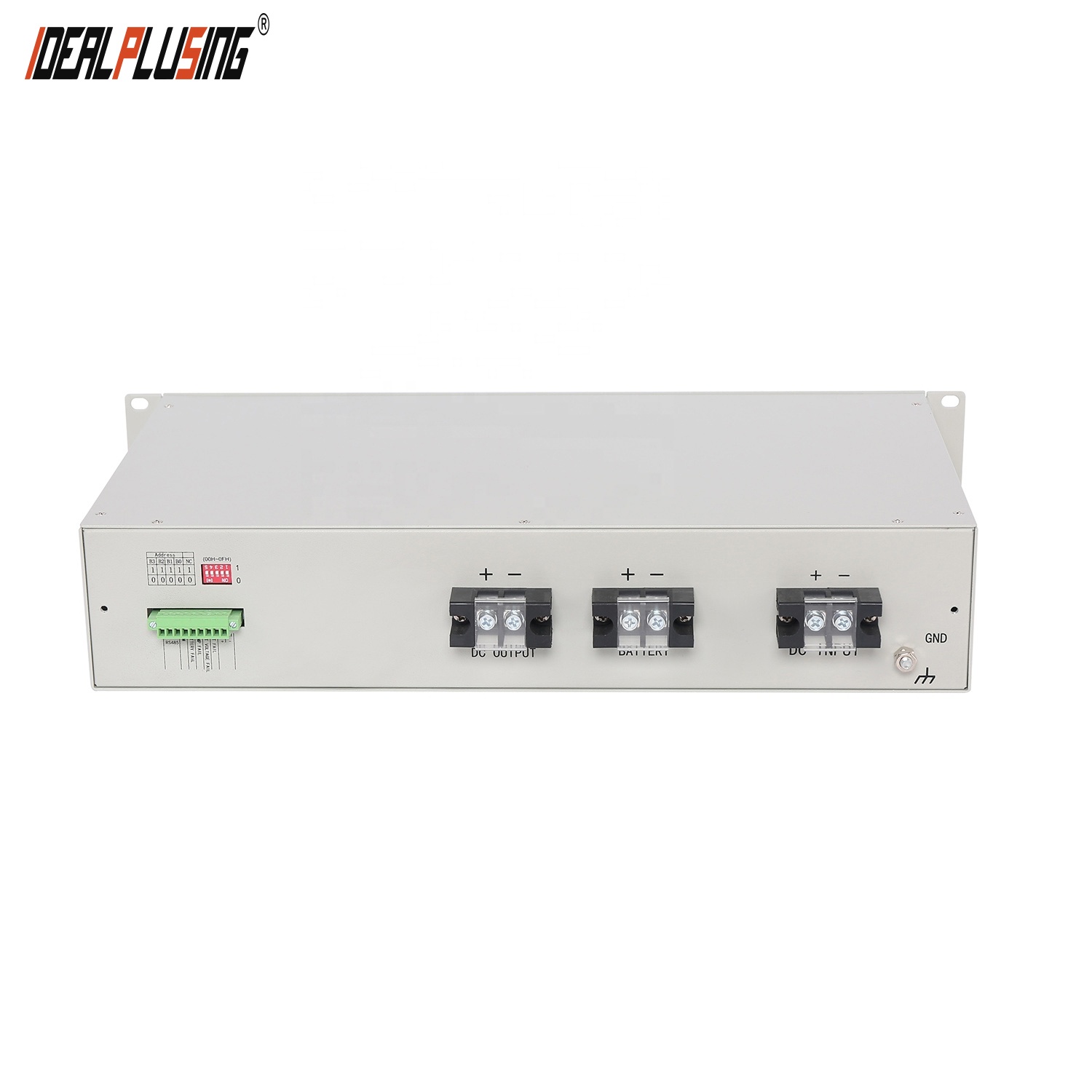

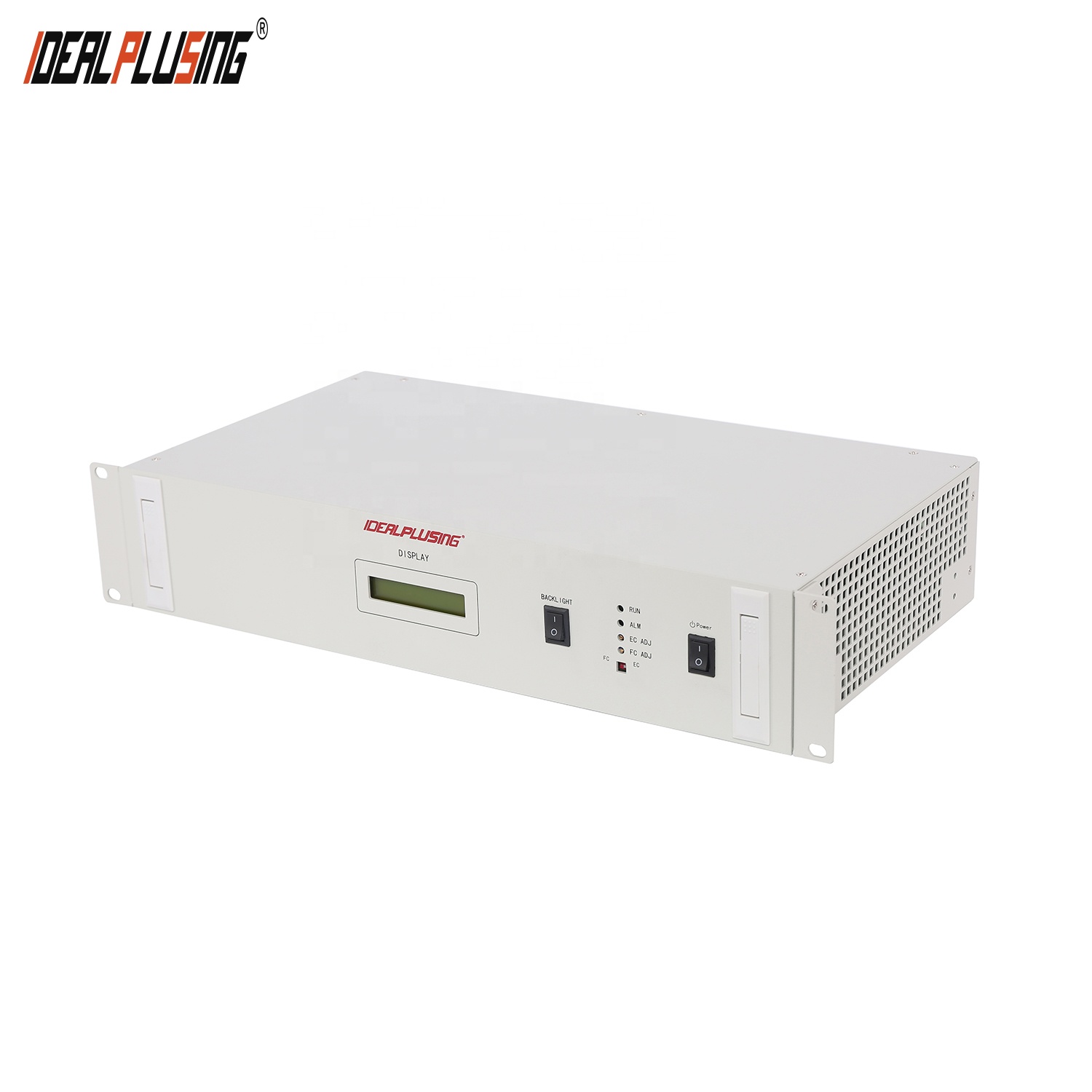

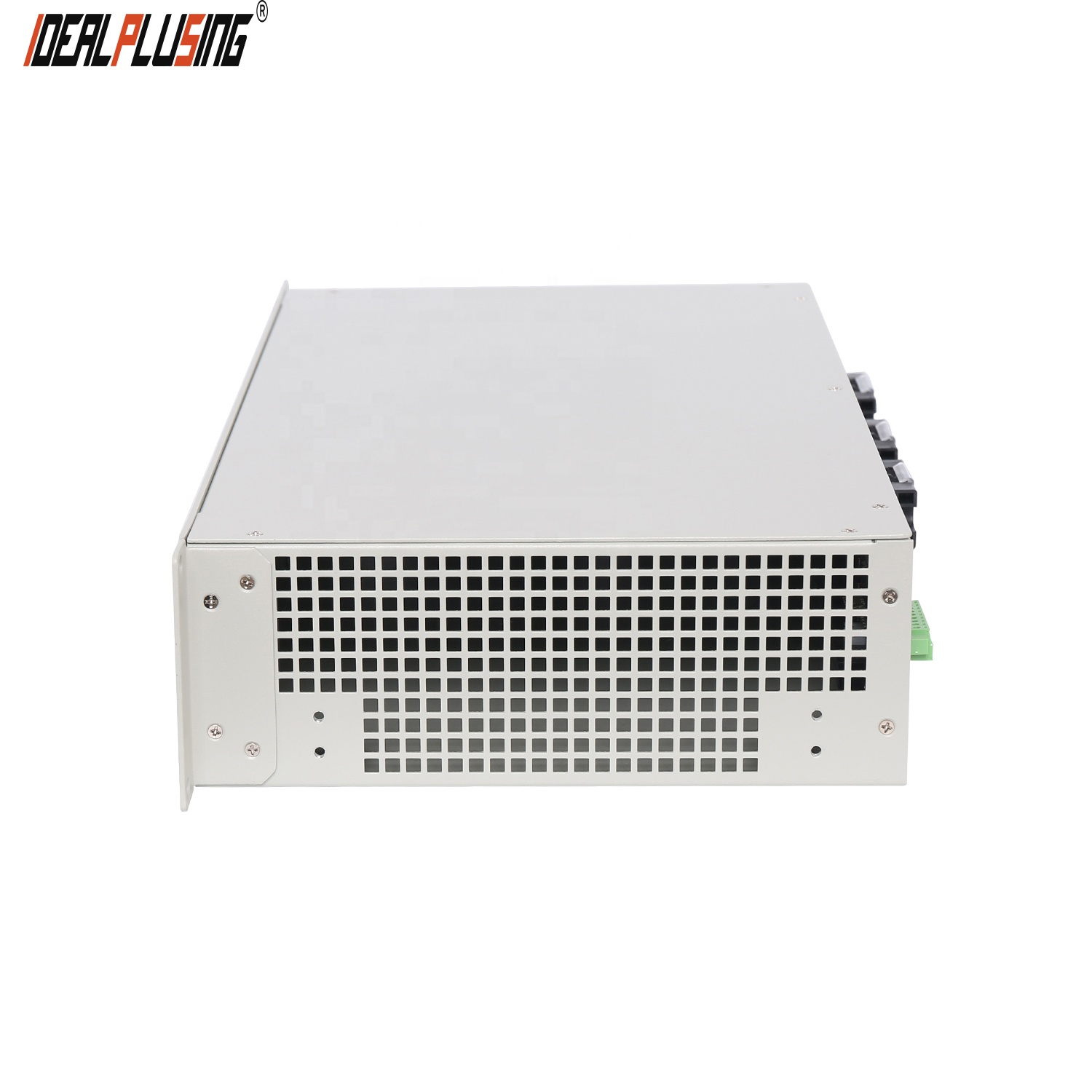

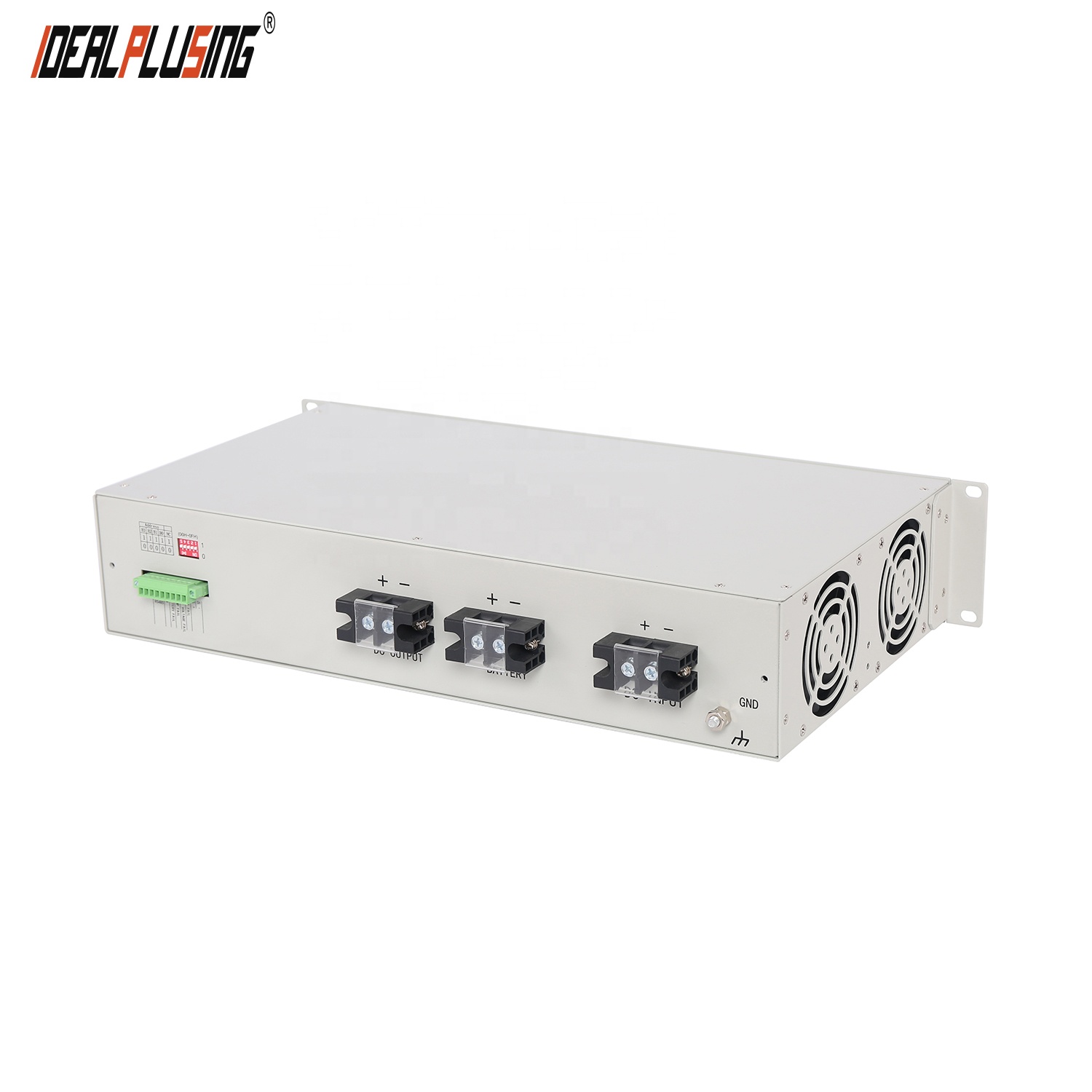

📷 PRODUCT DISPLAY
🏭 MANUFACTURING EXCELLENCE
Our team is a marketing leader for different kinds of AC to DC power supplies, DC to AC inverters, DC to DC converters, and AC to AC power sources. Our product range includes adjustable DC power supplies, pure sine wave inverters, power distribution units, switching power supplies, and rectifier systems.
Quality is our culture. We strictly implement operation guidelines of "Leading Technology, Reliable Quality, Satisfactory Service, and Customer First." We utilize professional production lines and maintain a dedicated teamwork approach for after-sale services to ensure our customers' business remains safe and efficient.
❓ FREQUENTLY ASKED QUESTIONS
What types of power solutions do you provide?
We specialize in a wide range of solutions including DC-DC Converters, Power Inverters, AC-DC Power Supplies, and Switching Mode Power Supplies suitable for various industrial and communication needs.
How is the product quality guaranteed?
We maintain high standards by providing pre-production samples before mass production and conducting a mandatory final inspection before every shipment.
Can these modules be used in parallel?
Yes, the modules support N + 1 backup. Even if one or several modules fail, it does not affect the parallel operation of other modules, and they can achieve automatic current sharing.
What protection features are built into the DC-DC converter?
Our converters feature comprehensive protection functions including output over-voltage, over-current, short circuit, and full overheating protection for maximum reliability.
What is the standard installation size?
The modules are designed with a standard 19-inch width and a 2U height rack-mounted configuration, making them compatible with most standard industrial racks.
