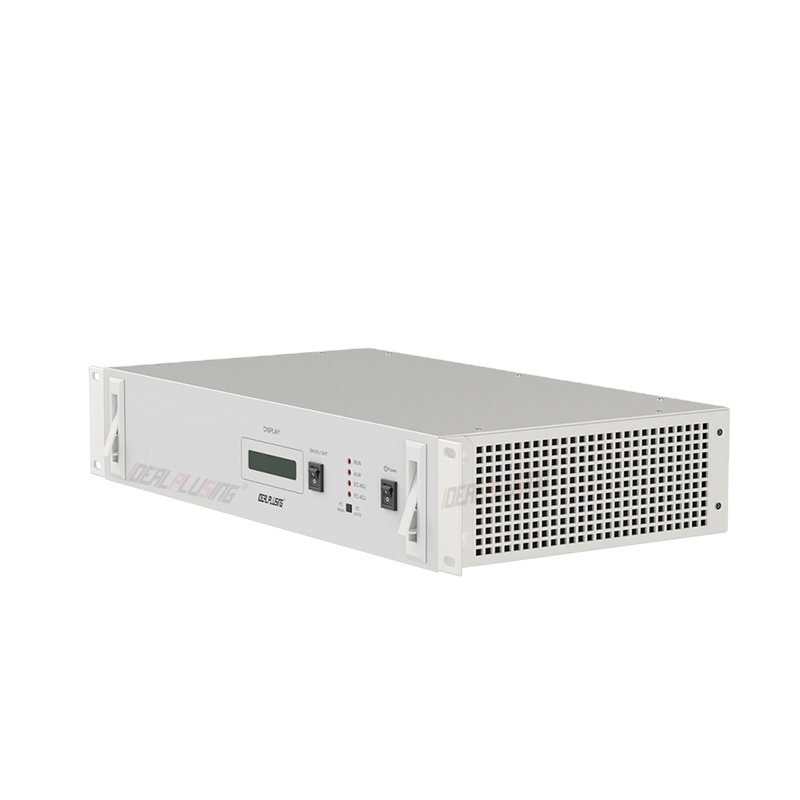

Customizable 19 Inch Rack Type Dc Converter Module 220v to 110v 10a 1100w Step Down Power Us to Europe Voltage Converter Adapter
Product Description
5V-12V-12A
12/24V-12V-10A
48V-12V-10A
48V-12V-100A
72V-12V-8A
120V-12V-20A
12V-48V-40A
12V-24V-3A
48V-24A-125A
12V-24V-150A
80V-24V-30A
18~36V-28V-20A
12V-56-5A
12V-56V-20A
24V-48V-50A
48V-48V-30A
220V-48V-50A
220V-110V-20A
I. INFORMATION
II. FEATURES
1
The use of advanced dual-tube forward switch technology, the isolation between the design of the module to prevent the interaction between the modules.
2
In the case of N + 1 backup, even if one or several modules fail, it does not affect the parallel operation of other modules, and between modules can achieve automatic current sharing.
3
Meet the 220V DC, 110V DC, 24VDC power supply system requirements. Input voltage range is wide, basically applicable to a variety of power grid system power supply requirements, compatibility is better.
4
Header module with 3 and a half of the table display, display the output current and voltage, simple and practical.
5
Module with a width of 19 inches, the height of 2U standard rack-mounted design, the user installed.
6
Wide operating temperature range. -10 ā ~ +50 ā temperature range can be full output power.
7
Small size, light weight, easy after-sales maintenance.
8
Input and output completely isolated, safe and reliable.
9
Advanced current control mode and stable and reliable circuit topology.
10
All the key components used in all imported devices.
11
Protection function comprehensive, the output over-voltage, over-current, short circuit, the whole overheating protection.
12
Can be more than a parallel flow and use. (Optional)
III. CUSTOMIZE RANGE
IV. MAIN PARAMETER
| Technical Data | IPS-DTD220S11010 | Test Conditions |
|---|---|---|
| Input Voltage Range | (180~270)VDC | - |
| Input Current | 5.89A | - |
| Module Power Surge (A) | DCā¤2A | Output Full Load |
| Output Float Voltage (V) | 110VDC | Factory Settings |
| Output Current (A) | 10A | Output Limit 101%~105% |
| Load Regulation | ā¤Ā±0.5% | Output without load to full load |
| Power Regulation | ā¤Ā±0.2% | - |
| Dynamic Response | 100usMax | 20%~100% Load |
| Phone Scale Noise Voltage (mV) | ā¤2 | Noise meter |
| Peak - peak Noise Voltage (mV) | ā¤100 | 0~20MHz |
| Efficiency | ā„83% | - |
| Current Deviation | ā¤Ā±5% | - |
| Temperature Coefficient (ā) | 0.02% | - |
| Over-temperature protection (ā) | 95Ā±5 | Radiator will close when temperature is over 95ā, can recover. |
| Working Temperature (ā) | -5~45 | - |
| Storage Temperature (ā) | -10~85 | - |
| Working Humidity | 5%~95% | Non-condensing |
| Insulation Strength | Leakage Current <30mA | 500Vdc/1min |
| Insulation Resistance (MĪ©) | ā„20 | DC 1KV |
| MTBF (hrs.) | 100000 | - |
| Net Weight (Kg) | 7.5 | - |
| Gross Weight (Kg) | 9.5 | - |
| Dimension Rack-mounted (mm) (L*H*D) | 482*88*240(MM) | - |
| Dimension Package (mm) | 613*155*413(MM) | - |
Factory Display
Recommend DC DC
Frequently Asked Questions (FAQ)
What is the input voltage range of the IPS-DTD220S11010 converter?
The converter supports a wide input voltage range of 180VDC to 270VDC, making it highly compatible with standard 220V DC power systems.
Does this module support parallel operation for redundancy?
Yes, in N+1 backup configurations, modules can run in parallel with automatic current sharing. A single module failure will not disrupt the remaining parallel modules.
What kind of over-temperature protection is built into the device?
The unit is equipped with automatic over-temperature protection set at 95Ā±5ā. The radiator shuts down when this threshold is exceeded and automatically recovers once temperatures drop.
Are the input and output electrical pathways isolated?
Yes, the input and output circuits are completely isolated, ensuring safe, stable, and reliable operation.
What are the physical dimensions and installation type?
The converter is designed as a standard 19-inch rack-mounted module with a 2U height. The physical dimensions are 482mm * 88mm * 240mm.
