IPS-DTD110S4810 Vietnam Market Selling IPS-DTD110S4810 Dc Dc Converter 110vdc to 48vdc
Product Description
IPS-DTD110S4810 DC-DC Converter: 110VDC to 48VDC Power Supply
ℹ️
1. INFORMATION
The DC-DC Converter / DC Conversion Power Supply is specifically designed to meet the rigorous requirements of communication equipment across communication and electric power departments.
Utilizing high-frequency switching technology, this converter offers high-accuracy voltage stabilization, low output noise, and robust resistance to interference. Its small volume, lightweight design, and elegant external form make it an ideal configuration for providing reliable power to communication equipment across various voltage grades.
🚀
2. FEATURES
01 Advanced dual-tube forward switch technology with module isolation to prevent interaction.
02 N + 1 backup support allowing parallel operation even if individual modules fail.
03 Wide input range compatible with 220VDC, 110VDC, and 24VDC power systems.
04 Integrated table display for real-time monitoring of output current and voltage.
05 Standard 19-inch width and 2U height rack-mounted design for easy installation.
06 Wide operating range (-10°C to +50°C) with full power output capability.
07 Compact and lightweight for simplified after-sales maintenance.
08 Complete input and output isolation for maximum safety and reliability.
09 Advanced current control mode and stable circuit topology.
10 High-quality performance using premium imported components.
11 Comprehensive protection: over-voltage, over-current, short circuit, and overheating.
12 Optional multi-module parallel flow capability.
📊
3. MAIN PARAMETERS
| Technical Data (IPS-DTD110S48) | 10 | 20 | 30 | 40 | 50 | Test Conditions | |
|---|---|---|---|---|---|---|---|
| Input Voltage Range (VDC) | 90~140VDC | - | |||||
| Module Power Surge (A) | DC ≤ 2A | Output Full Load | |||||
| Output Float Voltage (V) | 48VDC | Factory Settings | |||||
| Output Current (A) | 10A | 20A | 30A | 40A | 50A | Limit 101%~105% | |
| Load Regulation | ≤±0.5% | No load to full load | |||||
| Power Regulation | ≤±0.2% | - | |||||
| Dynamic Response | 100us Max | 20%~100% Load | |||||
| Peak-peak Noise Voltage (mV) | ≤100 | 0~20MHz | |||||
| Efficiency | ≥83% | - | |||||
| Over-temperature protection (°C) | 95±5 | Radiator will close over 95°C, auto-recover | |||||
| MTBF (hrs.) | 100,000 | - | |||||
| Dimension | Rack-mounted (mm) | 482 * 88 * 240 (L*H*D) | 2U Height | ||||
🖼️

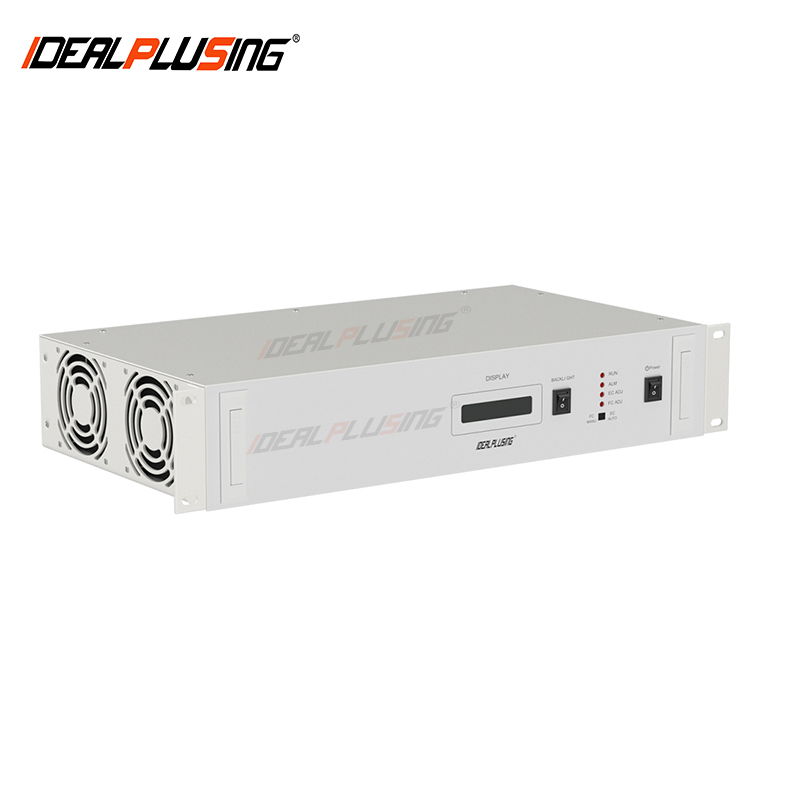

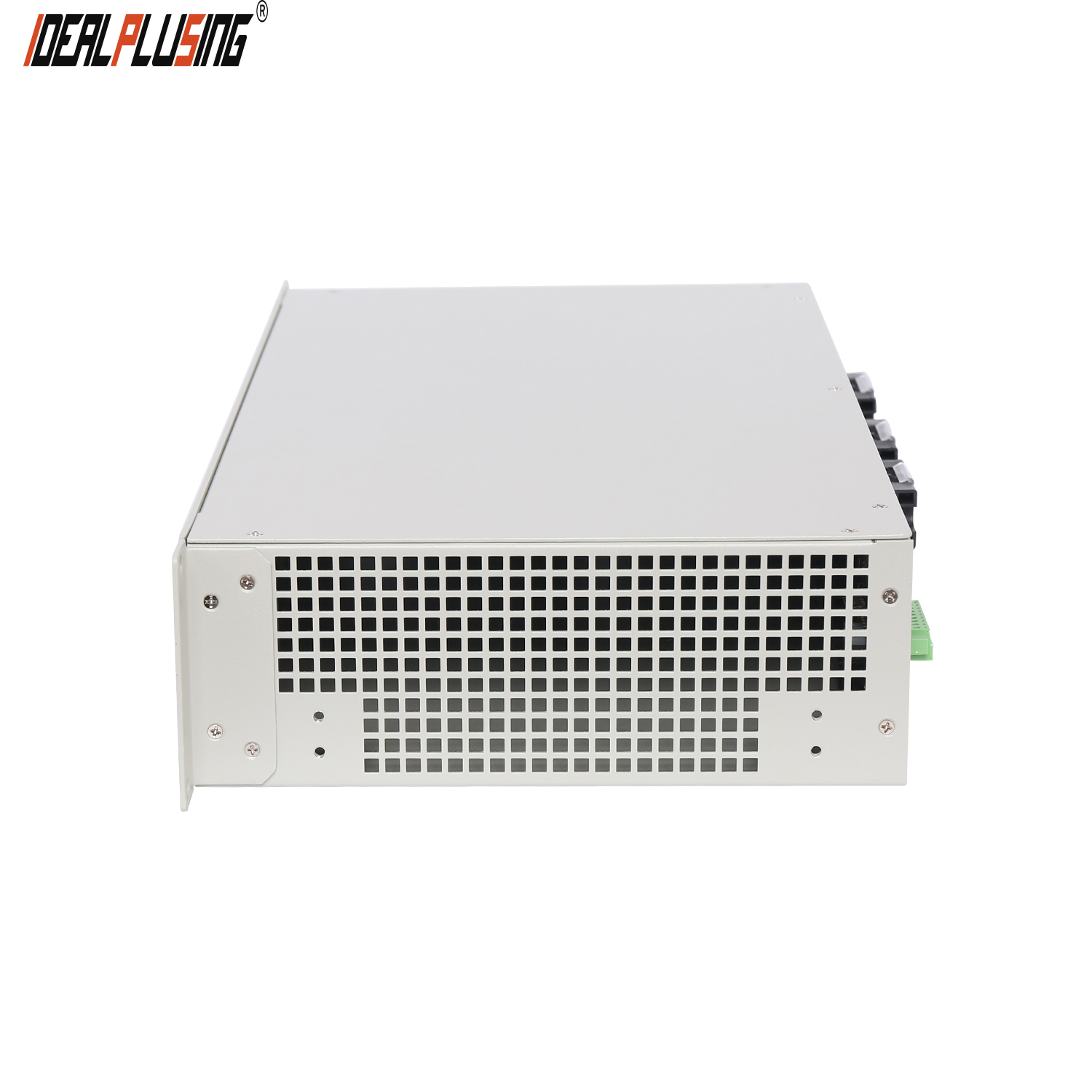

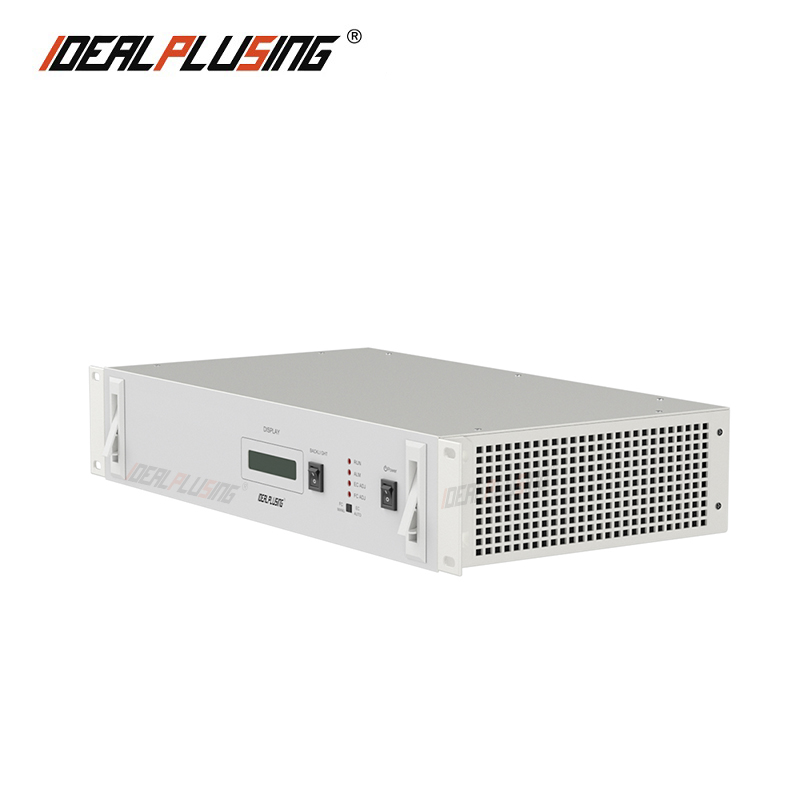

4. REFERENCE PICTURES

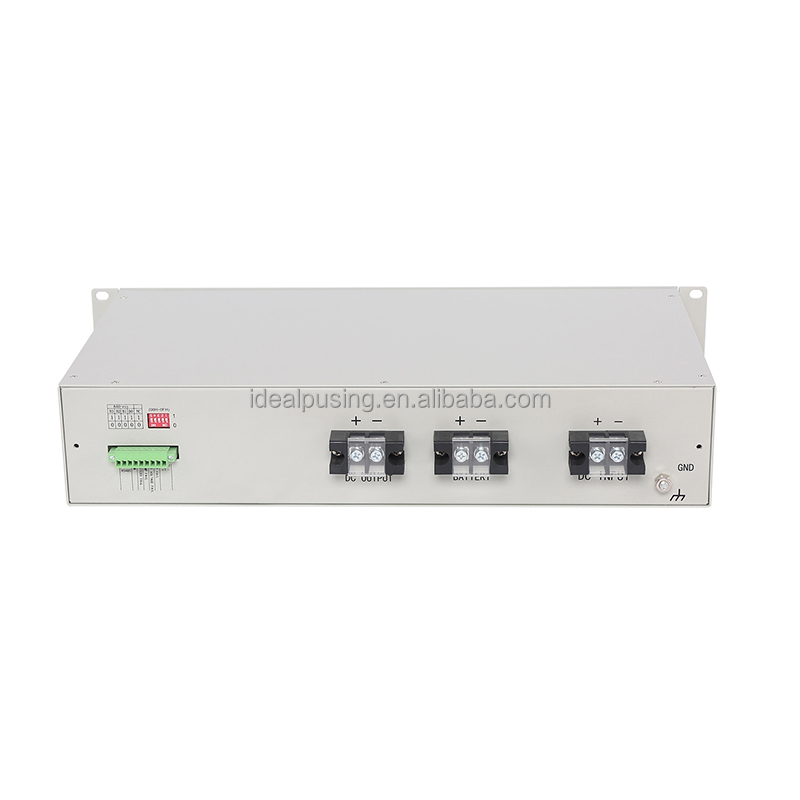

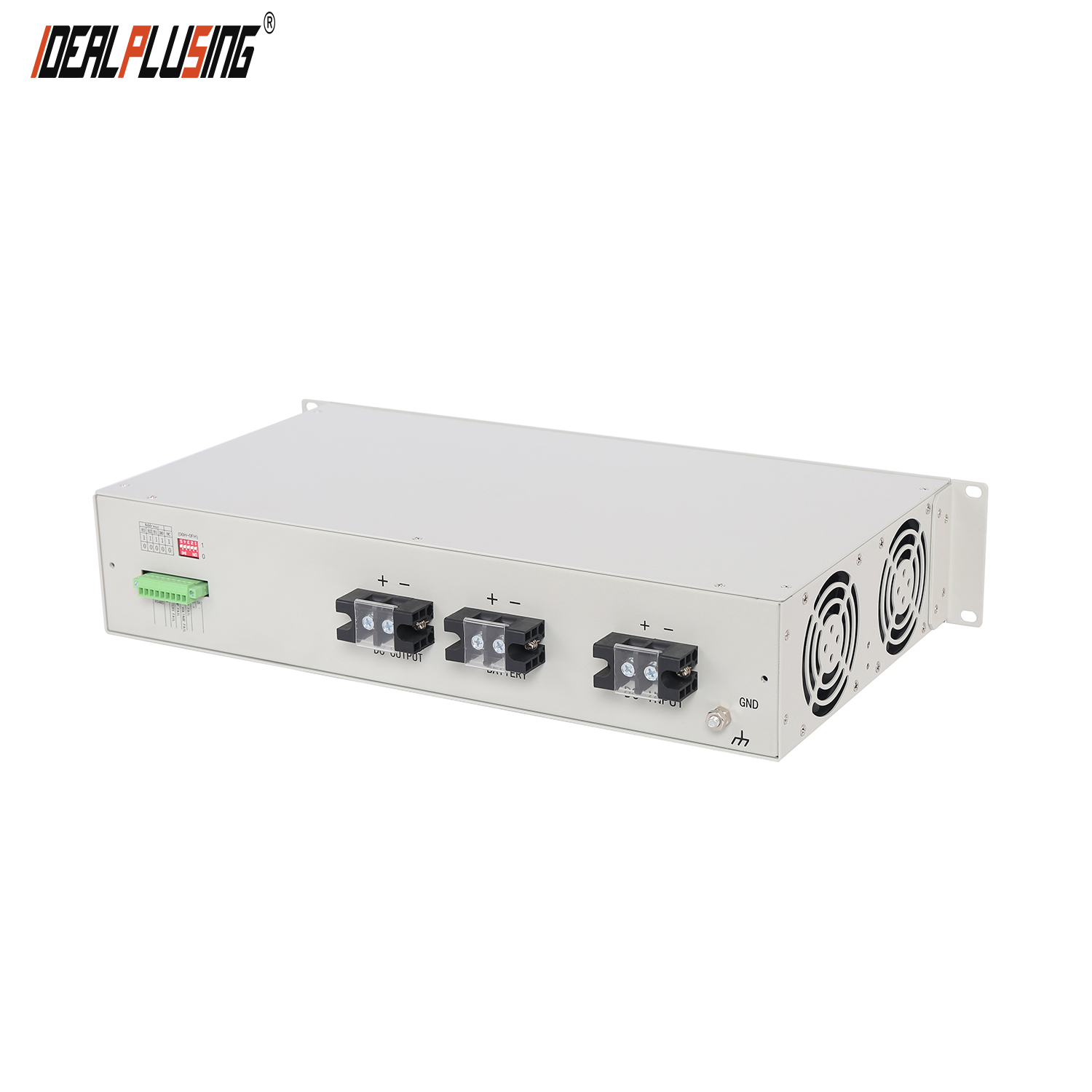

(With optional battery port configuration shown below)
🔌
5. BASIC CONNECTION
1) Single Use Connection Diagram:
2) Multiple Parallel Connection Diagram:
❓
Frequently Asked Questions
What is the primary function of the IPS-DTD110S4810?
It is a high-frequency DC-DC converter designed to step down a 110VDC input to a stable 48VDC output, primarily for communication and electrical power equipment.
Does this unit support redundant configurations?
Yes, it supports N + 1 backup. Even if one or more modules fail, the remaining modules will continue to operate in parallel with automatic current sharing.
Can it be mounted in a standard server rack?
Absolutely. The device features a standard 19-inch width and 2U height design, specifically made for easy rack-mount installation.
What safety protections are built into the device?
It includes comprehensive protection against output over-voltage, over-current, short circuits, and full-system overheating (thermal shutdown at 95°C).
Is the input and output isolated?
Yes, the input and output are completely isolated, ensuring high safety standards and reliability for sensitive communication electronics.
What is the expected lifespan of the converter?
The unit has a Mean Time Between Failures (MTBF) of 100,000 hours, reflecting its high-quality construction and industrial-grade components.
