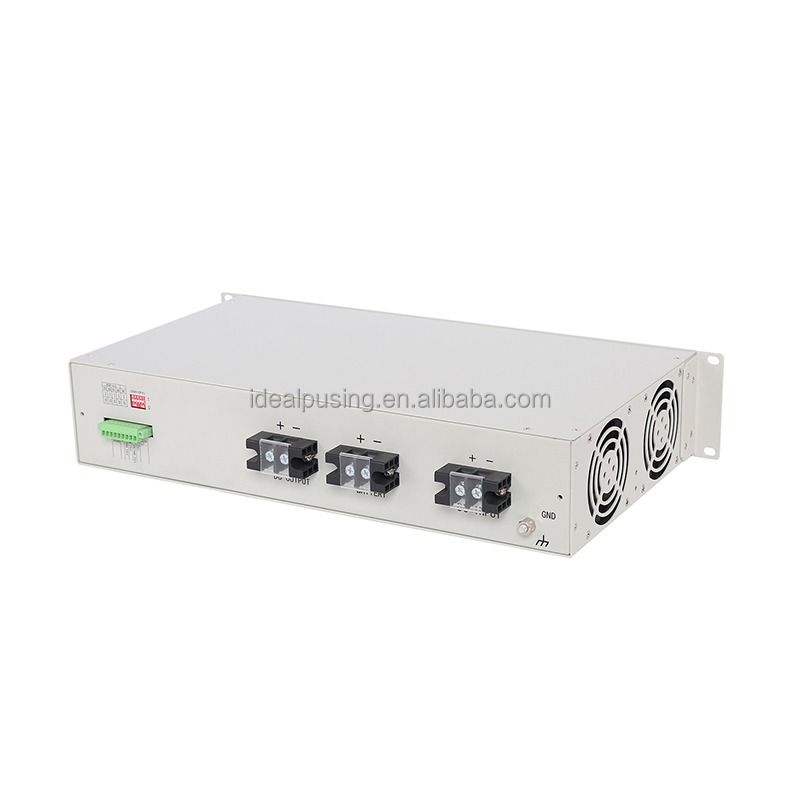

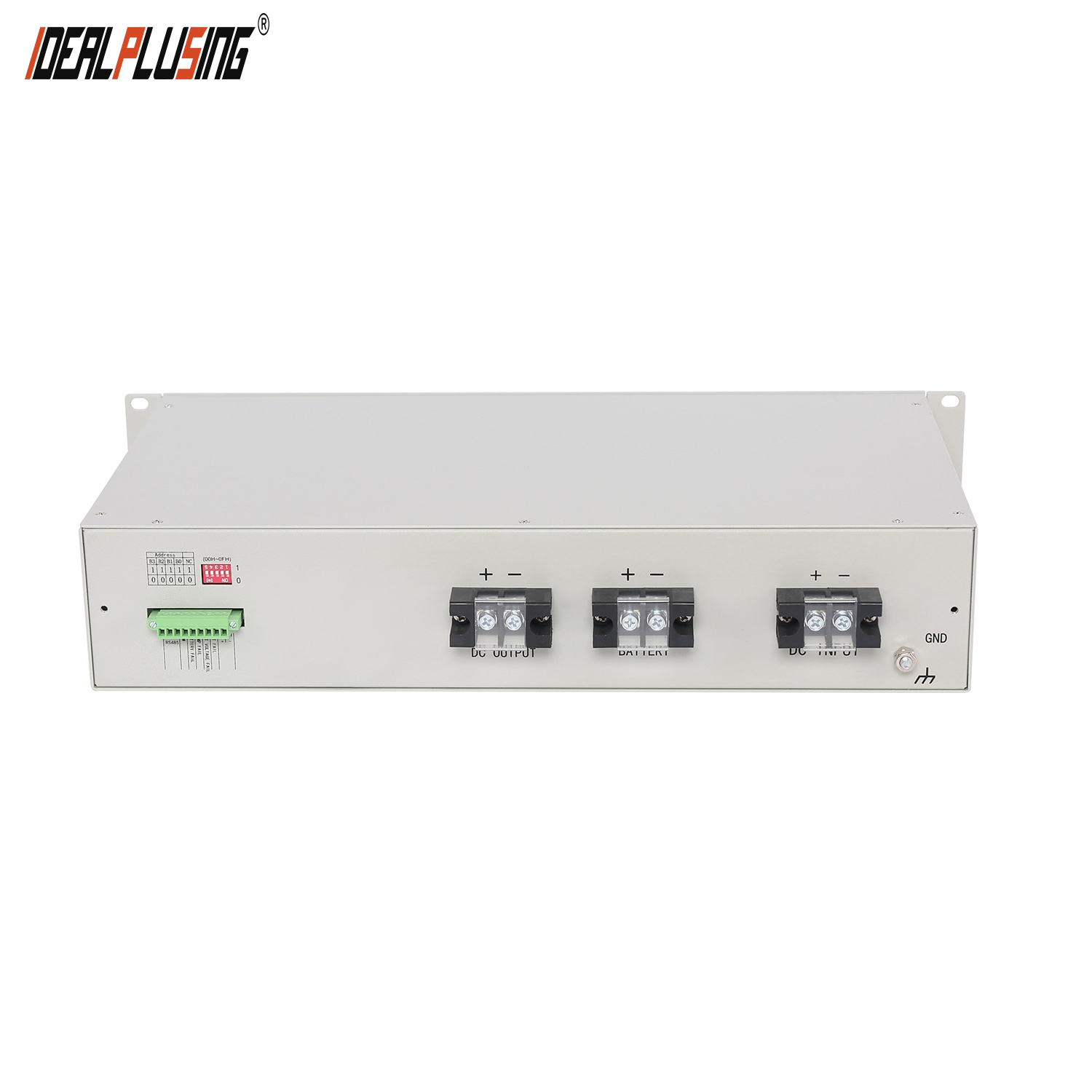

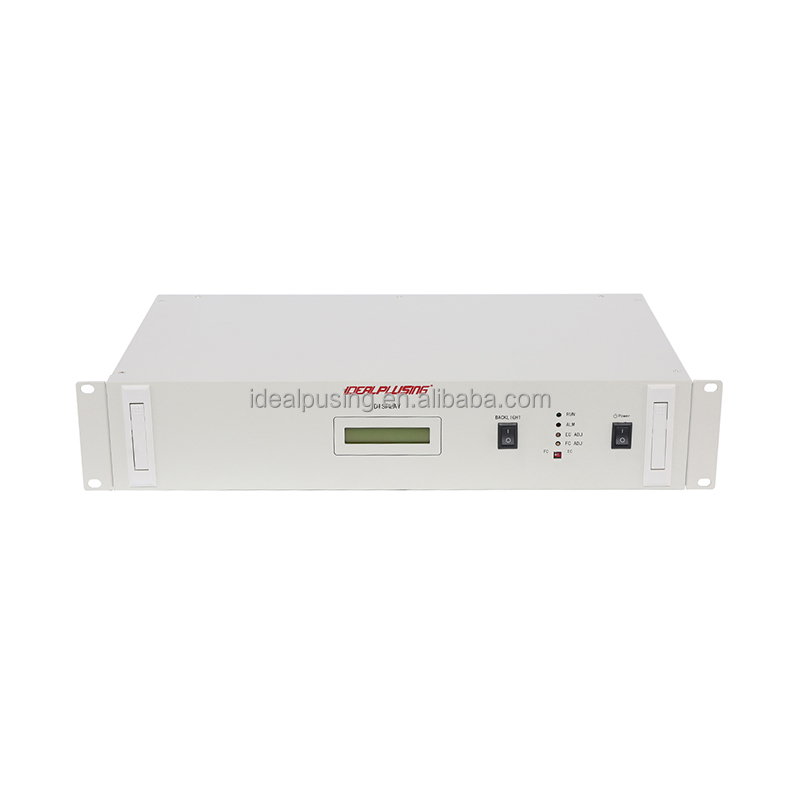

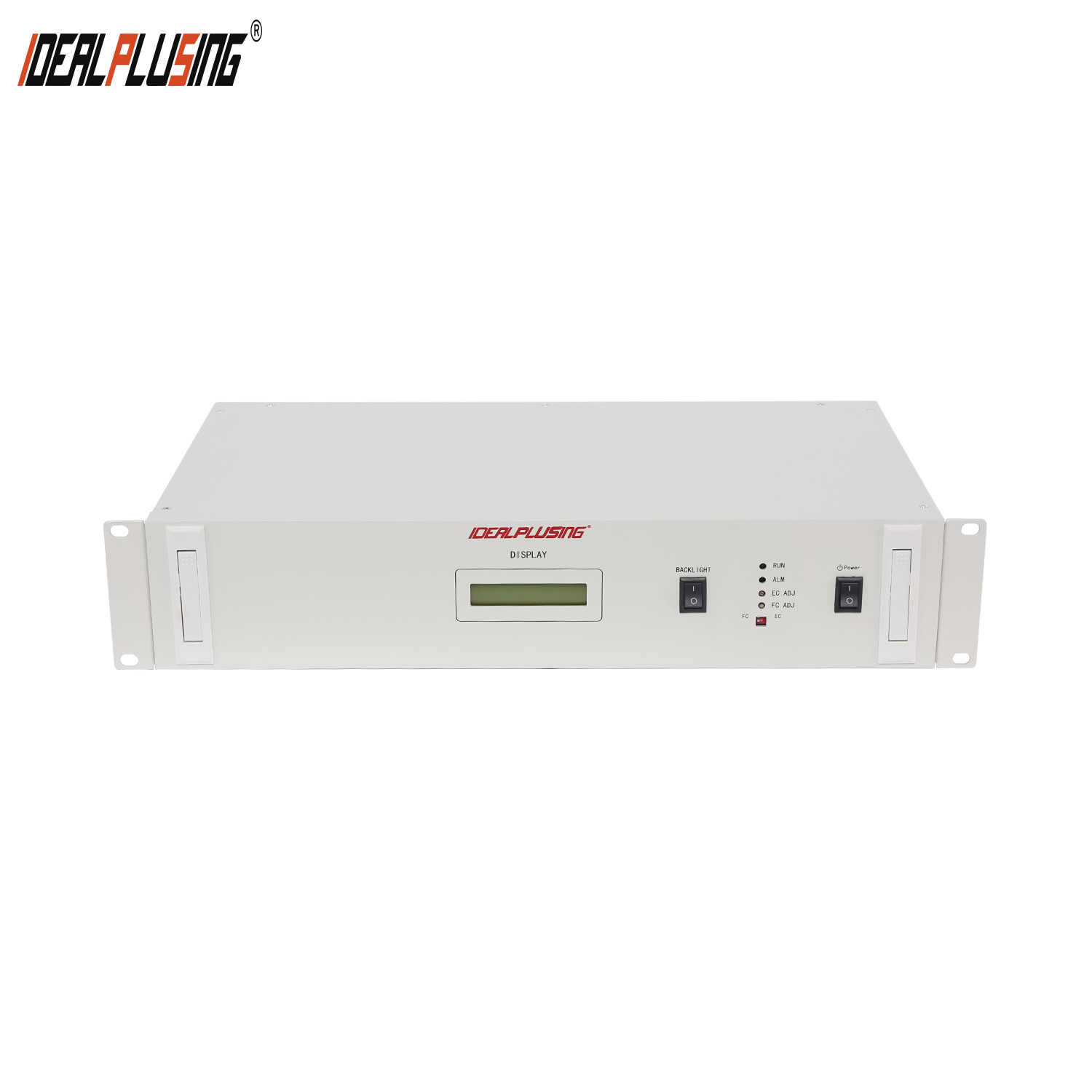

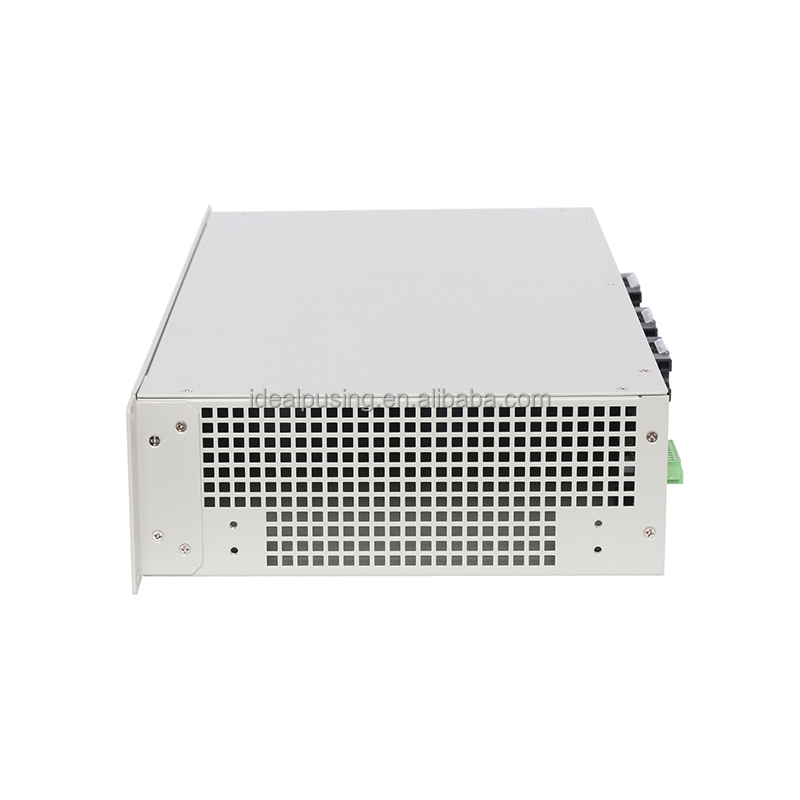

IPS-DTD220S22010 Good Quality with CE RoHS 110v to 20v 10a 2200w Dc Converter
Product Description
⚡ Features of DC/DC Converters
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories: Boost type, boost & buck type, and buck type. Three kinds of control can be adopted according to the demand. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load. PFM control is implemented when PWM/PFM converts to small load, and it is automatically converted to PWM control when heavy load occurs.
Power Conversion Solutions
We have developed more than 5000+ power supply solutions. The power range is from 1 watt to 200 kilowatts and the input voltage is up to 2000 volts.
Our team provides high reliability products with a design life of 15 to 20 years. We specialize in customizing DC-DC converters to meet specific requirements, with offerings ranging from 1V to 1000V DC and 1A to 1000A, including both isolated and non-isolated designs.
📋 Specifications
| Parameter | Details |
|---|---|
| Brand | OEM Available |
| Type | Non-isolate |
| Output Voltage | 220VDC or Base on model |
| Output Current | 10Amps or Base on model |
| Output Power | 2200Watts or Base on model |
| Waterproof Level | IP67 |
🔥 Hot Selling Models
IPS-DTD30-60S1210
Non-Isolate Type
IPS-DTD20-100S122
Non-Isolate Type
IPS-DTD15-40S1210
Non-Isolate Type
⚙️ Technical Application Notes
01. Standard protections include output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
02. For inductive loads (coils, magnetic valves, motors), we recommend using a power supply 3-5 times the rated power of the load.
03. Non-isolated buck converters carry a risk: high input voltage could pass directly to the output if a failure occurs. Isolated products are safer for precious loads.
04. Isolated product negative poles cannot be shared; input and output ground must be used separately to maintain isolation.
05. Isolated power supplies can support negative voltage input and offer the highest safety, used in over 90% of global power applications.
📸 Product Gallery
❓ Frequently Asked Questions
What is the difference between PWM and PFM control?
PWM (Pulse Width Modulation) offers high efficiency and low ripple/noise. PFM (Pulse Frequency Modulation) is ideal for low power consumption during long-term use with small loads. Modern converters often switch automatically between the two.
How should I choose a converter for motor applications?
For inductive loads such as motors, speakers, or magnetic valves, it is recommended to use a power supply that is 3 to 5 times the rated power of the load to handle start-up surges.
Why are isolated power supplies considered safer?
In isolated supplies, there is no direct electrical path between input and output. This prevents high input voltages from passing to the output and burning out connected equipment in the event of a failure.
What protections come standard with your converters?
Most products include output overcurrent protection, output short-circuit protection, input undervoltage protection, and overheating protection. High-power models include case temperature protection set around 90°C.
Can I use these converters for battery charging?
Yes, but you should choose specific models with charging functions. We offer dedicated series for Lithium, LiFePO4, and Lead Acid batteries.
What is the typical design life of these power supplies?
Our products are designed for high reliability with a design life of 15 to 20 years, making them suitable for complex and demanding working environments.
